Home  /  Products  /  Outdoor  /  Street/Area  AED

LED Area Light

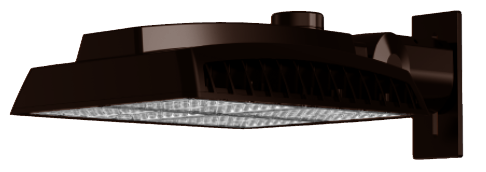

The AED is a versatile LED area light suitable for many exterior site lighting applications. It features high performance LED technology and a 3-pin photocell receptacle standard. The "LW" model features 6kV surge protection, while the "MD" model has 10kV surge protection. The housing is made of precision die cast aluminum with a chip and fade resistant textured polyester bronze powdercoat finish.

  • Applications: Suitable for most exterior site lighting applications - parking lots, loading docks, roadways, sight lighting
  • Lumen Output: 13,499 and 20,249 lumens
  • Max Lumens Per Watt: 135
  • Predicted L70 Lifetime: >70,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations, IP65

PBLU 3

Note: Table scrolls horizontally
Catalog #
LumensWattsLPWBUG RatingCRI / Color TempOpticVoltageWarrantyPredicted L70 Lifetime
AED LW 4 UV 74013,499100135B3-U0-G370 CRI / 4000KType IV120-277V5 years>70,000 hours
AED MD 4 UV 74020,249150135B3-U0-G370 CRI / 4000KType IV120-277V5 years>70,000 hours
Coming soon

Catalog #
Equivalency*
AED LW 4 UV 740200W HPS
AED MD 4 UV 740250W HPS / 400W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
AED LW 4 UV 740View Download Download
AED MD 4 UV 740View Download Download

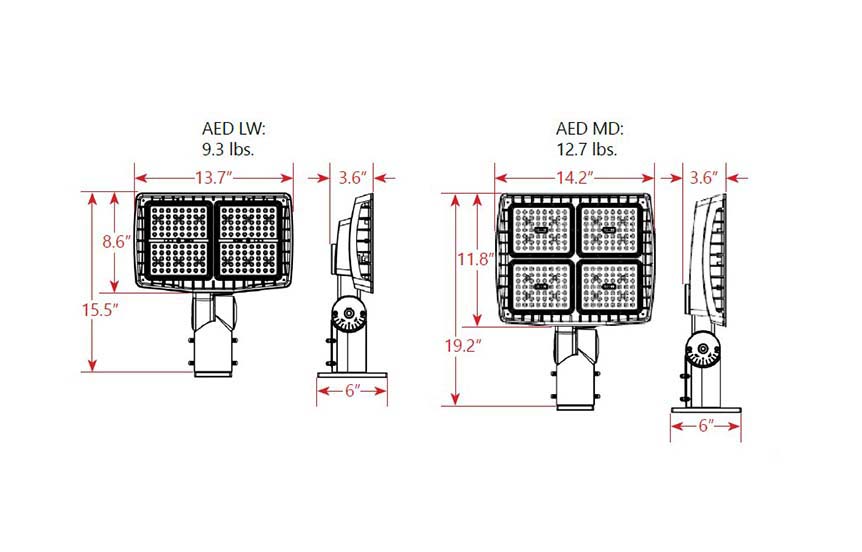

AED Mounting

Mounting options

The AED comes standard with adjustable slipfitter and tenor arm for square pole or wall mounting. The slipfitter fits 2 3/8" to 2 1/2" round tenons if included tenon arm is not needed.
