LED Area/Flood Light

The AFL features high performance, highly efficient LED technology. It is suitable for many exterior site lighting applications. A photocell comes standard, as do 0-10V dimming drivers. There are two mounts to choose from: the Extension Arm for direct mounting to poles or walls, and the Slipfitter Knuckle for round tenons. AFL's housing is made of precision die cast aluminum. It is coated with a chip and fade resistant textured polyester powdercoat finish. The lens is UV-stabilized polycarbonate.

  • Applications: Suitable for exterior site lighting applications: parking lots, loading docks, roadways, sign lighting
  • Lumen Output: From about 12,000 to 18,300
  • Max Lumens Per Watt: 125
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP66 rated
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFL-with-SK-mounted.jpg

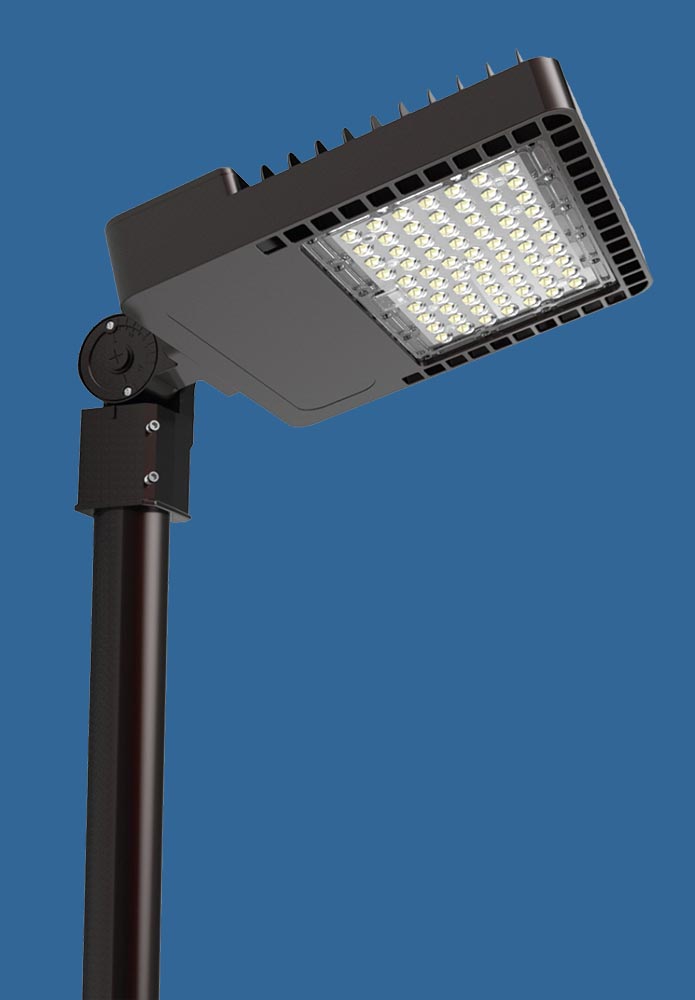

AFL with Slipfitter Knuckle
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFL1jpg.jpg
AFL from top, with Extension Arm
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFL-with-SK.jpg

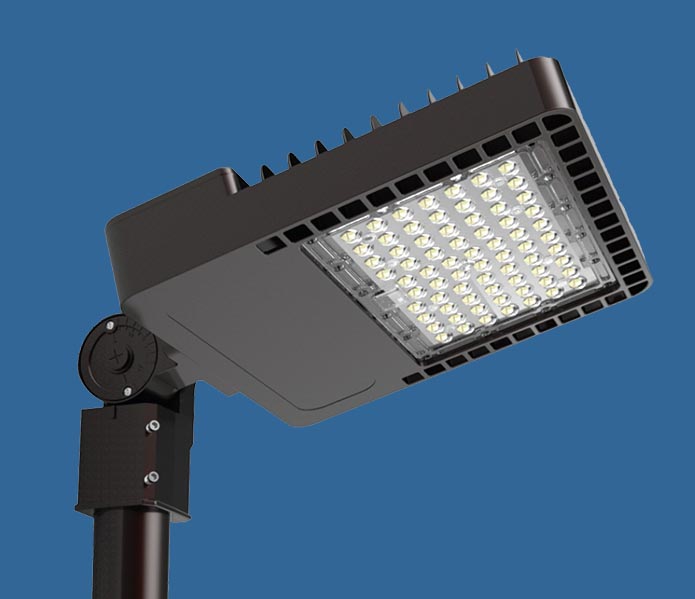

AFL with Slipfitter Knuckle
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFLmountingoptions2.jpg
AFL mounting options: Extension Arm (left) and Slipfitter Knuckle (right)
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFL2jpg.jpg

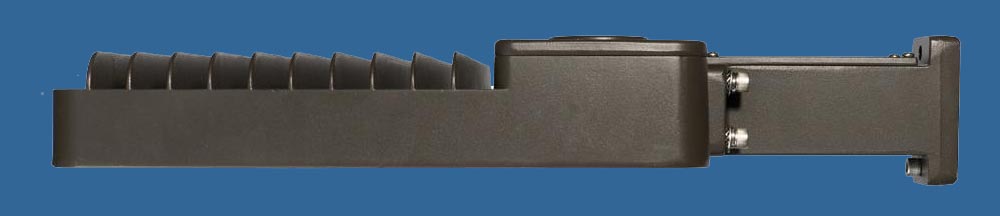

AFL with Extension Arm
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFL3jpg.jpg
AFL with Extension Arm
https://www.lumenfocus.com/wp-content/uploads/2019/01/AFLSchematic.jpg
AFL schematic

AFL Performance Chart

Catalog #
LumensWattsLPWCRI / Color TempOpticVoltages AvailableWarrantyPredicted L70 LifetimeEquivalency*
AFL LW F UV 840
Photometry Files | Image
12,0719812380 CRI / 4000KF120-277V5 years>50,000 hrs250W MH in an area light
AFL MD F UV 840
Photometry Files | Image
18,34514712580 CRI / 4000KF120-277V5 years>50,000 hrs400W MH in an area light
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
