LED Area Light

    The ALx LED area light is a versatile luminaire available in four sizes. A wide variety of mounting options and optics are available, depending on the size selected (view individual spec sheets for more details). Each ALx is suitable most exterior street/area light applications, including parking lots or sports courts. The lenses are clear flat glass. The housings are die cast aluminum, with a textured powdercoat finish over a chromate conversion coating. Each ALx features long-life, high performance LED technology. 0-10V dimming drivers come standard.
  • Applications: Suitable for most exterior street or area light applications - street lighting, parking lots, exterior sport courts
  • Sizes: Small (ALS), medium (ALM), large (ALL), extra large (ALX)
  • Lumen Output: ALS: ~2,600-4,500 lumens; ALM: ~9,400-14,600; ALL: ~19,400-31,900; ALX: ~38,800-44,000 in the MD package, and ~52,000-66,800 in the HI package
  • Max Lumens Per Watt: Just under 127 (in the ALM)
  • Predicted L70 Lifetime: >100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP66 rated.

Click to enlarge

ALS-TSforslide ALS-TSforslide
ALS
ALXforslide ALXforslide

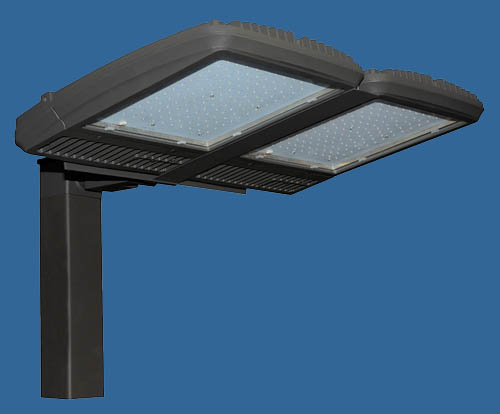

ALX
ALM ALM
ALM
ALL ALL
ALL
ALS schematic ALS schematic
ALS schematic
ALM ALL schematic2 ALM ALL schematic2
ALM and ALL schematic
ALX schematic ALX schematic
ALX schematic
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWBUG RatingSizeOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
ALS MD 3 UV 8402,68025107.7B1-U0-G1SmallType III80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALS MD 3 UV 8502,87525115.5B1-U0-G1SmallType III80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALS MD 5M UV 8402,55725102.8B1-U0-G0SmallType V Medium80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALS MD 5M UV 8502,74225110.2B1-U0-G0SmallType V Medium80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALS MD S UV 8502,68224111.8SmallSpot80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALS HI 3 UV 8404,50841110.2B1-U0-G1SmallType III80 CRI/4000K120-277V, 347V5 years>100,000 hrs (calculated)
ALS HI 3 UV 8504,83441118.2B1-U0-G1SmallType III80 CRI/5000K120-277V, 347V5 years>100,000 hrs (calculated)
ALS HI 5M UV 8404,30041105.5B2-U0-G0SmallType V Medium80 CRI/4000K120-277V, 347V5 years>100,000 hrs (calculated)
ALS HI 5M UV 8504,61241112.8B2-U0-G0SmallType V Medium80 CRI/5000K120-277V, 347V5 years>100,000 hrs (calculated)
ALS HI S UV 8504,51243106.2SmallSpot80 CRI/5000K120-277V, 347V5 years>100,000 hrs (calculated)
ALM MD 1 UV 8409,41884111.8B3-U0-G1MediumType I80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 1 UV 85010,09984119.9B3-U0-G1MediumType I80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 2 UV 8408,98484106.7B2-U0-G1MediumType II80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 2 UV 8509,63484114.4B2-U0-G2MediumType II80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 3 UV 8409,86984117.2B2-U0-G2MediumType III80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 3 UV 85010,58384125.7B2-U0-G2MediumType III80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 4 UV 8409,26984110.1B1-U1-G2MediumType IV80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 4 UV 8509,94084118.1B1-U1-G2MediumType IV80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 5M UV 8409,41484111.8B3-U0-G1MediumType V Medium80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD 5M UV 85010,09584119.9B3-U0-G1MediumType V Medium80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM MD S UV 8509,52687109.5MediumSpot80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALM HI 1 UV 84013,641121112.7B3-U0-G2MediumType I80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALM HI 1 UV 85014,629121120.9B3-U0-G2MediumType I80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALM HI 2 UV 84013,013121107.5B2-U0-G2MediumType II80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALM HI 2 UV 85013,955121115.3B3-U0-G2MediumType II80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALM HI 3 UV 84014,296121118.1B3-U0-G3MediumType III80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALM HI 3 UV 85015,331121126.7B3-U0-G3MediumType III80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALM HI 4 UV 84012,588121104B2-U1-G2MediumType IV80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALM HI 4 UV 85013,499121111.5B2-U1-G3MediumType IV80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALM HI 5M UV 84013,637121112.7B3-U0-G1MediumType V Medium80 CRI/4000K120-277V5 years>100,000 hrs (calculated)
ALM HI 5M UV 85014,624121120.9B3-U0-G1MediumType V Medium80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALM HI S UV 85013,348125106.9MediumSpot80 CRI/5000K120-277V5 years>100,000 hrs (calculated)
ALL MD 1 UV 84019,416179108.6B4-U0-G2LargeType I80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 1 UV 85020,821179116.4B4-U0-G3LargeType I80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 2 UV 84018,522179103.6B3-U0-G2LargeType II80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 2 UV 85019,863179111.1B3-U0-G3LargeType II80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 3 UV 84020,347179113.8B3-U0-G3LargeType III80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 3 UV 85021,820179122B3-U0-G3LargeType III80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 4 UV 84020,625179115.4B3-U1-G4LargeType IV80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 4 UV 85022,118179123.7B3-U1-G4LargeType IV80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 5M UV 84019,409179108.6B4-U0-G1LargeType V Medium80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD 5M UV 85020,814179116.4B4-U0-G1LargeType V Medium80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL MD S UV 85020,684177116.9LargeSpot80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 1 UV 84029,763275108.3B5-U0-G3LargeType I80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 1 UV 85031,918275116.2B5-U0-G3LargeType I80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 2 UV 84028,393275103.4B3-U0-G3LargeType II80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 2 UV 85030,449275110.8B3-U0-G3LargeType II80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 3 UV 84031,191275113.5B4-U0-G4LargeType III80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 3 UV 85033,449275121.8B4-U0-G4LargeType III80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 4 UV 84025,73727593.7B3-U0-G4LargeType IV80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 4 UV 85027,600275100.5B3-U0-G4LargeType IV80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 5M UV 84029,753275108.3B5-U0-G2LargeType V Medium80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI 5M UV 85031,907275116.2B5-U0-G2LargeType V Medium80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALL HI S UV 85031,707281112.8LargeSpot80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 1 UV 840388,831354109.7B5-U0-G3Extra LargeType I80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 1 UV 85041,642354117.6B5-U0-G3Extra LargeType I80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 2 UV 84037,044354104.6B4-U0-G3Extra LargeType II80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 2 UV 85039,726354112.2B4-U0-G3Extra LargeType II80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 3 UV 84040,695354115B4-U0-G4Extra LargeType III80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 3 UV 85043,641354123.3B4-U0-G4Extra LargeType III80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 4 UV 84041,251354116.5B4-U1-G5Extra LargeType IV80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 4 UV 85044,237354125B4-U1-G5Extra LargeType IV80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 5M UV 84038,818354109.7B5-U0-G2Extra LargeType V Medium80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD 5M UV 85041,628354117.6B5-U0-G2Extra LargeType V Medium80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX MD S UV 85041,368354116.9Extra LargeSpot80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 1 UV 84059,526549108.3B5-U0-G4Extra LargeType I80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 1 UV 85063,835549116.2B5-U0-G4Extra LargeType I80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 2 UV 84056,787549103.4B4-U0-G4Extra LargeType II80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 2 UV 85060,897549110.8B4-U0-G4Extra LargeType II80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 3 UV 84062,383549113.5B5-U0-G5Extra LargeType III80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 3 UV 85066,898549121.8B5-U0-G5Extra LargeType III80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 4 UV 84052,22154995.1B3-U1-G5Extra LargeType IV80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 4 UV 85056,001549101.9B3-U1-G5Extra LargeType IV80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 5M UV 84059,506549108.3B5-U0-G2Extra LargeType V Medium80 CRI/4000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI 5M UV 85063,813549116.2B5-U0-G2Extra LargeType V Medium80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
ALX HI S UV 85063,418549115.4Extra LargeSpot80 CRI/5000K120-277V, 347V, 480V5 years>100,000 hrs (calculated)
Catalog #
Equivalency*
ALS MD 3 UV 84039W MH
ALS MD 3 UV 85039W MH
ALS HI 3 UV 84050W HPS or 50W MH
ALS HI 3 UV 85050W HPS or 50W MH
ALM MD 1 UV 840100W HPS, 100W MH, 100W PSMH
ALM MD 1 UV 850100W HPS, 100W MH, 100W PSMH
ALM MD 2 UV 840100W HPS, 100W MH, 100W PSMH
ALM MD 2 UV 850100W HPS, 100W MH, 100W PSMH
ALM MD 3 UV 840100W HPS, 100W MH, 100W PSMH
ALM MD 3 UV 850100W HPS, 100W MH, 100W PSMH
ALM MD 4 UV 840100W HPS, 100W MH, 100W PSMH
ALM MD 4 UV 850100W HPS, 100W MH, 100W PSMH
ALM HI 1 UV 840150W HPS or 250W MH
ALM HI 1 UV 850150W HPS or 250W MH
ALM HI 2 UV 840150W HPS or 250W MH
ALM HI 2 UV 850150W HPS or 250W MH
ALM HI 3 UV 840150W HPS or 250W MH
ALM HI 3 UV 850150W HPS or 250W MH
ALM HI 4 UV 840150W HPS or 250W MH
ALM HI 4 UV 850150W HPS or 250W MH
ALL MD 1 UV 840250W HPS, 400W MH, 320W PSMH
ALL MD 1 UV 850250W HPS, 400W MH, 320W PSMH
ALL MD 2 UV 840250W HPS, 400W MH, 320W PSMH
ALL MD 2 UV 850250W HPS, 400W MH, 320W PSMH
ALL MD 3 UV 840250W HPS, 400W MH, 320W PSMH
ALL MD 3 UV 850250W HPS, 400W MH, 320W PSMH
ALL MD 4 UV 840250W HPS, 400W MH, 320W PSMH
ALL MD 4 UV 850250W HPS, 400W MH, 320W PSMH
ALL HI 1 UV 840400W PSMH
ALL HI 1 UV 850400W PSMH
ALL HI 2 UV 840400W PSMH
ALL HI 2 UV 850400W PSMH
ALL HI 3 UV 840400W PSMH
ALL HI 3 UV 850400W PSMH
ALL HI 4 UV 840400W PSMH
ALL HI 4 UV 850400W PSMH
ALX MD 1 UV 8401000W MH
ALX MD 1 UV 8501000W MH
ALX MD 2 UV 8401000W MH
ALX MD 2 UV 8501000W MH
ALX MD 3 UV 8401000W MH
ALX MD 3 UV 8501000W MH
ALX MD 4 UV 8401000W MH
ALX MD 4 UV 8501000W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
ALS MD 3 UV 840View Download Download
ALS MD 3 UV 850View Download No EHS* | With EHS
ALS MD 5M UV 840View Download Download
ALS MD 5M UV 850View Download Download
ALS MD S UV 850View Download Download
ALS HI 3 UV 840View Download Download
ALS HI 3 UV 850View Download No EHS* | With EHS
ALS HI 5M UV 840View Download Download
ALS HI 5M UV 850View Download Download
ALS HI S UV 850View Download Download
ALM MD 1 UV 840View Download Download
ALM MD 1 UV 850View Download Download
ALM MD 2 UV 840View Download Download
ALM MD 2 UV 850View Download Download
ALM MD 3 UV 840View Download Download
ALM MD 3 UV 850View Download Download
ALM MD 4 UV 840View Download Download
ALM MD 4 UV 850View Download No EHS* | With EHS
ALM MD 5M UV 840View Download Download
ALM MD 5M UV 850View Download Download
ALM MD S UV 850View Download Download
ALM HI 1 UV 840View Download Download
ALM HI 1 UV 850View Download Download
ALM HI 2 UV 840View Download Download
ALM HI 2 UV 850View Download Download
ALM HI 3 UV 840View Download Download
ALM HI 3 UV 850View Download No EHS* | With EHS
ALM HI 4 UV 840View Download Download
ALM HI 4 UV 850View Download No EHS* | With EHS
ALM HI 5M UV 840View Download Download
ALM HI 5M UV 850View Download Download
ALM HI S UV 850View Download Download
ALL MD 1 UV 840View Download Download
ALL MD 1 UV 850View Download Download
ALL MD 2 UV 840View Download Download
ALL MD 2 UV 850View Download Download
ALL MD 3 UV 840View Download Download
ALL MD 3 UV 850View Download No EHS* | With EHS
ALL MD 4 UV 840View Download Download
ALL MD 4 UV 850View Download No EHS* | With EHS
ALL MD 5M UV 840View Download Download
ALL MD 5M UV 850View Download Download
ALL MD S UV 850View Download Download
ALL HI 1 UV 840View Download Download
ALL HI 1 UV 850View Download Download
ALL HI 2 UV 840View Download Download
ALL HI 2 UV 850View Download Download
ALL HI 3 UV 840View Download Download
ALL HI 3 UV 850View Download No EHS* | With EHS
ALL HI 4 UV 840View Download Download
ALL HI 4 UV 850View Download No EHS* | With EHS
ALL HI 5M UV 840View Download Download
ALL HI 5M UV 850View Download Download
ALL HI S UV 850View Download Download
ALX MD 1 UV 840View Download Download
ALX MD 1 UV 850View Download Download
ALX MD 2 UV 840View Download Download
ALX MD 2 UV 850View Download Download
ALX MD 3 UV 840View Download Download
ALX MD 3 UV 850View Download No EHS* | With EHS
ALX MD 4 UV 840View Download Download
ALX MD 4 UV 850View Download No EHS* | With EHS
ALX MD 5M UV 840View Download Download
ALX MD 5M UV 850View Download Download
ALX MD S UV 850View Download Download
ALX HI 1 UV 840View Download Download
ALX HI 1 UV 850View Download Download
ALX HI 2 UV 840View Download Download
ALX HI 2 UV 850View Download Download
ALX HI 3 UV 840View Download Download
ALX HI 3 UV 850View Download No EHS* | With EHS
ALX HI 4 UV 840View Download Download
ALX HI 4 UV 850View Download No EHS* | With EHS
ALX HI 5M UV 840View Download Download
ALX HI 5M UV 850View Download Download
ALX HI S UV 850View Download Download
*EHS = External House Side Shield.
ALx LED Area Light

Many mounting options

    Pictured below: The many mounting options for the ALx - the Tenon Slipfitter (TS - available for ALS, ALM and ALL), the Adjustable U-Bracket (UB - available for ALS, ALM and ALL), the Yoke Mount (YK - available for ALS, ALM and ALL), the Easy Hang Wall Mount (WM - available for ALS, ALM and ALL), the Arm Mount (AM/AMR - available for ALS, ALM and ALL), the Adjustable Knuckle Slipfitter (AK- available for ALS, ALM, ALL and ALX), and the Adjustable Knuckle (available for ALS only).
