LED Barn Light

    The BLx is available in three sizes and features high performance LED technology. A photocell comes standard. The housing is constructed of precision die cast aluminum, and features an integral arm mounting hub. It can be wall-mounted or mounted on an extension arm. The refractive, frosted UV-stabilized lens is made of polycarbonate.
  • Applications: Suitable for exterior site lighting applications: parking lots, loading docks, roadways, barns
  • Lumen Output: About 2,300 lumens to almost 8,300 lumens
  • Max Lumens Per Watt: 120.2
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65-rated

Click to enlarge

BLS-3jpgA BLS-3jpgA
BLS
BLM-3jpgA BLM-3jpgA
BLM
BLL-2jpg BLL-2jpg
BLL
BLL-3jpgA BLL-3jpgA
BLL
BLL-1jpg BLL-1jpg
BLL
BLSschem BLSschem
BLS schematic
BLMSschem BLMSschem
BLM schematic
BLLSschem BLLSschem
BLL schematic
BLS-2jpg BLS-2jpg
BLS
BLS-1jpg BLS-1jpg
BLS
BLM-2jpg BLM-2jpg
BLM
BLM-1jpg BLM-1jpg
BLM
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
BLS MD 5S UV FPC 740239221116.7Type 5 Short70 CRI / 4000K120-277V5 years>50,000 hrs
BLM MD 5S UV FPC 740478041116.9Type 5 Short70 CRI / 4000K120-277V5 years>50,000 hrs
BLL MD 5S UV FPC 740828469120.2Type 5 Short70 CRI / 4000K120-277V5 years>50,000 hrs
Catalog #
Equivalency*
BLS MD 5S UV FPC 74050W MH
BLM MD 5S UV FPC 74070W MH
BLL MD 5S UV FPC 740150W MH
Catalog #
ImageSpec Sheet.ies & pdf files
BLS MD 5S UV FPC 740View Download Download
BLM MD 5S UV FPC 740View Download Download
BLL MD 5S UV FPC 740View Download Download
BLx Barn Light

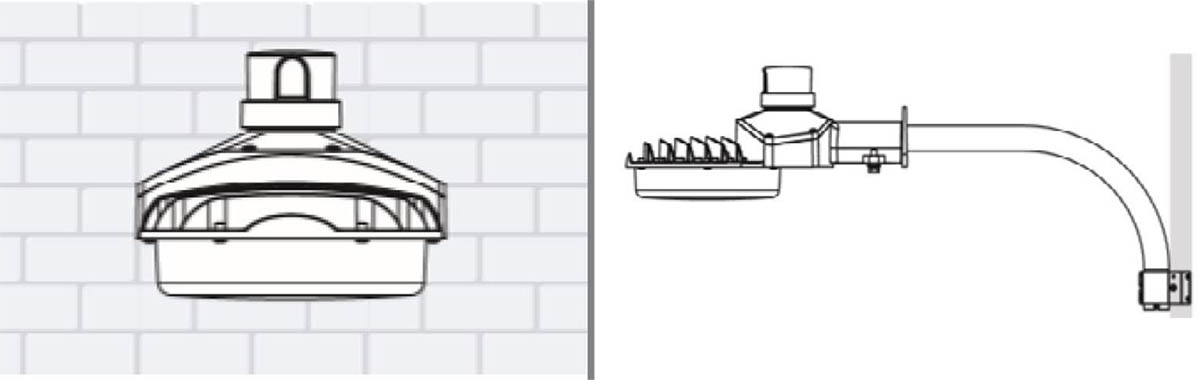

Mounting options

    The BLx can be mounted to walls using 1/4" lag bolts. It can also easily fit onto 1-1/2" O.D. mounting arms. The mounting hardware comes standard. Extension mounting arm is available separately.
