LED Low Profile Canopy Light

    The CLP canopy light features high performance LED technology and 0-10V dimming drivers standard. It features 1/2" coin plugs with O-rings for conduit and photocell located on two sides and the back. The die cast aluminum housing features a textured powder coat finish over a chromate conversion coating.
Spec Sheet
High Res Image
.ies files
.pdf files
  • Applications: Suitable for most exterior canopy applications - industrial, retail, commercial
  • Lumen Output: 5,400 lm
  • Max Lumens Per Watt: 105
  • Predicted L70 Lifetime: >100,000 hours at 25-degree Celsius ambient (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations (damp locations when used with quick mount bracket).
Buy Now
Request a Quote

Click to enlarge

CLP CLP
CLP
QMB2 QMB2
QMB (Quick Mount Bracket)
CLP schematic2 CLP schematic2
CLP schematic
cCSAus-Mark
Buy Now
Request a Quote
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 Lifetime
CLP MD UV PAD 8505,42751.7104.980 CRI / 5000KPrismatic acrylic drop lens120-277V, 347V, 480V5 years>100,000 hrs @ 25°C ambient (calculated)
Catalog #
Equivalency*
CLP MD UV PAD 85070W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
CLP MD UV PAD 850View Download Download

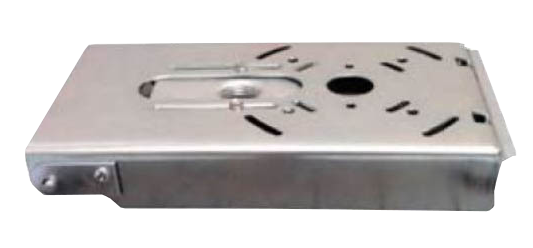

QMB PNG2

Quick Mount Bracket

    The optional Quick Mount Bracket (QMB) allows for quick and easy installation. It also allows for pendant mounting. The stamped steel bracket can mount over recessed electrical boxes, or can be used with a 3/4" NPS pendant.
