LED Low Profile Canopy Light

    The CLS is suitable for indoor or outdoor use. It can be surface or pendant mounted. A junction box mounting plate comes standard. Removable threaded plugs on the side can accommodate rigid electrical conduit or motion/photo sensors. The MSD is an optional IP65-rated microwave dimming motion/daylight sensor. The die cast aluminum housing of the CLS is covered with a durable dark bronze powder coat finish. The drop lens is made of impact resistant polycarbonate.
  • Applications: For use in surface or pendant mount applications. Suitable for indoor or outdoor use: canopy, security, stairwell, corridors
  • Sizes: 10-inch square (CLS 10) and 14-inch square (CLS 14)
  • Lumen Output: 4,948 in the CLS 10 and 9,548 in the CLS 14
  • Max Lumens Per Watt: 120
  • Predicted L70 Lifetime: ≥ 60,000 hrs
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated

Click to enlarge

CLS JPG CLS JPG
CLS
MSD schematics MSD schematics
MSD schematic
MSD microwave sensor MSD microwave sensor
MSD microwave sensor
CLS schematic CLS schematic
CLS schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWShieldingCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
CLS 10 MD UV PCD 8504,94844112Polycarbonate Drop Lens80 CRI / 5000K120-277V5 years> 60,000 hrs
CLS 14 HI UV PCD 8509,54880120Polycarbonate Drop Lens80 CRI / 5000K120-277V5 years> 60,000 hrs
Catalog #
ImageSpec Sheet.ies & .pdf files
CLS 10 MD UV PCD 850View Download Download
CLS 14 HI UV PCD 850View Download Download

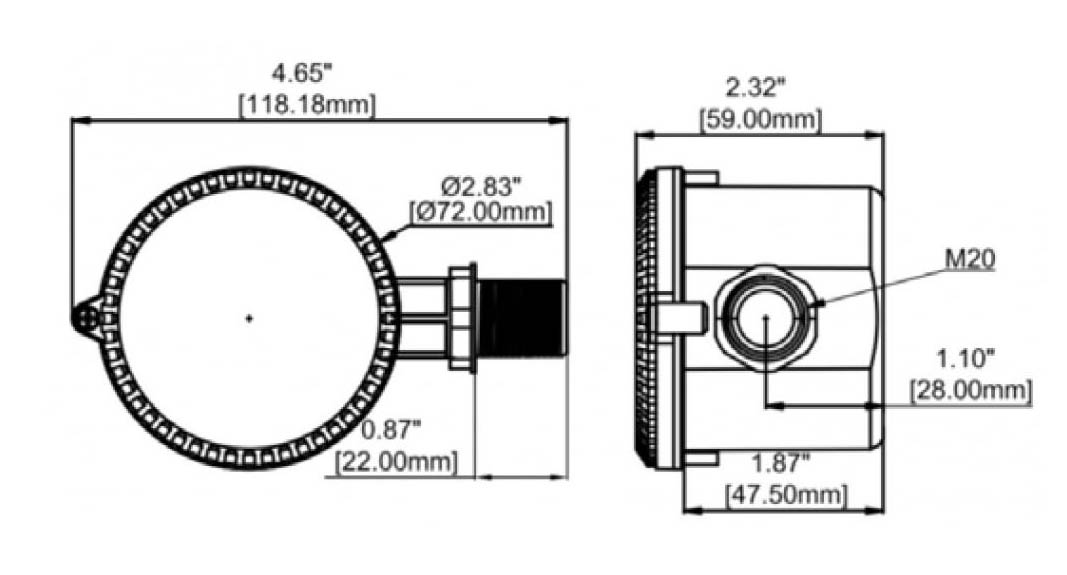

MSD schematics tighercrop

Mounting and controls

    The CLS is available with an optional microwave dimming motion/daylight sensor (schematic pictured - see spec sheet for more details). The CLS can be surface or pendant mounted. A junction box mounting plate comes standard. A threaded hole on the back of the luminaire allows for 3/4" rigid electrical conduit and pendant mounting.
