LED Canopy Light

    The CPE is a highly efficient LED canopy luminaire that is suitable for indoor or outdoor use. The housing is constructed of die cast aluminum. The prismatic lens is impact resistant, UV-stabilized polycarbonate. The CPE has a fade-, weather-, and abrasion-resistant textured polyester powdercoat finish. It comes in two sizes - the 9-inch square (CPE 9) is a 24W unit. The 12-inch square (CPE 12) is a 54W luminaire. See spec sheet for exact dimensions.
  • Applications: For use in canopy applications, suitable for indoor or outdoor use: loading docks, entryways, stairwells, corridors
  • Sizes: 9-inch square (CPE 9) and 12-inch square (CPE 12)
  • Lumen Output: 2,219 in the CPE 9, 5,298 in the CPE 12
  • Max Lumens Per Watt: 98.8 in the CPE 12
  • Predicted L70 Lifetime: >50,000 hrs
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated

Click to enlarge

CPE schematic CPE schematic
CPE schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 Lifetime
CPE 9 LW UV PPD 8402,2192494.280 CRI / 4000KPrismatic polycarbonate drop lens120-277V5 years>50,000 hrs
CPE 12 MD UV PPD 8405,2985498.880 CRI / 4000KPrismatic polycarbonate drop lens120-277V5 years>50,000 hrs
Catalog #
Equivalency*
CPE 9 LW UV PPD 84050W MH
CPE 12 MD UV PPD 840100W MH
Catalog #
ImageSpec Sheet.ies & .pdf files
CPE 9 LW UV PPD 840View Download Download
CPE 12 MD UV PPD 840View Download Download
CPE JPG-3 greenbg

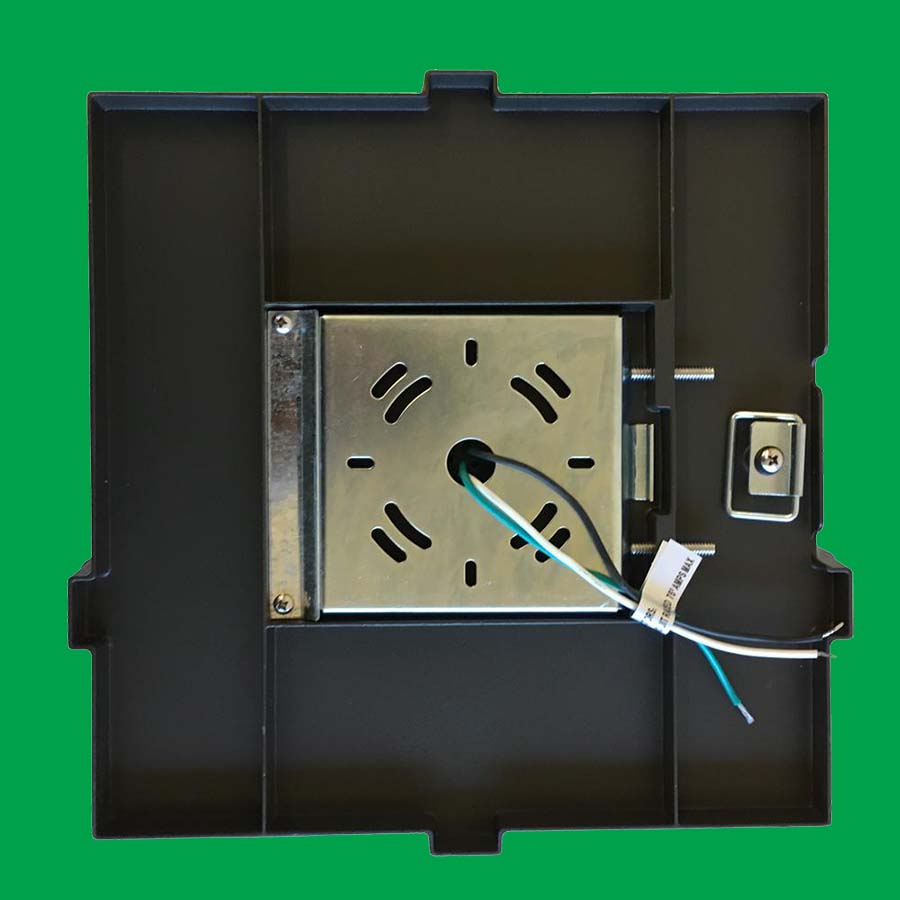

Mounting

    The CPE fits to any standard junction box, or mounts directly to any surface, via a detachable mounting plate. An included hook allows for hands-free installation while making electrical connections.
