LED Parking Garage Canopy Light

    The CPG2 features high performance LED technology in a low profile aluminum housing. The acrylic lens is made of UV-stabilized clear acrylic. It comes with 0-10V dimming drivers standard. An easy-hang bracket simplifies installation. An optional built-in microwave daylight/motion sensor with dimming is available. This sensor allows multi-level control based on motion and/or daylight detection.
  • Applications: Suitable for most parking garage applications
  • Lumen Output: 3,630-6,444 lm
  • Max Lumens Per Watt: 120
  • Predicted L70 Lifetime: >100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations (damp locations when used with quick mount bracket). IP66 certified.

Click to enlarge

<font face=CPG2 in white finish" class="image_2004" /> <font face=CPG2 in white finish"/>
CPG2 in white finish
<font face=CPG2 in bronze finish" class="image_2005" /> <font face=CPG2 in bronze finish"/>
CPG2 in bronze finish
<font face=CPG2 schematic" class="image_2006" /> <font face=CPG2 schematic"/>
CPG2 schematic
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWBUG RatingOpticCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 Lifetime
CPG2 LW 5S UV CA 8403,63031119B2-U2-G1Type V Square80 CRI / 4000KClear acrylic lens120-277V5 years>100,000 hrs (calculated)
CPG2 MD 5S UV CA 8404,71341115B2-U0-G1Type V Square80 CRI / 4000KClear acrylic lens120-277V5 years>100,000 hrs (calculated)
CPG2 HI 5S UV CA 8406,20354115B2-U0-G1Type V Square80 CRI / 4000KClear acrylic lens120-277V5 years>100,000 hrs (calculated)
CPG2 HI 5S UV CA 8506,44454120B3-U0-G1Type V Square80 CRI / 4000KClear acrylic lens120-277V5 years>100,000 hrs (calculated)
Catalog #
Equivalency*
CPG2 LW 5S UV CA 84070W MH
CPG2 MD 5S UV CA 84070W-100W MH
CPG2 HI 5S UV CA 840150W MH
CPG2 HI 5S UV CA 850150W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
CPG2 LW 5S UV CA 840View Download Download
CPG2 MD 5S UV CA 840View Download Download
CPG2 HI 5S UV CA 840View Download Download
CPG2 HI 5S UV CA 850View Download Download

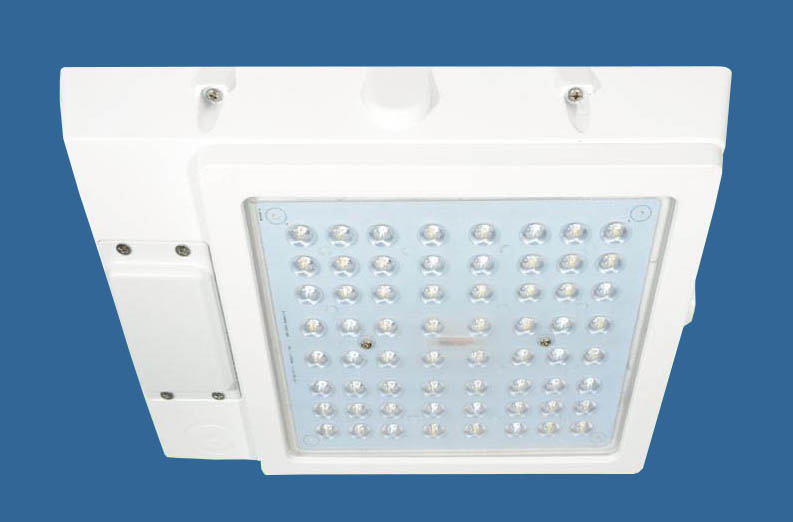

CPG2 white bluebg

Finishes and mounting

    The CPG2 is available in bronze or white. Custom colors are available upon request. The CPG2 includes an easy-hang bracket which fits standard 4" electrical box, allowing one-person installation. An optional Quick-Mount Pendant Bracket is available (see spec sheet for details).
