LED Architectural Down Light

The DLA can be used for retrofitting and new construction applications. It is compatible with most 6-inch and 8-inch housings - and with non-insulated and air-tight ceilings. The 6-inch option is also compatible with insulated ceilings. Color temperature options range from 3000K to 5000K. The DLA features durable thermoplastic and aluminum construction, and a flex cable for easy installation into a junction box.

Spec Sheet

High Res Image

Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications - retail, hospitality, office
Lumen Output: From 1,500 lm to 5,000 lm
Max Lumens Per Watt: 92
Predicted L70 Lifetime: 50,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: ETL listed for wet locations (new construction); ETL classified for wet locations (retrofit); RoHS compliant (8-inch)

Click to enlarge

DLA with round silver and white reflector trim

DLA with round white baffle

DLA

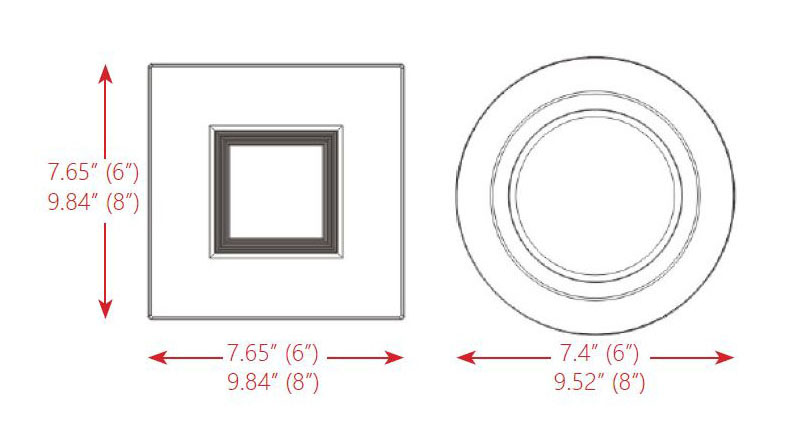

DLA schematics

DLA schematic, side view

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	Warranty	Predicted L70 Lifetime
DLA 6 MD UV WB 8XX	6" Housing	1,500	17	88	80 CRI / 3000K, 3500K, 4000K, 5000K	120V	5 years	50,000 hours (reported)
DLA 8 MD UV WB 8XX	8" Housing	2,000	27	74	80 CRI / 3000K, 3500K, 4000K, 5000K	120V	5 years	50,000 hours (reported)
DLA 8 HI UV WB 8XX	8" Housing	5,000	54	92	80 CRI / 3000K, 3500K, 4000K, 5000K	120V	5 years	50,000 hours (reported)

Catalog #	Equivalency*
DLA 6 MD UV WB 8XX	100W PAR-38 incand., or 32W Triple T CFL
DLA 8 MD UV WB 8XX	42W Triple T CFL
DLA 8 HI UV WB 8XX	100W CMH

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet
DLA 6 MD UV WB 8XX	View	Download
DLA 8 MD UV WB 8XX	View	Download
DLA 8 HI UV WB 8XX	View	Download

Trim options

The DLA is available with three different reflector trim options - Round White Baffle, Round Silver & White Aluminum trim, and Square White Baffle.
