4" LED Economy Down Light

    Compatible with most 4" housings, the DLE Economy LED down light can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K. The DLE 4 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral mounting clips allow for toolless installation in most 4" recessed cans. The DLE 4 is available with frame-in kits for both remodeling and new construction.
Spec Sheet
.ies file
  • Applications: Suitable for most commercial, industrial and institutional applications - retail, hospitality, office, residential
  • Lumen Output: From 550 lm to 610 lm
  • Max Lumens Per Watt: 76
  • Predicted L70 Lifetime: 50,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations; passes FCC Class B; RoHS compliant
Buy Now
Request a Quote

Click to enlarge

DLL4 schematic V2 DLL4 schematic V2
DLE 4 schematic
DLL 4 DLL 4
DLE 4
4ICNC 4ICNC
The 4ICNC - 4" IC new construction frame-in kit
4ICRM 4ICRM
The 4ICRM - 4" IC remodeler frame-in kit
cETLus logo
Buy Now
Request a Quote
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailablePredicted L70 Lifetime
DLE 4 MD 12 WB 8274" Housing55086980 CRI / 2700K120V50,000 hours (reported)
DLE 4 MD 12 WB 8304" Housing57087180 CRI / 3000K120V50,000 hours (reported)
DLE 4 MD 12 WB 8354" Housing58087380 CRI / 3500K120V50,000 hours (reported)
DLE 4 MD 12 WB 8404" Housing59087480 CRI / 4000K120V50,000 hours (reported)
DLE 4 MD 12 WB 8504" Housing61087680 CRI / 5000K120V50,000 hours (reported)
Catalog #
Equivalency
DLE 4 MD 12 WB 82775W PAR-16 incandescent
DLE 4 MD 12 WB 83075W PAR-16 incandescent
DLE 4 MD 12 WB 83575W PAR-16 incandescent
DLE 4 MD 12 WB 84075W PAR-16 incandescent
DLE 4 MD 12 WB 85075W PAR-16 incandescent
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies files
DLE 4 MD 12 WB 827View Download Download
DLE 4 MD 12 WB 830View Download Contact Factory
DLE 4 MD 12 WB 835View Download Contact Factory
DLE 4 MD 12 WB 840View Download Contact Factory
DLE 4 MD 12 WB 850View Download Contact Factory

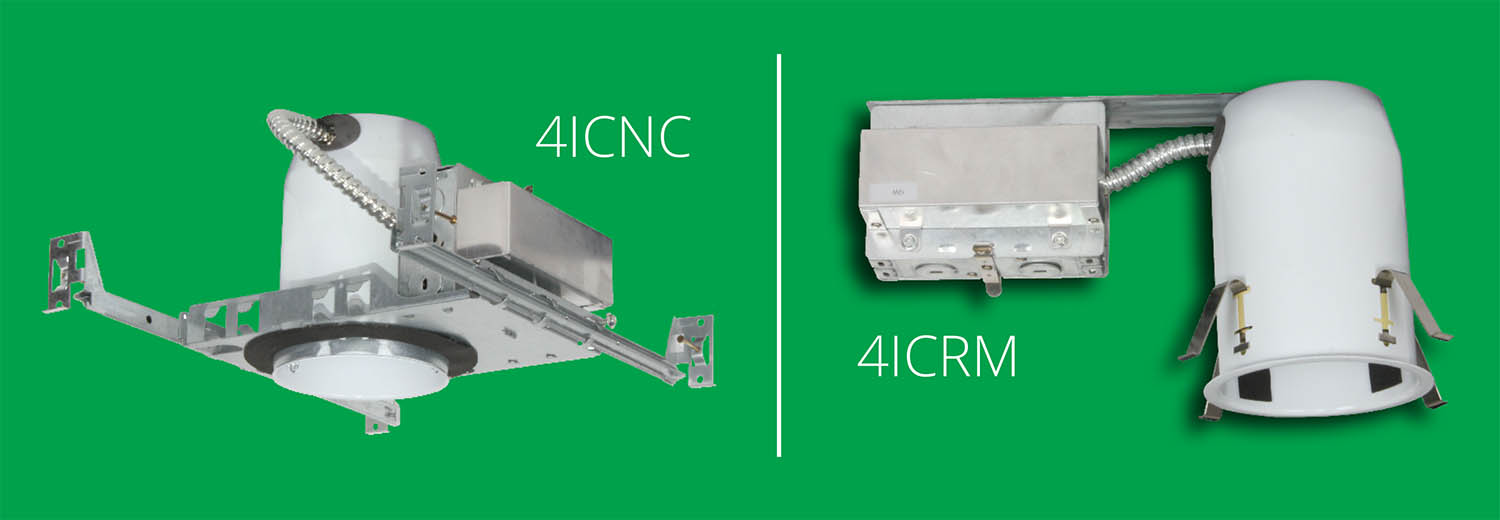

dle4 frame-in kits green

Frame-in kits

    The DLE 4 is available with two types of frame-in kits. The 4ICNC is designed for new construction, while the 4ICRM is designed for remodel applications. Air tight construction in both kits provides reduced energy costs. See spec sheet for more details.
