4" LED Gimbal Down Light

    The DLG 4 LED gimbal down light can be used with insulated, non-insulated and air-tight ceilings. It is compatible with most 4" housings. Color temperature options range from 2700K to 4000K. The DLG 4 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral mounting clips allow for toolless installation in most 4" recessed cans. The DLG 4 is available with frame-in kits for both remodeling and new construction.
  • Applications: Suitable for most commercial, industrial and institutional applications - retail, hospitality, office, residential
  • Lumen Output: 675-750 lm
  • Max Lumens Per Watt: 75
  • Predicted L70 Lifetime: 50,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: ETL US and Canada listed for damp locations. Passes FCC Class B

Click to enlarge

DLG4-1jpg DLG4-1jpg
DLG 4
DLG4-2jpg DLG4-2jpg
DLG 4
DLG4 schematic DLG4 schematic
DLG 4 schematic
4ICNC 4ICNC
The 4ICNC - 4" IC new construction frame-in kit
4ICRM 4ICRM
The 4ICRM - 4" IC remodeler frame-in kit
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
DLG 4 MD 12 WB 8274" Housing675106880 CRI / 2700K120V5 years50,000 hours (reported)
DLG 4 MD 12 WB 8304" Housing675106880 CRI / 3000K120V5 years50,000 hours (reported)
DLG 4 MD 12 WB 8404" Housing750107580 CRI / 4000K120V5 years50,000 hours (reported)
Catalog #
Equivalency
DLG 4 MD 12 WB 82775W PAR-16 incandescent
DLG 4 MD 12 WB 83075W PAR-16 incandescent
DLG 4 MD 12 WB 84075W PAR-16 incandescent
Catalog #
ImageSpec Sheet.ies files
DLG 4 MD 12 WB 827View Download Download
DLG 4 MD 12 WB 830View Download Contact Factory
DLG 4 MD 12 WB 840View Download Contact Factory

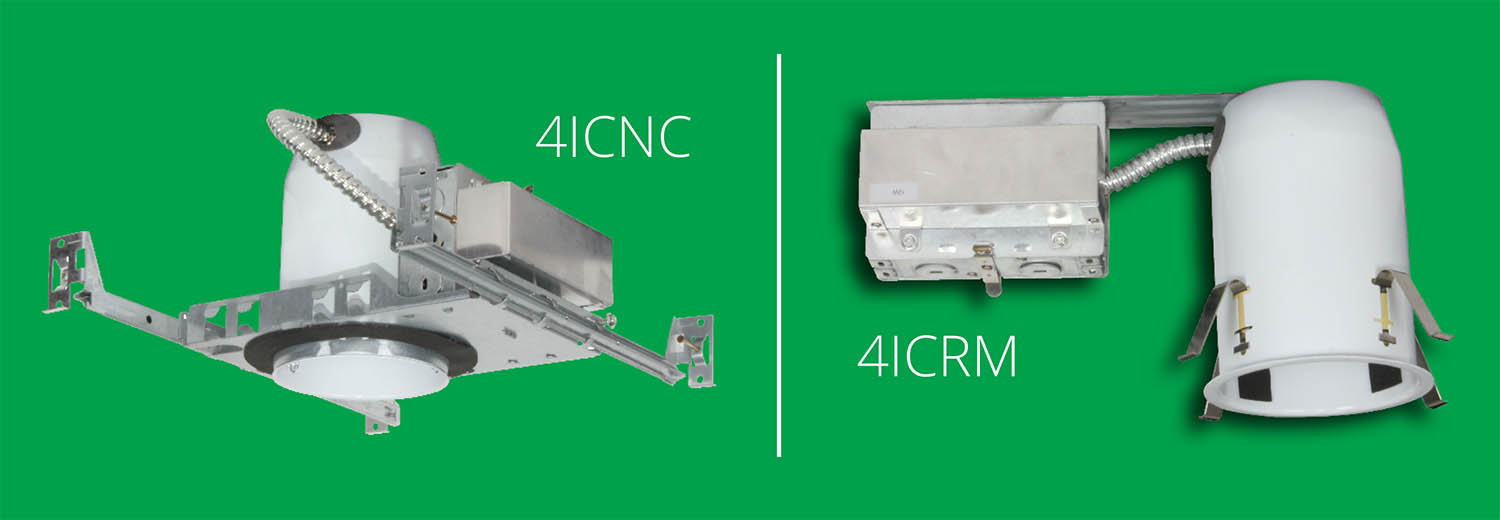

dle4 frame-in kits green

Frame-in kits

    The DLG 4 is available with two types of frame-in kits. The 4ICNC is designed for new construction, while the 4ICRM is designed for remodel applications. Air tight construction in both kits provides reduced energy costs. See spec sheet for more details.
