3.5" LED Down Light

The DLL 3.5 is compatible with most 3.5" housings. It can be used with insulated, non-insulated and air-tight ceilings. It is available in 90+ CRI. Frame-in kits are available for new construction or remodel applications. The DLL is dimmable to 5% with most drivers. An E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. The white baffle is available in square or round variations.

  • Applications: Suitable for most commercial, industrial and institutional applications - retail, hospitality, office, residential
  • Lumen Output: 560 lumens
  • Max Lumens Per Watt: 62
  • Predicted L70 Lifetime: 50,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for damp and wet locations
https://www.lumenfocus.com/wp-content/uploads/2017/05/DLL-3.5-square-baffle.jpg
DLL 3.5 with square baffle
https://www.lumenfocus.com/wp-content/uploads/2017/05/DLL-3.5-round-baffle2.jpg
DLL 3.5 with round baffle
https://www.lumenfocus.com/wp-content/uploads/2017/05/3.5ICNC.jpg

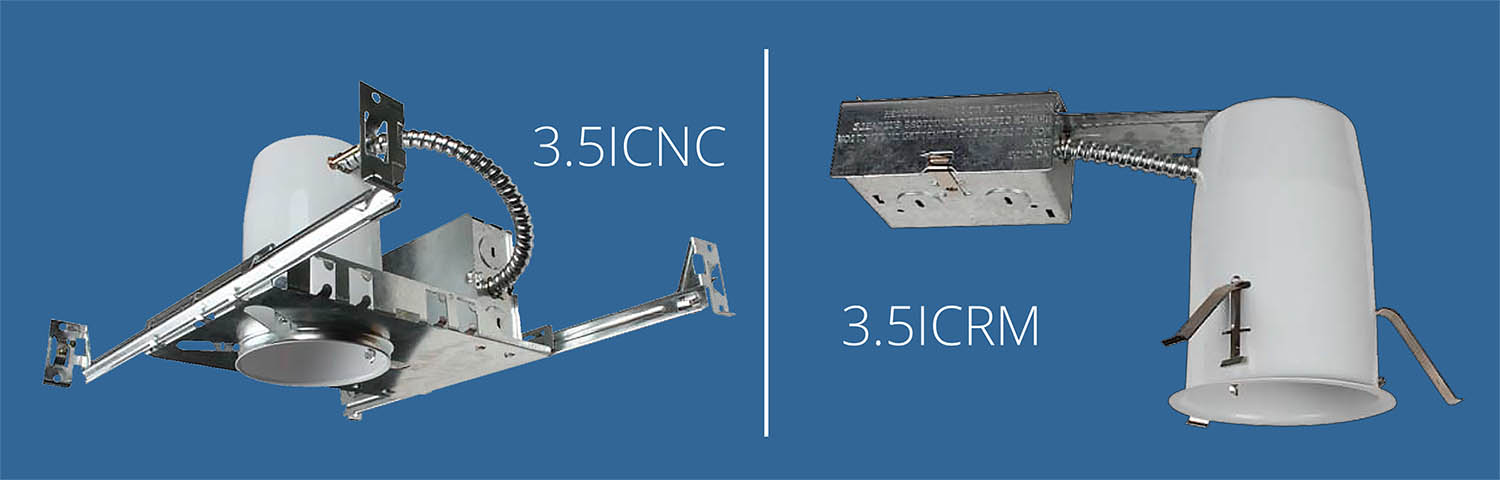

The 3.5ICNC frame-in kit for new construction
https://www.lumenfocus.com/wp-content/uploads/2017/05/3.5ICRM.jpg
The 3.5ICRM frame-in kit for remodel applications
https://www.lumenfocus.com/wp-content/uploads/2017/05/DLL-3.5-square-schematic.jpg
Schematic for DLL 3.5 with square baffle
https://www.lumenfocus.com/wp-content/uploads/2017/05/DLL-3.5-round-schematic.jpg
Schematic for DLL 3.5 with round baffle
https://www.lumenfocus.com/wp-content/uploads/2017/05/3.5ICNC-schematic.jpg
Schematic for the 3.5ICNC frame-in kit for new construction
https://www.lumenfocus.com/wp-content/uploads/2017/05/3.5ICRM-schematic.jpg
Schematic for the 3.5ICRM frame-in kit for remodel applications

DLL 3.5 Performance Chart

Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableWarrantyPredicted L70 LifetimeEquivalency*
DLL 3.5 12 WB 930
3.5" Housing56096290 CRI / 3000K120V5 years50,000 hours (reported)Replaces 75W PAR-16 incandescent down light
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
