4" LED Down Light

    The DLL 4 down light is compatible with most 4" housings. It can be used with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K. 90 CRI is available in 2700K, 3000K and 4000K. The DLL 4 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. Integral mounting clips allow for toolless installation in most 4" recessed cans. The DLL 4 is available with frame-in kits for both remodeling and new construction.
  • Applications: Suitable for most commercial, industrial and institutional applications - retail, hospitality, office, residential
  • Lumen Output: From 550 lm to 730 lm
  • Max Lumens Per Watt: 91
  • Predicted L70 Lifetime: 50,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations; passes FCC Class B; RoHS compliant; Meets State of California Title 24, 2016 requirements (90 CRI models)

Click to enlarge

DLL4 schematic V2 DLL4 schematic V2
DLL 4 schematic
DLL 4 DLL 4
DLL 4
4ICNC 4ICNC
The 4ICNC - 4" IC new construction frame-in kit
4ICRM 4ICRM
The 4ICRM - 4" IC remodeler frame-in kit
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableTitle 24, 2016Predicted L70 Lifetime
DLL 4 MD 12 WB 8274" Housing55086980 CRI / 2700K120VNo50,000 hours (reported)
DLL 4 MD 12 WB 8304" Housing63087980 CRI / 3000K120VNo50,000 hours (reported)
DLL 4 MD 12 WB 8354" Housing64588180 CRI / 3000K120VNo50,000 hours (reported)
DLL 4 MD 12 WB 8404" Housing66588380 CRI / 4000K120VNo50,000 hours (reported)
DLL 4 MD 12 WB 8504" Housing73089180 CRI / 5000K120VNo50,000 hours (reported)
DLL 4 MD 12 WB 9274" Housing55086980 CRI / 5000K120VYes50,000 hours (reported)
DLL 4 MD 12 WB 9304" Housing58087380 CRI / 5000K120VYes50,000 hours (reported)
DLL 4 MD 12 WB 9404" Housing61087680 CRI / 5000K120VYes50,000 hours (reported)
Catalog #
Equivalency
DLL 4 MD 12 WB 82775W PAR-16 incandescent
DLL 4 MD 12 WB 83075W PAR-16 incandescent
DLL 4 MD 12 WB 83575W PAR-16 incandescent
DLL 4 MD 12 WB 84075W PAR-16 incandescent
DLL 4 MD 12 WB 85075W PAR-16 incandescent
DLL 4 MD 12 WB 92775W PAR-16 incandescent
DLL 4 MD 12 WB 93075W PAR-16 incandescent
DLL 4 MD 12 WB 94075W PAR-16 incandescent
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies files
DLL 4 MD 12 WB 827View Download Contact Factory
DLL 4 MD 12 WB 830View Download Contact Factory
DLL 4 MD 12 WB 835View Download Contact Factory
DLL 4 MD 12 WB 840View Download Download
DLL 4 MD 12 WB 850View Download Contact Factory
DLL 4 MD 12 WB 927View Download Contact Factory
DLL 4 MD 12 WB 930View Download Contact Factory
DLL 4 MD 12 WB 940View Download Contact Factory

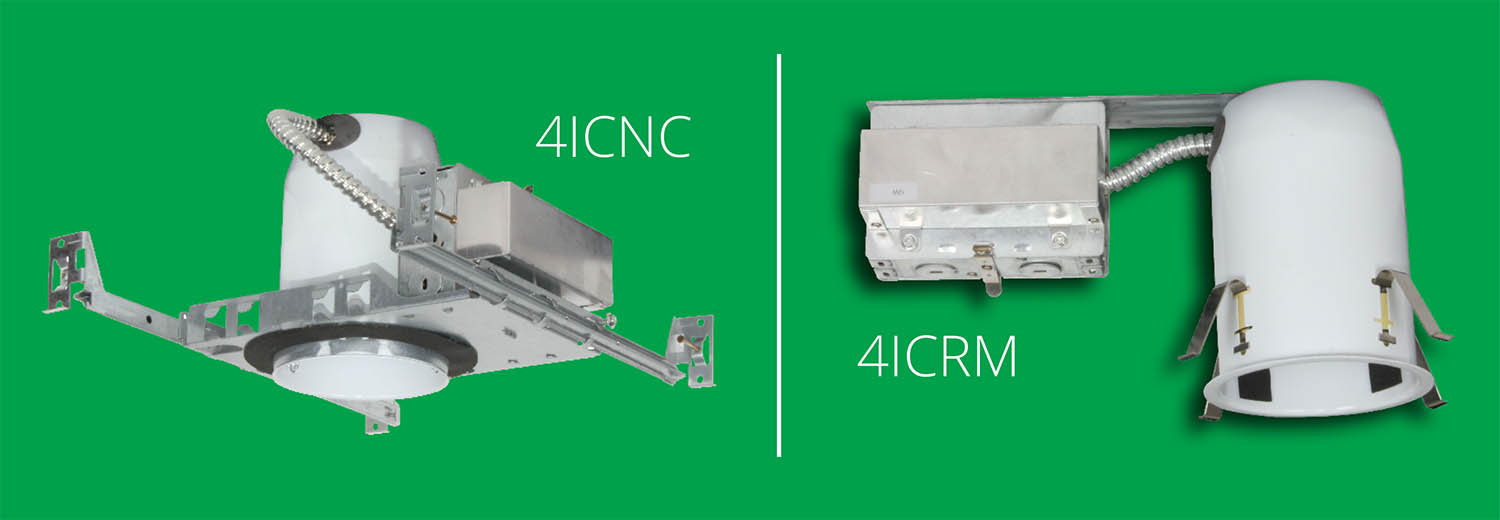

dll4 frame-in kits green

Frame-in kits

    The DLL 4 is available with two types of frame-in kits. The 4ICNC is designed for new construction, while the 4ICRM is designed for remodel applications. Air tight construction in both kits provides reduced energy costs. See spec sheet for more details.
