5"/6" LED Down Light

    The DLL 56 down light is compatible with most 5" and 6" housings - with insulated, non-insulated and air-tight ceilings. Color temperature options range from 2700K to 5000K. 90 CRI is available, and meets Title 24, 2016 requirements. The DLL 56 is dimmable to 10% with most dimmers. It features durable thermoplastic construction. The E26 medium screw-base Edison connector allows for easy retrofit of incandescent housings. An adjustable torsion spring, designed to fit 5" or 6" housing, allows for toolless installation. The DLL 56 is available with frame-in kits for both remodeling and new construction.
  • Applications: Suitable for most commercial, industrial and institutional applications - retail, hospitality, office, residential
  • Lumen Output: From 900 lm up to 1,200 lm
  • Max Lumens Per Watt: 88
  • Predicted L70 Lifetime: 50,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations; Passes FCC Class B; RoHS Compliant; Meets State of California Title 24, 2016 requirements (90 CRI models)

Click to enlarge

DLL 56 DLL 56
DLL 56
DLL 56 schematic DLL 56 schematic
DLL 56 schematic
56ICNC and 56ICRM JPG 56ICNC and 56ICRM JPG
The 56ICNC new construction frame-in kit (left), and the 56ICRM remodeler frame-in kit
56ICRM 56ICRM
The 56ICRM - 5"/6" remodeler frame-in kit
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableWarrantyTitle 24, 2016Energy StarPredicted L70 Lifetime
DLL 56 MD 12 WB 8275" and 6" Housing900127580 CRI / 2700K120V5 yearsNoYes50,000 hours (reported)
DLL 56 MD 12 WB 8305" and 6" Housing960128080 CRI / 3000K120V5 yearsNoYes50,000 hours (reported)
DLL 56 MD 12 WB 8355" and 6" Housing980128280 CRI / 3500K120V5 yearsNoYes50,000 hours (reported)
DLL 56 MD 12 WB 8405" and 6" Housing1,000128380 CRI / 4000K120V5 yearsNoYes50,000 hours (reported)
DLL 56 MD 12 WB 8505" and 6" Housing1,060128880 CRI / 5000K120V5 yearsNoYes50,000 hours (reported)
DLL 56 MD 12 WB 9275" and 6" Housing750126390 CRI / 2700K120V5 yearsYesYes50,000 hours (reported)
DLL 56 MD 12 WB 9305" and 6" Housing780126590 CRI / 3000K120V5 yearsYesYes50,000 hours (reported)
DLL 56 MD 12 WB 9405" and 6" Housing810126890 CRI / 4000K120V5 yearsYesYes50,000 hours (reported)
DLL 56 HI 12 WB 9275" and 6" Housing1,200167590 CRI / 2700K120V5 yearsYesNo50,000 hours (reported)
DLL 56 HI 12 WB 9305" and 6" Housing1,200167590 CRI / 3000K120V5 yearsYesNo50,000 hours (reported)
DLL 56 HI 12 WB 9405" and 6" Housing1,200167590 CRI / 4000K120V5 yearsYesNo50,000 hours (reported)
Catalog #
Equivalency*
DLL 56 MD 12 WB 82775W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 83075W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 83575W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 84075W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 85075W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 92775W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 93075W PAR-30 incand., 26W Triple T CFL
DLL 56 MD 12 WB 94075W PAR-30 incand., 26W Triple T CFL
DLL 56 HI 12 WB 92732W PL-T CFL
DLL 56 HI 12 WB 93032W PL-T CFL
DLL 56 HI 12 WB 94032W PL-T CFL
Catalog #
ImageSpec Sheet
DLL 56 MD 12 WB 827View Download
DLL 56 MD 12 WB 830View Download
DLL 56 MD 12 WB 835View Download
DLL 56 MD 12 WB 840View Download
DLL 56 MD 12 WB 850View Download
DLL 56 MD 12 WB 927View Download
DLL 56 MD 12 WB 930View Download
DLL 56 MD 12 WB 940View Download
DLL 56 HI 12 WB 927View Download
DLL 56 HI 12 WB 930View Download
DLL 56 HI 12 WB 940View Download

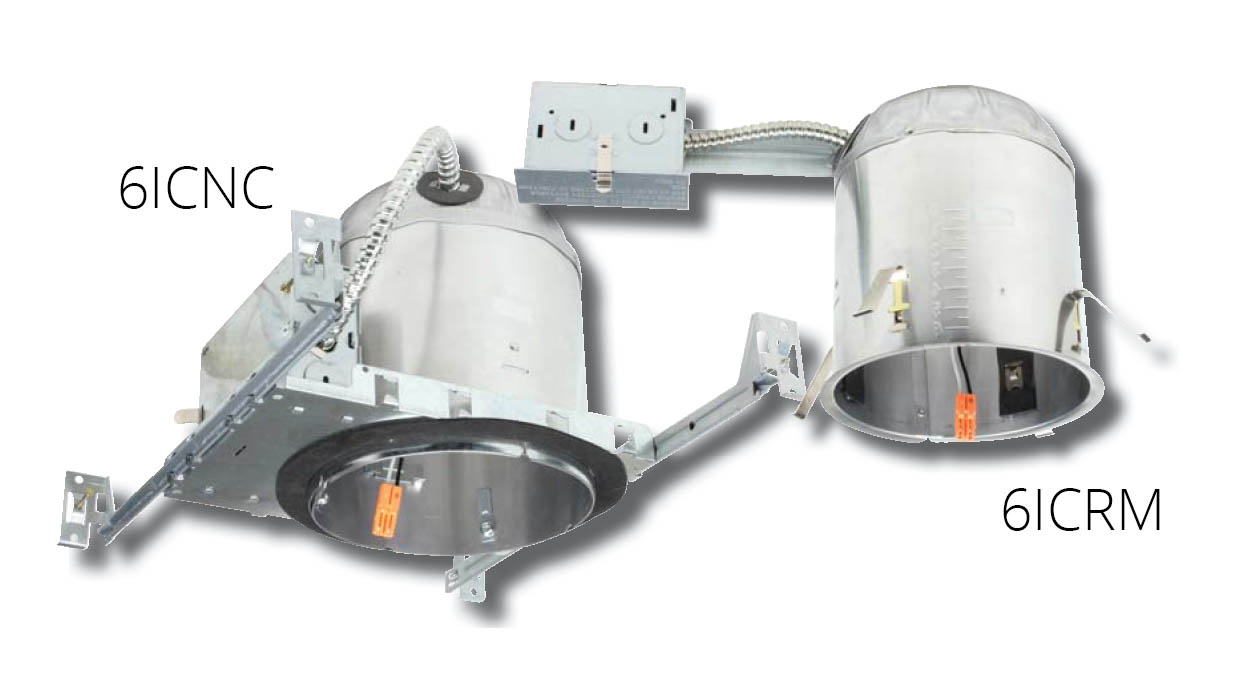

56ICNC and 56ICRM v2

Frame-in kits

    The DLL 56 is available with two types of frame-in kits. The 6ICNC is designed for new construction, while the 6ICRM is designed for remodel applications. Air tight construction in both kits provides reduced energy costs. See spec sheet for more details.
