LED Select Retrofit Down Light

    The DLR LED retrofit down light features field selectable color temperature. Four color temperatures can be selected: 2700K, 3000K, 4000K and 5000K, at 90 CRI. There are two size options - 4" and 6". The DLR produces high quality, 90 CRI illumination. It is compatible with type IC and non-IC cans. It can be used for retrofit and new construction applications.
Click to download (.pdf):
DLR 4
DLR 6
Click to view:

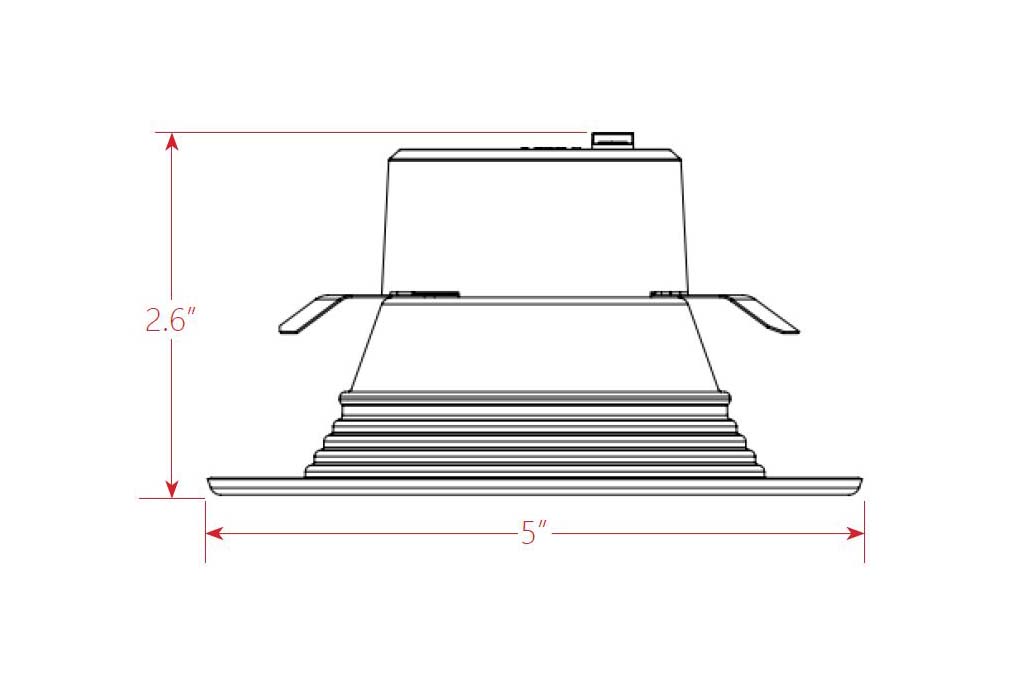

DLR 4
DLR 6
Click to download:
DLR: .ies files | .pdf files
  • Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications
  • Lumen Output: 650-750 in the DLR 4; 1,000-1,200 in the DLR 6
  • Max Lumens Per Watt: 80
  • Predicted L70 Lifetime: 50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations, IP43, RoHS compliant
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailablePredicted L70 Lifetime
DLR 4 MD 12 WB 9SEL - 2700K4" Housing650106590 CRI / 2700K120V50,000 hours
DLR 4 MD 12 WB 9SEL - 3000K4" Housing680106890 CRI / 3000K120V50,000 hours
DLR 4 MD 12 WB 9SEL - 4000K4" Housing750107590 CRI / 4000K120V50,000 hours
DLR 4 MD 12 WB 9SEL - 5000K4" Housing750107590 CRI / 5000K120V50,000 hours
DLR 6 MD 12 WB 9SEL - 2700K6" Housing1000156790 CRI / 2700K120V50,000 hours
DLR 6 MD 12 WB 9SEL - 3000K6" Housing1050157090 CRI / 3000K120V50,000 hours
DLR 6 MD 12 WB 9SEL - 4000K6" Housing1200158090 CRI / 4000K120V50,000 hours
DLR 6 MD 12 WB 9SEL - 5000K6" Housing1200158090 CRI / 5000K120V50,000 hours
Catalog #
Equivalency
DLR 4 MD 12 WB 9SEL65W BR30 Inc.
DLR 6 MD 12 WB 9SEL26W PL-T
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec SheetPhotometry Files
DLR 4 MD 12 WB 9SELView Download Download
DLR 6 MD 12 WB 9SELView Download Download

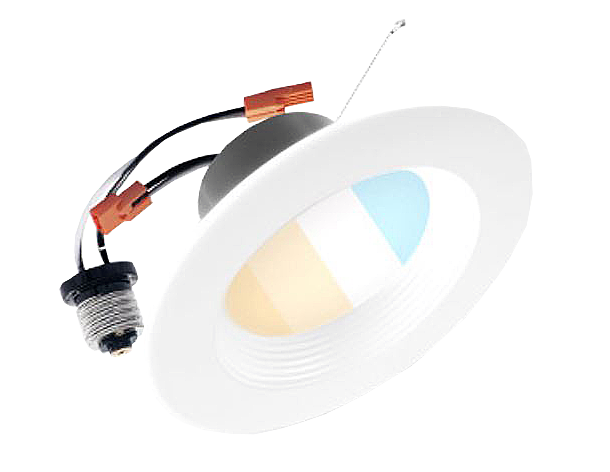

DLR6 bluejpg

Durable construction

    The DLR features durable aluminum and polycarbonate construction, with an E26 medium base.
