LED Select Down Light

    The DLS LED down light features field selectable color temperature and output. Three color temperatures can be selected: 3000K, 4000K and 5000K, at 90 CRI. There are two size options - the DLS 6, which fits 6" to 7.4" diameter openings, and the DLS 8, which fits 7.6" to 9.4" diameter openings. The DLS 6 has three selectable output levels: 10W, 15W and 22W. The DLS 8 can be set to 12W, 20W or 30W. The DLS works for retrofit and new construction applications, and is compatible with insulated and non-insulated ceilings. It features 0-10V dimming down to 10 percent.
  • Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications
  • Lumen Output: 850-1,950 lm in the DLS 6; 1,000-2,500 in the DLS 8
  • Max Lumens Per Watt: 90
  • Predicted L70 Lifetime: 50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations, IP43, RoHS compliant

Click to enlarge

DLS6-1jpg DLS6-1jpg
DLS
DLS8selectable DLS8selectable
Adjustable CCT and output on DLS 8
DLS8chematic DLS8chematic
DLS 8 schematic
DLS6selectable DLS6selectable
Adjustable CCT and output on DLS 6
DLS6schematic DLS6schematic
DLS 6 schematic
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailablePredicted L70 Lifetime
DLS 6 SEL UV SW 9SEL - Low6" Housing850-9001085-9090 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
DLS 6 SEL UV SW 9SEL - Medium6" Housing1250-13501583-9090 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
DLS 6 SEL UV SW 9SEL - High6" Housing1750-19502280-8690 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
DLS 8 SEL UV SW 9SEL - Low8" Housing1000128390 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
DLS 8 SEL UV SW 9SEL - Medium8" Housing1700208590 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
DLS 8 SEL UV SW 9SEL - High8" Housing2500308390 CRI / 3000K, 4000K, 5000K120V-277V50,000 hours
Catalog #
Equivalency
DLS 6 SEL UV SW 9SEL - Low75W PAR 30 Inc. / 26W PL-T
DLS 6 SEL UV SW 9SEL - Medium32W PL-T
DLS 6 SEL UV SW 9SEL - High42W PL-T
DLS 8 SEL UV SW 9SEL - Low75W PAR 30 Inc. / 26W PL-T
DLS 8 SEL UV SW 9SEL - Medium100W PAR 38 Inc. / 32W PL-T
DLS 8 SEL UV SW 9SEL - High57W PL-T
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec SheetPhotometry Files
DLS 6 SEL UV SW 9SEL - LowView Download Download
DLS 6 SEL UV SW 9SEL - MediumView Download Download
DLS 6 SEL UV SW 9SEL - HighView Download Download
DLS 8 SEL UV SW 9SEL - LowView Download Download
DLS 8 SEL UV SW 9SEL - MediumView Download Download
DLS 8 SEL UV SW 9SEL - HighView Download Download

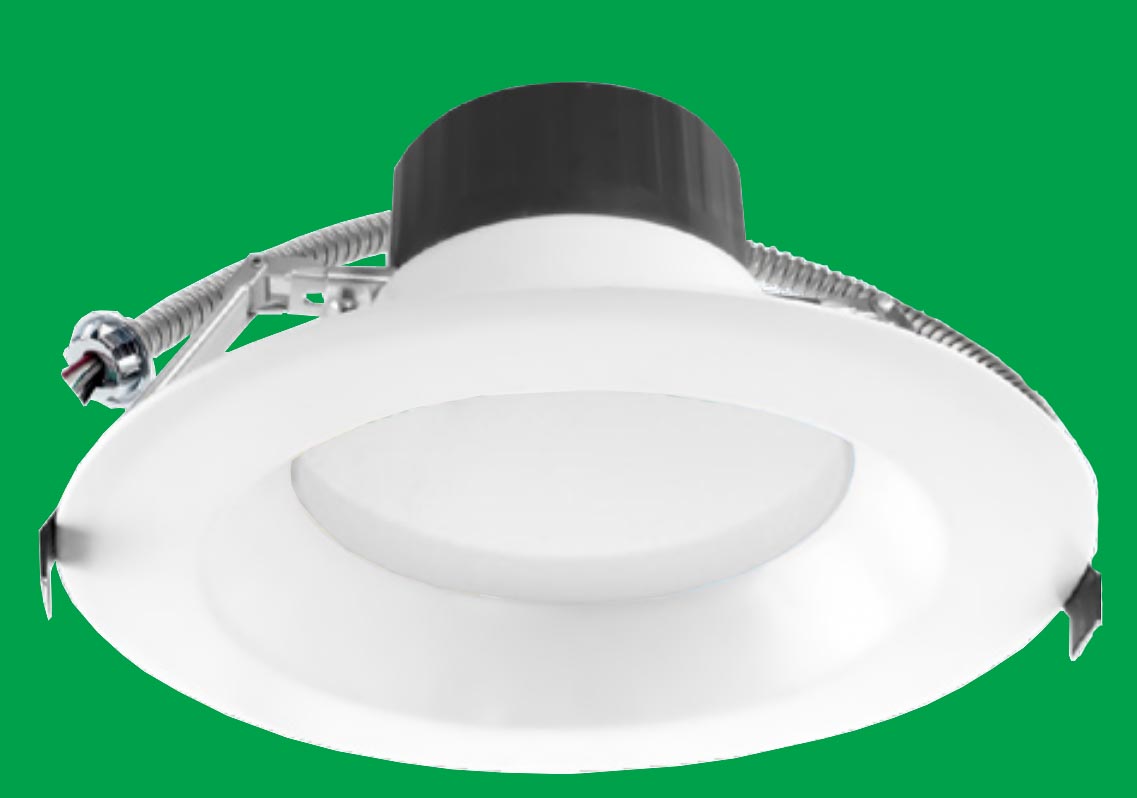

DLS6green

Durable construction

    The DLS features durable thermoplastic and aluminum construction. It ships with 19 inches of 3/8" flex cable for easy install into junction boxes.
