LED Select Down Light

    The DLT LED down light features field selectable color temperature and output. These down lights can be used for retrofit projects and new construction applications. Four color temperatures can be selected: 3000K, 3500K, 4000K and 5000K, at 90 CRI. There are two sizes - the DLT 6 is compatible with 6.25" ceiling cut outs and 6" mounting frames. The DLT 8 is compatible with 8.06" ceiling cut outs and 8" mounting frames. Spring action clips secure the fixture to the ceiling or existing frame. The DLT 6 is available with three selectable outputs, while the DLT 8 has four selectable outputs.
Click to download (.pdf):

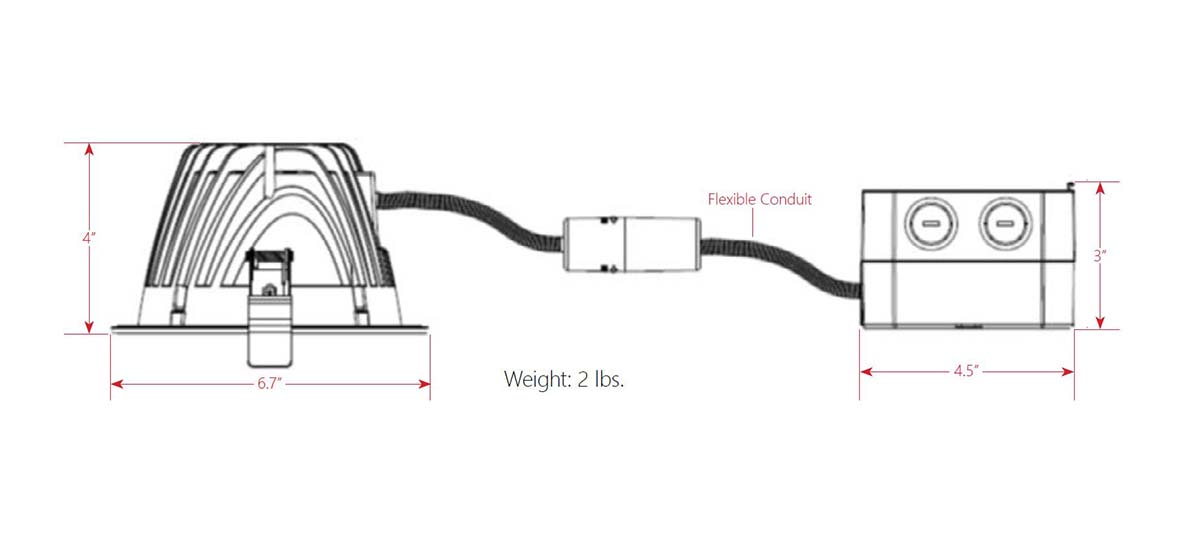

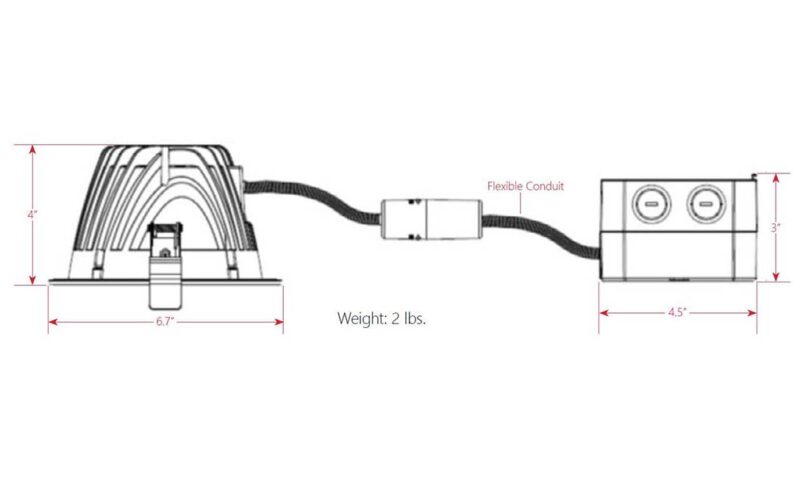

DLT 6

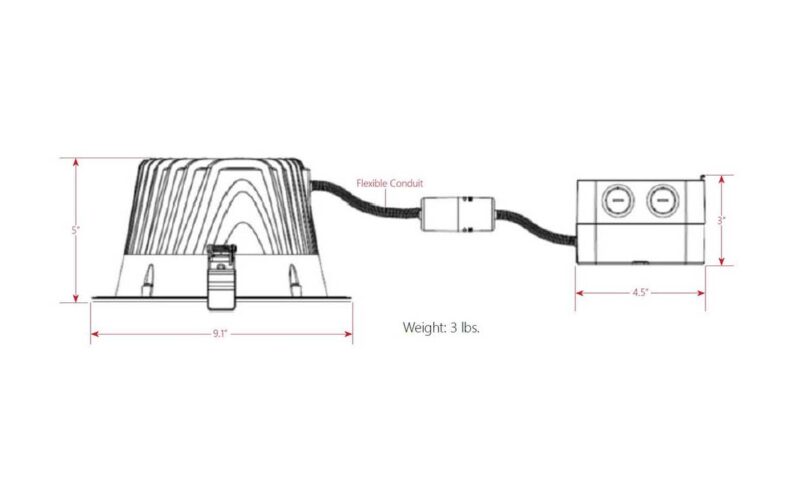

DLT 8
Click to view:

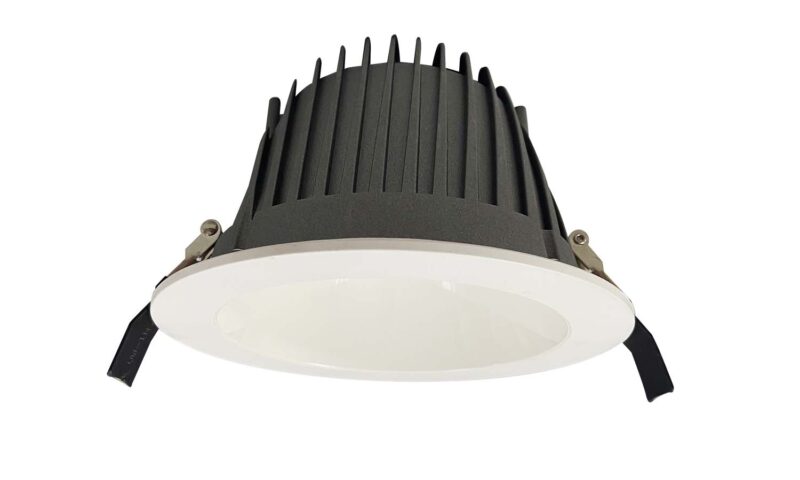

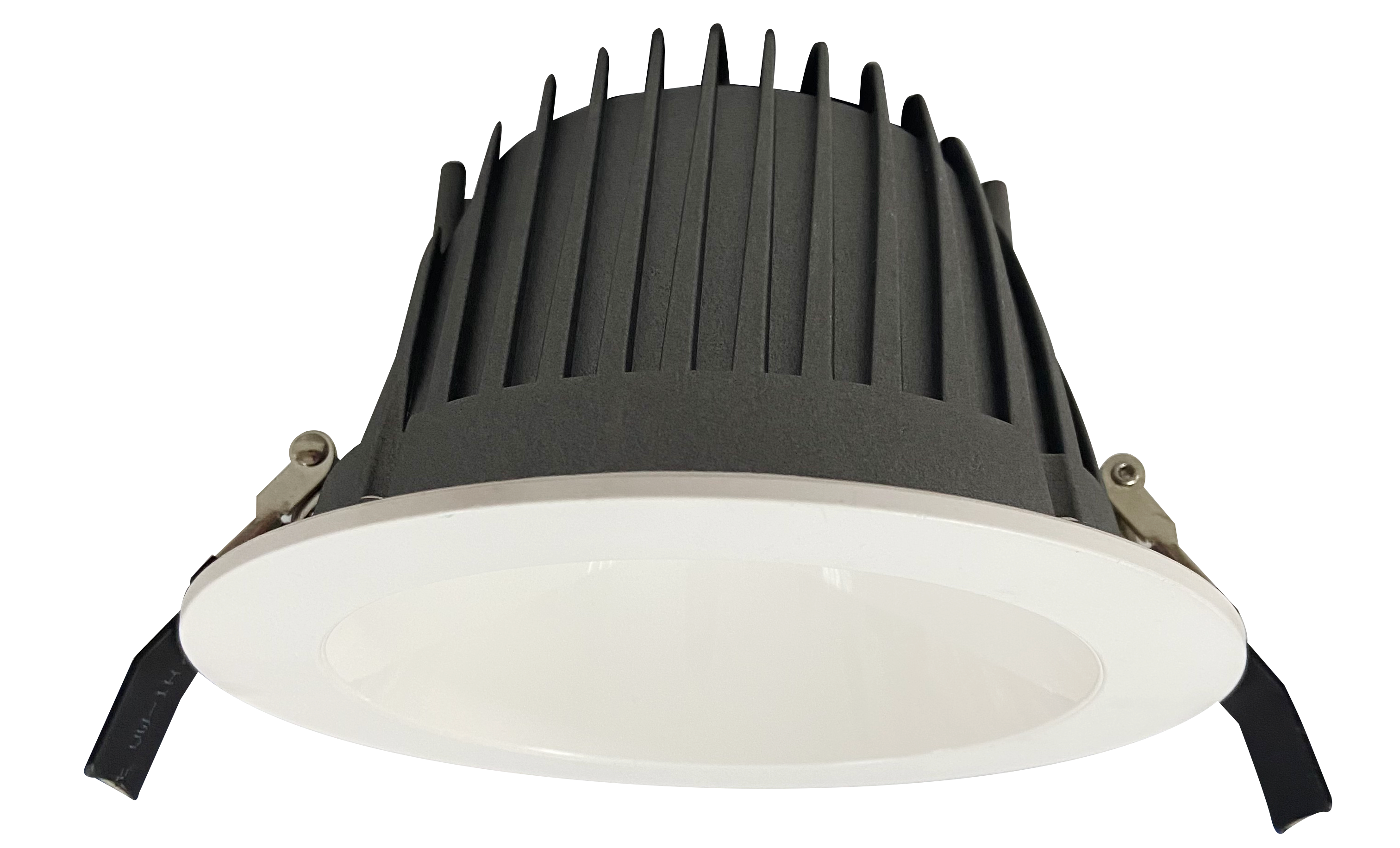

DLT 6

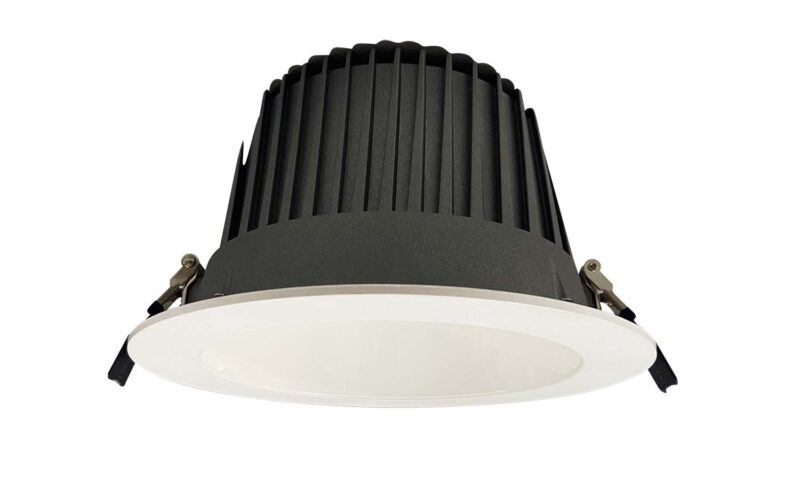

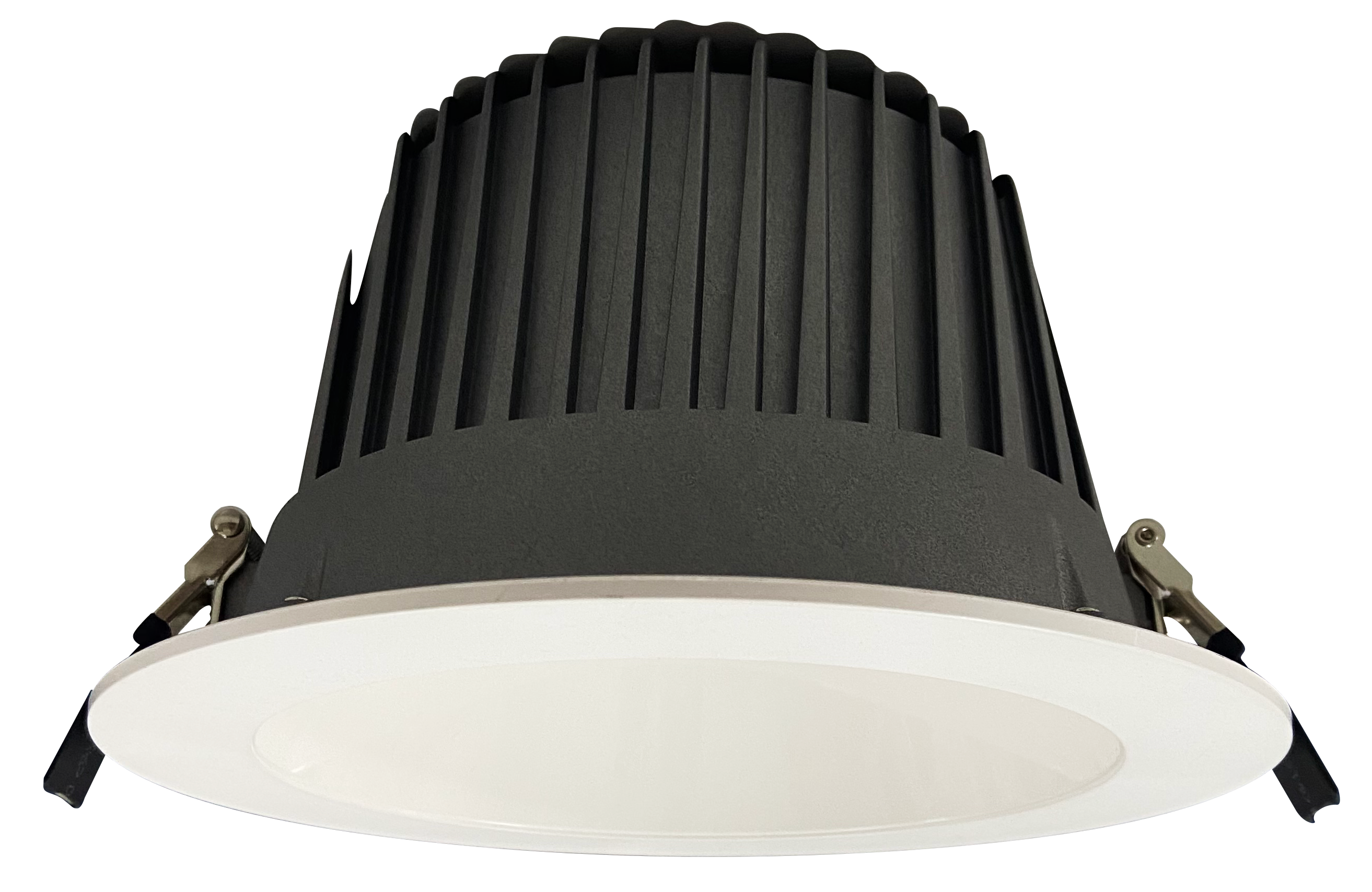

DLT 8
Click to download:
DLT 6: .ies files | .pdf files
DLT 8: .ies files | .pdf files
  • Applications: Suitable for most commercial, industrial and institutional retrofit and new construction applications - retail, hospitality, office
  • Lumen Output: 1,130-2,300 lm in the DLT 6; 2,120-5,560 in the DLT 8
  • Max Lumens Per Watt: 106.7
  • Predicted L70 Lifetime: 56,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: ETL listed for wet locations, complies with EN61000-4-5 surge protection (line neutral, 1kV), complies with FCC Part 15, class A
cETLus logo
Note: Table scrolls horizontally
Catalog #
SizeLumens*WattsLPW*CRI / Color TempVoltages AvailablePredicted L70 Lifetime
DLT 6 SEL UV SW 9SEL - Low6" Housing117011106.490 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 6 SEL UV SW 9SEL - Medium6" Housing170016106.390 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 6 SEL UV SW 9SEL - High6" Housing23002310090 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 8 SEL UV SW 9SEL - Low8" Housing224021106.790 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 8 SEL UV SW 9SEL - Medium8" Housing341032106.690 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 8 SEL UV SW 9SEL - High8" Housing45604310690 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
DLT 8 SEL UV SW 9SEL - Very High8" Housing556053104.990 CRI / 3000K, 3500K, 4000K, 5000K120-277V56,000 hrs
*NOTE:From 4000K selection.
Catalog #
Equivalency
DLT 6 SEL UV SW 9SEL - Low75W PAR30 Inc. / 26W PL-T
DLT 6 SEL UV SW 9SEL - Medium100W PAR30 Inc. / 32W PL-T
DLT 6 SEL UV SW 9SEL - High39W MH / 57W PL-T
DLT 8 SEL UV SW 9SEL - Low39W MH / 57W PL-T
DLT 8 SEL UV SW 9SEL - Medium50W MH / 2L 42W PL-T
DLT 8 SEL UV SW 9SEL - High70W MH / 2L 57W PL-T
DLT 8 SEL UV SW 9SEL - Very High100W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec SheetPhotometry Files
DLT 6 SEL UV SW 9SEL - LowView Download Download
DLT 6 SEL UV SW 9SEL - MediumView Download Download
DLT 6 SEL UV SW 9SEL - HighView Download Download
DLT 8 SEL UV SW 9SEL - LowView Download Download
DLT 8 SEL UV SW 9SEL - MediumView Download Download
DLT 8 SEL UV SW 9SEL - HighView Download Download
DLT 8 SEL UV SW 9SEL - Very HighView Download Download

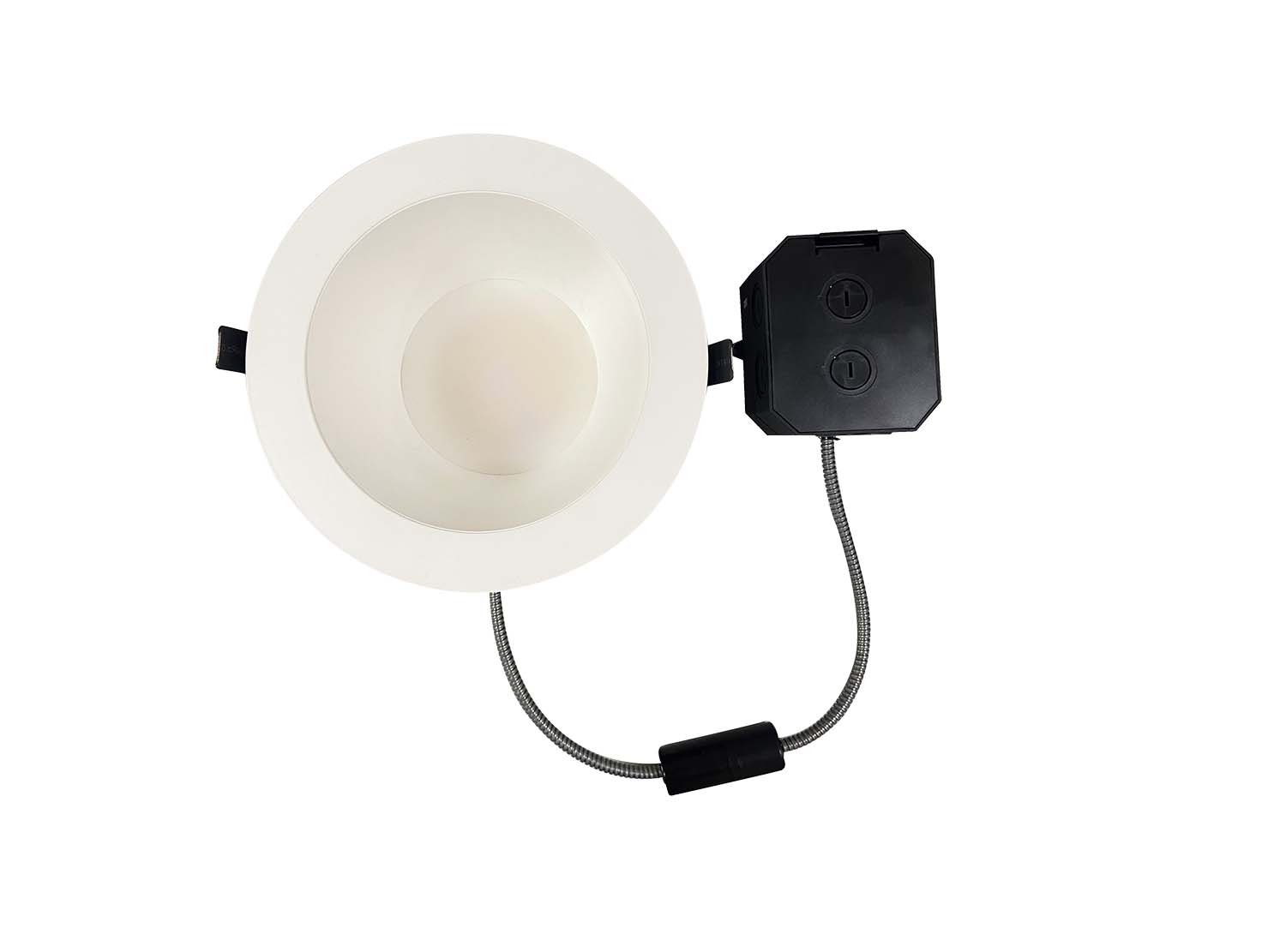

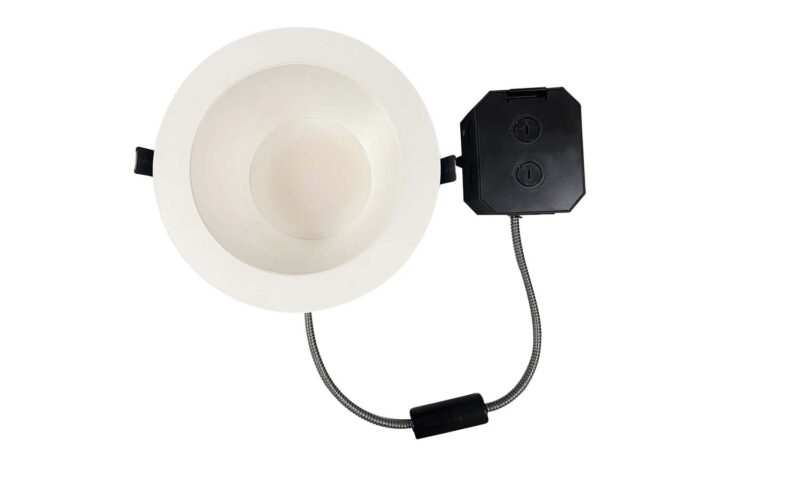

DLT8-2jpgblue

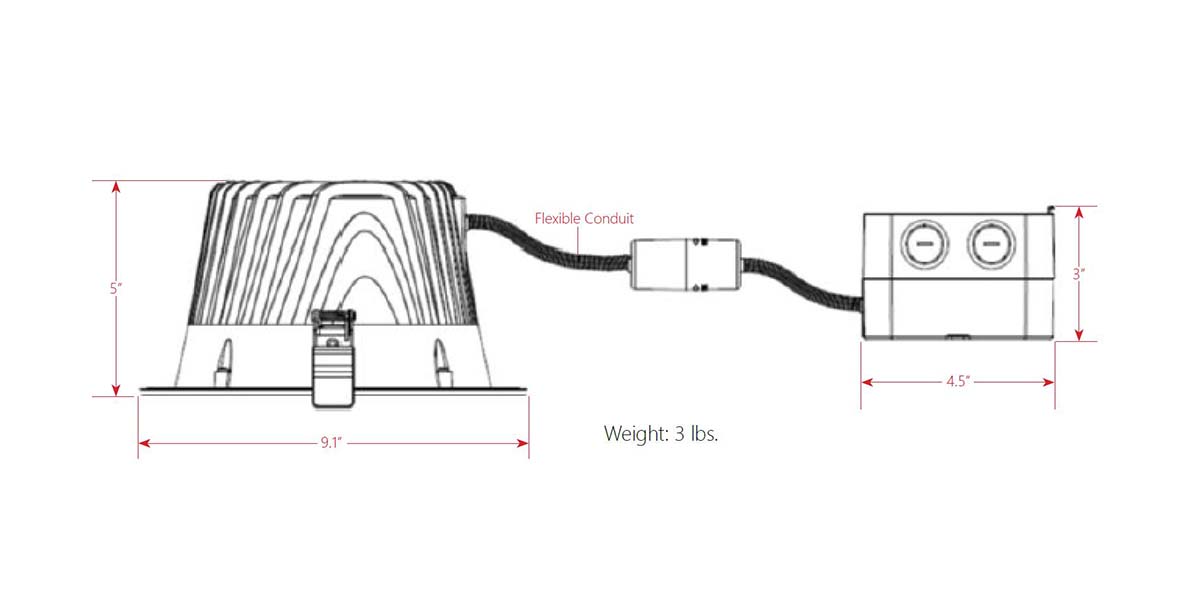

Construction and installation

    The housing of the DLT is constructed of aluminum, with a smooth white reflector. A standard junction box (included) can be remote mounted or attached to the luminaire.
