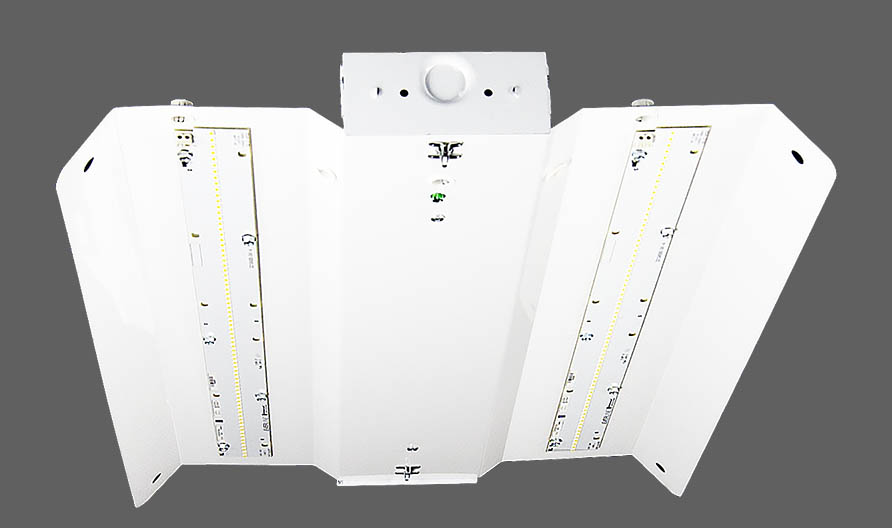

LED Economy Low Bay
-
Low cost and high efficiency with the EBL helps you maximize your return on investment. The small and lightweight design makes for simple installation. Multiple hanging options are available. Cords, occupancy sensors, photocells, emergency packs and step-down transformer options are available as well. Each EBL is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
- Applications: Suitable for most commercial, industrial and institutional applications - general areas, warehouses, manufacturing facilities
- Lumen Output: About 8,600 lm to 14,000 lm
- Max Lumens Per Watt: About 144
- Size Options: 2 foot
- Predicted L70 Lifetime: 72,000 hours (reported)
- Warranty: 5 year limited system warranty
- Re-BoardABILITY: Every EBL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
- Certifications: UL 1598 listed for US and Canada, suitable for damp locations
- Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Click to enlarge
Note: Table scrolls horizontally
| Size | Lumens | Watts | LPW | CRI / Color Temp | Voltages Available | DLC Listed | Predicted L70 Lifetime | |
|---|---|---|---|---|---|---|---|---|
| EBL 2 LW UV 835 | 2-foot | 8621 | 68 | 126.8 | 80 CRI / 3500K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 LW UV 840 | 2-foot | 8888 | 68 | 130.7 | 80 CRI / 4000K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 LW UV 850 | 2-foot | 9155 | 68 | 134.6 | 80 CRI / 5000K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 MD UV 835 | 2-foot | 10866 | 80 | 135.8 | 80 CRI / 3500K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 MD UV 840 | 2-foot | 11202 | 80 | 140 | 80 CRI / 4000K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 MD UV 850 | 2-foot | 11538 | 80 | 144.2 | 80 CRI / 5000K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 HI UV 835 | 2-foot | 13145 | 104 | 126.9 | 80 CRI / 3500K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 HI UV 840 | 2-foot | 13551 | 104 | 130.8 | 80 CRI / 4000K | 120-277V, 347V | No | >72,000 hours (reported) |
| EBL 2 HI UV 850 | 2-foot | 13958 | 104 | 134.7 | 80 CRI / 5000K | 120-277V, 347V | No | >72,000 hours (reported) |
| Equivalency* | |
|---|---|
| EBL 2 LW UV 835 | 150W MH, 2L T5HO, 3L T8 w/ HBF |
| EBL 2 LW UV 840 | 150W MH, 2L T5HO, 3L T8 w/ HBF |
| EBL 2 LW UV 850 | 150W MH, 2L T5HO, 3L T8 w/ HBF |
| EBL 2 MD UV 835 | 250W MH, or 4L T8 w/ HBF |
| EBL 2 MD UV 840 | 250W MH, or 4L T8 w/ HBF |
| EBL 2 MD UV 850 | 250W MH, or 4L T8 w/ HBF |
| EBL 2 HI UV 835 | 250W PSMH, 3L T5HO, 4L T8 w/ HBF |
| EBL 2 HI UV 840 | 250W PSMH, 3L T5HO, 4L T8 w/ HBF |
| EBL 2 HI UV 850 | 250W PSMH, 3L T5HO, 4L T8 w/ HBF |
| Image | Spec Sheet | |
|---|---|---|
| EBL 2 LW UV 835 | View | Download |
| EBL 2 LW UV 840 | View | Download |
| EBL 2 LW UV 850 | View | Download |
| EBL 2 MD UV 835 | View | Download |
| EBL 2 MD UV 840 | View | Download |
| EBL 2 MD UV 850 | View | Download |
| EBL 2 HI UV 835 | View | Download |
| EBL 2 HI UV 840 | View | Download |
| EBL 2 HI UV 850 | View | Download |
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.
Easy installation, instant efficiency
-
The EBL can be hung with V-chain hangers or by with our QC quick hang cable kit. It is lightweight, and simple to install. QC kits come pre-looped for easy installation and are designed for easy fixture height adjustment. The EBL is also available with optional controls (see spec sheet for details).
