LED Strip

    The ECL LED strip is available in a wide variety of lumen packages and lengths, which allows for flexibility in design and helps maximize energy savings. Frosted diffuser lenses are available to help minimize glare and improve aesthetics. Occupancy sensors, dimming sensors, emergency packs and step-down transformers are among the options available. All ECLs feature field-replaceable LED boards and drivers. The ECL is made in the USA - engineered and manufactured at our facility in Henderson, NC.
  • Applications: Suitable for most commercial, industrial and institutional applications - office, retail, warehouse, coves, valences
  • Lumen Output: From 800 lm in the 2-foot version to 18,000 lm in the 8-footer
  • Max Lumens Per Watt: 150
  • Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot
  • Predicted L70 Lifetime: > 120,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10 year extended warranty available on specific models
  • Re-BoardABILITY: Every ECL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in America: Engineered and made in the USA. Each ECL is manufactured in our Henderson, NC facility. BAA compliant options are available

Click to enlarge

WP ready ECL4 with FSP-211 center mount vert lightened WP ready ECL4 with FSP-211 center mount vert lightened
ECL4 with diffuser lens and tray-mounted FSP-211 dimming sensor, illuminated
WP ready ECL4 with FSP-211B D-L3-W diag layered WP ready ECL4 with FSP-211B D-L3-W diag layered

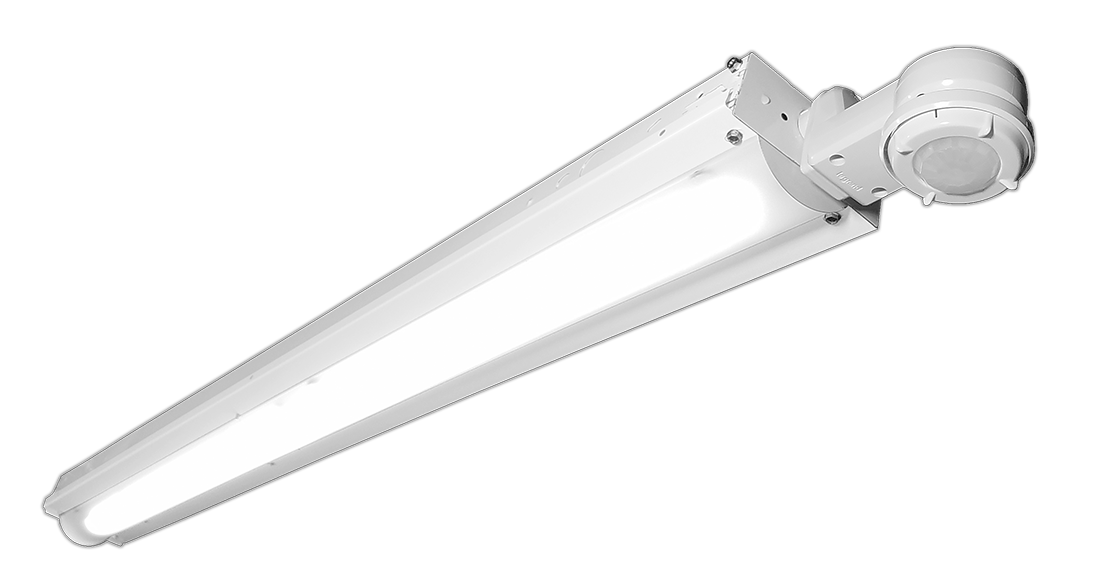

ECL4 with diffuser lens and end-mounted FSP-211 dimming sensor, illuminated
WP ready ECL4 with FSP-211 center mount horizontal up-close lightened WP ready ECL4 with FSP-211 center mount horizontal up-close lightened
ECL4 with diffuser lens and tray-mounted FSP-211 dimming sensor, illuminated
WP ready ECL4 with FSP-211B D-L3-W horiz WP ready ECL4 with FSP-211B D-L3-W horiz
ECL4 with diffuser lens and end-mounted FSP-211 dimming sensor, illuminated
WP ready ECL4 with FSP-211 center mount horizontal lightened WP ready ECL4 with FSP-211 center mount horizontal lightened
ECL4 with diffuser lens and tray-mounted FSP-211 dimming sensor, illuminated
WP READY ECL4 with FSP-211 center mount diag lightened WP READY ECL4 with FSP-211 center mount diag lightened
ECL4 with diffuser lens and tray-mounted FSP-211 dimming sensor, illuminated
WP ready ECL4 with FSP-211B D-L3-W lit vertical WP ready ECL4 with FSP-211B D-L3-W lit vertical
ECL4 with diffuser lens and end-mounted FSP-211 dimming sensor, illuminated
ECL update2 031617 ECL update2 031617

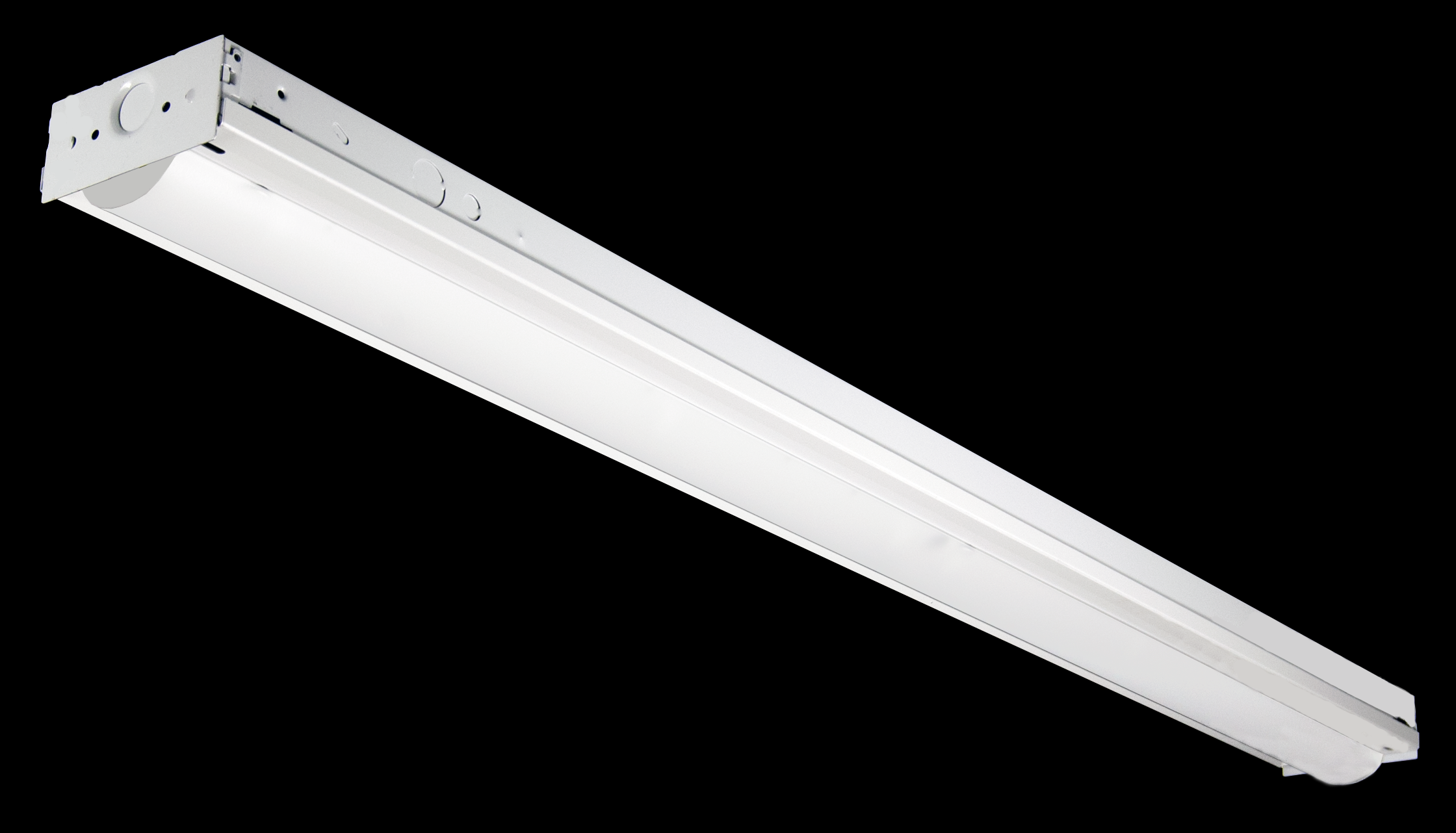

ECL4 with diffuser lens
ECL update 031617 ECL update 031617
ECL4 with diffuser lens
DLC, cULus, MiA, 10YR icons update2
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
ECL 2 LW UV 8352-foot8378104.780 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 LW UV 8402-foot8638107.980 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 LW UV 8502-foot8898111.180 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 MD UV 8352-foot1,95017.5111.480 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 MD UV 8402-foot2,01117.5114.980 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 MD UV 8502-foot2,07117.5118.380 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 HI UV 8352-foot3,08523134.180 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 HI UV 8402-foot3,18023138.380 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 HI UV 8502-foot3,27523142.480 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV 8352-foot3,96332123.980 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV 8402-foot4,08632127.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV 8502-foot4,20832131.580 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 3 LW UV 8353-foot1,24111112.880 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 LW UV 8403-foot1,27911116.380 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 LW UV 8503-foot1,31811119.880 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV 8353-foot3,18323138.480 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV 8403-foot3,28223142.780 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV 8503-foot3,3802314780 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 4 LW UV 8354-foot2,3051812880 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 LW UV 8404-foot2,3761813280 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 LW UV 8504-foot2,4471813680 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV 8354-foot3,83232119.780 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV 8404-foot3,95032123.480 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV 8504-foot4,06932127.180 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV 8354-foot4,82936134.180 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV 8404-foot4,97836138.380 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV 8504-foot5,12836142.480 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 HI UV 8354-foot6,70546145.880 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 HI UV 8404-foot6,91346150.380 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 HI UV 8504-foot7,12046154.880 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 VH UV 8354-foot8,90168130.980 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 VH UV 8404-foot9,17768134.980 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 VH UV 8504-foot9,4526813980 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 6 LW UV 8356-foot3,11922141.880 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 LW UV 8406-foot3,21622146.280 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 LW UV 8506-foot3,31222150.580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV 8356-foot6,4825412080 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV 8406-foot6,68254123.780 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV 8506-foot6,88354127.580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV 8356-foot9,85470140.880 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV 8406-foot10,15970145.180 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV 8506-foot10,46370149.580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV 8356-foot12,42395130.880 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV 8406-foot12,80795134.880 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV 8506-foot13,19295138.980 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 8 LW UV 8358-foot4,24030141.380 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 LW UV 8408-foot4,37130145.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 LW UV 8508-foot4,50330150.180 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV 8358-foot6,12544139.280 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV 8408-foot6,31444143.580 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV 8508-foot6,50444147.880 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD UV 8358-foot8,03364125.580 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MD UV 8408-foot8,28164129.480 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MD UV 8508-foot8,53064133.380 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MD HE UV 8358-foot8,0505614380 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MD HE UV 8408-foot8,29956147.480 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MD HE UV 8508-foot8,54856151.980 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 8 MH UV 8358-foot10,7657813880 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MH UV 8408-foot11,09878142.380 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MH UV 8508-foot11,43178146.580 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV 8358-foot12,41287141.280 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV 8408-foot12,79687147.180 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV 8508-foot13,18087151.580 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV 8358-foot17,316135128.380 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV 8408-foot17,852135132.280 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV 8508-foot18,388135136.280 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 LW UV FR 8352-foot8048100.580 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 LW UV FR 8402-foot8288103.680 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 LW UV FR 8502-foot8538106.780 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 2 MD UV FR 8352-foot1,85217.5105.880 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 2 MD UV FR 8402-foot1,91017.5109.180 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 2 MD UV FR 8502-foot1,96717.5112.480 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 2 HI UV FR 8352-foot2,96023128.780 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 HI UV FR 8402-foot3,05223132.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 HI UV FR 8502-foot3,14323136.780 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV FR 8352-foot3,80432118.980 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV FR 8402-foot3,92132122.580 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 2 VH UV FR 8502-foot4,03932126.280 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 3 LW UV FR 8353-foot1,19111108.380 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 LW UV FR 8403-foot1,22811111.680 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 LW UV FR 8503-foot1,2651111580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV FR 8353-foot3,05523132.880 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV FR 8403-foot3,15023136.980 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 3 MD UV FR 8503-foot3,24423141.180 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 4 LW UV FR 8354-foot2,21218122.980 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 LW UV FR 8404-foot2,28018126.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 LW UV FR 8504-foot2,34918130.580 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV FR 8354-foot3,64032115.580 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV FR 8404-foot3,75232119.180 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MD UV FR 8504-foot3,86532122.780 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV FR 8354-foot4,63536128.780 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV FR 8404-foot4,77836132.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 MH UV FR 8504-foot4,92136136.780 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 4 HI UV FR 8354-foot6,43646139.980 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 4 HI UV FR 8404-foot6,63546144.280 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 4 HI UV FR 8504-foot6,83446148.680 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 4 VH UV FR 8354-foot8,54368125.680 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 4 VH UV FR 8404-foot8,80768129.580 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 4 VH UV FR 8504-foot9,07168133.480 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>120,000 hrs (calculated)
ECL 6 LW UV FR 8356-foot2,99422136.180 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 LW UV FR 8406-foot3,08622140.380 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 LW UV FR 8506-foot3,17922144.580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV FR 8356-foot6,22154115.280 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV FR 8406-foot6,41354118.880 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 MD UV FR 8506-foot6,60654122.380 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV FR 8356-foot9,45770135.180 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV FR 8406-foot9,75070139.380 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 HI UV FR 8506-foot10,04270143.580 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV FR 8356-foot11,92395125.580 CRI / 3500K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV FR 8406-foot12,29295129.480 CRI / 4000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 6 VH UV FR 8506-foot12,66095133.380 CRI / 5000K120-277V, 347VNo5 years>120,000 hrs (calculated)
ECL 8 LW UV FR 8358-foot4,07030135.780 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 LW UV FR 8408-foot4,19530139.880 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 LW UV FR 8508-foot4,3213014480 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV FR 8358-foot5,87844133.680 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV FR 8408-foot6,06044137.780 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 ML UV FR 8508-foot6,24244141.980 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD UV FR 8358-foot7,70964120.580 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD UV FR 8408-foot7,94864124.280 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD UV FR 8508-foot8,18664127.980 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD HE UV FR 8358-foot7,72656137.380 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD HE UV FR 8408-foot7,96556141.580 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MD HE UV FR 8508-foot8,20456145.780 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MH UV FR 8358-foot10,33178132.580 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MH UV FR 8408-foot10,65178136.680 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 MH UV FR 8508-foot10,97178140.680 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV FR 8358-foot11,91287136.980 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV FR 8408-foot12,28187141.280 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 HI UV FR 8508-foot12,64987145.480 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV FR 8358-foot16,619135123.180 CRI / 3500K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV FR 8408-foot17,133135126.980 CRI / 4000K120-277V, 347VYes5 years>120,000 hrs (calculated)
ECL 8 VH UV FR 8508-foot17,647135130.780 CRI / 5000K120-277V, 347VYes5 years>120,000 hrs (calculated)
Catalog #
Equivalency*
ECL 2 LW UV 8351L F17 T8 w/ LBF
ECL 2 LW UV 8401L F17 T8 w/ LBF
ECL 2 LW UV 8501L F17 T8 w/ LBF
ECL 2 MD UV 8352L F17 T8 w/ NBF, 1L F24 T5HO
ECL 2 MD UV 8402L F17 T8 w/ NBF, 1L F24 T5HO
ECL 2 MD UV 8502L F17 T8 w/ NBF, 1L F24 T5HO
ECL 2 HI UV 8352L F24T5HO
ECL 2 HI UV 8402L F24T5HO
ECL 2 HI UV 8502L F24T5HO
ECL 2 VH UV 8353L F17 T8 w/ HBF
ECL 2 VH UV 8403L F17 T8 w/ HBF
ECL 2 VH UV 8503L F17 T8 w/ HBF
ECL 3 LW UV 8351L F25 T8 w/ LBF
ECL 3 LW UV 8401L F25 T8 w/ LBF
ECL 3 LW UV 8501L F25 T8 w/ LBF
ECL 3 MD UV 8352L F25 T8 w/ NBF
ECL 3 MD UV 8402L F25 T8 w/ NBF
ECL 3 MD UV 8502L F25 T8 w/ NBF
ECL 4 LW UV 8351L F32 T8 w/ NBF
ECL 4 LW UV 8401L F32 T8 w/ NBF
ECL 4 LW UV 8501L F32 T8 w/ NBF
ECL 4 MD UV 8352L F32 T8 w/ NBF
ECL 4 MD UV 8402L F32 T8 w/ NBF
ECL 4 MD UV 8502L F32 T8 w/ NBF
ECL 4 MH UV 8353L F32 T8 w/ LBF
ECL 4 MH UV 8403L F32 T8 w/ LBF
ECL 4 MH UV 8503L F32 T8 w/ LBF
ECL 4 HI UV 8354L F32 T8 w/ LBF
ECL 4 HI UV 8404L F32 T8 w/ LBF
ECL 4 HI UV 8504L F32 T8 w/ LBF
ECL 4 VH UV 8354L F32 T8 w/ HBF
ECL 4 VH UV 8404L F32 T8 w/ HBF
ECL 4 VH UV 8504L F32 T8 w/ HBF
ECL 6 LW UV 8352L F25 T8 w/ LBF
ECL 6 LW UV 8402L F25 T8 w/ LBF
ECL 6 LW UV 8502L F25 T8 w/ LBF
ECL 6 MD UV 8354L F25 T8 w/ NBF
ECL 6 MD UV 8404L F25 T8 w/ NBF
ECL 6 MD UV 8504L F25 T8 w/ NBF
ECL 6 HI UV 8356L F25 T8 w/ NBF
ECL 6 HI UV 8406L F25 T8 w/ NBF
ECL 6 HI UV 8506L F25 T8 w/ NBF
ECL 6 VH UV 8358L F25 T8 w NBF
ECL 6 VH UV 8408L F25 T8 w NBF
ECL 6 VH UV 8508L F25 T8 w NBF
ECL 8 LW UV 8352L F32 T8 w/ NBF
ECL 8 LW UV 8402L F32 T8 w/ NBF
ECL 8 LW UV 8502L F32 T8 w/ NBF
ECL 8 ML UV 8351L F96 T8HO, 1L F96 T12HO
ECL 8 ML UV 8401L F96 T8HO, 1L F96 T12HO
ECL 8 ML UV 8501L F96 T8HO, 1L F96 T12HO
ECL 8 MD UV 8354L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MD UV 8404L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MD UV 8504L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MD HE UV 8354L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MD HE UV 8404L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MD HE UV 8504L F32 T8 w/ NBF, 2L F54 T5HO, 2L F96 T8
ECL 8 MH UV 8354L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 MH UV 8404L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 MH UV 8504L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 HI UV 8352L F96 T8HO
ECL 8 HI UV 8402L F96 T8HO
ECL 8 HI UV 8502L F96 T8HO
ECL 8 VH UV 8354L F54 T5HO
ECL 8 VH UV 8404L F54 T5HO
ECL 8 VH UV 8504L F54 T5HO
ECL 2 LW UV FR 8351L F17 T8 w/ LBF
ECL 2 LW UV FR 8401L F17 T8 w/ LBF
ECL 2 LW UV FR 8501L F17 T8 w/ LBF
ECL 2 MD UV FR 8352L F17 T8 w/ LBF, 1L F24 T5HO
ECL 2 MD UV FR 8402L F17 T8 w/ LBF, 1L F24 T5HO
ECL 2 MD UV FR 8502L F17 T8 w/ LBF, 1L F24 T5HO
ECL 2 HI UV FR 8352L F17 T8 w/ HBF, 2L F24 T5HO
ECL 2 HI UV FR 8402L F17 T8 w/ HBF, 2L F24 T5HO
ECL 2 HI UV FR 8502L F17 T8 w/ HBF, 2L F24 T5HO
ECL 2 VH UV FR 8353L F17 T8 w/ HBF
ECL 2 VH UV FR 8403L F17 T8 w/ HBF
ECL 2 VH UV FR 8503L F17 T8 w/ HBF
ECL 3 LW UV FR 8351L F25 T8 w/ LBF
ECL 3 LW UV FR 8401L F25 T8 w/ LBF
ECL 3 LW UV FR 8501L F25 T8 w/ LBF
ECL 3 MD UV FR 8352L F25 T8 w/ NBF
ECL 3 MD UV FR 8402L F25 T8 w/ NBF
ECL 3 MD UV FR 8502L F25 T8 w/ NBF
ECL 4 LW UV FR 8351L F32 T8 w/ NBF
ECL 4 LW UV FR 8401L F32 T8 w/ NBF
ECL 4 LW UV FR 8501L F32 T8 w/ NBF
ECL 4 MD UV FR 8352L F32 T8 w/ LBF, 1L F54 T5HO
ECL 4 MD UV FR 8402L F32 T8 w/ LBF, 1L F54 T5HO
ECL 4 MD UV FR 8502L F32 T8 w/ LBF, 1L F54 T5HO
ECL 4 MH UV FR 8353L F32 T8 w/ LBF
ECL 4 MH UV FR 8403L F32 T8 w/ LBF
ECL 4 MH UV FR 8503L F32 T8 w/ LBF
ECL 4 HI UV FR 8354L F32 T8 w/ LBF
ECL 4 HI UV FR 8404L F32 T8 w/ LBF
ECL 4 HI UV FR 8504L F32 T8 w/ LBF
ECL 4 VH UV FR 8354L F32 T8 w/ HBF
ECL 4 VH UV FR 8404L F32 T8 w/ HBF
ECL 4 VH UV FR 8504L F32 T8 w/ HBF
ECL 6 LW UV FR 8352L F25 T8 w/ LBF
ECL 6 LW UV FR 8402L F25 T8 w/ LBF
ECL 6 LW UV FR 8502L F25 T8 w/ LBF
ECL 6 MD UV FR 8354L F25 T8 w/ NBF
ECL 6 MD UV FR 8404L F25 T8 w/ NBF
ECL 6 MD UV FR 8504L F25 T8 w/ NBF
ECL 6 HI UV FR 8356L F25 T8 w/ NBF
ECL 6 HI UV FR 8406L F25 T8 w/ NBF
ECL 6 HI UV FR 8506L F25 T8 w/ NBF
ECL 6 VH UV FR 8358L F25 T8 w/ NBF
ECL 6 VH UV FR 8408L F25 T8 w/ NBF
ECL 6 VH UV FR 8508L F25 T8 w/ NBF
ECL 8 LW UV FR 8352L F32 T8 w/ NBF
ECL 8 LW UV FR 8402L F32 T8 w/ NBF
ECL 8 LW UV FR 8502L F32 T8 w/ NBF
ECL 8 ML UV FR 8351L F96 T8HO, 1L F96 T12HO
ECL 8 ML UV FR 8401L F96 T8HO, 1L F96 T12HO
ECL 8 ML UV FR 8501L F96 T8HO, 1L F96 T12HO
ECL 8 MD UV FR 8354L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MD UV FR 8404L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MD UV FR 8504L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MD HE UV FR 8354L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MD HE UV FR 8404L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MD HE UV FR 8504L F32 T8 w/ NBF, 2L F54 T5HO
ECL 8 MH UV FR 8354L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 MH UV FR 8404L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 MH UV FR 8504L F32 T8 w/ HBF, 2L F96 T12HO
ECL 8 HI UV FR 8352L F96 T8HO
ECL 8 HI UV FR 8402L F96 T8HO
ECL 8 HI UV FR 8502L F96 T8HO
ECL 8 VH UV FR 8354L F54 T5HO
ECL 8 VH UV FR 8404L F54 T5HO
ECL 8 VH UV FR 8504L F54 T5HO
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
ECL 2 LW UV 835
Download Contact Factory
ECL 2 LW UV 840
Download Contact Factory
ECL 2 LW UV 850
Download Contact Factory
ECL 2 MD UV 835
Download Download
ECL 2 MD UV 840
Download Contact Factory
ECL 2 MD UV 850
Download Contact Factory
ECL 2 HI UV 835
Download Contact Factory
ECL 2 HI UV 840
Download Contact Factory
ECL 2 HI UV 850
Download Contact Factory
ECL 2 VH UV 835
Download Contact Factory
ECL 2 VH UV 840
Download Contact Factory
ECL 2 VH UV 850
Download Contact Factory
ECL 3 LW UV 835
Download Contact Factory
ECL 3 LW UV 840
Download Contact Factory
ECL 3 LW UV 850
Download Contact Factory
ECL 3 MD UV 835
Download Contact Factory
ECL 3 MD UV 840
Download Contact Factory
ECL 3 MD UV 850
Download Contact Factory
ECL 4 LW UV 835View Download Contact Factory
ECL 4 LW UV 840View Download Download
ECL 4 LW UV 850View Download Download
ECL 4 MD UV 835View Download Download
ECL 4 MD UV 840View Download Download
ECL 4 MD UV 850View Download Download
ECL 4 MH UV 835View Download Contact Factory
ECL 4 MH UV 840View Download Contact Factory
ECL 4 MH UV 850View Download Download
ECL 4 HI UV 835View Download Contact Factory
ECL 4 HI UV 840View Download Contact Factory
ECL 4 HI UV 850View Download Download
ECL 4 VH UV 835View Download Contact Factory
ECL 4 VH UV 840View Download Download
ECL 4 VH UV 850View Download Contact Factory
ECL 6 LW UV 835
Download Contact Factory
ECL 6 LW UV 840
Download Contact Factory
ECL 6 LW UV 850
Download Contact Factory
ECL 6 MD UV 835
Download Contact Factory
ECL 6 MD UV 840
Download Contact Factory
ECL 6 MD UV 850
Download Contact Factory
ECL 6 HI UV 835
Download Contact Factory
ECL 6 HI UV 840
Download Contact Factory
ECL 6 HI UV 850
Download Contact Factory
ECL 6 VH UV 835
Download Contact Factory
ECL 6 VH UV 840
Download Contact Factory
ECL 6 VH UV 850
Download Contact Factory
ECL 8 LW UV 835View Download Contact Factory
ECL 8 LW UV 840View Download Contact Factory
ECL 8 LW UV 850View Download Download
ECL 8 ML UV 835View Download Contact Factory
ECL 8 ML UV 840View Download Contact Factory
ECL 8 ML UV 850View Download Download
ECL 8 MD UV 835View Download Contact Factory
ECL 8 MD UV 840View Download Contact Factory
ECL 8 MD UV 850View Download Download
ECL 8 MD HE UV 835View Download Contact Factory
ECL 8 MD HE UV 840View Download Contact Factory
ECL 8 MD HE UV 850View Download Contact Factory
ECL 8 MH UV 835View Download Contact Factory
ECL 8 MH UV 840View Download Contact Factory
ECL 8 MH UV 850View Download Download
ECL 8 HI UV 835View Download Contact Factory
ECL 8 HI UV 840View Download Contact Factory
ECL 8 HI UV 850View Download Download
ECL 8 VH UV 835View Download Contact Factory
ECL 8 VH UV 840View Download Contact Factory
ECL 8 VH UV 850View Download Download
ECL 2 LW UV FR 835View Download Contact Factory
ECL 2 LW UV FR 840View Download Contact Factory
ECL 2 LW UV FR 850View Download Contact Factory
ECL 2 MD UV FR 835View Download Download
ECL 2 MD UV FR 840View Download Contact Factory
ECL 2 MD UV FR 850View Download Contact Factory
ECL 2 HI UV FR 835View Download Contact Factory
ECL 2 HI UV FR 840View Download Contact Factory
ECL 2 HI UV FR 850View Download Contact Factory
ECL 2 VH UV FR 835View Download Contact Factory
ECL 2 VH UV FR 840View Download Contact Factory
ECL 2 VH UV FR 850View Download Contact Factory
ECL 3 LW UV FR 835
Download Contact Factory
ECL 3 LW UV FR 840
Download Contact Factory
ECL 3 LW UV FR 850
Download Contact Factory
ECL 3 MD UV FR 835
Download Contact Factory
ECL 3 MD UV FR 840
Download Contact Factory
ECL 3 MD UV FR 850
Download Contact Factory
ECL 4 LW UV FR 835View Download Contact Factory
ECL 4 LW UV FR 840View Download Download
ECL 4 LW UV FR 850View Download Download
ECL 4 MD UV FR 835View Download Download
ECL 4 MD UV FR 840View Download Download
ECL 4 MD UV FR 850View Download Download
ECL 4 MH UV FR 835View Download Contact Factory
ECL 4 MH UV FR 840View Download Contact Factory
ECL 4 MH UV FR 850View Download Download
ECL 4 HI UV FR 835View Download Contact Factory
ECL 4 HI UV FR 840View Download Contact Factory
ECL 4 HI UV FR 850View Download Download
ECL 4 VH UV FR 835View Download Contact Factory
ECL 4 VH UV FR 840View Download Download
ECL 4 VH UV FR 850View Download Download
ECL 6 LW UV FR 835
Download Contact Factory
ECL 6 LW UV FR 840
Download Contact Factory
ECL 6 LW UV FR 850
Download Contact Factory
ECL 6 MD UV FR 835
Download Contact Factory
ECL 6 MD UV FR 840
Download Contact Factory
ECL 6 MD UV FR 850
Download Contact Factory
ECL 6 HI UV FR 835
Download Contact Factory
ECL 6 HI UV FR 840
Download Contact Factory
ECL 6 HI UV FR 850
Download Contact Factory
ECL 6 VH UV FR 835
Download Contact Factory
ECL 6 VH UV FR 840
Download Contact Factory
ECL 6 VH UV FR 850
Download Contact Factory
ECL 8 LW UV FR 835View Download Contact Factory
ECL 8 LW UV FR 840View Download Download
ECL 8 LW UV FR 850View Download Download
ECL 8 ML UV FR 835View Download Contact Factory
ECL 8 ML UV FR 840View Download Contact Factory
ECL 8 ML UV FR 850View Download Download
ECL 8 MD UV FR 835View Download Contact Factory
ECL 8 MD UV FR 840View Download Download
ECL 8 MD UV FR 850View Download Download
ECL 8 MD HE UV FR 835View Download Contact Factory
ECL 8 MD HE UV FR 840View Download Contact Factory
ECL 8 MD HE UV FR 850View Download Contact Factory
ECL 8 MH UV FR 835View Download Contact Factory
ECL 8 MH UV FR 840View Download Download
ECL 8 MH UV FR 850View Download Download
ECL 8 HI UV FR 835View Download Contact Factory
ECL 8 HI UV FR 840View Download Download
ECL 8 HI UV FR 850View Download Download
ECL 8 VH UV FR 835View Download Contact Factory
ECL 8 VH UV FR 840View Download Download
ECL 8 VH UV FR 850View Download Download
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

ECL4 end mount FSP smaller flip

In control

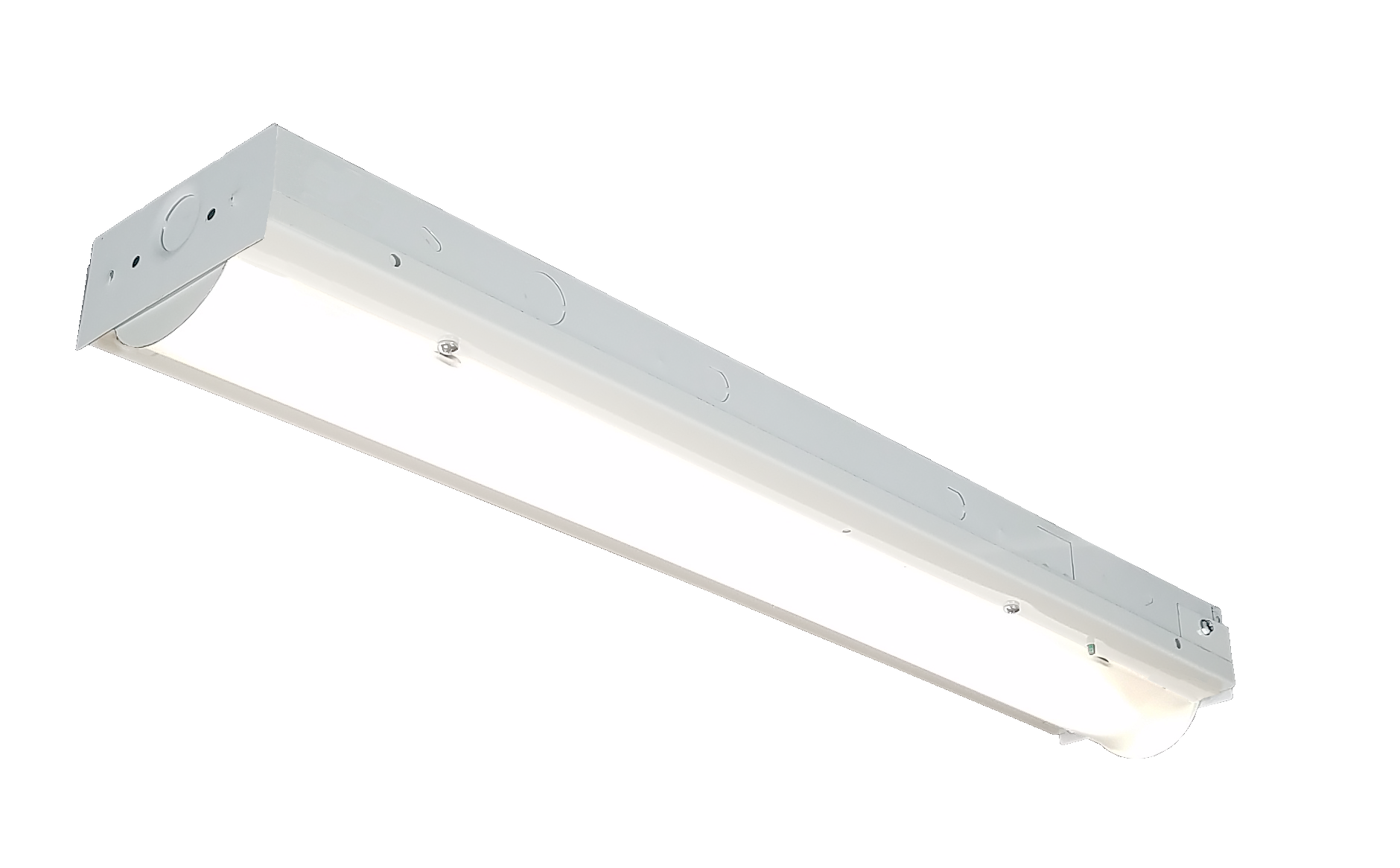

    Multiple control options are available for the ECL. The FSP sensor (pictured) provides multi-level control based on motion and/or daylight contribution. Microwave sensors, which sit discretely behind the frosted lens, are also available. IoT or network controls are available as well (see spec sheet for more details).

Follow us on social media:
