ECLN - LED Narrow Strip from LumenFocus is available in four lengths

LED Narrow Strip

The ECLN is available in a wide array of different lengths and lumen output packages. Frosted diffusers help minimize glare and improve aesthetics. The highly durable housing features a finish in either the standard white, Matte White or Matte Black. Integral track head receptacles are optional and compatible with all Juno and A-Line style track heads (track heads not included). The ECLN is assembled in the USA - in our Henderson, NC facility.

Spec Sheet

High Res Images

Applications: Suitable for most commercial, industrial and institutional applications - office, retail, warehouse, coves, valences
Lumen Output: From 880 lumens in the 2-footer up to nearly 17,000 in the 8-foot "VH" model
Max Lumens Per Watt: 161
Size Options: 2-foot, 3-foot, 4-foot, 6-foot, 8-foot, 12-foot, 16-foot
Color Options: White (standard), Matte White, Matte Black
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every ECLN is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Assembled in the USA: Each ECLN is assembled at our facility in Henderson, NC. BAA compliant options are available

Buy Now

Request a Quote

Click to enlarge

ECLN 4-footer in Matte Black

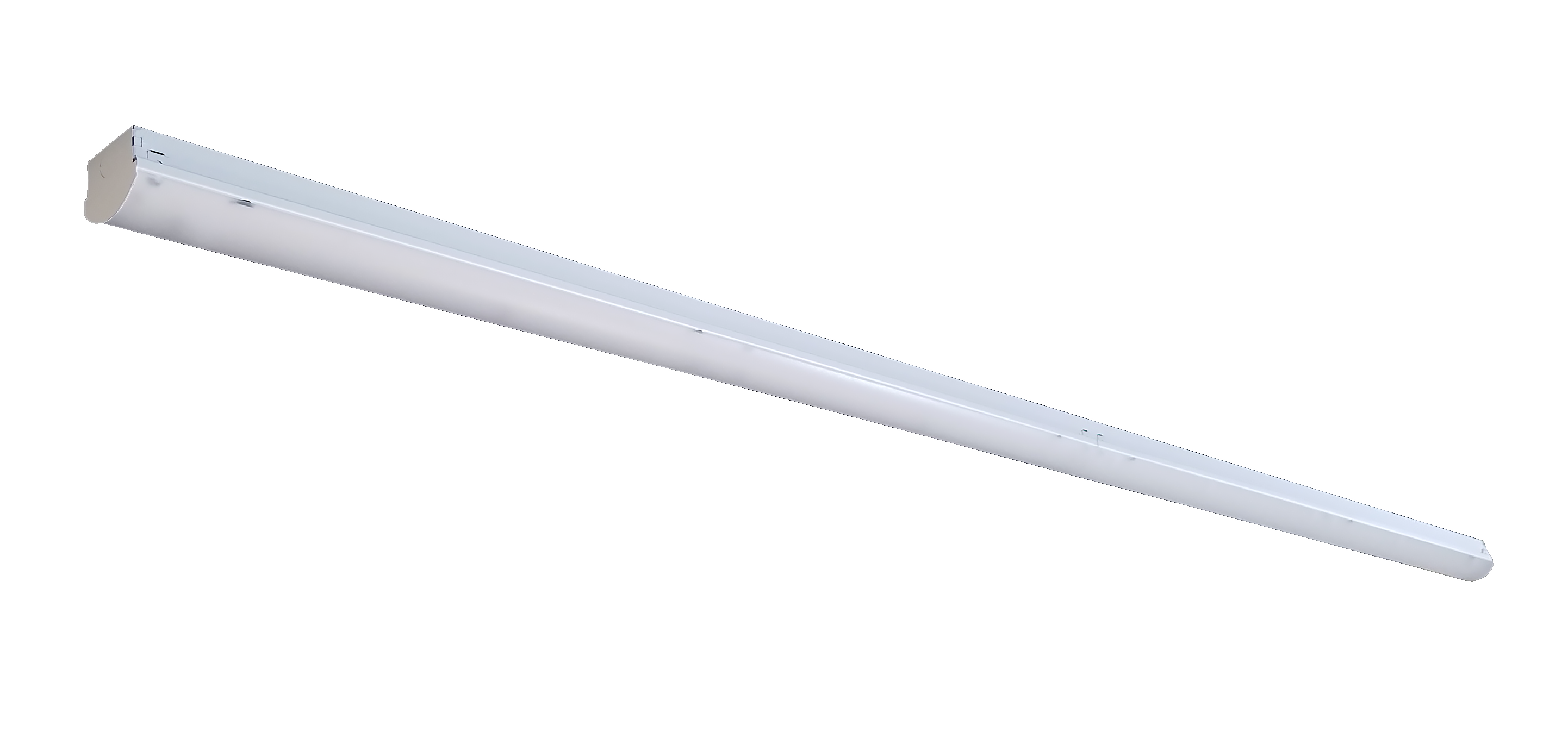

ECLN 8-footer in Matte White

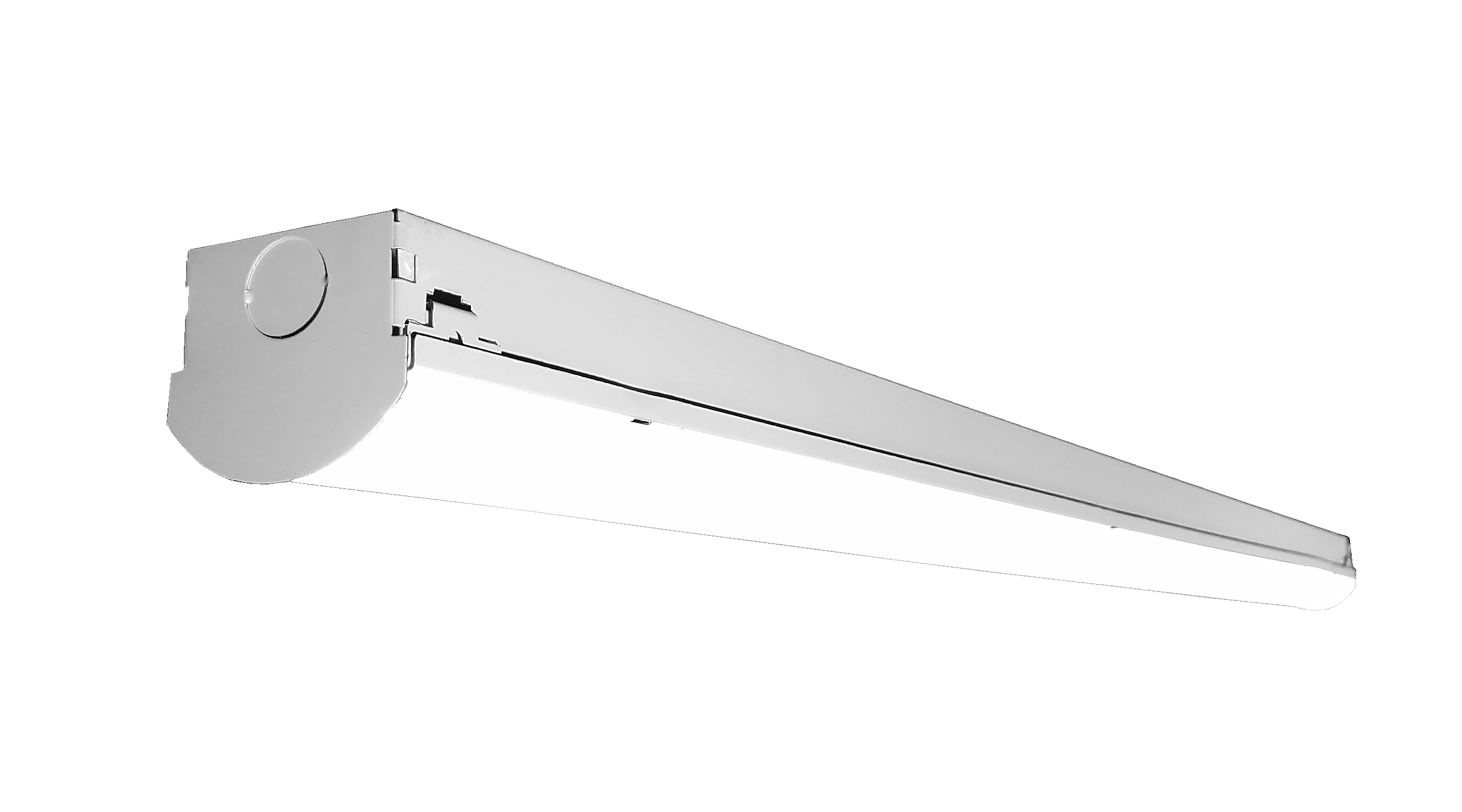

ECLN 4-footer in Matte White

ECLN 8-footer in Matte Black

Buy Now

Request a Quote

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	Warranty	Predicted L70 Lifetime
ECL N 2 LW UV FR 835	2-foot	882	8	110.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 LW UV FR 840	2-foot	911	8	113.9	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 LW UV FR 850	2-foot	939	8	117.3	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 MD UV FR 835	2-foot	1852	18	105.8	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 MD UV FR 840	2-foot	1913	18	109.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 MD UV FR 850	2-foot	1971	18	112.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 HI UV FR 835	2-foot	2831	23	123.1	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 HI UV FR 840	2-foot	2925	23	127.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 HI UV FR 850	2-foot	3012	23	131	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 VH UV FR 835	2-foot	3754	32	117.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 VH UV FR 840	2-foot	3879	32	121.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 2 VH UV FR 850	2-foot	3995	32	124.8	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 LW UV FR 835	3-foot	1365	11	124.1	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 LW UV FR 840	3-foot	1410	11	128.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 LW UV FR 850	3-foot	1452	11	132	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 MD UV FR 835	3-foot	2906	23	126.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 MD UV FR 840	3-foot	3002	23	130.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 3 MD UV FR 850	3-foot	3092	23	134.4	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW UV FR 835	4-foot	2,199	18	122.2	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW UV FR 840	4-foot	2,272	18	126.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW UV FR 850	4-foot	2,340	18	130	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD UV FR 835	4-foot	3,605	32	112.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD UV FR 840	4-foot	3,724	32	116.4	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD UV FR 850	4-foot	3,836	32	119.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH UV FR 835	4-foot	4,498	36	124.9	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH UV FR 840	4-foot	4,647	36	129.1	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH UV FR 850	4-foot	4,786	36	132.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI UV FR 835	4-foot	5,762	46	125.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI UV FR 840	4-foot	5,953	46	129.4	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI UV FR 850	4-foot	6,131	46	133.3	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH UV FR 835	4-foot	7,951	68	116.9	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH UV FR 840	4-foot	8,214	68	120.8	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH UV FR 850	4-foot	8,461	68	124.4	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 LW UV FR 835	6-foot	2,864	22	130.2	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 LW UV FR 840	6-foot	2,958	22	134.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 LW UV FR 850	6-foot	3,047	22	138.5	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 MD UV FR 835	6-foot	6,021	54	111.5	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 MD UV FR 840	6-foot	6,220	54	115.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 MD UV FR 850	6-foot	6,407	54	118.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 HI UV FR 835	6-foot	8,896	70	127.1	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 HI UV FR 840	6-foot	9,190	70	131.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 HI UV FR 850	6-foot	9,466	70	135.2	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 VH UV FR 835	6-foot	11,174	95	117.6	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 VH UV FR 840	6-foot	11,544	95	121.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 6 VH UV FR 850	6-foot	11,890	95	125.2	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW UV FR 835	8-foot	3,938	30	131.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW UV FR 840	8-foot	4,068	30	135.6	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW UV FR 850	8-foot	4,190	30	139.7	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML UV FR 835	8-foot	5,424	44	123.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML UV FR 840	8-foot	5,604	44	127.4	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML UV FR 850	8-foot	5,772	44	131.2	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD UV FR 835	8-foot	7,339	64	114.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD UV FR 840	8-foot	7,581	64	118.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD UV FR 850	8-foot	7,809	64	122	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH UV FR 835	8-foot	9,703	78	124.4	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH UV FR 840	8-foot	10,024	78	128.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH UV FR 850	8-foot	10,324	78	132.4	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI UV FR 835	8-foot	11,203	87	128.8	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI UV FR 840	8-foot	11,573	87	133	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI UV FR 850	8-foot	11,920	87	137	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH UV FR 835	8-foot	15,815	135	117.1	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH UV FR 840	8-foot	16,337	135	121	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH UV FR 850	8-foot	16,827	135	124.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW HE UV FR 835	4-foot	2,194	15	146.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW HE UV FR 840	4-foot	2,262	15	150.8	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 LW HE UV FR 850	4-foot	2,330	15	155.3	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 ML HE UV FR 835	4-foot	2,914	20	145.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 ML HE UV FR 840	4-foot	3,004	20	150.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 ML HE UV FR 850	4-foot	3,094	20	154.7	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD HE UV FR 835	4-foot	4,000	28	145.5	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD HE UV FR 840	4-foot	4,124	28	150	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MD HE UV FR 850	4-foot	4,248	28	154.5	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH HE UV FR 835	4-foot	4,850	34	142.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH HE UV FR 840	4-foot	5,000	34	147.1	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 MH HE UV FR 850	4-foot	5,150	34	151.5	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI HE UV FR 835	4-foot	6,087	44	138.3	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI HE UV FR 840	4-foot	6,275	44	142.6	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 HI HE UV FR 850	4-foot	6,464	44	146.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH HE UV FR 835	4-foot	7,887	60	131.4	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH HE UV FR 840	4-foot	8,131	60	135.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 4 VH HE UV FR 850	4-foot	8,374	60	139.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW HE UV FR 835	8-foot	3,945	26	151.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW HE UV FR 840	8-foot	4,067	26	156.4	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 LW HE UV FR 850	8-foot	4,189	26	161.1	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML HE UV FR 835	8-foot	5,948	40	148.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML HE UV FR 840	8-foot	6,132	40	153.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 ML HE UV FR 850	8-foot	6,316	40	157.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD HE UV FR 835	8-foot	7,867	54	145.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD HE UV FR 840	8-foot	8,110	54	150.2	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MD HE UV FR 850	8-foot	8,353	54	154.7	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH HE UV FR 835	8-foot	9,701	68	142.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH HE UV FR 840	8-foot	10,001	68	147.1	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 MH HE UV FR 850	8-foot	10,301	68	151.5	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI HE UV FR 835	8-foot	11,814	85	139	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI HE UV FR 840	8-foot	12,180	85	143.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 HI HE UV FR 850	8-foot	12,545	85	147.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH HE UV FR 835	8-foot	15,773	120	131.4	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH HE UV FR 840	8-foot	16,261	120	135.5	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 8 VH HE UV FR 850	8-foot	16,749	120	139.6	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 LW HE UV FR 835	12-foot	5,771	38	151.9	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 LW HE UV FR 840	12-foot	5,949	38	156.6	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 LW HE UV FR 850	12-foot	6,128	38	161.3	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 ML HE UV FR 835	12-foot	8,922	60	148.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 ML HE UV FR 840	12-foot	9,198	60	153.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 ML HE UV FR 850	12-foot	9,474	60	157.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 MD HE UV FR 835	12-foot	11,666	80	145.8	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 MD HE UV FR 840	12-foot	12,027	80	150.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 12 MD HE UV FR 850	12-foot	12,387	80	154.8	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 LW HE UV FR 835	16-foot	7,889	52	151.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 LW HE UV FR 840	16-foot	8,133	52	156.4	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 LW HE UV FR 850	16-foot	8,377	52	161.1	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 ML HE UV FR 835	16-foot	11,896	80	148.7	80 CRI / 3500K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 ML HE UV FR 840	16-foot	12,264	80	153.3	80 CRI / 4000K	120-277V, 347V	5 years	189,000 hrs (calculated)
ECL N 16 ML HE UV FR 850	16-foot	12,632	80	157.9	80 CRI / 5000K	120-277V, 347V	5 years	189,000 hrs (calculated)

Catalog #	Image	Spec Sheet	.ies & .pdf files
ECL N 2 LW UV FR 835		Download	Contact Factory
ECL N 2 LW UV FR 840		Download	Contact Factory
ECL N 2 LW UV FR 850		Download	Contact Factory
ECL N 2 MD UV FR 835		Download	Contact Factory
ECL N 2 MD UV FR 840		Download	Contact Factory
ECL N 2 MD UV FR 850		Download	Contact Factory
ECL N 2 HI UV FR 835		Download	Contact Factory
ECL N 2 HI UV FR 840		Download	Contact Factory
ECL N 2 HI UV FR 850		Download	Contact Factory
ECL N 2 VH UV FR 835		Download	Contact Factory
ECL N 2 VH UV FR 840		Download	Contact Factory
ECL N 2 VH UV FR 850		Download	Contact Factory
ECL N 3 LW UV FR 835		Download	Contact Factory
ECL N 3 LW UV FR 840		Download	Contact Factory
ECL N 3 LW UV FR 850		Download	Contact Factory
ECL N 3 MD UV FR 835		Download	Contact Factory
ECL N 3 MD UV FR 840		Download	Contact Factory
ECL N 3 MD UV FR 850		Download	Contact Factory
ECL N 4 LW UV FR 835	View	Download	Contact Factory
ECL N 4 LW UV FR 840	View	Download	Contact Factory
ECL N 4 LW UV FR 850	View	Download	Contact Factory
ECL N 4 MD UV FR 835	View	Download	Contact Factory
ECL N 4 MD UV FR 840	View	Download	Contact Factory
ECL N 4 MD UV FR 850	View	Download	Contact Factory
ECL N 4 MH UV FR 835	View	Download	Contact Factory
ECL N 4 MH UV FR 840	View	Download	Contact Factory
ECL N 4 MH UV FR 850	View	Download	Contact Factory
ECL N 4 HI UV FR 835	View	Download	Contact Factory
ECL N 4 HI UV FR 840	View	Download	Contact Factory
ECL N 4 HI UV FR 850	View	Download	Contact Factory
ECL N 4 VH UV FR 835	View	Download	Contact Factory
ECL N 4 VH UV FR 840	View	Download	Contact Factory
ECL N 4 VH UV FR 850	View	Download	Contact Factory
ECL N 6 LW UV FR 835		Download	Contact Factory
ECL N 6 LW UV FR 840		Download	Contact Factory
ECL N 6 LW UV FR 850		Download	Contact Factory
ECL N 6 MD UV FR 835		Download	Contact Factory
ECL N 6 MD UV FR 840		Download	Contact Factory
ECL N 6 MD UV FR 850		Download	Contact Factory
ECL N 6 HI UV FR 835		Download	Contact Factory
ECL N 6 HI UV FR 840		Download	Contact Factory
ECL N 6 HI UV FR 850		Download	Contact Factory
ECL N 6 VH UV FR 835		Download	Contact Factory
ECL N 6 VH UV FR 840		Download	Contact Factory
ECL N 6 VH UV FR 850		Download	Contact Factory
ECL N 8 LW UV FR 835	View	Download	Contact Factory
ECL N 8 LW UV FR 840	View	Download	Contact Factory
ECL N 8 LW UV FR 850	View	Download	Contact Factory
ECL N 8 ML UV FR 835	View	Download	Contact Factory
ECL N 8 ML UV FR 840	View	Download	Contact Factory
ECL N 8 ML UV FR 850	View	Download	Contact Factory
ECL N 8 MD UV FR 835	View	Download	Contact Factory
ECL N 8 MD UV FR 840	View	Download	Contact Factory
ECL N 8 MD UV FR 850	View	Download	Contact Factory
ECL N 8 MH UV FR 835	View	Download	Contact Factory
ECL N 8 MH UV FR 840	View	Download	Contact Factory
ECL N 8 MH UV FR 850	View	Download	Contact Factory
ECL N 8 HI UV FR 835	View	Download	Contact Factory
ECL N 8 HI UV FR 840	View	Download	Contact Factory
ECL N 8 HI UV FR 850	View	Download	Contact Factory
ECL N 8 VH UV FR 835	View	Download	Contact Factory
ECL N 8 VH UV FR 840	View	Download	Contact Factory
ECL N 8 VH UV FR 850	View	Download	Contact Factory
ECL N 4 LW HE UV FR 835	View	Download	Contact Factory
ECL N 4 LW HE UV FR 840	View	Download	Contact Factory
ECL N 4 LW HE UV FR 850	View	Download	Contact Factory
ECL N 4 ML HE UV FR 835	View	Download	Contact Factory
ECL N 4 ML HE UV FR 840	View	Download	Contact Factory
ECL N 4 ML HE UV FR 850	View	Download	Contact Factory
ECL N 4 MD HE UV FR 835	View	Download	Contact Factory
ECL N 4 MD HE UV FR 840	View	Download	Contact Factory
ECL N 4 MD HE UV FR 850	View	Download	Contact Factory
ECL N 4 MH HE UV FR 835	View	Download	Contact Factory
ECL N 4 MH HE UV FR 840	View	Download	Contact Factory
ECL N 4 MH HE UV FR 850	View	Download	Contact Factory
ECL N 4 HI HE UV FR 835	View	Download	Contact Factory
ECL N 4 HI HE UV FR 840	View	Download	Contact Factory
ECL N 4 HI HE UV FR 850	View	Download	Contact Factory
ECL N 4 VH HE UV FR 835	View	Download	Contact Factory
ECL N 4 VH HE UV FR 840	View	Download	Contact Factory
ECL N 4 VH HE UV FR 850	View	Download	Contact Factory
ECL N 8 LW HE UV FR 835	View	Download	Contact Factory
ECL N 8 LW HE UV FR 840	View	Download	Contact Factory
ECL N 8 LW HE UV FR 850	View	Download	Contact Factory
ECL N 8 ML HE UV FR 835	View	Download	Contact Factory
ECL N 8 ML HE UV FR 840	View	Download	Contact Factory
ECL N 8 ML HE UV FR 850	View	Download	Contact Factory
ECL N 8 MD HE UV FR 835	View	Download	Contact Factory
ECL N 8 MD HE UV FR 840	View	Download	Contact Factory
ECL N 8 MD HE UV FR 850	View	Download	Contact Factory
ECL N 8 MH HE UV FR 835	View	Download	Contact Factory
ECL N 8 MH HE UV FR 840	View	Download	Contact Factory
ECL N 8 MH HE UV FR 850	View	Download	Contact Factory
ECL N 8 HI HE UV FR 835	View	Download	Contact Factory
ECL N 8 HI HE UV FR 840	View	Download	Contact Factory
ECL N 8 HI HE UV FR 850	View	Download	Contact Factory
ECL N 8 VH HE UV FR 835	View	Download	Contact Factory
ECL N 8 VH HE UV FR 840	View	Download	Contact Factory
ECL N 8 VH HE UV FR 850	View	Download	Contact Factory
ECL N 12 LW HE UV FR 835		Download	Contact Factory
ECL N 12 LW HE UV FR 840		Download	Contact Factory
ECL N 12 LW HE UV FR 850		Download	Contact Factory
ECL N 12 ML HE UV FR 835		Download	Contact Factory
ECL N 12 ML HE UV FR 840		Download	Contact Factory
ECL N 12 ML HE UV FR 850		Download	Contact Factory
ECL N 12 MD HE UV FR 835		Download	Contact Factory
ECL N 12 MD HE UV FR 840		Download	Contact Factory
ECL N 12 MD HE UV FR 850		Download	Contact Factory
ECL N 16 LW HE UV FR 835		Download	Contact Factory
ECL N 16 LW HE UV FR 840		Download	Contact Factory
ECL N 16 LW HE UV FR 850		Download	Contact Factory
ECL N 16 ML HE UV FR 835		Download	Contact Factory
ECL N 16 ML HE UV FR 840		Download	Contact Factory
ECL N 16 ML HE UV FR 850		Download	Contact Factory

Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

Options and controls

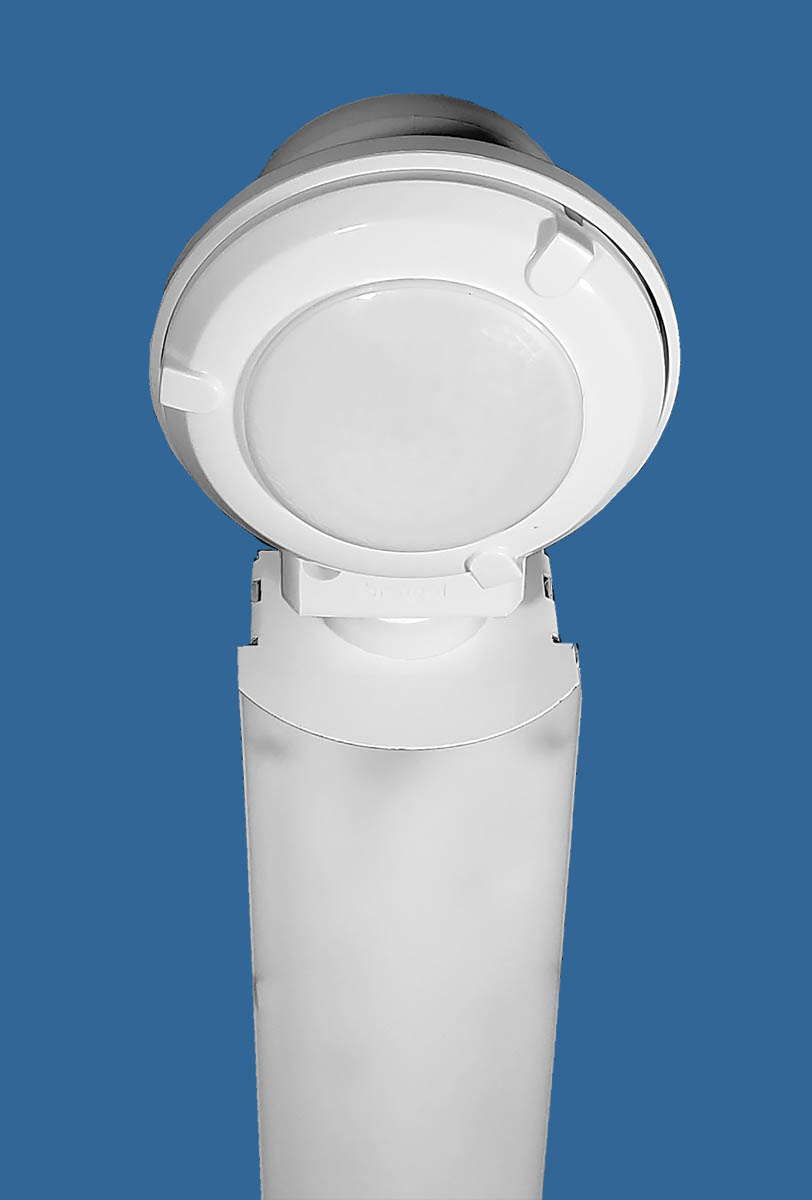

The ECLN is available with a wide variety of options: three different finishes, seven lengths, and multiple lumen output packages allow you to specify the exact light level you need. There are also multiple control options to choose from, including the Wattstopper FSP dimming sensor (pictured). This sensor comes pre-installed on the end cap and provides multi-level control based on motion and/or daylight contribution. An optional microwave occupancy sensor sits discreetly behind the frosted lens on the ECLN. See spec sheet for more details.
