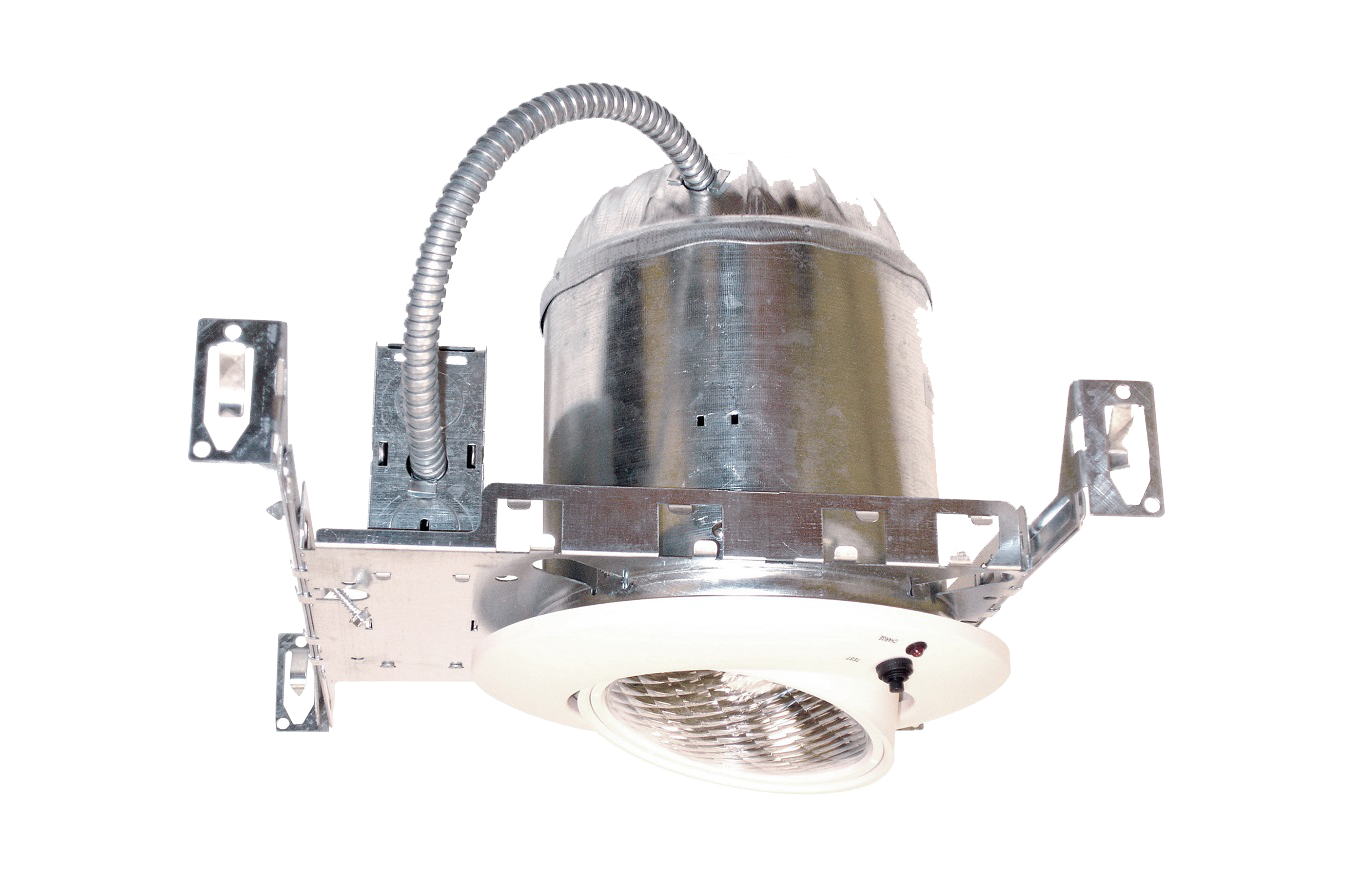

Emergency Gimbal Downlight

    The EDL is suitable for recessed ceiling mount applications where emergency lighting is needed. It is compatible with drop ceiling mount applications. Bar hangers are included. Illumination comes from an ultra-bright, long life 1.5W LED lamp. An internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for a minumum of 90 minutes of emergency illumination. A fully automated, solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
  • Applications: Suitable for recessed ceiling mount applications where emergency lighting is needed
  • Lumen Output: 116 lm
  • Max Lumens Per Watt: 77
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 2 years
  • Certifications: UL listed for dry locations at 25-degrees C. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Click to enlarge

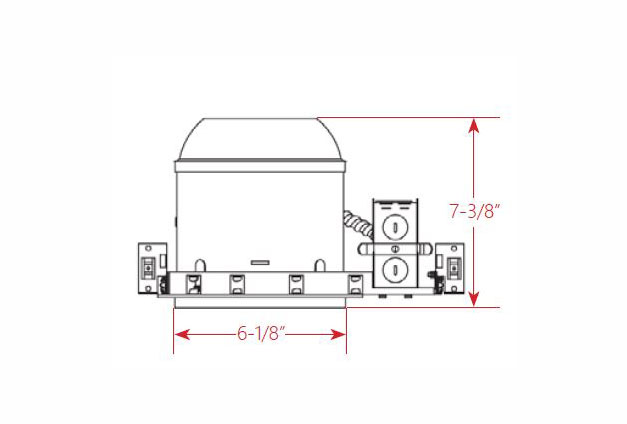

EDLschem1 EDLschem1
EDL schematic

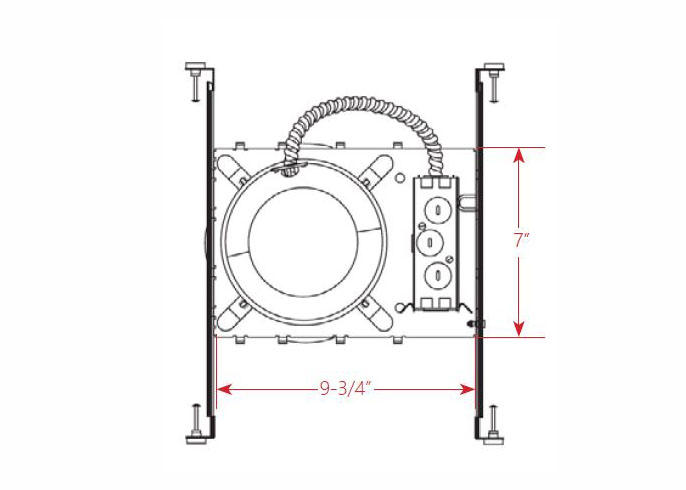

EDLschem2 EDLschem2
EDL schematic
UL listed

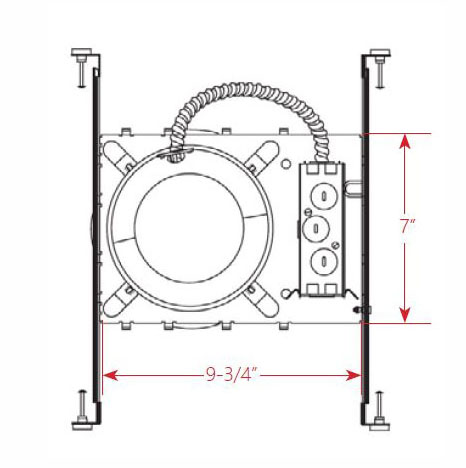

EDLschem2tightcrop

Options and colors

    The adjustable gimbal trim of the EDL is made of impact resistant thermoplastic. The trim, available in white or black, securely attaches to the housing with spring clips. Bar hangers are included.
