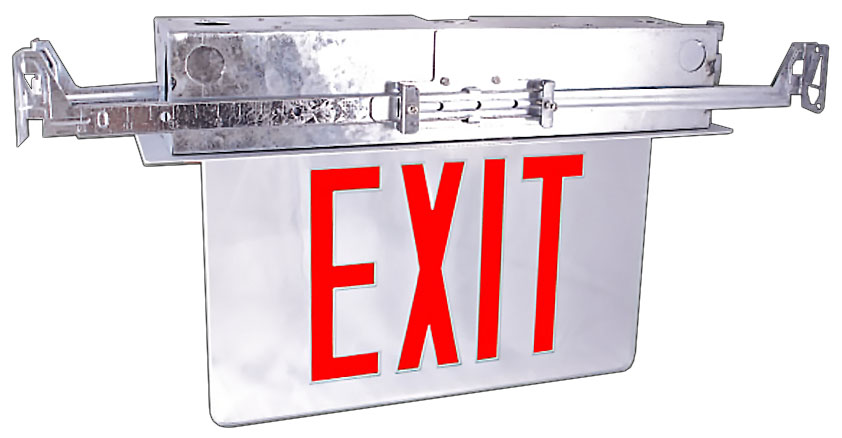

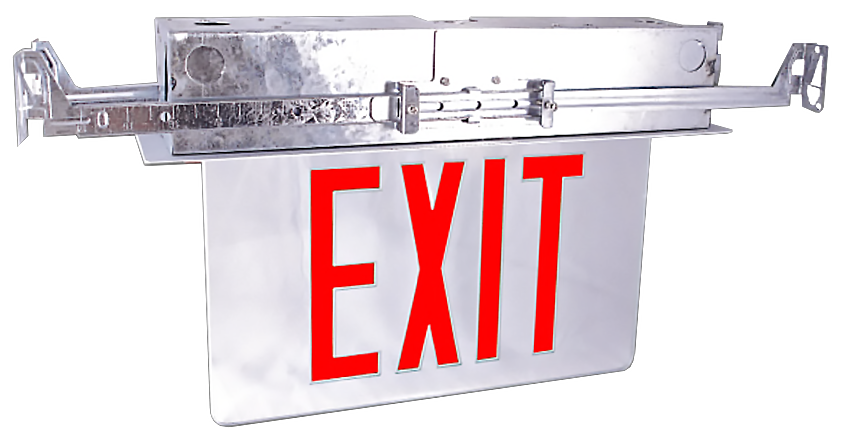

LED Recessed Edgelit Exit Sign

    The ELR features a UV-stabilized ultra-clear acrylic edgelit panel. An internal solid-state transfer switch automatically connects the internal battery to the LED board for a minimum 90 minutes of emergency illumination. The ELR features ultra-bright, long-life red or green LEDs. Custom signs with custom wording are available.
  • Applications: Dry or damp locations where exit signage is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Click to enlarge

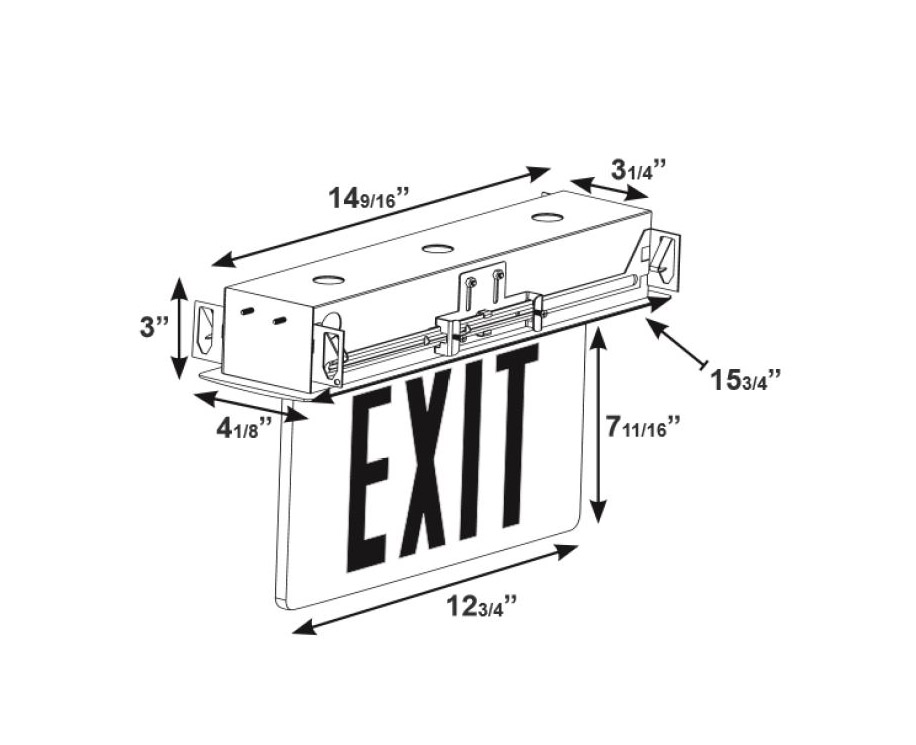

ELR schematic ELR schematic
ELR schematic
UL listed

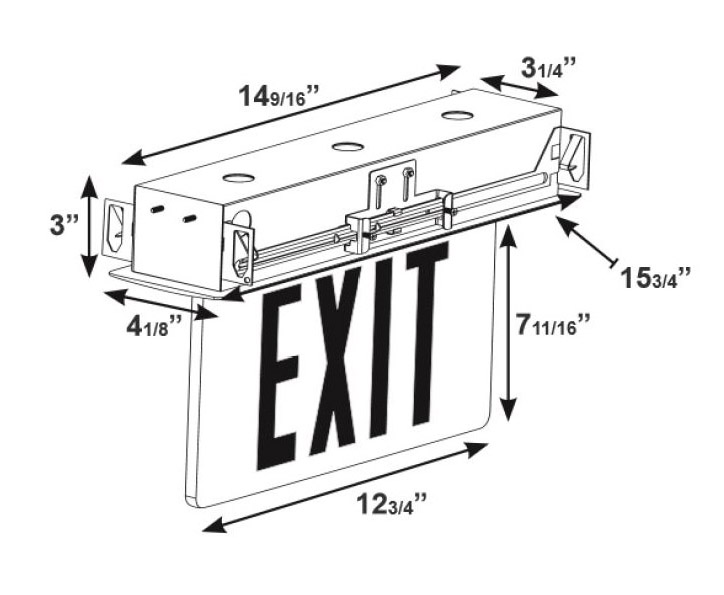

ELR schematic tightcrop

Mounting and construction

Mounting & construction

    The ELR is compatible with drywall or drop ceiling mount installations. Bar hangers are included. The trim assembly is detachable from below, providing easy access for service or maintenance. The housing is made of premium grade extruded aluminum, and is available in black or white powder coat finishes.
