LED Edgelit Exit Sign

    The ELX features ultra-bright, long-life red or green LEDs. It has an edgelit panel made of UV-stabilized ultra-clear acrylic. The double face of the ELX utilizes a factory-installed silver or white mylar background cover.  An internal solid-state transfer switch automatically connects the internal battery to the LED board for a minimum 90 minutes of emergency illumination. Custom signs with custom wording are available.
  • Applications: For use in dry or damp locations where exit signage is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Click to enlarge

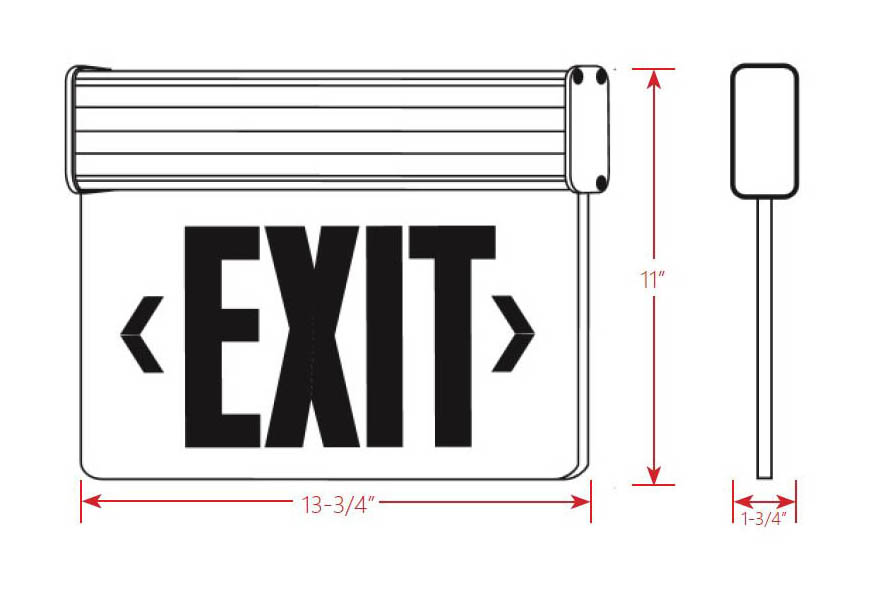

ELX schematic ELX schematic
ELX schematic
UL listed
ELX schematic tightcrop

Mounting and construction

Mounting & construction

    The premium-grade extruded aluminum housing on the ELX is also available in black or white powder coat finishes. The aluminum mounting canopy is suitable for top, end or back mounting. Panel color is available in clear, mirror or white.
