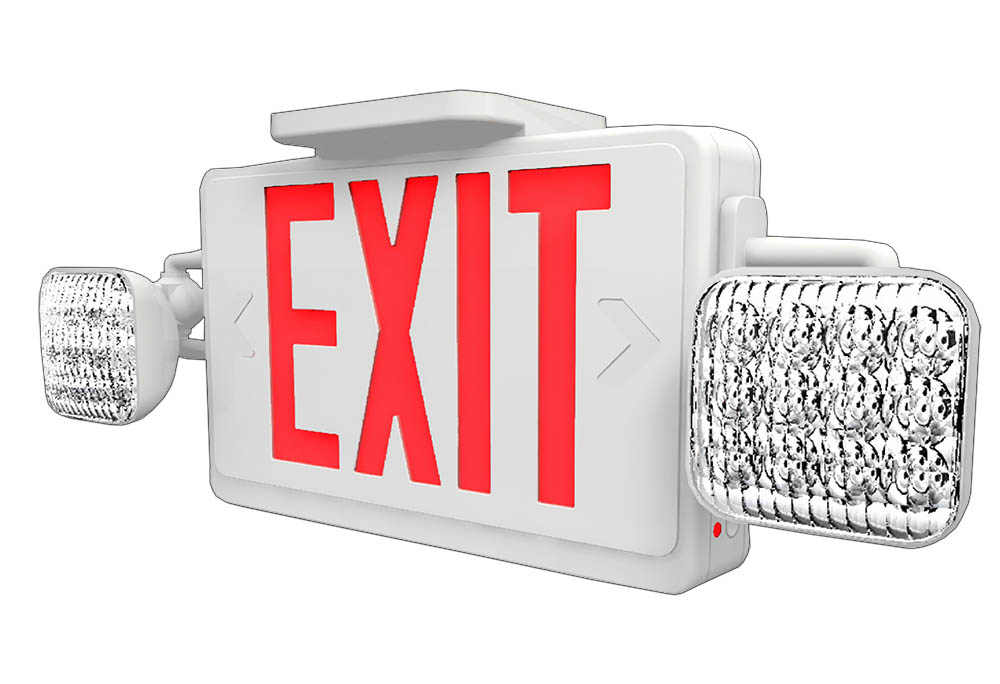

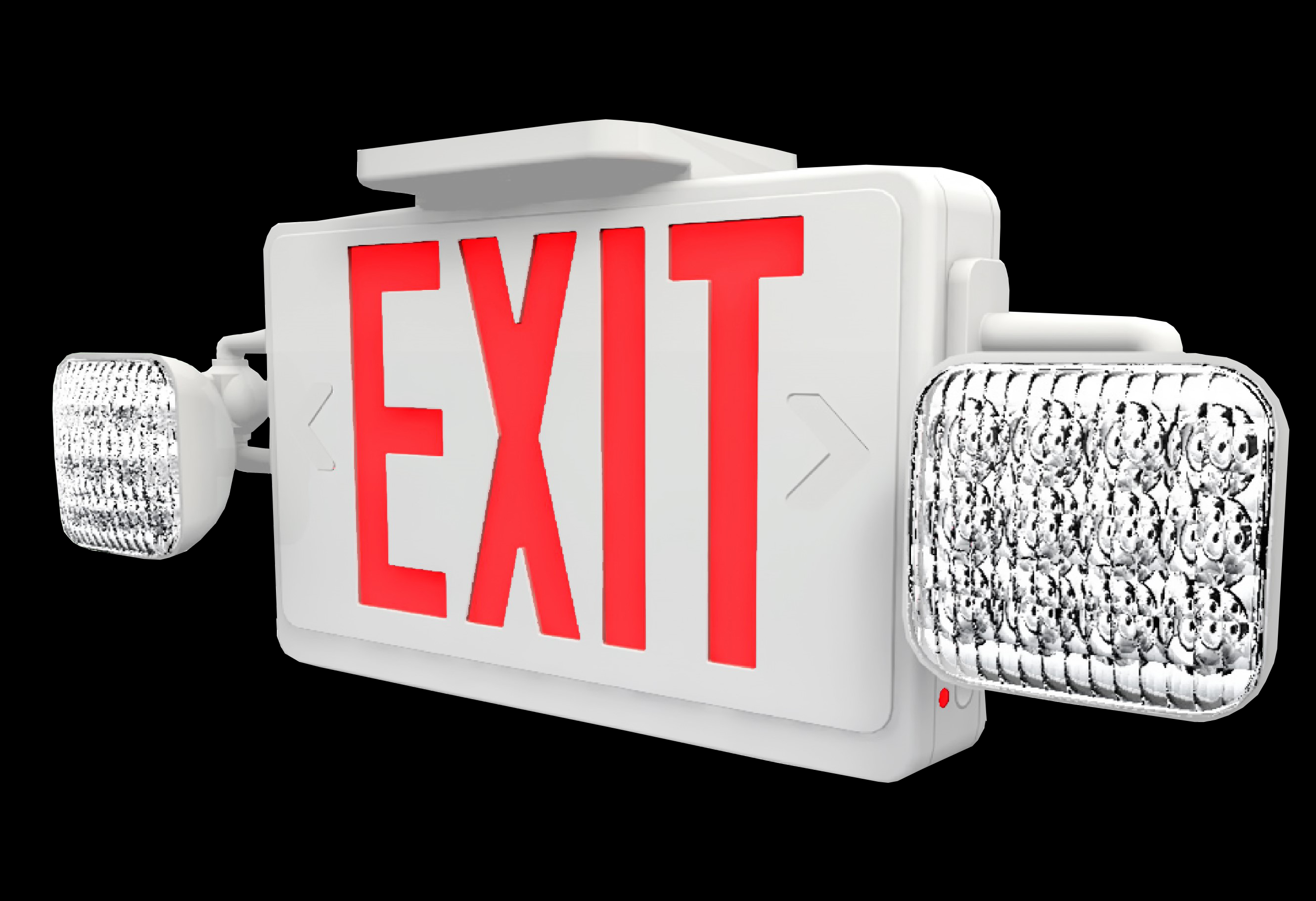

LED Exit/Emergency Combo

The EME provides energy efficient, long-life red or green LED exit sign illumination. There are eight LEDs per head (1 watt total per head). The lamp heads are adjustable to allow for optimal center-to-center spacing. The EME possesses a 9.6V long-life, maintenance-free rechargeable NiCd battery. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

  • Applications: Suitable for indoor use where emergency lighting is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

UL listed

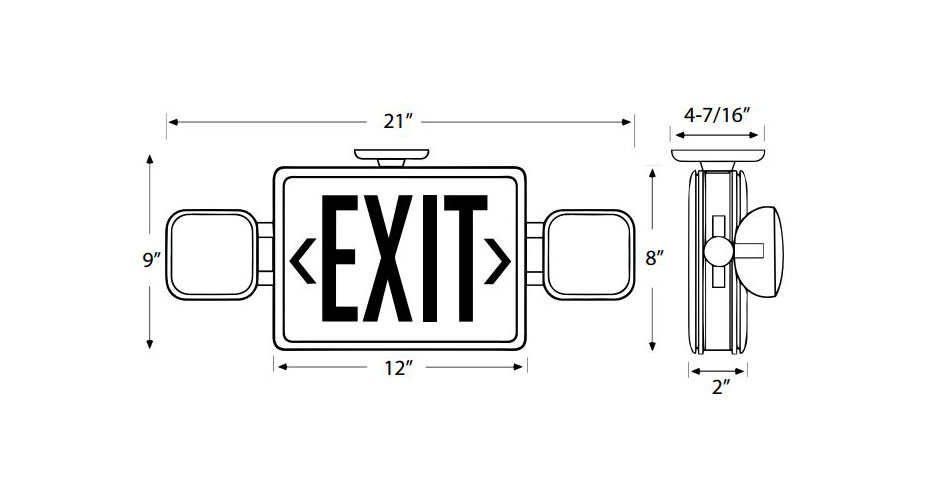

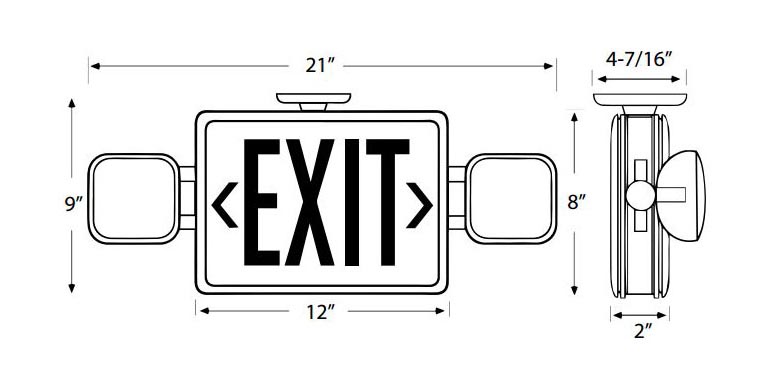

EME schematic tight crop

Installation and construction

Installation & construction

The EME includes an easy snap mounting canopy for top or end mounting. There is a universal K/O pattern on the back plate for wall mounting. The EME housing is constructed of injection-molded 5VA flame retardant, high impact resistant thermoplastic. Housing is available in white or black, with red or green lettering. See spec sheet for more available options.

Remote Compatibility Matrix

Catalog #Remote CapacityVoltage Output Compatible with REH 1? Compatible with REH 1 HL? Compatible with REH 2? Compatible with REH 2 HL? Compatible with MREH 1? Compatible with MREH 1 HL?Compatible with MREH 2?Compatible with MREH 2 HL?Compatible with MREHF 1?Compatible with MREHF 2? Compatible with MREHH 1? Compatible with MREHH 2?
EME RC3W9.6VYESYESYESYESNONONONONONONONO
EME RC HL2W9.6VYESYESYESNONONONONONONONONO
EME RC NH5W9.6VYESYESYESYESNONONONONONONONO
EMEC RC2.5W3.6VYESYESYESNONONONONONONONONO
EMEF 124.8W6V/12VYESYESYESYESYESNONONOYESNOYESNO
EMEF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
EMEF 2820.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
EMERM RC4W9.6VYESYESYESYESYESNONONONONONONO
EMERM RC HL3W9.6VYESYESYESYESNONONONONONONONO
EMEW RC7.2W6VYESYESYESYESYESYESYESNOYESYESYESYES
EMRW3.7W9.6VYESYESYESYESYESNONONONONONONO
EMX1W9.6VYESNONONONONONONONONONONO
LEM RC4W3.6VYESYESYESYESNONONONONONONONO
LEM RC HL3W3.6VYESYESYESYESNONONONONONONONO
LEMC RC2.5W3.6VYESYESYESNONONONONONONONONO
LEMHO3W9.6VYESYESYESYESNONONONONONONONO
LEXC5.5W3.6VYESYESYESYESYESYESNONONONONONO
MREMF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMF 3628.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMF 5446.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMH7.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMHO43W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMHO HL36W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
*NOTE: Table scrolls horizontally
