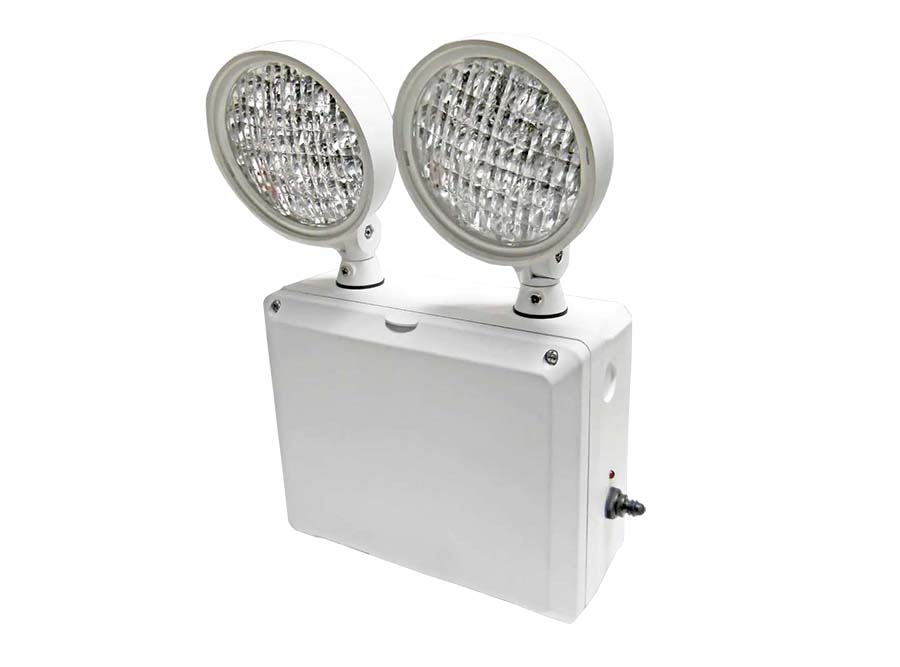

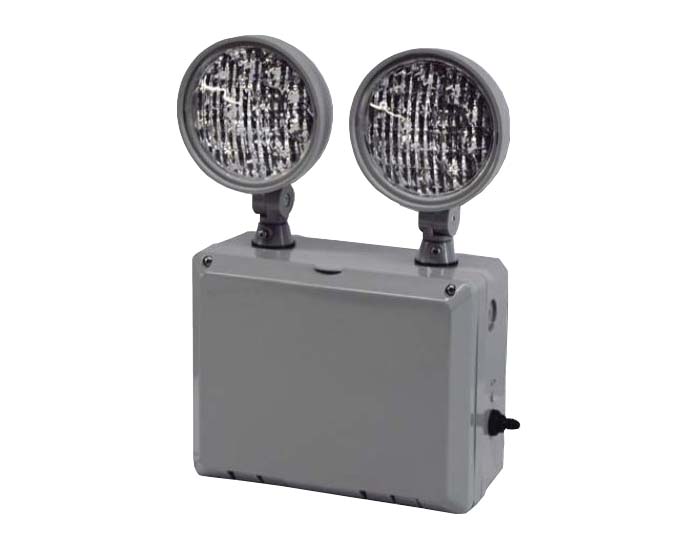

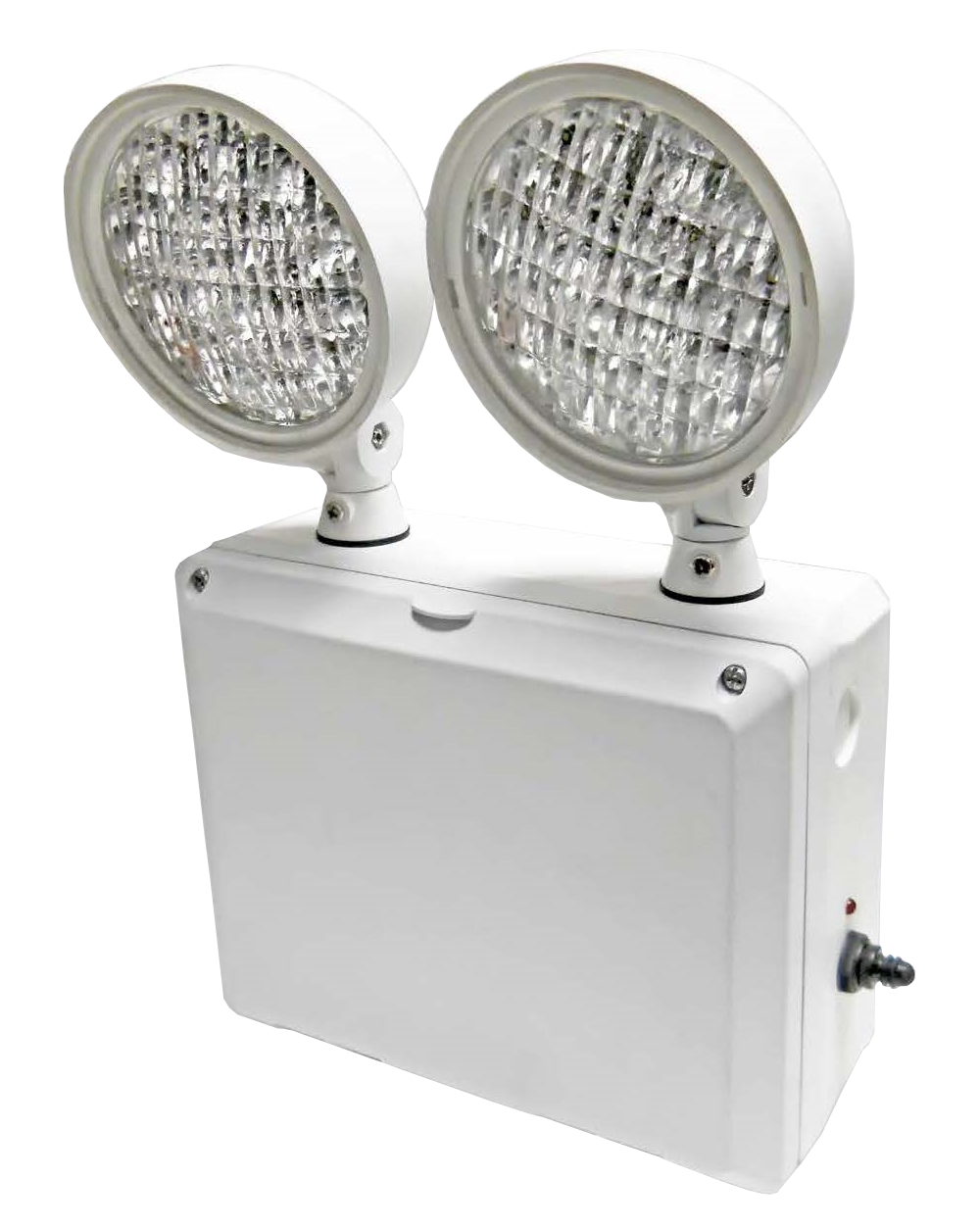

Wet Location LED Emergency Unit with Remote Capacity
The EMRW is a wet location emergency unit with a remote capacity of 3.7 watts standard in operating temperatures of 0º C to 50º C. It features ultra-bright, long life white LED lamps heads, with 15 LEDs per head. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery is recharged in 24 hours using the EMRW's fully automated solid-state, two-rate charger.
- Applications: Suitable for indoor or outdoor use where emergency lighting is needed
- Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
- Certifications: UL listed for wet locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations (optional)
EMRW
Installation and construction
Installation & construction

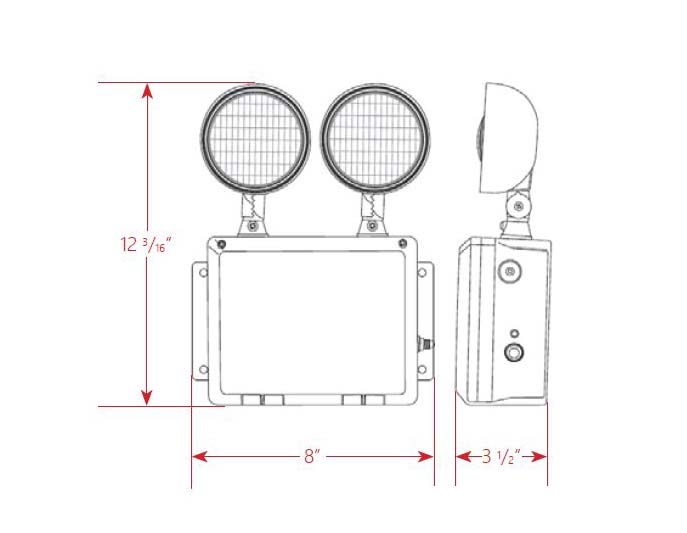

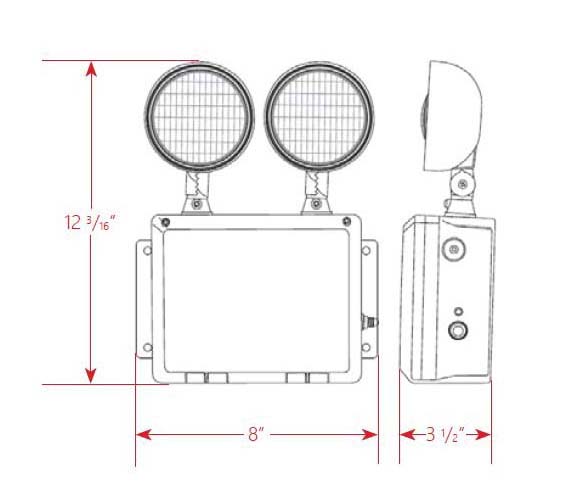

The EMRW has a universal knockout pattern on the back plate for wall mounting. The polycarbonate housing is corrosion-resistant, 5VA flame retardant, and UV-stabilized. It comes in black or gray finish. The adjustable lamp heads are weather-proof - sealed and gasketed. High performance chrome-plated metallized reflectors and tempered glass lenses allow for optimal light distribution.
Remote Compatibility Matrix
| Catalog # | Remote Capacity | Voltage Output | Compatible with REH 1? | Compatible with REH 1 HL? | Compatible with REH 2? | Compatible with REH 2 HL? | Compatible with MREH 1? | Compatible with MREH 1 HL? | Compatible with MREH 2? | Compatible with MREH 2 HL? | Compatible with MREHF 1? | Compatible with MREHF 2? | Compatible with MREHH 1? | Compatible with MREHH 2? |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EME RC | 3W | 9.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| EME RC HL | 2W | 9.6V | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| EME RC NH | 5W | 9.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| EMEC RC | 2.5W | 3.6V | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| EMEF 12 | 4.8W | 6V/12V | YES | YES | YES | YES | YES | NO | NO | NO | YES | NO | YES | NO |
| EMEF 15 | 7.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | NO | YES | YES | YES | YES |
| EMEF 28 | 20.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| EMERM RC | 4W | 9.6V | YES | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO |
| EMERM RC HL | 3W | 9.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| EMEW RC | 7.2W | 6V | YES | YES | YES | YES | YES | YES | YES | NO | YES | YES | YES | YES |
| EMRW | 3.7W | 9.6V | YES | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO |
| EMX | 1W | 9.6V | YES | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| LEM RC | 4W | 3.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| LEM RC HL | 3W | 3.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| LEMC RC | 2.5W | 3.6V | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| LEMHO | 3W | 9.6V | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO | NO | NO |
| LEXC | 5.5W | 3.6V | YES | YES | YES | YES | YES | YES | NO | NO | NO | NO | NO | NO |
| MREMF 15 | 7.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | NO | YES | YES | YES | YES |
| MREMF 36 | 28.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| MREMF 54 | 46.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| MREMH | 7.8W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | NO | YES | YES | YES | YES |
| MREMHO | 43W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| MREMHO HL | 36W | 6V/12V | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES |
