LED Wet Location Emergency Unit

    The EMW features semi-recessed, ultra-bright, long-life LED lamp heads. Adjustable LED lamp heads allow for optimal center to center spacing. It has a 6V long-life, maintenance-free, rechargeable and sealed lead acid battery. An internal solid-state transfer switch automatically connects the internal battery to the LED board and lamp heads for a minimum of 90 minutes of emergency illumination. A discharged battery can be recharged in 24 hours with its fully automated solid-state, two-rate charger.
  • Applications: Suitable for indoor or outdoor use where emergency lighting is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for wet locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes, Certified to CEC under Title 20 regulations (options)

Click to enlarge

EMWschematic EMWschematic
EMRW schematic
UL listed

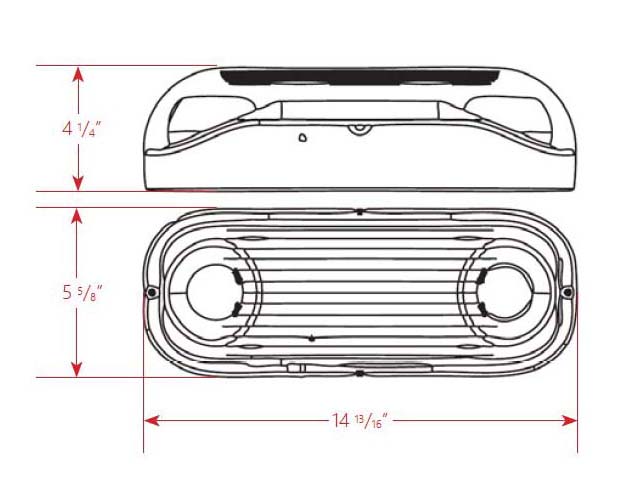

EMWschematicTight

Installation and construction

Installation & construction

    The EMW comes with a universal knockout pattern on the back plate for wall mounting. The housing comes in gray or black, and is constructed of injection molded 5VA flame retardant, high-impact resistant thermoplastic. The clear polycarbonate cover is fully gasketed.
