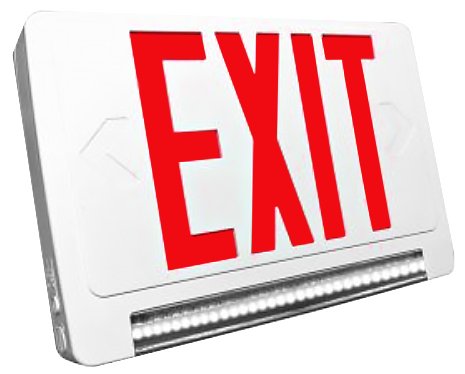

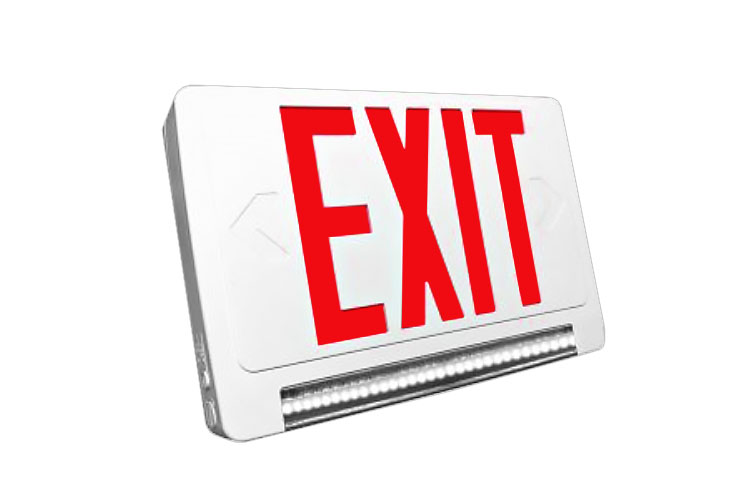

LED Exit/Lightpipe Emergency Combo

The EMX provides energy efficient, long-life red or green LED exit sign illumination. Each lightpipe features 36 LEDs at 4.5W. Optimal light distribution is achieved with the acrylic, UV-stabilized lightpipe lens, and the adjustable high-performance, chrome-plated, metallized reflector. The EMX features a 4.8V long life, maintenance free rechargeable NiCd battery. An internal solid-state transfer switch automatically connects the internal battery to the LED board and LED lamp heads for a minimum of 90 minutes of emergency illumination. The EMX is compatible with the LumenFocus REH luminaire

  • Applications: Suitable for indoor use where emergency lighting is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

UL listed

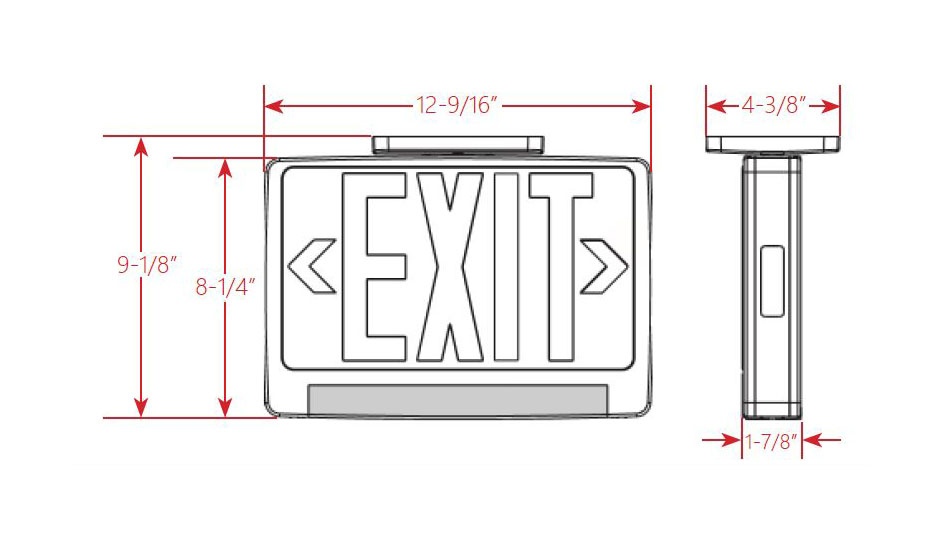

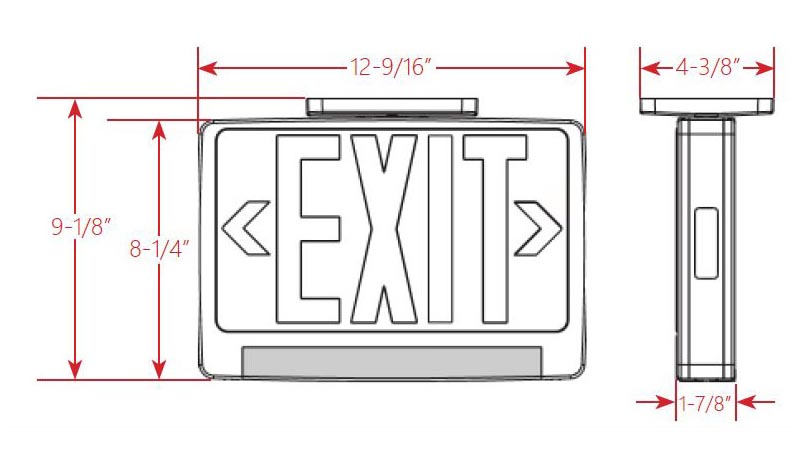

EMX schematic tightcrop

Installation and construction

Installation & construction

    The EMX includes an easy snap mounting canopy for top or end mounting. There is a universal K/O pattern on the back plate for wall mounting. The EMX housing is constructed of injection-molded 5VA flame retardant, high impact resistant thermoplastic.

Remote Compatibility Matrix

Catalog #Remote CapacityVoltage Output Compatible with REH 1? Compatible with REH 1 HL? Compatible with REH 2? Compatible with REH 2 HL? Compatible with MREH 1? Compatible with MREH 1 HL?Compatible with MREH 2?Compatible with MREH 2 HL?Compatible with MREHF 1?Compatible with MREHF 2? Compatible with MREHH 1? Compatible with MREHH 2?
EME RC3W9.6VYESYESYESYESNONONONONONONONO
EME RC HL2W9.6VYESYESYESNONONONONONONONONO
EME RC NH5W9.6VYESYESYESYESNONONONONONONONO
EMEC RC2.5W3.6VYESYESYESNONONONONONONONONO
EMEF 124.8W6V/12VYESYESYESYESYESNONONOYESNOYESNO
EMEF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
EMEF 2820.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
EMERM RC4W9.6VYESYESYESYESYESNONONONONONONO
EMERM RC HL3W9.6VYESYESYESYESNONONONONONONONO
EMEW RC7.2W6VYESYESYESYESYESYESYESNOYESYESYESYES
EMRW3.7W9.6VYESYESYESYESYESNONONONONONONO
EMX1W9.6VYESNONONONONONONONONONONO
LEM RC4W3.6VYESYESYESYESNONONONONONONONO
LEM RC HL3W3.6VYESYESYESYESNONONONONONONONO
LEMC RC2.5W3.6VYESYESYESNONONONONONONONONO
LEMHO3W9.6VYESYESYESYESNONONONONONONONO
LEXC5.5W3.6VYESYESYESYESYESYESNONONONONONO
MREMF 157.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMF 3628.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMF 5446.8W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMH7.8W6V/12VYESYESYESYESYESYESYESNOYESYESYESYES
MREMHO43W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
MREMHO HL36W6V/12VYESYESYESYESYESYESYESYESYESYESYESYES
*NOTE: Table scrolls horizontally
