LED Cutoff Wall Pack

    The EPC wall pack features a cast-in template for mounting directly over a 4" recessed outlet box, or a 1/2" surface conduit can be used. Die cast aluminum makes up the housing construction. It has a textured powder coat finish over a chromate conversion coating. The EPC has 1/2" coin plugs with O-rings for conduit and photocell.
  • Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
  • Lumen Output: From 2,000 lm - 6,000 lm
  • Max Lumens Per Watt: 96.5
  • Predicted L70 Lifetime: >190,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP55-rated

Click to enlarge

EPC schematic2 EPC schematic2
EPC schematic
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWShieldingOpticCRI / Color TempBUG RatingVoltages AvailableWarrantyPredicted L70 Lifetime
EPC LW 3 UV CFG 84019252576.1Clear Flat GlassType III80 CRI / 4000KB1-U2-G1120-277V, 347V, 480V5 years>190,000 hrs (calculated)
EPC LW 3 UV CFG 85020052579.2Clear Flat GlassType III80 CRI / 5000KB1-U2-G1120-277V, 347V, 480V5 years>190,000 hrs (calculated)
EPC MD 3 UV CFG 84038014191.8Clear Flat GlassType III80 CRI / 4000KB1-U2-G1120-277V, 347V, 480V5 years>190,000 hrs (calculated)
EPC MD 3 UV CFG 85039594195.6Clear Flat GlassType III80 CRI / 5000KB1-U2-G1120-277V, 347V, 480V5 years>190,000 hrs (calculated)
EPC HI 3 UV CFG 84056596192.6Clear Flat GlassType III80 CRI / 4000KB1-U2-G1120-277V, 347V, 480V5 years>190,000 hrs (calculated)
EPC HI 3 UV CFG 85058956196.5Clear Flat GlassType III80 CRI / 5000KB2-U2-G2120-277V, 347V, 480V5 years>190,000 hrs (calculated)
Catalog #
Equivalency*
EPC LW 3 UV CFG 84039W MH
EPC LW 3 UV CFG 85039W MH
EPC MD 3 UV CFG 84070W MH or 70W HPS
EPC MD 3 UV CFG 85070W MH or 70W HPS
EPC HI 3 UV CFG 840100W MH or 100W HPS
EPC HI 3 UV CFG 850100W MH or 100W HPS
Catalog #
ImageSpec Sheet.ies & .pdf files
EPC LW 3 UV CFG 840View Download Download
EPC LW 3 UV CFG 850View Download Download
EPC MD 3 UV CFG 840View Download Download
EPC MD 3 UV CFG 850View Download Download
EPC HI 3 UV CFG 840View Download Download
EPC HI 3 UV CFG 850View Download Download

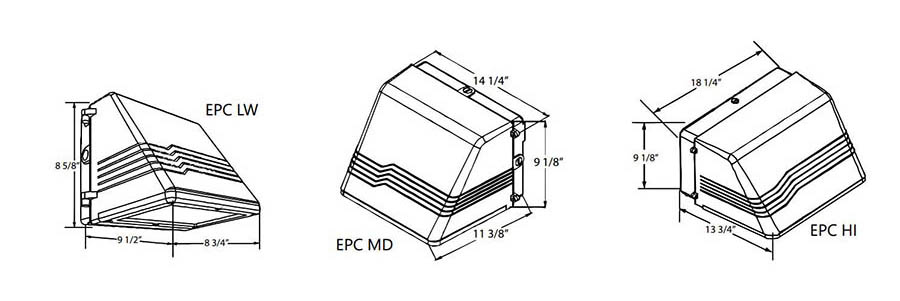

EPC schematic2 tighter

Three sizes, three outputs

    The EPC is available in three different lumen output packages - the LW (low), MD (medium) and HI (high). The size of the unit increases slightly based on the package selected. The LW is a 25W luminaire that puts out about 2,000 lumens. The MD is a 41W unit around 3,800-4,000 lumens. The 61W HI produces around 5,650-5,900 lumens.
EPC schematic2 tighter

Three sizes, three outputs

    The EPC is available in three different lumen output packages - the LW (low), MD (medium) and HI (high). The size of the unit increases slightly based on the package selected. The LW is a 25W luminaire that puts out about 2,000 lumens. The MD is a 41W unit around 3,800-4,000 lumens. The 61W HI produces around 5,650-5,900 lumens.
