LED Mini Wall Pack

    The EPM LED mini wall pack features high performance LED technology and dimmable drivers. This luminaire includes an integral 120V photocell. A 277V photocell is an optional. It can be mounted directly over a 4" recessed outlet box - threaded stem and nut are included.
  • Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
  • Lumen Output: 780 lm
  • Max Lumens Per Watt: 75.8
  • Predicted L70 Lifetime: 50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP54 certified

Click to enlarge

EPM schematic EPM schematic
EPM schematic
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWOpticCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 Lifetime
EPM LW F UV CPP 85078010.375.8Forward80 CRI / 5000KClear prismatic polycarbonate120-277V5 years50,000 hrs
Catalog #
Equivalency*
EPM LW F UV CPP 85026W CFL
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
EPM LW F UV CPP 850View Download Download

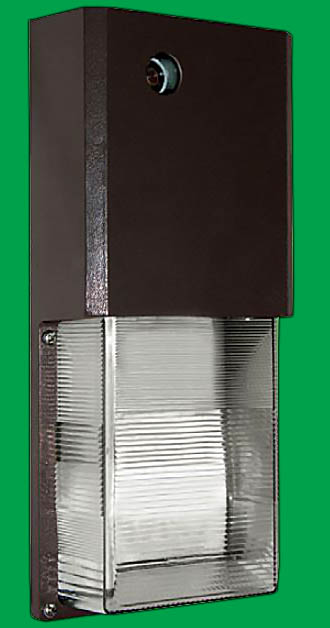

EPM jpg green bg

Durable construction

    The EPM features a stamped galvanized back plate with a white powdercoat finish. The front housing is made of molded polycarbonate with a bronze finish. The prismatic lens is made of clear polycarboate.
