LED Non-Cutoff Wall Pack

    The EPN is a high performance LED wall pack that features uniform illumination with no visible LED pixilation. The housing is die cast aluminum with a dark bronze powder coat finish. The tempered borosilicate glass lens is sealed with a seamless silicone gasket to prevent leaks. The EPN has removable threaded plugs for side attachment of 1/2" rigid electrical conduit, or for button photocells.
  • Applications: Suitable for most exterior wall mount applications - industrial, retail, commercial
  • Lumen Output: From about 3,200 lm to over 12,100 lm
  • Max Lumens Per Watt: 128
  • Predicted L70 Lifetime: 69,000 hours (LW output model); 59,000 hours (MD output model); 57,000 hours (HI output model); 56,000 hours (VH output model)
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated

Click to enlarge

EPN LW EPN LW
EPN LW
EPN HI EPN HI
EPN MD / HI
EPN HI2 EPN HI2
EPN MD / HI
EPN MD HI schematic EPN MD HI schematic
EPN MD / HI schematic
EPN LW schematic EPN LW schematic
EPN LW schematic
EPN VH schematic EPN VH schematic
EPN VH schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWShieldingOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
EPN LW F UV TBG 7403,24330108Tempered borosilicate glassForward70 CRI / 4000K120-277V5 years69,000 hrs
EPN LW F UV TBG 7503,31630111Tempered borosilicate glassForward70 CRI / 5000K120-277V5 years69,000 hrs
EPN MD F UV TBG 7406,99061115Tempered borosilicate glassForward70 CRI / 4000K120-277V5 years59,000 hrs
EPN MD F UV TBG 7507,23161119Tempered borosilicate glassForward70 CRI / 5000K120-277V5 years59,000 hrs
EPN HI F UV TBG 7409,80378126Tempered borosilicate glassForward70 CRI / 4000K120-277V5 years57,000 hrs
EPN HI F UV TBG 7509,95378128Tempered borosilicate glassForward70 CRI / 5000K120-277V5 years57,000 hrs
EPN VH F UV TBG 84012,146120101Tempered borosilicate glassForward80 CRI / 4000K120-277V5 years56,000 hrs
EPN VH F UV TBG 85012,146120101Tempered borosilicate glassForward80 CRI / 5000K120-277V5 years56,000 hrs
Catalog #
Equivalency*
EPN LW F UV TBG 74050W MH
EPN LW F UV TBG 75050W MH
EPN MD F UV TBG 740150W MH
EPN MD F UV TBG 750150W MH
EPN HI F UV TBG 740250W MH or 150W HPS
EPN HI F UV TBG 750250W MH or 150W HPS
EPN VH F UV TBG 840200W HPS or 250W PSMH
EPN VH F UV TBG 850200W HPS or 250W PSMH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
EPN LW F UV TBG 740View Download Download
EPN LW F UV TBG 750View Download Download
EPN MD F UV TBG 740View Download Download
EPN MD F UV TBG 750View Download Download
EPN HI F UV TBG 740View Download Download
EPN HI F UV TBG 750View Download Download
EPN VH F UV TBG 840View Download Download
EPN VH F UV TBG 850View Download Download

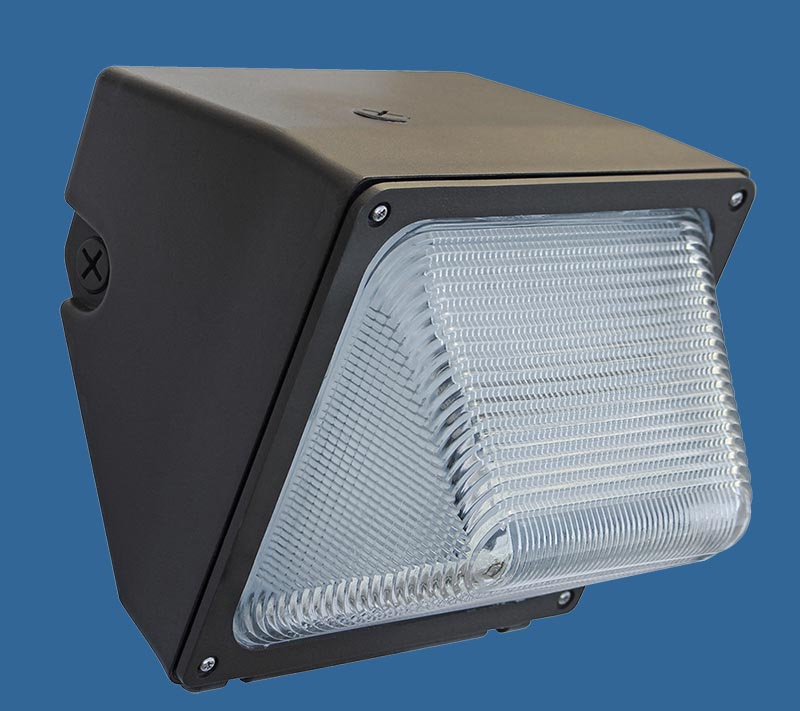

EPN LW jpg blue bg

Three sizes, four outputs

    The EPN is available in four different lumen output packages. The LW (Low) package, pictured, is a 30W unit producing around 3,200 lumens. The 61W MD (Medium) package produces around 7,000-7,200 lumens. The HI (High) selection produces just under 10,000 lumens at 78W. The VH (Very High) output package produces around 12,100 lumens at 120W. See spec sheet for dimensions of each lumen package.
