LED Non-Cutoff Wall Pack

    The EPP is a highly efficient LED wall pack. A photocell and 0-10V dimming drivers come standard. Easy knock-outs on the back box of the EPP allow for mounting to any standard 3 1/2-inch to 4-inch square or octagonal, or 4-inch round applications.
  • Applications: Suitable for exterior wall mount applications
  • Lumen Output: 6,650 lumens
  • Max Lumens Per Watt: 132.2
  • Predicted L70 Lifetime: >50,000 hours
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations. IP65 rated

Click to enlarge

EPP-schematic EPP-schematic
EPP schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWShieldingOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
EPP MD F UV TBG 7406,65050.3132.2Tempered Borosilicate GlassForward70 CRI / 4000K120-277V5 years>50,000 hrs
Catalog #
Equivalency*
EPP MD F UV TBG 740150W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
EPP MD F UV TBG 740View Download Download

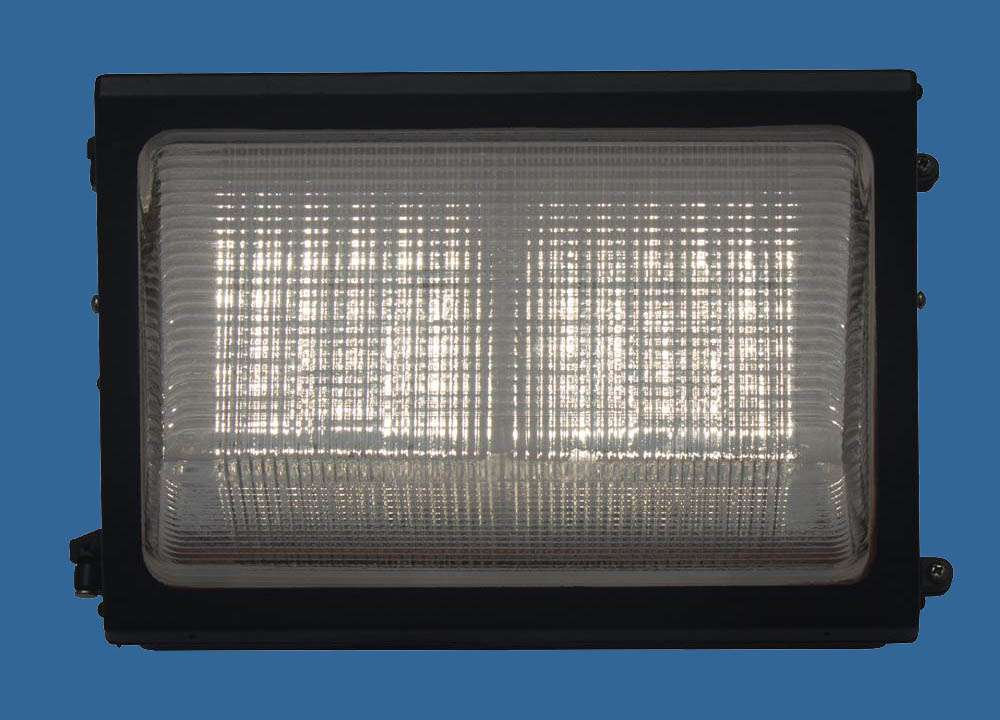

EPP jpg bluebg

Durable construction

    The housing of the EPP is constructed of precision die cast aluminum, with a chip and fade resistant textured polyester powdercoat finish in dark bronze. The lens is made of UV-stabilized borosilicate prismatic glass.
