LED Lensed Troffer

    The ETL is available in 2x2, 2x4 and 1x4 variations for maximum flexibility. Several lumen packages are available, ensuring you get the right light level you need. Its multiple shielding options are optimized to balance efficiency and aesthetics. The LED tray is precision brake-formed from aluminum. The ETL features a white enamel finish. All LED boards and drivers are field replaceable.
  • Applications: Suitable for most commercial and institutional applications - office, retail, hospitality, healthcare facilities
  • Lumen Output: From 2,200 lm - 5,500 lm
  • Max Lumens Per Watt: 139
  • Size Options: 2x2, 2x4, 1x4
  • Predicted L70 Lifetime: > 140,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
  • Re-BoardABILITY: Every ETL is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in America: Engineered and made in the USA. Each ETL is manufactured in our Henderson, NC facility. BAA compliant options are available

Click to enlarge

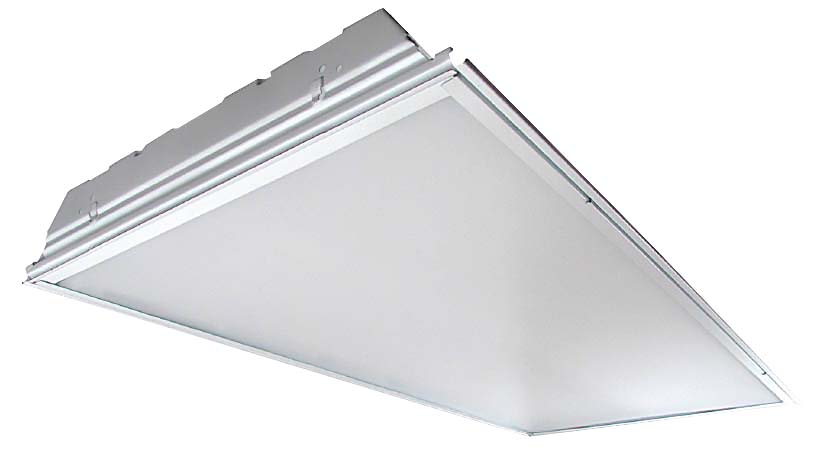

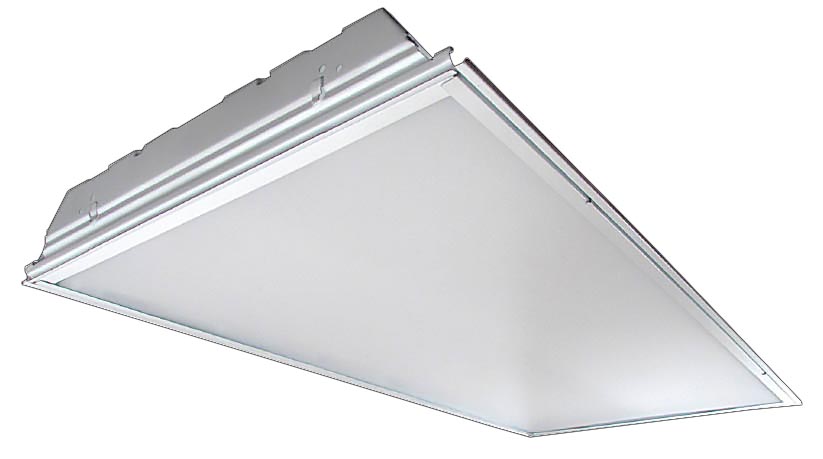

ETL 2x4

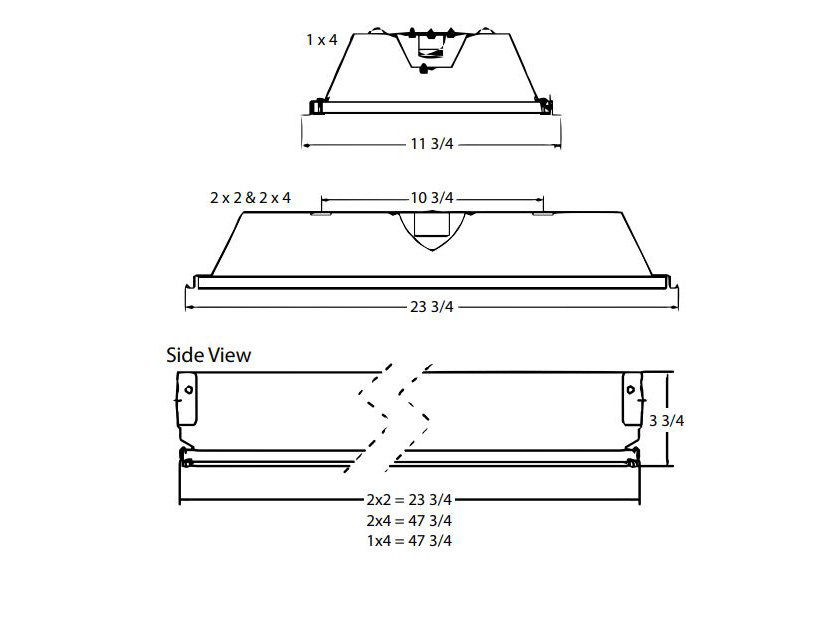

ETL cross section ETL cross section
ETL schematics
DLC, cULus, MiA, 10YR icons update2
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
ETL 22 LW UV A12 8352x2221120110.680 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 LW UV A12 8402x222802011480 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 LW UV A12 8502x2234820117.480 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 MD UV A12 8352x2373130124.480 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 MD UV A12 8402x2384730128.280 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 MD UV A12 8502x2396230132.180 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 HI UV A12 8352x2431836119.980 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 HI UV A12 8402x2445236123.780 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 HI UV A12 8502x2458536127.480 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 VH UV A12 8352x2517846112.680 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 VH UV A12 8402x2533846116.180 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 22 VH UV A12 8502x2549946119.580 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 VL UV A12 8352x4339926130.780 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 VL UV A12 8402x4350426134.880 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 VL UV A12 8502x4360926138.880 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 LW UV A12 8352x4381930127.380 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 LW UV A12 8402x4393730131.280 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 LW UV A12 8502x4405630135.280 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 MD UV A12 8352x4524144119.180 CRI / 3500K120-277V, 347VYes5 years, 10 years optional>140,000 hours (calculated)
ETL 24 MD UV A12 8402x4540344122.880 CRI / 4000K120-277V, 347VYes5 years, 10 years optional>140,000 hours (calculated)
ETL 24 MD UV A12 8502x4556544126.580 CRI / 5000K120-277V, 347VYes5 years, 10 years optional>140,000 hours (calculated)
ETL 24 HI UV A12 8352x4619755112.780 CRI / 3500K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 HI UV A12 8402x4638855116.280 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 HI UV A12 8502x4658055119.680 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 VH UV A12 8352x4687364107.480 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 24 VH UV A12 8402x4708664110.780 CRI / 4000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 VH UV A12 8502x472996411480 CRI / 5000K120-277V, 347VYes5 years>140,000 hours (calculated)
ETL 24 SH UV A12 8352x4885967131.680 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 24 SH UV A12 8402x4913367135.780 CRI / 4000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 24 SH UV A12 8502x4940767139.880 CRI / 5000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 LW UV A12 8351x4221120110.680 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 LW UV A12 8401x422802011480 CRI / 4000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 LW UV A12 8501x4234820117.480 CRI / 5000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 MD UV A12 8351x4373130124.480 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 MD UV A12 8401x4384730128.280 CRI / 4000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 MD UV A12 8501x4396230132.180 CRI / 5000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 HI UV A12 8351x4431836119.980 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 HI UV A12 8401x4445236123.780 CRI / 4000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 HI UV A12 8501x4458536127.480 CRI / 5000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 VH UV A12 8351x4517846112.680 CRI / 3500K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 VH UV A12 8401x4533846116.180 CRI / 4000K120-277V, 347VNo5 years>140,000 hours (calculated)
ETL 14 VH UV A12 8501x4549946119.580 CRI / 5000K120-277V, 347VNo5 years>140,000 hours (calculated)
Catalog #
Equivalency*
ETL 22 LW UV A12 8352L F17 T8 w/ NBF
ETL 22 LW UV A12 8402L F17 T8 w/ NBF
ETL 22 LW UV A12 8502L F17 T8 w/ NBF
ETL 22 MD UV A12 8354L F17 T8 w/ NBF
ETL 22 MD UV A12 8404L F17 T8 w/ NBF
ETL 22 MD UV A12 8504L F17 T8 w/ NBF
ETL 22 HI UV A12 8352L FB32 T8 w/ HBF
ETL 22 HI UV A12 8402L FB32 T8 w/ HBF
ETL 22 HI UV A12 8502L FB32 T8 w/ HBF
ETL 22 VH UV A12 8354L F17 T8 w/ HBF
ETL 22 VH UV A12 8404L F17 T8 w/ HBF
ETL 22 VH UV A12 8504L F17 T8 w/ HBF
ETL 24 VL UV A12 8352L F32 T9 w/ LBF
ETL 24 VL UV A12 8402L F32 T9 w/ LBF
ETL 24 VL UV A12 8502L F32 T9 w/ LBF
ETL 24 LW UV A12 8352L F32 T8 w/ NBF
ETL 24 LW UV A12 8402L F32 T8 w/ NBF
ETL 24 LW UV A12 8502L F32 T8 w/ NBF
ETL 24 MD UV A12 8353L F32 T8 w/ LBF
ETL 24 MD UV A12 8403L F32 T8 w/ LBF
ETL 24 MD UV A12 8503L F32 T8 w/ LBF
ETL 24 HI UV A12 8353L F32 T8 w/ NBF
ETL 24 HI UV A12 8403L F32 T8 w/ NBF
ETL 24 HI UV A12 8503L F32 T8 w/ NBF
ETL 24 VH UV A12 8354L F32 T8 w/ LBF
ETL 24 VH UV A12 8404L F32 T8 w/ LBF
ETL 24 VH UV A12 8504L F32 T8 w/ LBF
ETL 24 SH UV A12 8355L F32 T8 w/ LBF
ETL 24 SH UV A12 8405L F32 T8 w/ LBF
ETL 24 SH UV A12 8505L F32 T8 w/ LBF
ETL 14 LW UV A12 8351L F32 T8 w/ HBF
ETL 14 LW UV A12 8401L F32 T8 w/ HBF
ETL 14 LW UV A12 8501L F32 T8 w/ HBF
ETL 14 MD UV A12 8352L F32 T8 w/ NBF
ETL 14 MD UV A12 8402L F32 T8 w/ NBF
ETL 14 MD UV A12 8502L F32 T8 w/ NBF
ETL 14 HI UV A12 8353L F32 T8 w/ LBF
ETL 14 HI UV A12 8403L F32 T8 w/ LBF
ETL 14 HI UV A12 8503L F32 T8 w/ LBF
ETL 14 VH UV A12 8353L F32 T8 w/ NBF
ETL 14 VH UV A12 8403L F32 T8 w/ NBF
ETL 14 VH UV A12 8503L F32 T8 w/ NBF
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
ETL 22 LW UV A12 835
Download Contact Factory
ETL 22 LW UV A12 840
Download Download
ETL 22 LW UV A12 850
Download Contact Factory
ETL 22 MD UV A12 835
Download Contact Factory
ETL 22 MD UV A12 840
Download Download
ETL 22 MD UV A12 850
Download Contact Factory
ETL 22 HI UV A12 835
Download Contact Factory
ETL 22 HI UV A12 840
Download Download
ETL 22 HI UV A12 850
Download Contact Factory
ETL 22 VH UV A12 835
Download Contact Factory
ETL 22 VH UV A12 840
Download Download
ETL 22 VH UV A12 850
Download Contact Factory
ETL 24 VL UV A12 835View Download Contact Factory
ETL 24 VL UV A12 840View Download Download
ETL 24 VL UV A12 850View Download Contact Factory
ETL 24 LW UV A12 835View Download Contact Factory
ETL 24 LW UV A12 840View Download Download
ETL 24 LW UV A12 850View Download Contact Factory
ETL 24 MD UV A12 835View Download Contact Factory
ETL 24 MD UV A12 840View Download Download
ETL 24 MD UV A12 850View Download Contact Factory
ETL 24 HI UV A12 835View Download Contact Factory
ETL 24 HI UV A12 840View Download Download
ETL 24 HI UV A12 850View Download Contact Factory
ETL 24 VH UV A12 835View Download Contact Factory
ETL 24 VH UV A12 840View Download Download
ETL 24 VH UV A12 850View Download Contact Factory
ETL 24 SH UV A12 835View Download Contact Factory
ETL 24 SH UV A12 840View Download Download
ETL 24 SH UV A12 850View Download Download
ETL 14 LW UV A12 835View Download Contact Factory
ETL 14 LW UV A12 840View Download Contact Factory
ETL 14 LW UV A12 850View Download Contact Factory
ETL 14 MD UV A12 835View Download Contact Factory
ETL 14 MD UV A12 840View Download Contact Factory
ETL 14 MD UV A12 850View Download Contact Factory
ETL 14 HI UV A12 835View Download Contact Factory
ETL 14 HI UV A12 840View Download Contact Factory
ETL 14 HI UV A12 850View Download Contact Factory
ETL 14 VH UV A12 835View Download Contact Factory
ETL 14 VH UV A12 840View Download Contact Factory
ETL 14 VH UV A12 850View Download Contact Factory
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

qtq80-vGgNGh

Shielding options

    The ETL is available with three different lens options - Pattern 12 Prismatic Acrylic (A12), Prismatic White Acrylic (PW) and Frosted High Efficiency Pattern 23 Acrylic (A23F). Each option is optimized to balance efficiency and aesthetics.
