LED Vanity Wrap

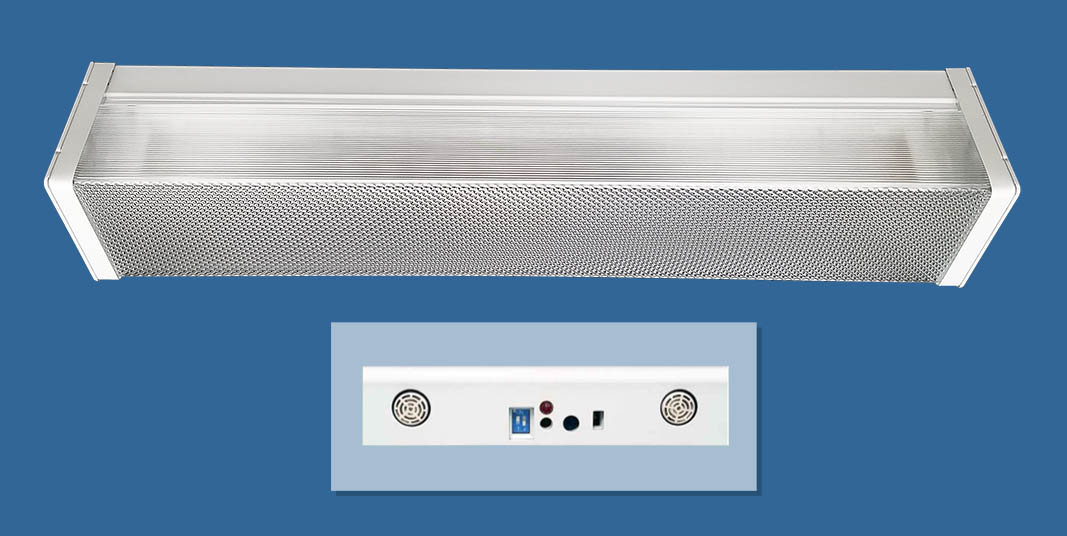

The EVL is a high performance LED vanity wrap suitable for many wall and ceiling mount applications. The housing and end caps are constructed out of heavy-gauge cold rolled steel with a white powder coat finish. The lens is prismatic acrylic. An optional motion/sound sensor is available. The LED boards and drivers of the EVL are field replaceable, utilizing LumenFocus' concept of Re-boardABILITY.

  • Applications: Suitable for wall and ceiling mount applications: bathrooms, corridors and stairwells
  • Lumen Output: About 1,000 lumens up to 4,000 lumens
  • Max Lumens Per Watt: About 135
  • Size Options: 2-foot, 3-foot, 4-foot
  • Predicted L70 Lifetime: >100,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations
  • Made in America: Engineered and made in the USA. Each EVL is manufactured in our Henderson, NC facility
https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL4-4slider.jpg
EVL 2-footer

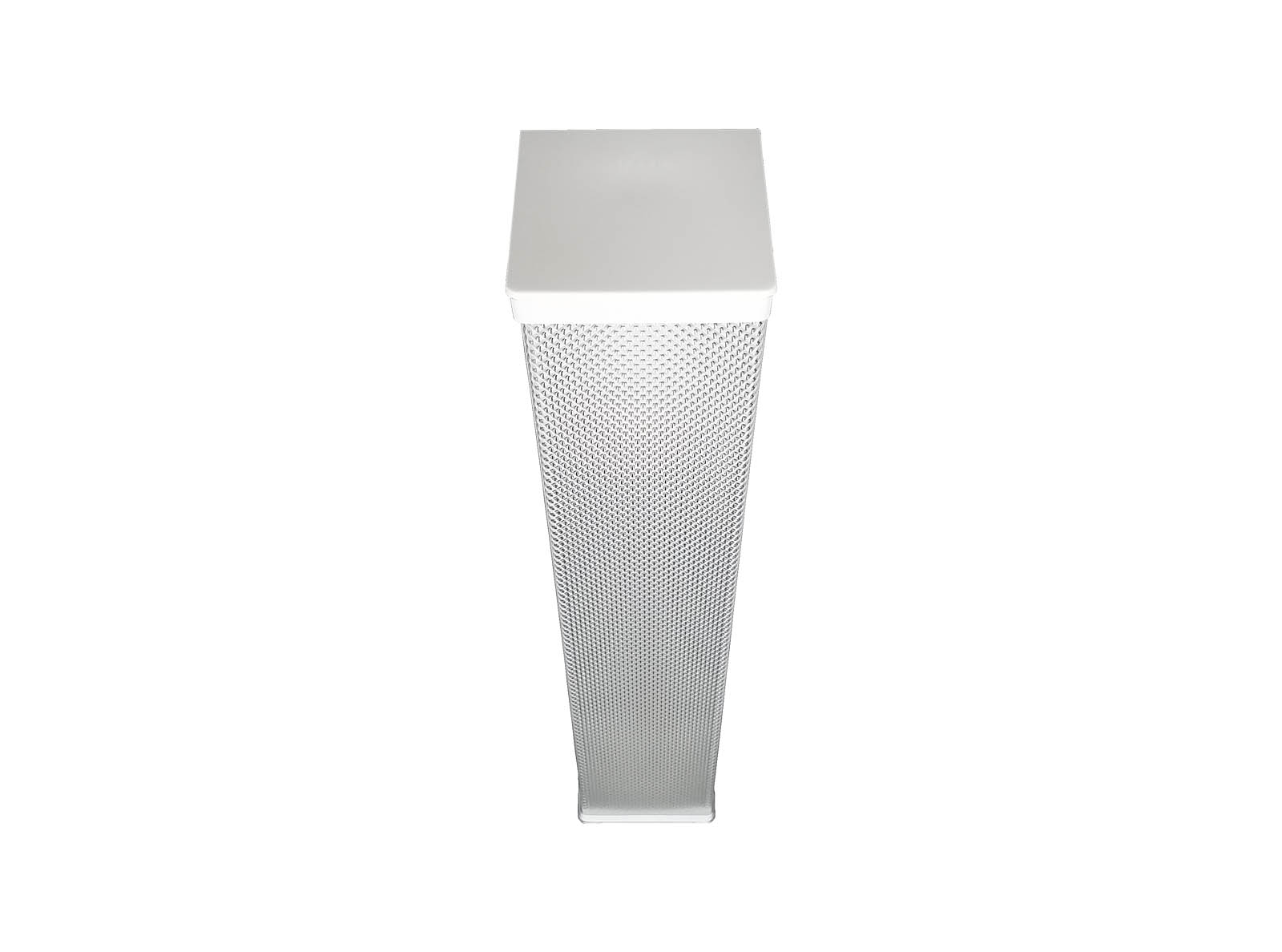

https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL4-3slider.jpg
EVL 2-footer

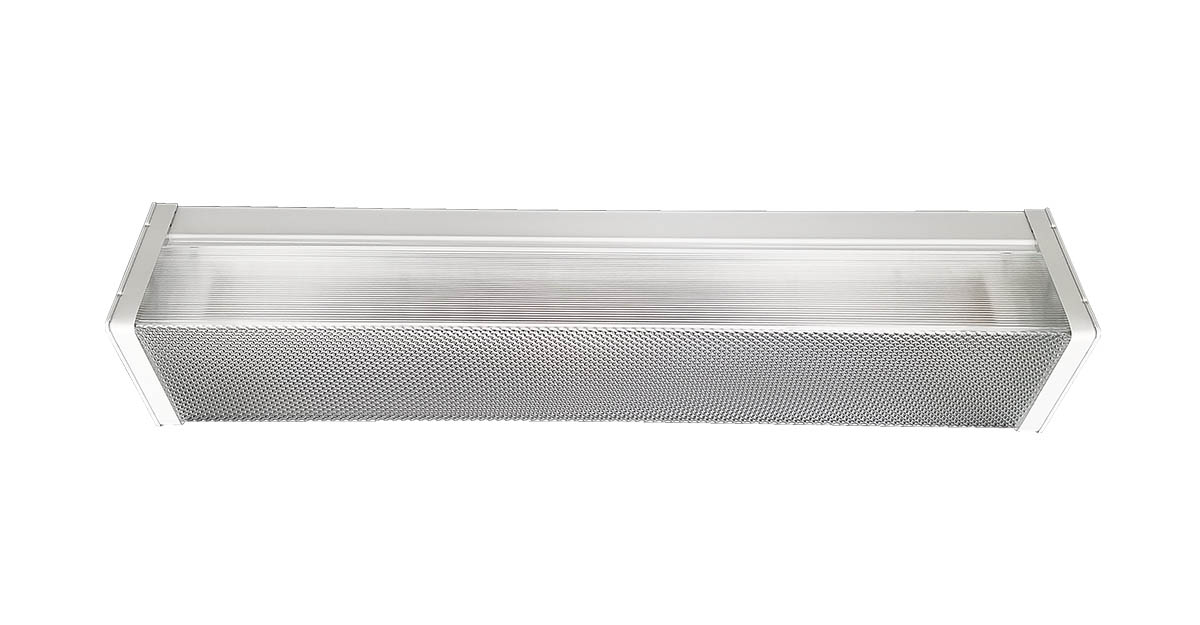

https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL4-2slider.jpg
EVL 2-footer
https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL4-1slider.jpg
EVL 2-footer

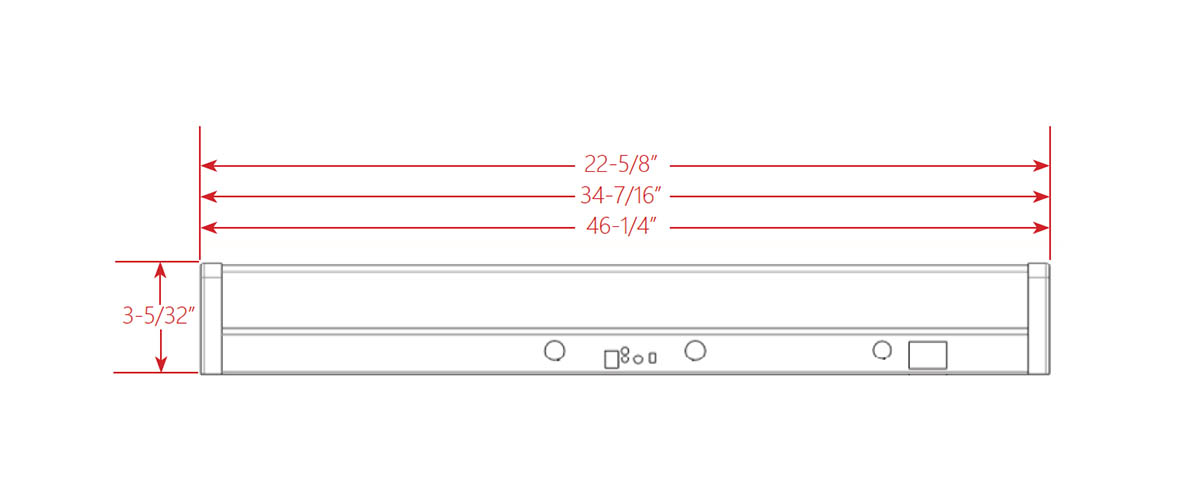

https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL-schematic2.jpg
EVL schematic

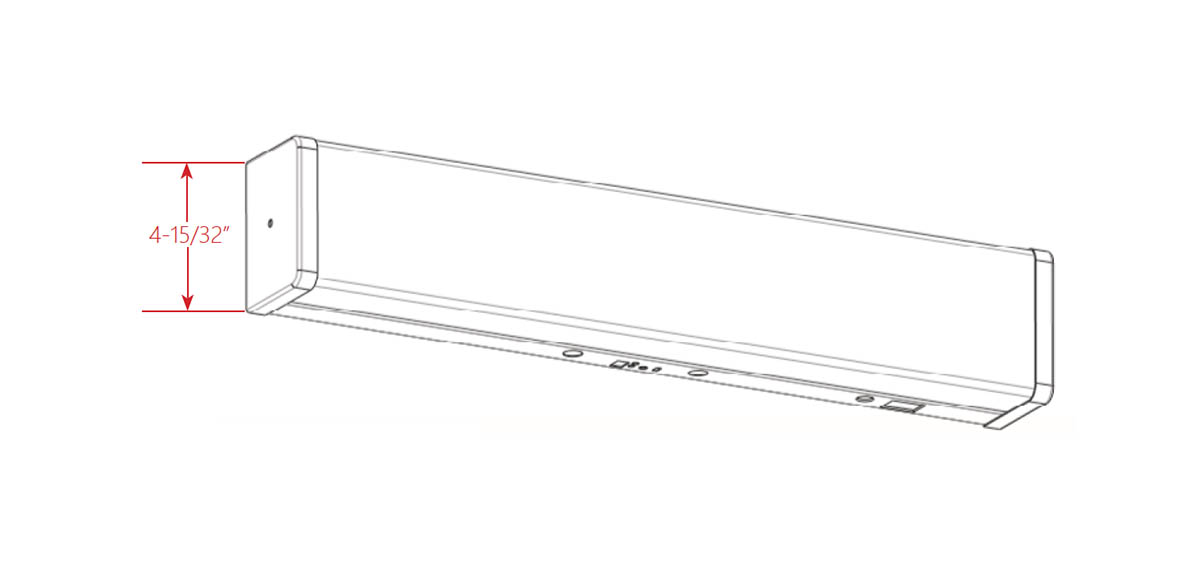

https://www.lumenfocus.com/wp-content/uploads/2018/10/EVL-schematic.jpg
EVL schematic

EVL Performance Chart

Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableWarrantyPredicted L70 Lifetime
EVL 2 LW UV CPA 835
2-foot1,0809122.180 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 2 LW UV CPA 840
2-foot1,1169126.280 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 2 LW UV CPA 850
2-foot1,1499129.980 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 2 MD UV CPA 835
2-foot1,87815122.780 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 2 MD UV CPA 840
2-foot1,94015126.880 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 2 MD UV CPA 850
2-foot1,99915130.680 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 LW UV CPA 835

3-foot1,56513118.880 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 LW UV CPA 840

3-foot1,61613122.780 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 LW UV CPA 850

3-foot1,66513126.480 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 MD UV CPA 835

3-foot2,95626115.980 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 MD UV CPA 840

3-foot3,05426119.880 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 3 MD UV CPA 850

3-foot3,14526123.380 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 LW UV CPA 835

4-foot2,16117126.880 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 LW UV CPA 840

4-foot2,2321713180 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 LW UV CPA 850

4-foot2,29917134.980 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 MD UV CPA 835

4-foot3,75730127.280 CRI / 3500KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 MD UV CPA 840

4-foot3,88130131.480 CRI / 4000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
EVL 4 MD UV CPA 850

4-foot3,99730135.480 CRI / 5000KClear prismatic acrylic120-277V, 347V5 years>100,000 hours (calculated)
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
