LED Extruded Vaportight

Click here for spec sheet

Photometry: Click here for .ies files | Click here for .pdf files

High-res images: EVT 2-footer | EVT 4-footer

The unique design of the EVT features an (f1) rated acrylic co-extruded lens and housing - with the lens and housing being all one piece - and gasketed end caps. It is available in 2-foot, 4-foot and 8-foot variations. The EVT is UL approved and evaluated for daisy chaining. Multiple hanging options are available for easy installation - including surface, chain/cable, or pendant. High efficiency LED boards and drivers are field replaceable. Maximize your energy savings further with an optional microwave occupancy sensor.

Applications: Suitable for most commercial, industrial and institutional applications: warehouses, manufacturing facilities, food processing, stairwells, car washes
Lumen Output: 1,930 to nearly 8,600 lumens
Max Lumens Per Watt: 134.5
Size Options: 2-foot, 4-foot and 8-foot lengths
Predicted L70 Lifetime: > 100,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for wet locations. DesignLights Consortium qualified on specific configurations. Other certifications: NSF, IP65, IP66, RoHS
Made in America: Engineered and made in the USA. Each EVT is manufactured in our Henderson, NC facility

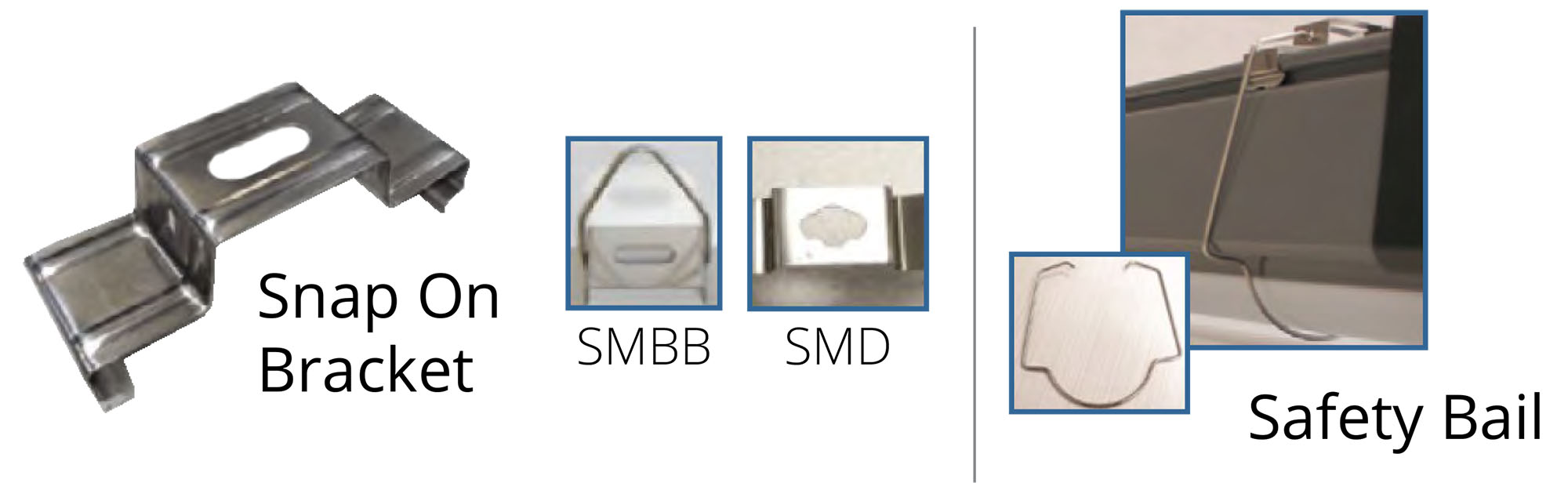

The Snap On Bracket comes standard on the EVT, and can be used for surface mounting. Selecting the SMBB option adds the bracket bail for chain and cable mounting. The bracket bail can also be purchased with a 10' Quick Hang Cable Kit (SMBBQC) or a 20' Quick Hang Cable Kit (SMBBQC20). An optional Safety Bail provides added security for the mounting.

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-6jpg.jpg

EVT 2-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-1jpg.jpg

EVT 2-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-2jpg.jpg

EVT 2-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT4-3jpg.jpg

EVT 4-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT4-1jpg.jpg

EVT 4-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT4-2jpg.jpg

EVT 4-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-5jpg.jpg

EVT 2-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-3jpg.jpg

EVT 2-footer

https://www.lumenfocus.com/wp-content/uploads/2018/11/EVT2-4jpg.jpg

EVT 2-footer

EVT Performance Chart

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Shielding	Voltages Available	DLC Listed	Warranty	Predicted L70 Lifetime	Equivalency*
EVT 2 VL UV FA 835 Image	2 foot	1,930	18	109.4	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with NBF
EVT 2 VL UV FA 840 Photometry Files \| Image	2 foot	1,993	18	113	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with NBF
EVT 2 VL UV FA 850 Photometry Files \| Image	2 foot	2,053	18	116.4	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with NBF
EVT 2 LW UV FA 835 Image	2 foot	2,588	23	111.4	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with HBF
EVT 2 LW UV FA 840 Photometry Files \| Image	2 foot	2,673	23	115.1	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with HBF
EVT 2 LW UV FA 850 Photometry Files \| Image	2 foot	2,754	23	118.5	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F17 T8 vaportight with HBF
EVT 2 MD UV FA 835 Image	2 foot	3,504	33	106.4	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F24 T5HO vaportight
EVT 2 MD UV FA 840 Photometry Files \| Image	2 foot	3,620	33	109.9	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F24 T5HO vaportight
EVT 2 MD UV FA 850 Photometry Files \| Image	2 foot	3,728	33	113.2	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F24 T5HO vaportight
EVT 4 VL UV FA 835 Image	4 foot	3,603	31	117.1	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with LBF
EVT 4 VL UV FA 840 Photometry Files \| Image	4 foot	3,722	31	121	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with LBF
EVT 4 VL UV FA 850 Photometry Files \| Image	4 foot	3,834	31	124.6	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with LBF
EVT 4 LW UV FA 835 Image	4 foot	4,558	41	111	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F54 T5HO vaportight
EVT 4 LW UV FA 840 Photometry Files \| Image	4 foot	4,709	41	114.7	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F54 T5HO vaportight
EVT 4 LW UV FA 850 Photometry Files \| Image	4 foot	4,850	41	118.1	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F54 T5HO vaportight
EVT 4 MD UV FA 835 Image	4 foot	5,650	52	109.4	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with HBF
EVT 4 MD UV FA 840 Photometry Files \| Image	4 foot	5,837	52	113	80 CRI / 4000K	Frosted acrylic	120-277V	Yes	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with HBF
EVT 4 MD UV FA 850 Photometry Files \| Image	4 foot	6,012	52	116.4	80 CRI / 5000K	Frosted acrylic	120-277V	Yes	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with HBF
EVT 8 VL UV FA 835	8 foot	4,499	36	126.4	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with NBF
EVT 8 VL UV FA 840 Photometry Files	8 foot	4,648	36	130.6	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with NBF
EVT 8 VL UV FA 850 Photometry Files	8 foot	4,788	36	134.5	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F32 T8 vaportight with NBF
EVT 8 LW UV FA 835	8 foot	6,164	50	122.7	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F96 T8HO vaportight
EVT 8 LW UV FA 840 Photometry Files	8 foot	6,368	50	126.7	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F96 T8HO vaportight
EVT 8 LW UV FA 850 Photometry Files	8 foot	6,559	50	130.5	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	1-lamp F96 T8HO vaportight
EVT 8 MD UV FA 835	8 foot	8,073	69	117.2	80 CRI / 3500K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO vaportight
EVT 8 MD UV FA 840 Photometry Files	8 foot	8,339	69	121	80 CRI / 4000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO vaportight
EVT 8 MD UV FA 850 Photometry Files	8 foot	8,590	69	124.7	80 CRI / 5000K	Frosted acrylic	120-277V	No	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO vaportight

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
