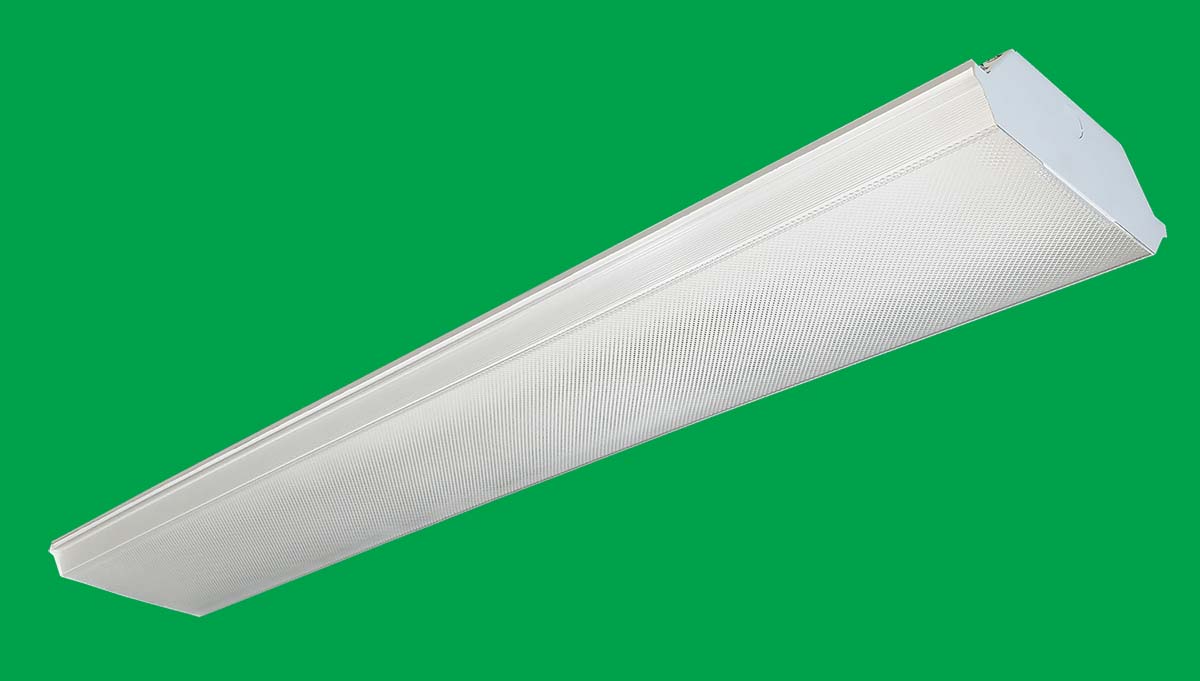

LED Wrap

    The EWLN is an LED wrap suitable for many applications. It can be surface, stem or cable mounted individually or in continuous rows. The EWLN features highly efficient LED boards and drivers, and is available in multiple lumen output packages to help you get the exact light level you need. There are multiple controls options available, including programmable photo/motion sensors, occupancy sensors, microwave sensors and photocells (see spec sheet for more info). The EWLN is available in 2-foot, 4-foot and 8-foot lengths.
  • Applications: Suitable for industrial, retail and institutional applications: warehouses, manufacturing facilities, stock rooms, classrooms
  • Lumen Output: About 1,400 lumens in the 2-foot version up to 17,000 in the 8-foot version
  • Max Lumens Per Watt: 143.1
  • Size Options: 2-foot, 4-foot, 8-foot
  • Predicted L70 Lifetime: Up to 189,000 hours (calculated)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available on specific models
  • Re-BoardABILITY: Every EWLN is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations.
  • Assembled in the USA: Each EWLN is assembled at our facility in Henderson, NC. BAA compliant options are available

Click to enlarge

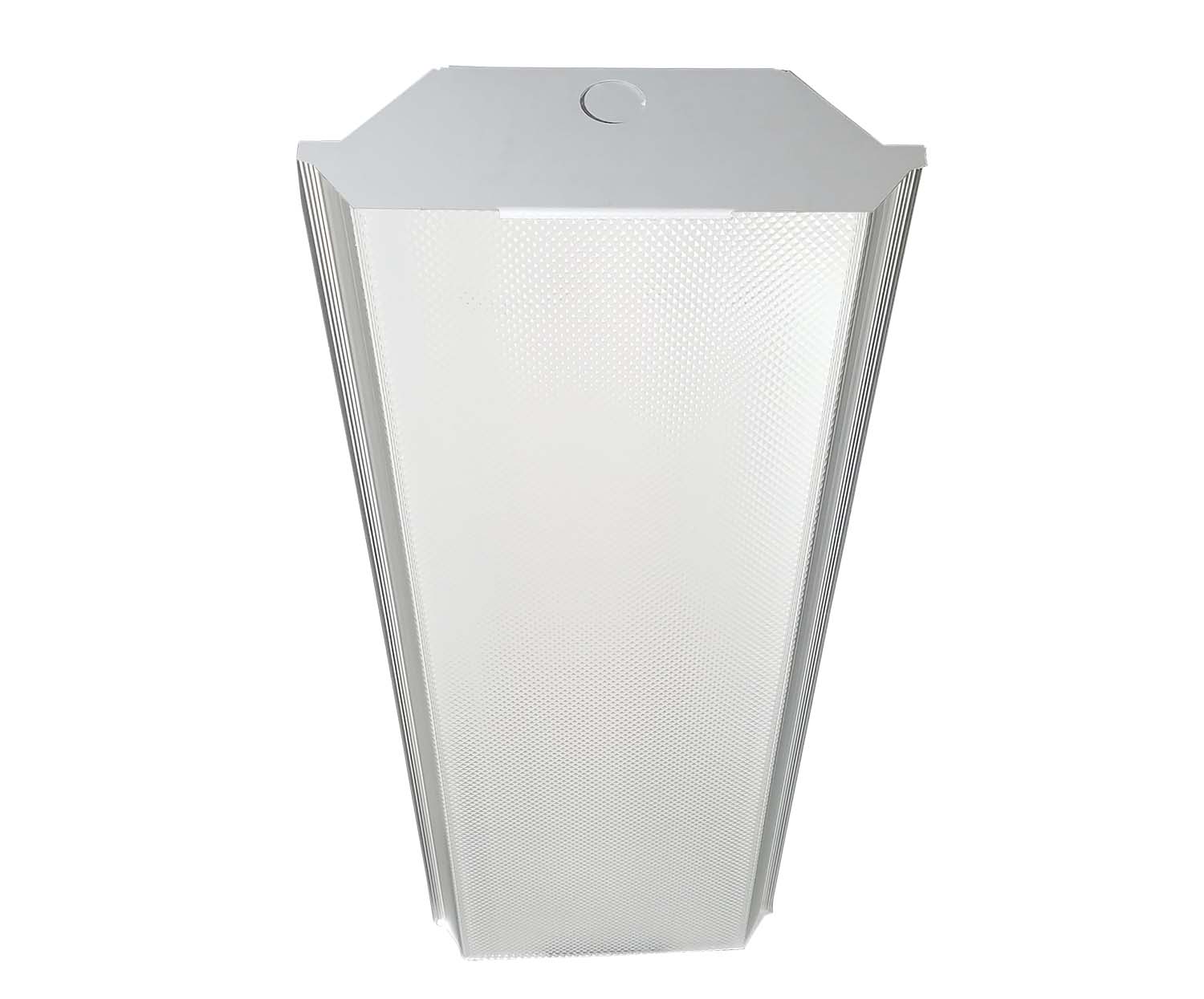

EWLN2-4jpg EWLN2-4jpg
EWLN 2'

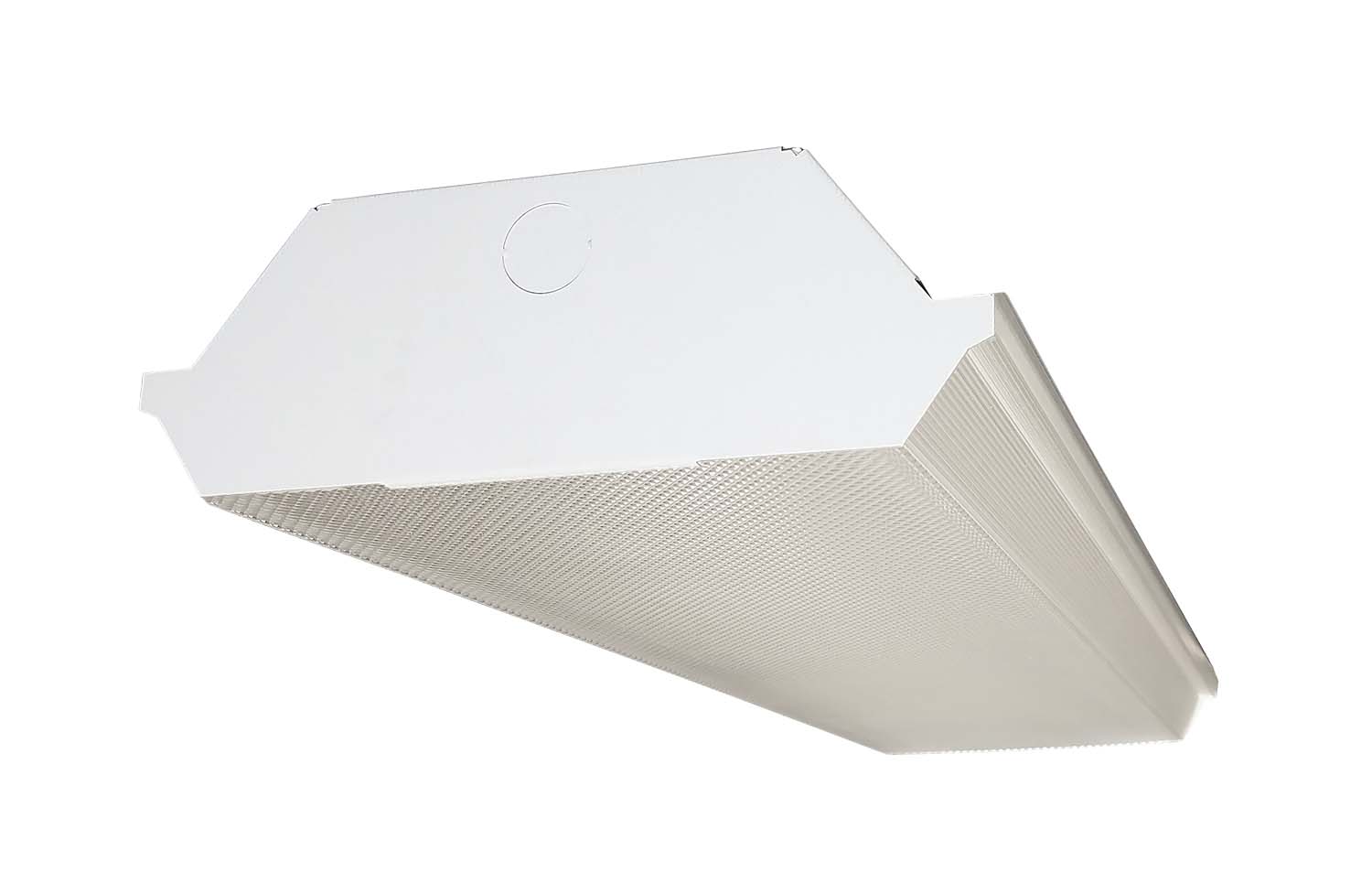

EWLN2-3jpg EWLN2-3jpg
EWLN 2'

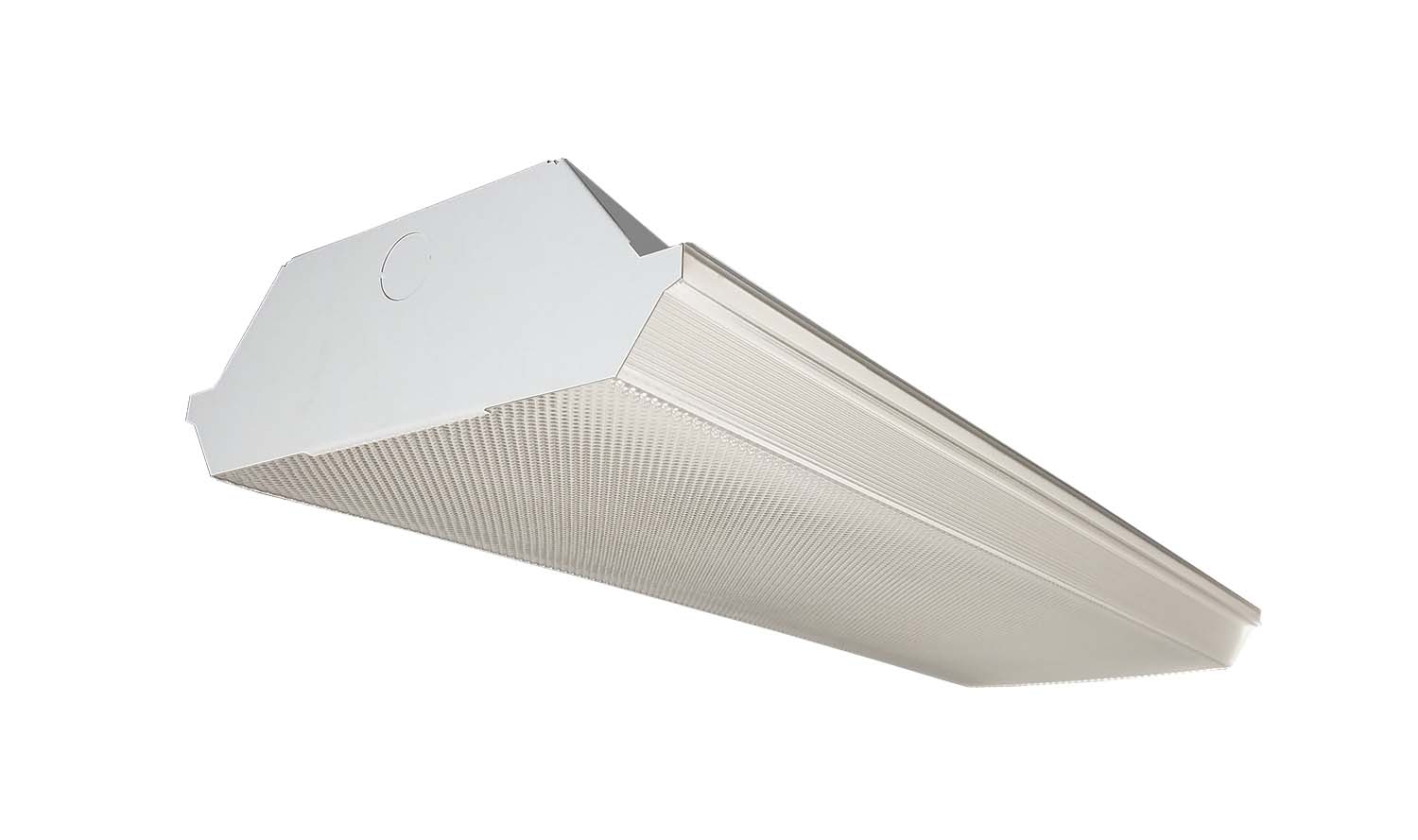

EWLN2-2jpg EWLN2-2jpg
EWLN 2'

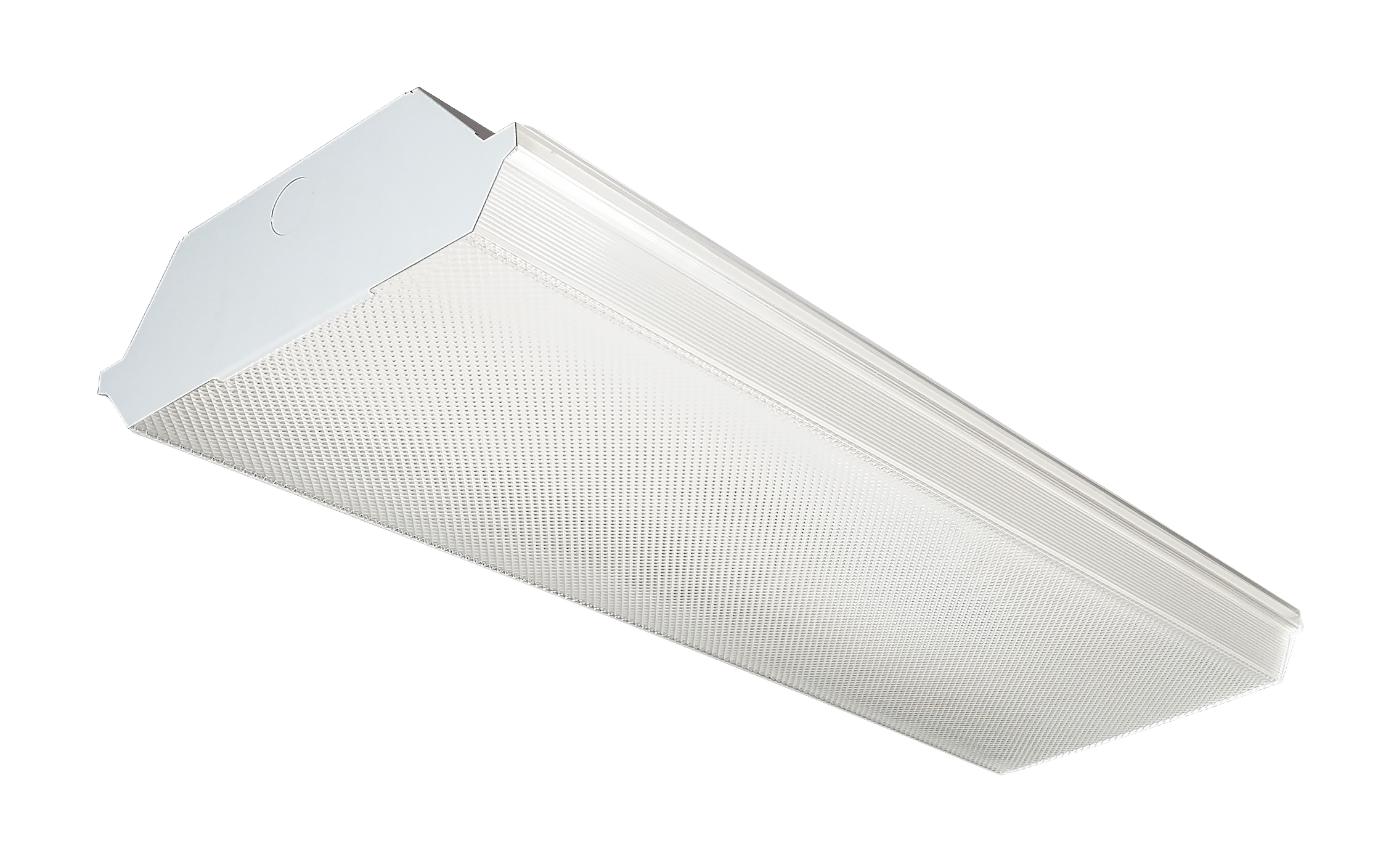

EWLN2-1jpg EWLN2-1jpg
EWLN 2'

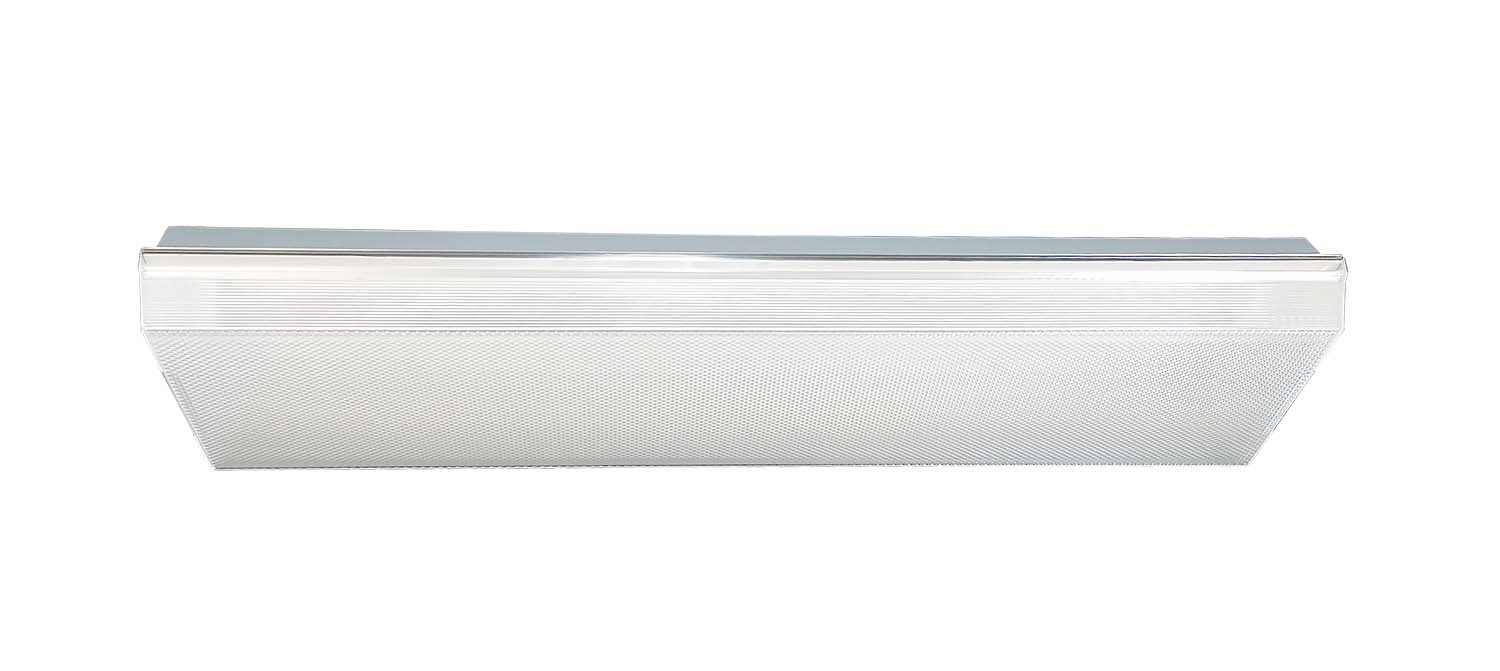

EWLN2-5jpg EWLN2-5jpg
EWLN 2'

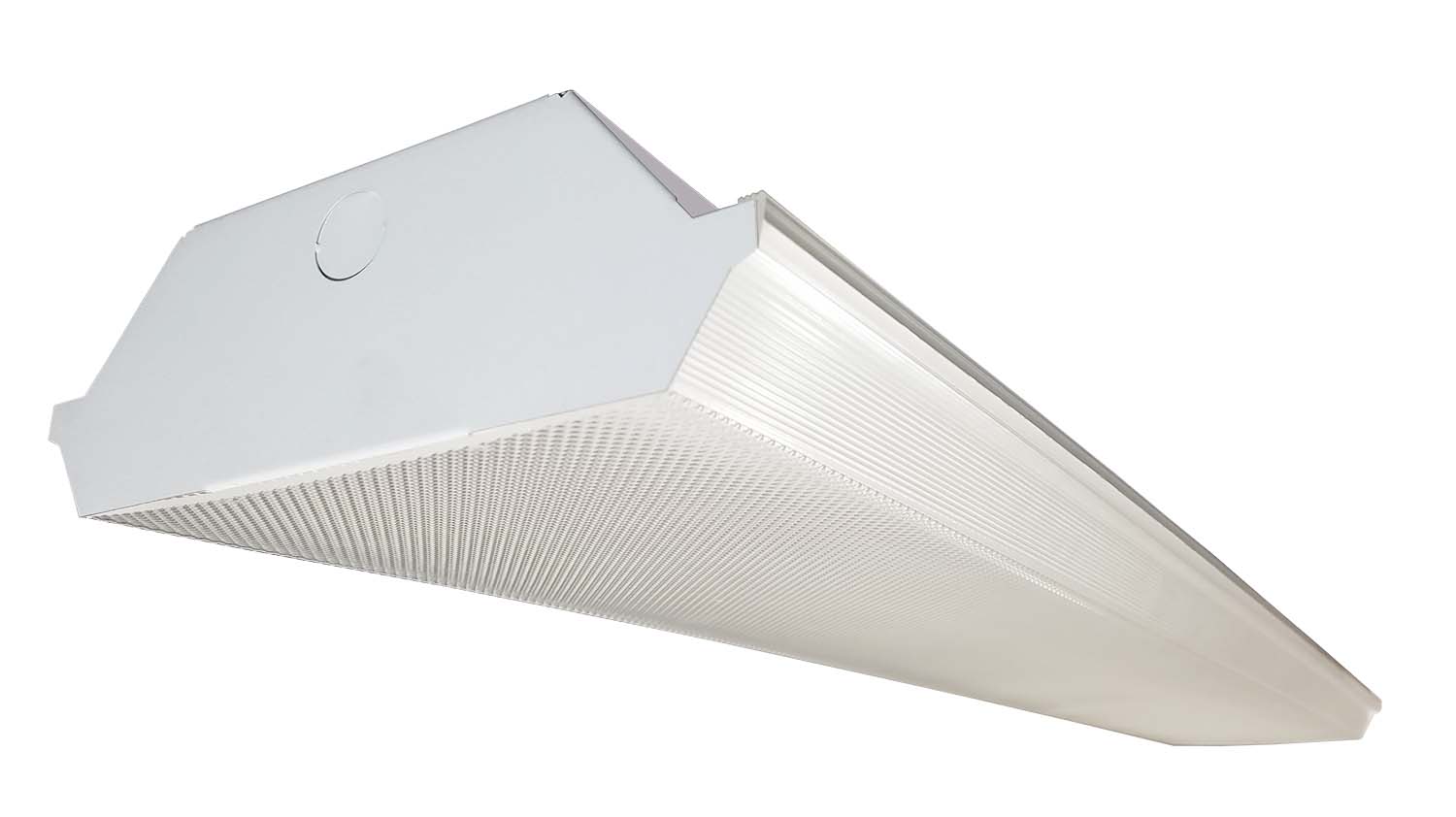

EWLN4121819-5JPG EWLN4121819-5JPG
EWLN 4'

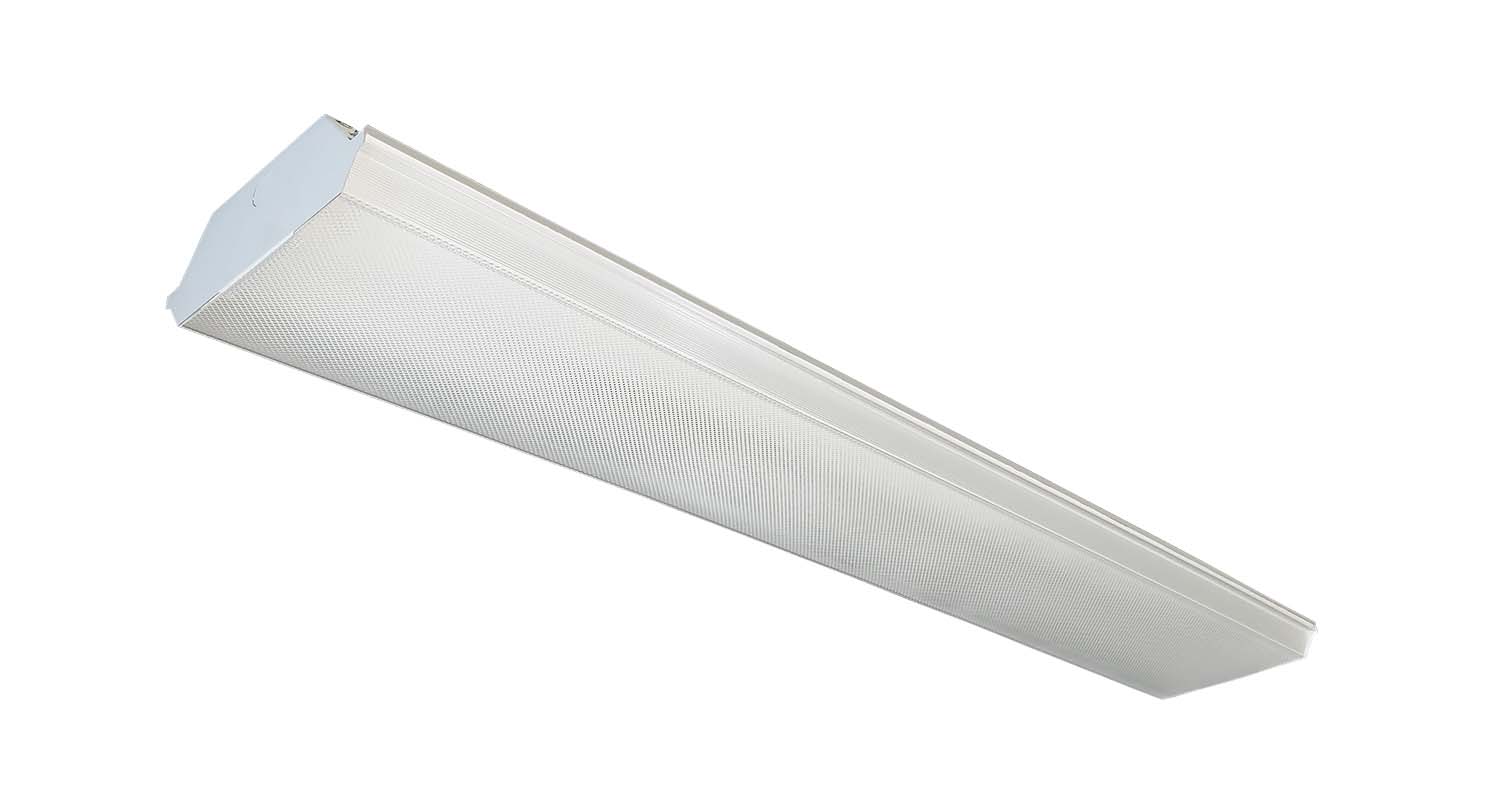

EWLN4121819-4JPG EWLN4121819-4JPG
EWLN 4'
EWLN4121819-3JPG EWLN4121819-3JPG
EWLN 4'

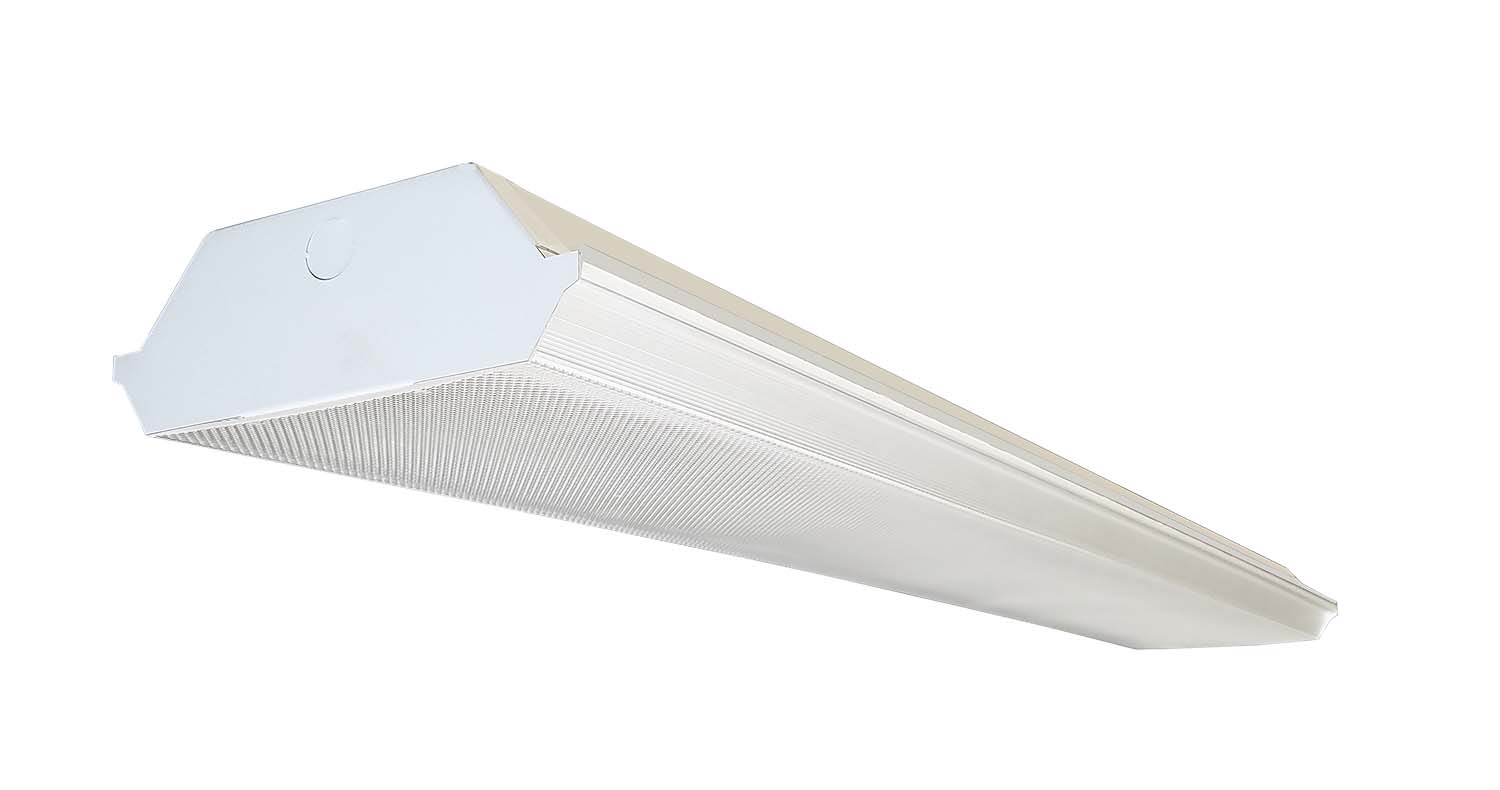

EWLN4121819-2JPG EWLN4121819-2JPG
EWLN 4'

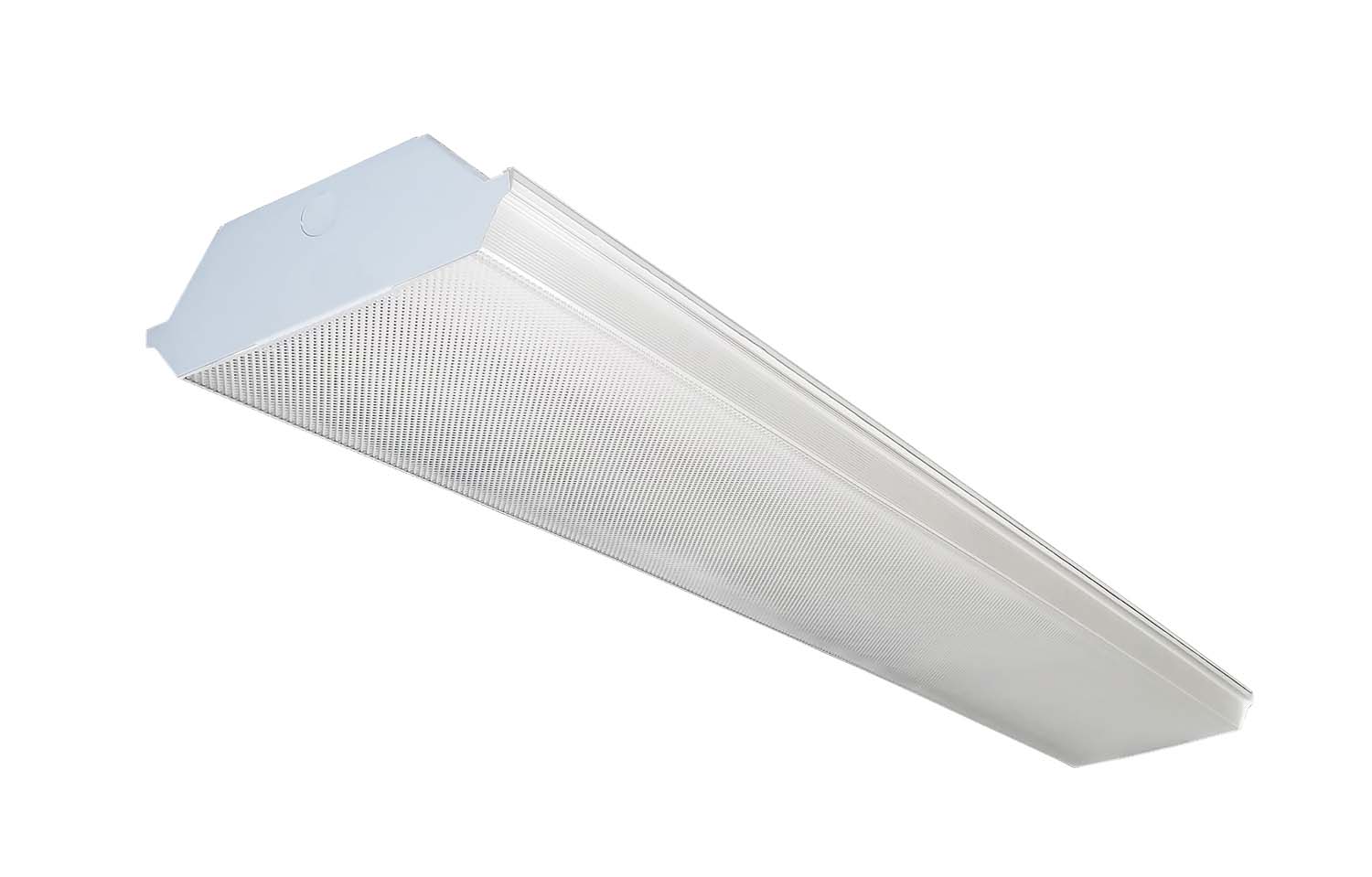

EWLN4121819-1JPG EWLN4121819-1JPG
EWLN 4'

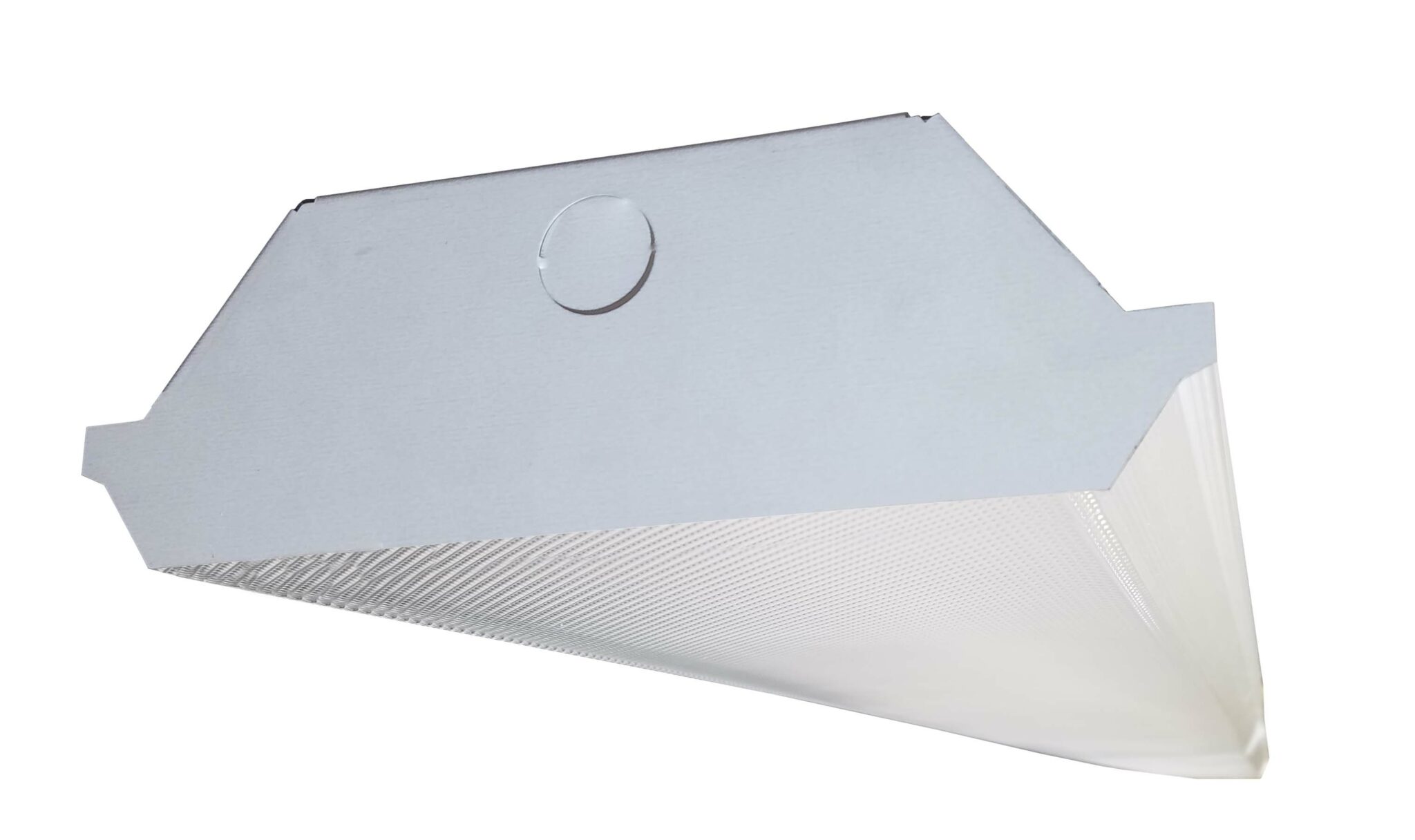

NWJPG1219-5web NWJPG1219-5web
EWLN 4'

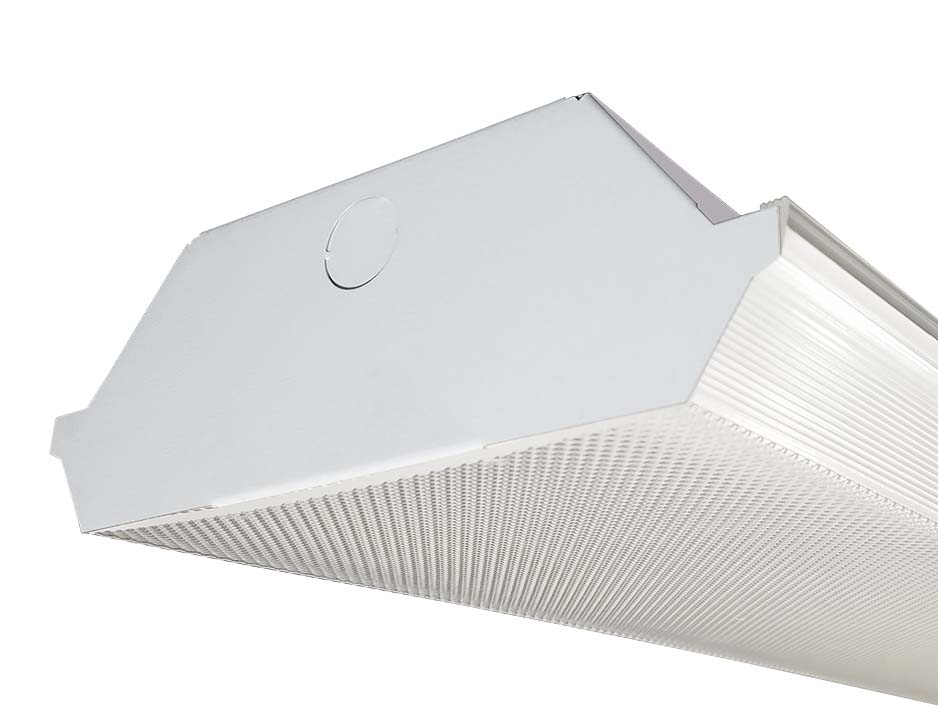

EWLN4121819-5JPGTight EWLN4121819-5JPGTight
EWLN 4'

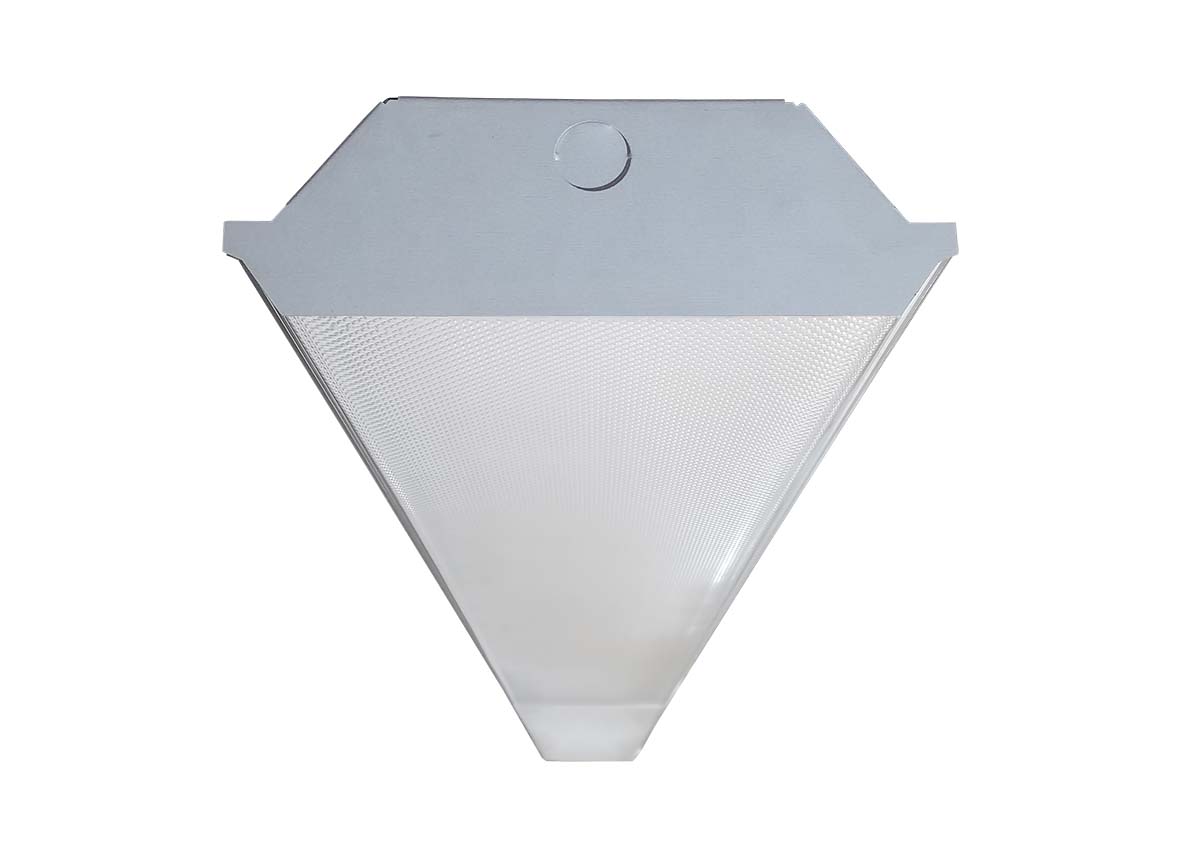

NWJPG1219-4web NWJPG1219-4web
EWLN 8'
NWJPG1219-3web NWJPG1219-3web
EWLN 8'

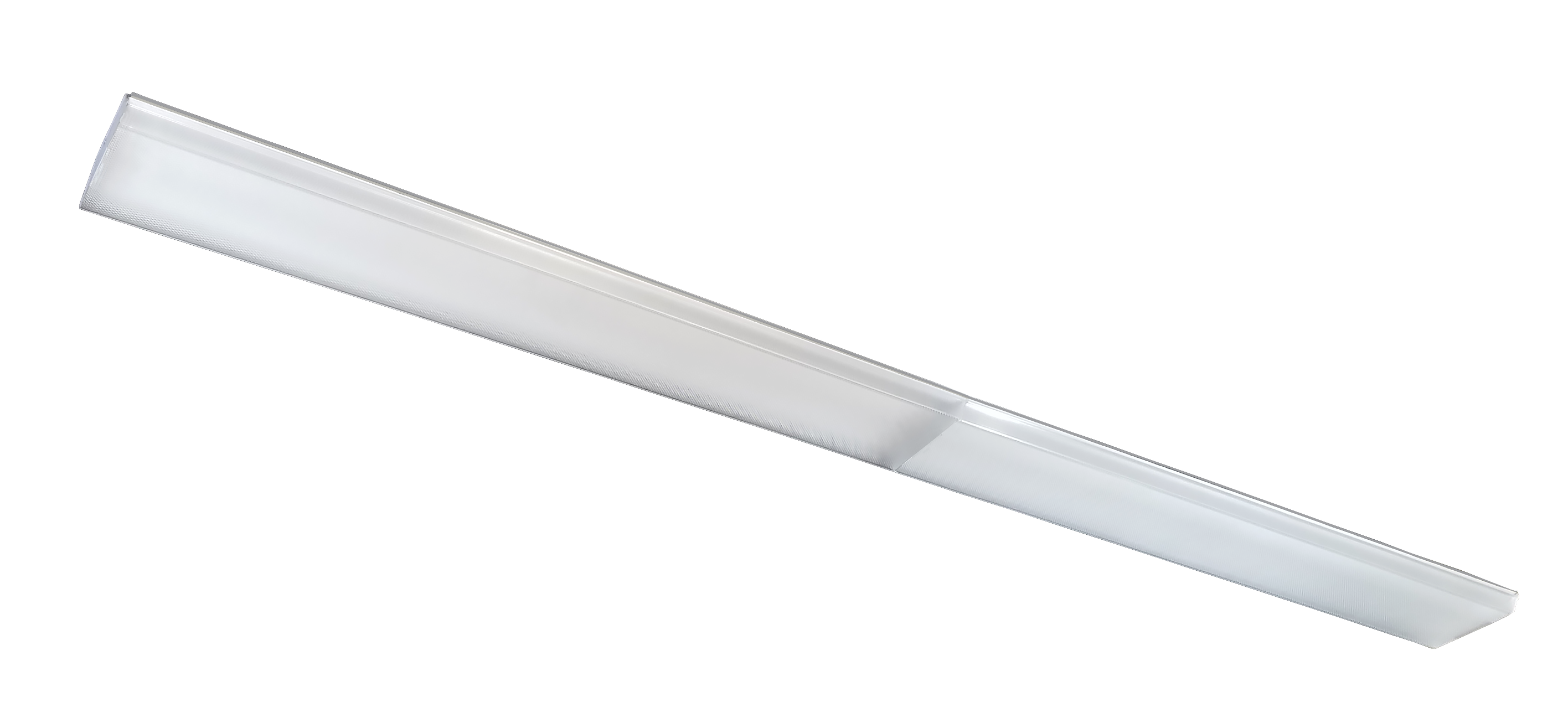

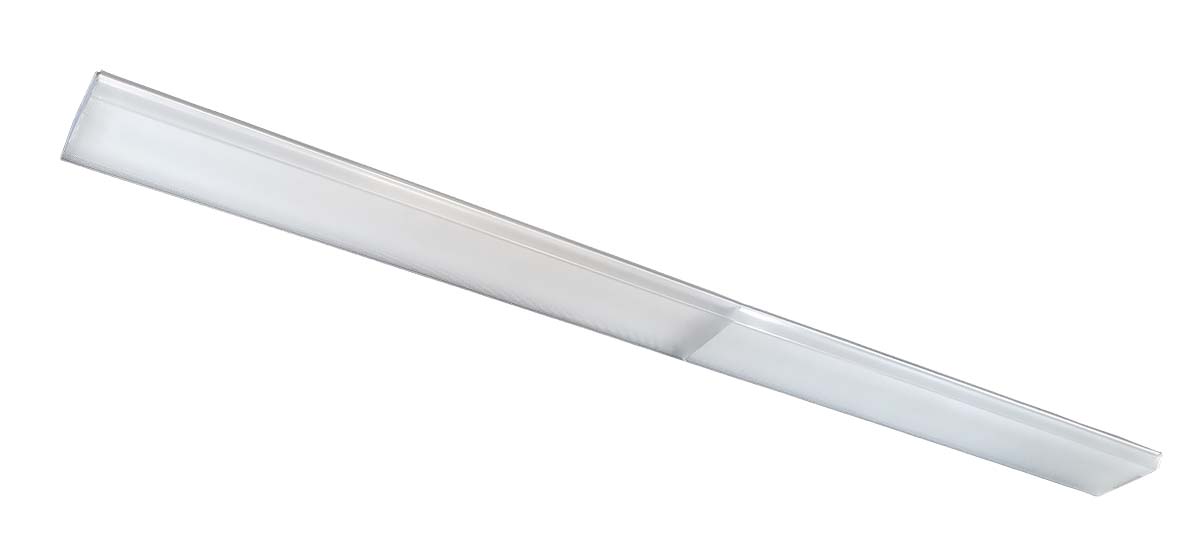

NWJPG1219-2web NWJPG1219-2web
EWLN 8'

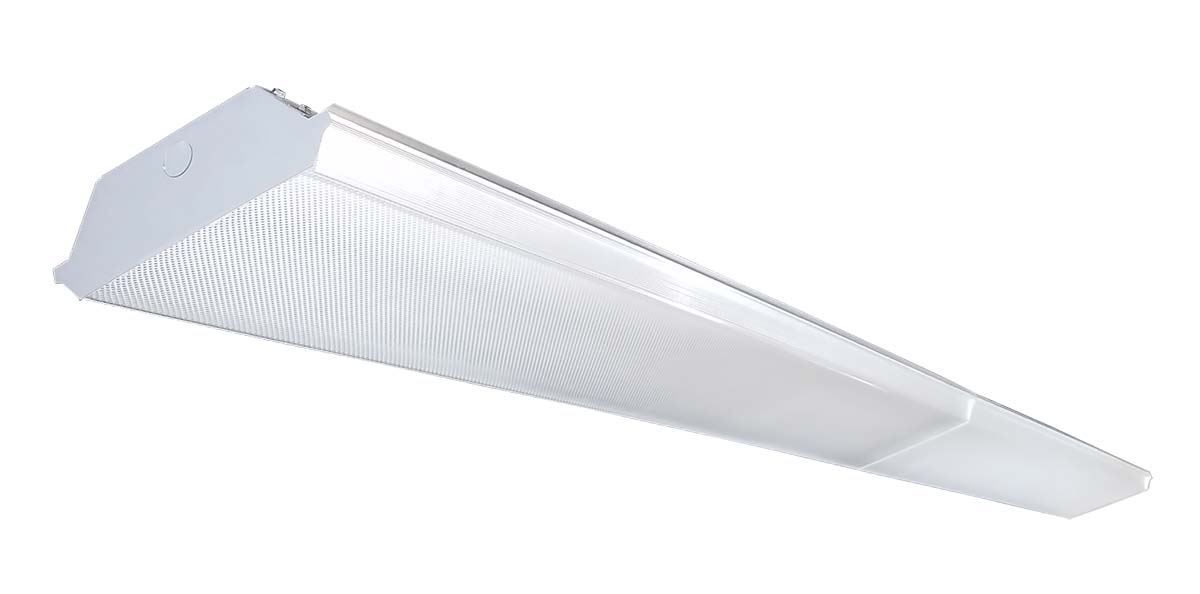

NWJPG1219-1web NWJPG1219-1web
EWLN 8'

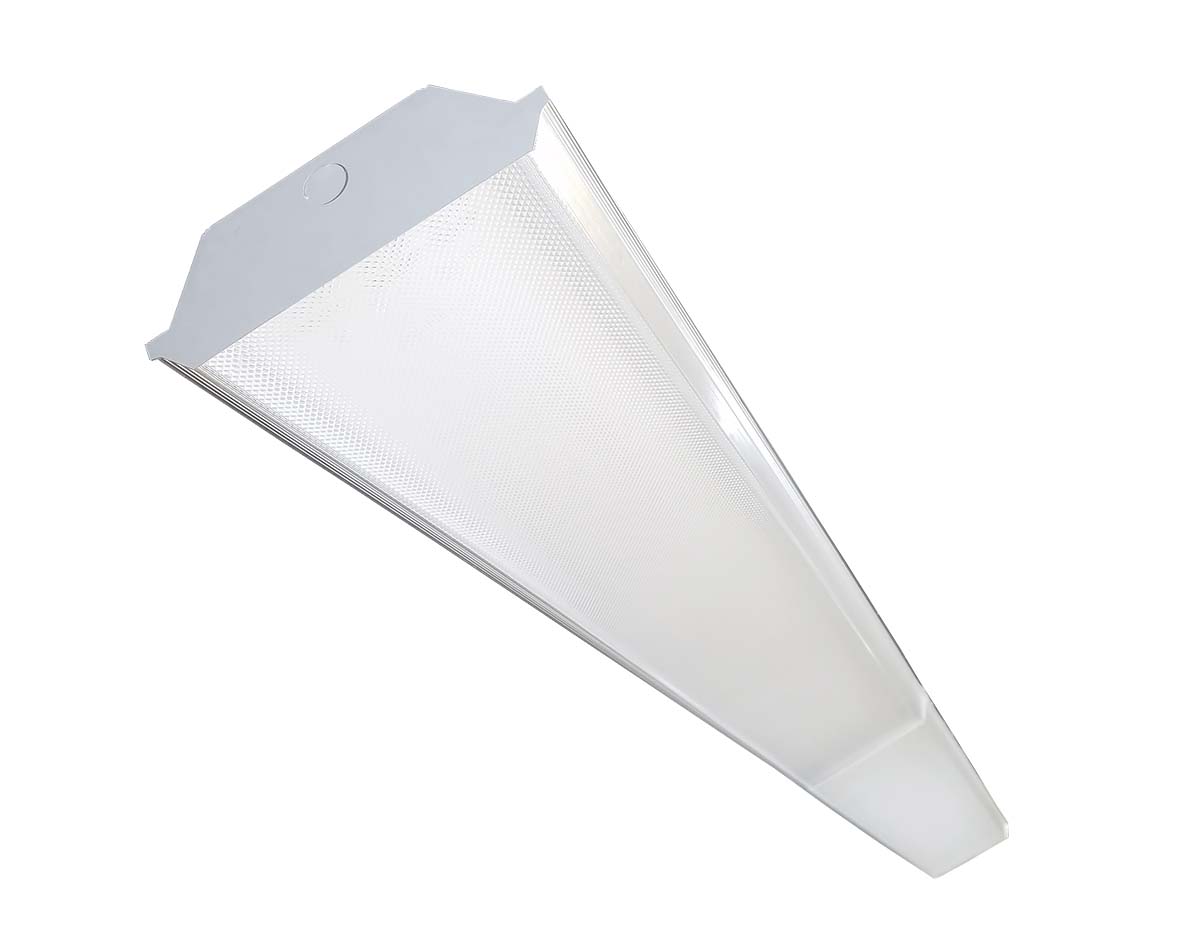

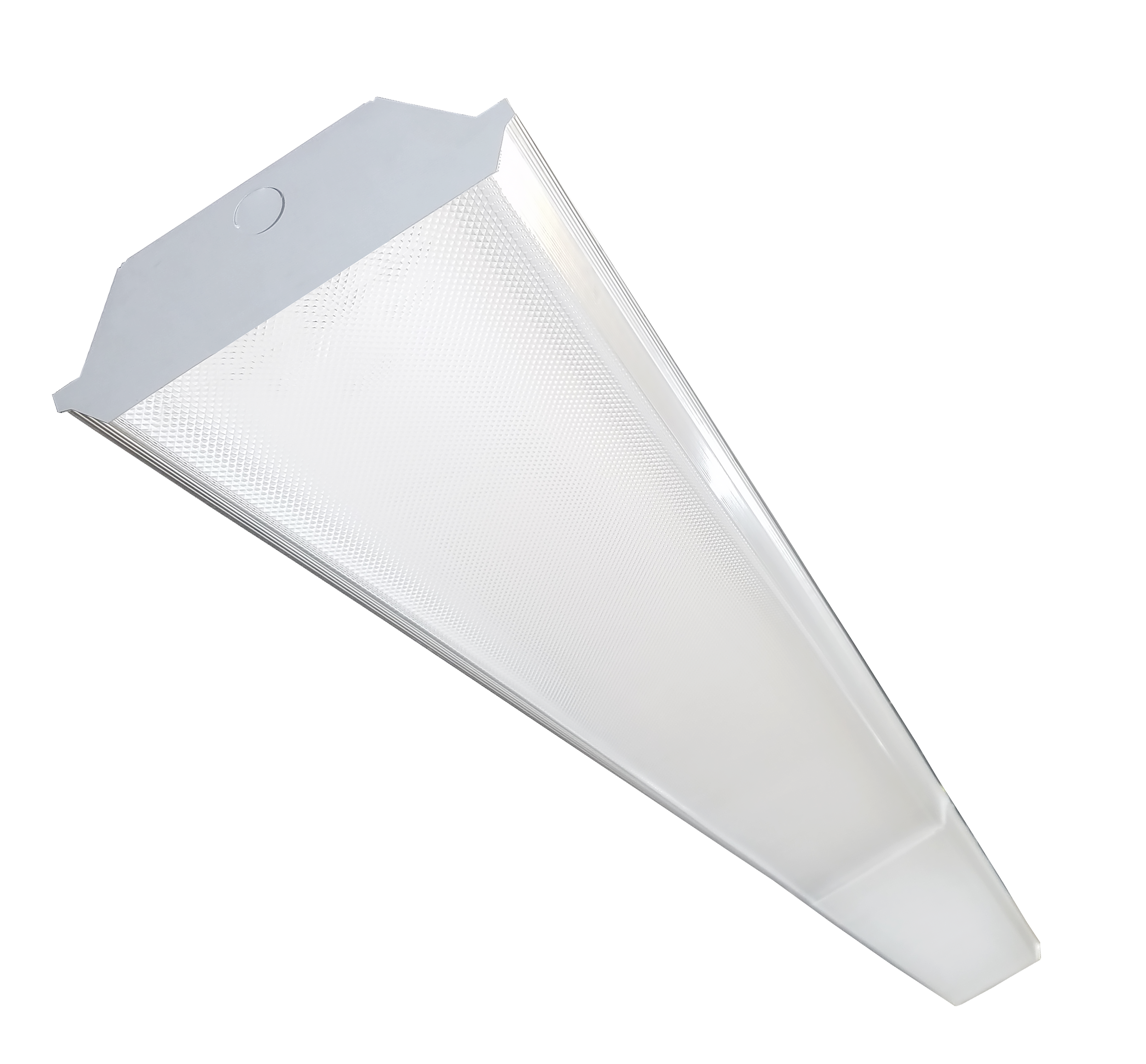

NWJPG1219-6web NWJPG1219-6web
EWLN 8'
DLC, cULus, AiA, 10yr 10-19 wopt3
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableDLC ListedPredicted L70 Lifetime
EWL N 2 VL UV CPA 8302-foot144812125.580 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VL UV CPA 8352-foot1,47212127.680 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VL UV CPA 8402-foot1,52112131.880 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VL UV CPA 8502-foot1,56612135.880 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 LW UV CPA 8302-foot2,04716126.380 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 LW UV CPA 8352-foot2,08116128.480 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 LW UV CPA 8402-foot2,15016132.680 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 LW UV CPA 8502-foot2,21516136.680 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 MD UV CPA 8302-foot3,03824125.880 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 MD UV CPA 8352-foot3,08924127.980 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 MD UV CPA 8402-foot3,19124132.280 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 MD UV CPA 8502-foot3,28724136.180 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 HI UV CPA 8302-foot3,93532122.980 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 HI UV CPA 8352-foot4,00232124.980 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 HI UV CPA 8402-foot4,13432129.180 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 HI UV CPA 8502-foot4,25832132.980 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VH UV CPA 8302-foot4,95440123.680 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VH UV CPA 8352-foot5,03740125.780 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VH UV CPA 8402-foot5,20340129.980 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 2 VH UV CPA 8502-foot5,35940133.780 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VL UV CPA 8304-foot2,10516128.280 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VL UV CPA 8354-foot2,14016130.380 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VL UV CPA 8404-foot2,21116134.680 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VL UV CPA 8504-foot2,27716138.780 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 LW UV CPA 8304-foot4,09431132.680 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 LW UV CPA 8354-foot4,16331134.880 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 LW UV CPA 8404-foot4,30031139.380 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 LW UV CPA 8504-foot4,42931143.580 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 MD UV CPA 8304-foot6,00048125.880 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 MD UV CPA 8354-foot6,10148127.980 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 MD UV CPA 8404-foot6,30248132.180 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 MD UV CPA 8504-foot6,49148136.180 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 HI UV CPA 8304-foot7,86260131.380 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 HI UV CPA 8354-foot7,99460133.580 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 HI UV CPA 8404-foot8,25860137.980 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 HI UV CPA 8504-foot8,50660142.180 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VH UV CPA 8304-foot9,8147812680 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VH UV CPA 8354-foot9,97978128.280 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VH UV CPA 8404-foot10,30978132.480 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 4 VH UV CPA 8504-foot10,61978136.480 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SL UV CPA 8308-foot4,00530134.380 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SL UV CPA 8358-foot4,07230136.680 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SL UV CPA 8408-foot4,20730141.180 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SL UV CPA 8508-foot4,33330145.380 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VL UV CPA 8308-foot5,92147126.980 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VL UV CPA 8358-foot6,02047129.180 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VL UV CPA 8408-foot6,21947133.380 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VL UV CPA 8508-foot6,40647137.380 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 LW UV CPA 8308-foot7,89558135.780 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 LW UV CPA 8358-foot8,02758137.980 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 LW UV CPA 8408-foot8,29358142.580 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 LW UV CPA 8508-foot8,54158146.880 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 MD UV CPA 8308-foot9,9107613180 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 MD UV CPA 8358-foot10,07776133.280 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 MD UV CPA 8408-foot10,41076137.680 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 MD UV CPA 8508-foot10,72276141.780 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 HI UV CPA 8308-foot11,80494125.780 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 HI UV CPA 8358-foot12,00294127.880 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 HI UV CPA 8408-foot12,3999413280 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 HI UV CPA 8508-foot12,7719413680 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VH UV CPA 8308-foot13,69310912680 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VH UV CPA 8358-foot13,923109128.280 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VH UV CPA 8408-foot14,383109132.480 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 VH UV CPA 8508-foot14,815109136.480 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SH UV CPA 8308-foot15,723120131.380 CRI / 3000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SH UV CPA 8358-foot15,988120133.580 CRI / 3500KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SH UV CPA 8408-foot16,516120137.980 CRI / 4000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
EWL N 8 SH UV CPA 8508-foot17,012120142.180 CRI / 5000KClear prismatic acrylic120-277V, 347VYesUp to 189,000 hrs (calculated)
Catalog #
Equivalent*
EWL N 2 VL UV CPA 8301L F17 T8 w/ NBF
EWL N 2 VL UV CPA 8351L F17 T8 w/ NBF
EWL N 2 VL UV CPA 8401L F17 T8 w/ NBF
EWL N 2 VL UV CPA 8501L F17 T8 w/ NBF
EWL N 2 LW UV CPA 8302L F17 T8 w/ NBF
EWL N 2 LW UV CPA 8352L F17 T8 w/ NBF
EWL N 2 LW UV CPA 8402L F17 T8 w/ NBF
EWL N 2 LW UV CPA 8502L F17 T8 w/ NBF
EWL N 2 MD UV CPA 8303L F17 T8 w/ NBF
EWL N 2 MD UV CPA 8353L F17 T8 w/ NBF
EWL N 2 MD UV CPA 8403L F17 T8 w/ NBF
EWL N 2 MD UV CPA 8503L F17 T8 w/ NBF
EWL N 2 HI UV CPA 8304L F17 T8 w/ NBF
EWL N 2 HI UV CPA 8354L F17 T8 w/ NBF
EWL N 2 HI UV CPA 8404L F17 T8 w/ NBF
EWL N 2 HI UV CPA 8504L F17 T8 w/ NBF
EWL N 2 VH UV CPA 8304L F17 T8 w/ HBF
EWL N 2 VH UV CPA 8354L F17 T8 w/ HBF
EWL N 2 VH UV CPA 8404L F17 T8 w/ HBF
EWL N 2 VH UV CPA 8504L F17 T8 w/ HBF
EWL N 4 VL UV CPA 8301L F32 T8 w/ NBF
EWL N 4 VL UV CPA 8351L F32 T8 w/ NBF
EWL N 4 VL UV CPA 8401L F32 T8 w/ NBF
EWL N 4 VL UV CPA 8501L F32 T8 w/ NBF
EWL N 4 LW UV CPA 8302L F32 T8 w/ NBF
EWL N 4 LW UV CPA 8352L F32 T8 w/ NBF
EWL N 4 LW UV CPA 8402L F32 T8 w/ NBF
EWL N 4 LW UV CPA 8502L F32 T8 w/ NBF
EWL N 4 MD UV CPA 8303L F32 T8 w/ NBF
EWL N 4 MD UV CPA 8353L F32 T8 w/ NBF
EWL N 4 MD UV CPA 8403L F32 T8 w/ NBF
EWL N 4 MD UV CPA 8503L F32 T8 w/ NBF
EWL N 4 HI UV CPA 8304L F32 T8 w/ NBF
EWL N 4 HI UV CPA 8354L F32 T8 w/ NBF
EWL N 4 HI UV CPA 8404L F32 T8 w/ NBF
EWL N 4 HI UV CPA 8504L F32 T8 w/ NBF
EWL N 4 VH UV CPA 8304L F32 T8 w/ HBF
EWL N 4 VH UV CPA 8354L F32 T8 w/ HBF
EWL N 4 VH UV CPA 8404L F32 T8 w/ HBF
EWL N 4 VH UV CPA 8504L F32 T8 w/ HBF
EWL N 8 SL UV CPA 8302L F32 T8 w/ NBF
EWL N 8 SL UV CPA 8352L F32 T8 w/ NBF
EWL N 8 SL UV CPA 8402L F32 T8 w/ NBF
EWL N 8 SL UV CPA 8502L F32 T8 w/ NBF
EWL N 8 VL UV CPA 8302L F32 T8 w/ HBF
EWL N 8 VL UV CPA 8352L F32 T8 w/ HBF
EWL N 8 VL UV CPA 8402L F32 T8 w/ HBF
EWL N 8 VL UV CPA 8502L F32 T8 w/ HBF
EWL N 8 LW UV CPA 8304L F32 T8 w/ NBF
EWL N 8 LW UV CPA 8354L F32 T8 w/ NBF
EWL N 8 LW UV CPA 8404L F32 T8 w/ NBF
EWL N 8 LW UV CPA 8504L F32 T8 w/ NBF
EWL N 8 MD UV CPA 8304L F32 T8 w/ HBF
EWL N 8 MD UV CPA 8354L F32 T8 w/ HBF
EWL N 8 MD UV CPA 8404L F32 T8 w/ HBF
EWL N 8 MD UV CPA 8504L F32 T8 w/ HBF
EWL N 8 HI UV CPA 8306L F32 T8 w/ NBF
EWL N 8 HI UV CPA 8356L F32 T8 w/ NBF
EWL N 8 HI UV CPA 8406L F32 T8 w/ NBF
EWL N 8 HI UV CPA 8506L F32 T8 w/ NBF
EWL N 8 VH UV CPA 8303L F96 T12 w/ NBF
EWL N 8 VH UV CPA 8353L F96 T12 w/ NBF
EWL N 8 VH UV CPA 8403L F96 T12 w/ NBF
EWL N 8 VH UV CPA 8503L F96 T12 w/ NBF
EWL N 8 SH UV CPA 8308L F32 T8 w/ NBF
EWL N 8 SH UV CPA 8358L F32 T8 w/ NBF
EWL N 8 SH UV CPA 8408L F32 T8 w/ NBF
EWL N 8 SH UV CPA 8508L F32 T8 w/ NBF
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec SheetSell Sheet.ies & .pdf files
EWL N 2 VL UV CPA 830View Download Download Download
EWL N 2 VL UV CPA 835View Download Download Download
EWL N 2 VL UV CPA 840View Download Download Download
EWL N 2 VL UV CPA 850View Download Download Download
EWL N 2 LW UV CPA 830View Download Download Download
EWL N 2 LW UV CPA 835View Download Download Download
EWL N 2 LW UV CPA 840View Download Download Download
EWL N 2 LW UV CPA 850View Download Download Download
EWL N 2 MD UV CPA 830View Download Download Download
EWL N 2 MD UV CPA 835View Download Download Download
EWL N 2 MD UV CPA 840View Download Download Download
EWL N 2 MD UV CPA 850View Download Download Download
EWL N 2 HI UV CPA 830View Download Download Download
EWL N 2 HI UV CPA 835View Download Download Download
EWL N 2 HI UV CPA 840View Download Download Download
EWL N 2 HI UV CPA 850View Download Download Download
EWL N 2 VH UV CPA 830View Download Download Download
EWL N 2 VH UV CPA 835View Download Download Download
EWL N 2 VH UV CPA 840View Download Download Download
EWL N 2 VH UV CPA 850View Download Download Download
EWL N 4 VL UV CPA 830View Download Download Download
EWL N 4 VL UV CPA 835View Download Download Download
EWL N 4 VL UV CPA 840View Download Download Download
EWL N 4 VL UV CPA 850View Download Download Download
EWL N 4 LW UV CPA 830View Download Download Download
EWL N 4 LW UV CPA 835View Download Download Download
EWL N 4 LW UV CPA 840View Download Download Download
EWL N 4 LW UV CPA 850View Download Download Download
EWL N 4 MD UV CPA 830View Download Download Download
EWL N 4 MD UV CPA 835View Download Download Download
EWL N 4 MD UV CPA 840View Download Download Download
EWL N 4 MD UV CPA 850View Download Download Download
EWL N 4 HI UV CPA 830View Download Download Download
EWL N 4 HI UV CPA 835View Download Download Download
EWL N 4 HI UV CPA 840View Download Download Download
EWL N 4 HI UV CPA 850View Download Download Download
EWL N 4 VH UV CPA 830View Download Download Download
EWL N 4 VH UV CPA 835View Download Download Download
EWL N 4 VH UV CPA 840View Download Download Download
EWL N 4 VH UV CPA 850View Download Download Download
EWL N 8 SL UV CPA 830View Download Download Download
EWL N 8 SL UV CPA 835View Download Download Download
EWL N 8 SL UV CPA 840View Download Download Download
EWL N 8 SL UV CPA 850View Download Download Download
EWL N 8 VL UV CPA 830View Download Download Download
EWL N 8 VL UV CPA 835View Download Download Download
EWL N 8 VL UV CPA 840View Download Download Download
EWL N 8 VL UV CPA 850View Download Download Download
EWL N 8 LW UV CPA 830View Download Download Download
EWL N 8 LW UV CPA 835View Download Download Download
EWL N 8 LW UV CPA 840View Download Download Download
EWL N 8 LW UV CPA 850View Download Download Download
EWL N 8 MD UV CPA 830View Download Download Download
EWL N 8 MD UV CPA 835View Download Download Download
EWL N 8 MD UV CPA 840View Download Download Download
EWL N 8 MD UV CPA 850View Download Download Download
EWL N 8 HI UV CPA 830View Download Download Download
EWL N 8 HI UV CPA 835View Download Download Download
EWL N 8 HI UV CPA 840View Download Download Download
EWL N 8 HI UV CPA 850View Download Download Download
EWL N 8 VH UV CPA 830View Download Download Download
EWL N 8 VH UV CPA 835View Download Download Download
EWL N 8 VH UV CPA 840View Download Download Download
EWL N 8 VH UV CPA 850View Download Download Download
EWL N 8 SH UV CPA 830View Download Download Download
EWL N 8 SH UV CPA 835View Download Download Download
EWL N 8 SH UV CPA 840View Download Download Download
EWL N 8 SH UV CPA 850View Download Download Download
EWLN4greenbg

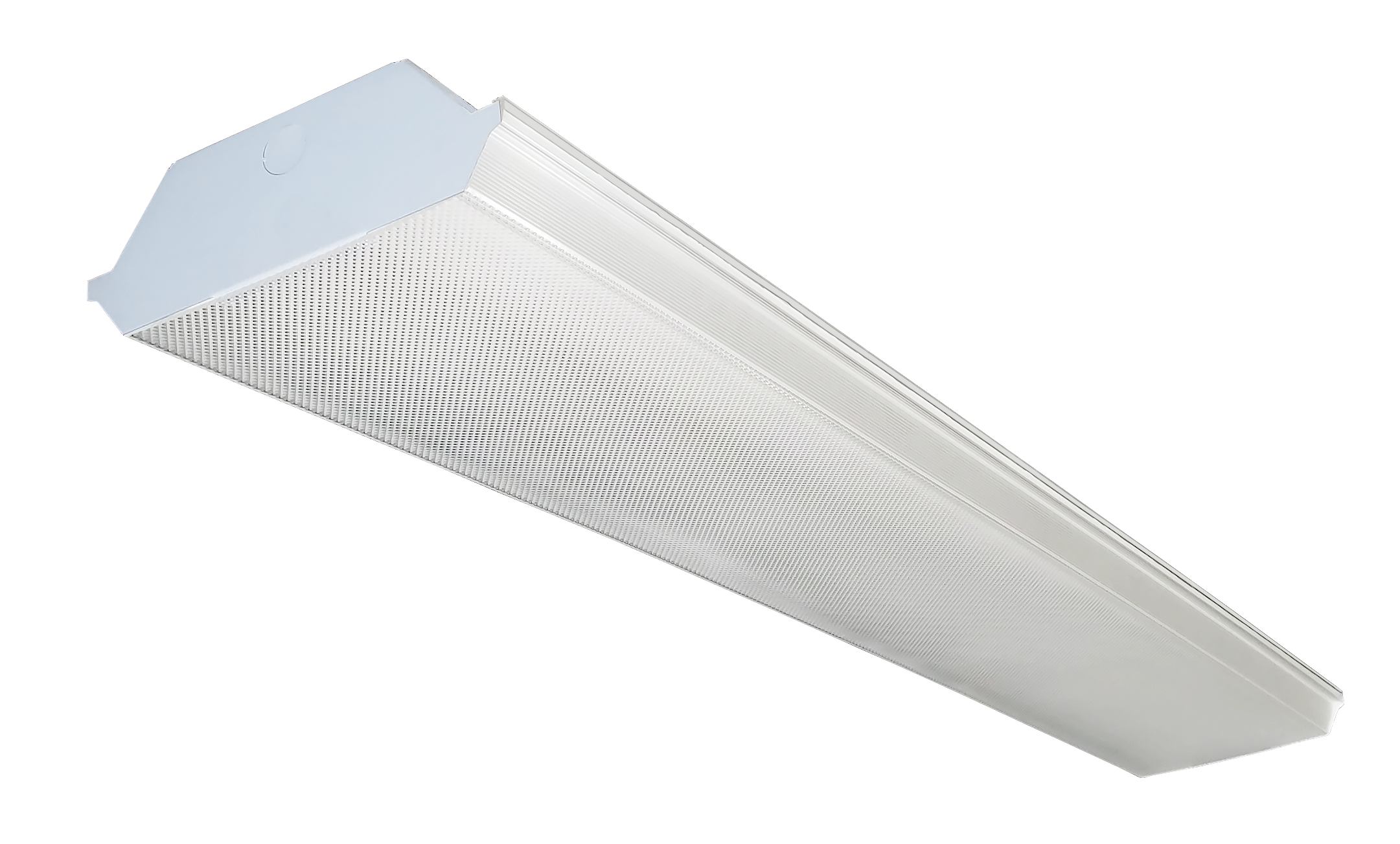

Durable construction

    The EWLN is constructed of die-formed, heavy-guage cold rolled steel. It is pre-painted with a highly durable and highly reflective white finish. The lens is clear prismatic acrylic.
