LED Flood/Area Light

    This luminaire is available in two sizes - large (FAL) and medium (FAM). The FAM can produce over 20,000 lumens, and the FAL can produce over 44,000 lumens. It can be used as a flood light or an area light. The FAM/FAL features an easy access driver compartment.
  • Applications: Suitable for most exterior flood or area light applications - parking lots, exterior sport courts
  • Sizes: Medium (FAM) and large (FAL)
  • Lumen Output: 20,769 in the FAM, 44,740 in the FAL
  • Max Lumens Per Watt: 108.3 for the FAM, 115.8 for the FAL
  • Predicted L70 Lifetime: 66,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for wet locations

Click to enlarge

FAL FAL
FAL
FAL FAL
FAL
FAM FAM
FAM
FAMFAL schematic2 FAMFAL schematic2
Schematic for the FAM and the FAL
UL mark converted from Matt jpg use with ER
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWSizeOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
FAM HI F UV 84020,769191.7108.3MediumForward80 CRI / 4000K120-277V5 years>66,000 hrs (calculated)
FAL HI F UV 84044,740386.2115.8LargeForward80 CRI / 4000K120-277V5 years>66,000 hrs (calculated)
Catalog #
Equivalency*
FAM HI F UV 840250W HPS, 400W MH, 400W PSMH
FAL HI F UV 840750W PSMH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
FAM HI F UV 840View Download Download
FAL HI F UV 840View Download Download

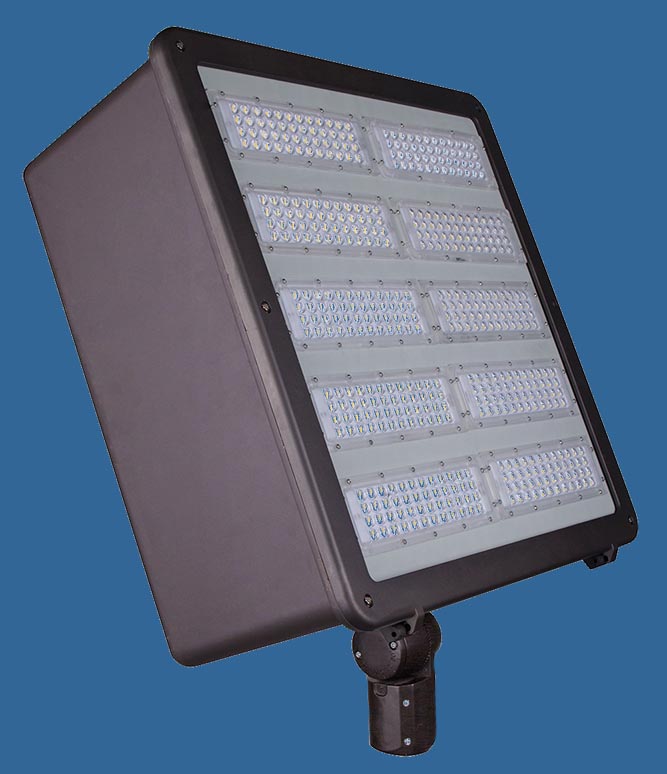

FALcutoutblue2

Mounting and construction

    The housing of the FAM/FAL is constructed of die cast aluminum and features an integral heat sink. The finish is a chip and fade resistant powder coat. The lens is made of UV stabilized polycarbonate. The FAM/FAL can be equipped with a slipfitter knuckle or a trunnion mount.
