LED High Output Lay-In

    The FFL2R HO is an ideal troffer solution for retail and office settings with high grid ceilings, or other applications that require high lumen output from a recessed luminaire. With the FFL2R HO, you can have all the benefits of a high output luminaire with the aesthetics of the other products in our FormFocus product line. Lumen outputs range from just over 6,000 lumens in the 2x2 LW (low) package up to over 18,000 in the 2x4 VH (very high) model. The low profile, lightweight housing allows for easy installation. Two rows of high efficacy LED boards are shielded by frosted acrylic diffusers. Surface-mounting and frame-in kits are optional. Every FFL2R HO is assembled at our facility in Henderson, NC.
  • Applications: Suitable for most commercial and institutional applications - office, retail, classrooms, healthcare facilities
  • Lumen Output: From 6,100 lm to over 18,000 lm
  • Max Lumens Per Watt: 133
  • Size Options: 2x2, 2x4
  • Predicted L70 Lifetime: > 95,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every FFL2R HO is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Assembled in the USA: Each FFL2R HO is assembled at our facility in Henderson, NC. BAA compliant options are available

Click to enlarge

FFL2R2x4-1 FFL2R2x4-1
FFL2R HO 2x4
FFL2R2x4-2 FFL2R2x4-2
FFL2R HO 2x4
FFL2R-3 jpg FFL2R-3 jpg
FFL2R HO 2x2
FFL2R-2 jpg FFL2R-2 jpg
FFL2R HO 2x2
FFL2R-2 jpg no back FFL2R-2 jpg no back
FFL2R HO 2x2
FFL2R-1 jpg FFL2R-1 jpg
FFL2R HO 2x2
FFL2R-1 jpg no back FFL2R-1 jpg no back
FFL2R HO 2x2
FFL2R-4 jpg FFL2R-4 jpg
FFL2R HO 2x2
DLC, cULus, AiA
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
FFL 2R 24 LW HO UV FA 8302x41147994122.180 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 LW HO UV FA 8352x41167294124.280 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 LW HO UV FA 8402x41205894128.380 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 LW HO UV FA 8502x41242094132.180 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 MD HO UV FA 8302x413190104126.880 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 MD HO UV FA 8352x41341210412980 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 MD HO UV FA 8402x413855104133.280 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 MD HO UV FA 8502x414271104137.280 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 HI HO UV FA 8302x414748120122.980 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 HI HO UV FA 8352x41499512012580 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 HI HO UV FA 8402x415491120129.180 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 HI HO UV FA 8502x41595612013380 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 VH HO UV FA 8302x416699141118.180 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 VH HO UV FA 8352x416979141120.180 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 VH HO UV FA 8402x41754114112480 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 24 VH HO UV FA 8502x418067141127.880 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 LW HO UV FA 8302x2614650122.980 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 LW HO UV FA 8352x262505012580 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 LW HO UV FA 8402x2645650129.180 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 LW HO UV FA 8502x266505013380 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 MD HO UV FA 8302x2791064123.680 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 MD HO UV FA 8352x2804364125.780 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 MD HO UV FA 8402x2830964129.880 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 MD HO UV FA 8502x2855864133.780 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 HI HO UV FA 8302x2974180121.880 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 HI HO UV FA 8352x2990480123.880 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 HI HO UV FA 8402x21023280127.980 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 HI HO UV FA 8502x21053980131.780 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 VH HO UV FA 8302x211755102115.180 CRI / 3000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 VH HO UV FA 8352x211952102117.180 CRI / 3500K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 VH HO UV FA 8402x212348102120.980 CRI / 4000K120-277V, 347VYes5 years>95,000 hrs (calculated)
FFL 2R 22 VH HO UV FA 8502x212718102124.680 CRI / 5000K120-277V, 347VYes5 years>95,000 hrs (calculated)
Catalog #
ImageSpec Sheet.ies & .pdf files
FFL 2R 24 LW HO UV FA 830View Download Contact Factory
FFL 2R 24 LW HO UV FA 835View Download Contact Factory
FFL 2R 24 LW HO UV FA 840View Download Download
FFL 2R 24 LW HO UV FA 850View Download Contact Factory
FFL 2R 24 MD HO UV FA 830View Download Contact Factory
FFL 2R 24 MD HO UV FA 835View Download Contact Factory
FFL 2R 24 MD HO UV FA 840View Download Download
FFL 2R 24 MD HO UV FA 850View Download Contact Factory
FFL 2R 24 HI HO UV FA 830View Download Contact Factory
FFL 2R 24 HI HO UV FA 835View Download Contact Factory
FFL 2R 24 HI HO UV FA 840View Download Download
FFL 2R 24 HI HO UV FA 850View Download Contact Factory
FFL 2R 24 VH HO UV FA 830View Download Download
FFL 2R 24 VH HO UV FA 835View Download Contact Factory
FFL 2R 24 VH HO UV FA 840View Download Download
FFL 2R 24 VH HO UV FA 850View Download Contact Factory
FFL 2R 22 LW HO UV FA 830View Download Contact Factory
FFL 2R 22 LW HO UV FA 835View Download Contact Factory
FFL 2R 22 LW HO UV FA 840View Download Download
FFL 2R 22 LW HO UV FA 850View Download Contact Factory
FFL 2R 22 MD HO UV FA 830View Download Contact Factory
FFL 2R 22 MD HO UV FA 835View Download Contact Factory
FFL 2R 22 MD HO UV FA 840View Download Download
FFL 2R 22 MD HO UV FA 850View Download Contact Factory
FFL 2R 22 HI HO UV FA 830View Download Contact Factory
FFL 2R 22 HI HO UV FA 835View Download Contact Factory
FFL 2R 22 HI HO UV FA 840View Download Download
FFL 2R 22 HI HO UV FA 850View Download Contact Factory
FFL 2R 22 VH HO UV FA 830View Download Download
FFL 2R 22 VH HO UV FA 835View Download Contact Factory
FFL 2R 22 VH HO UV FA 840View Download Download
FFL 2R 22 VH HO UV FA 850View Download Contact Factory
Download the Room Estimator to get an idea how many luminaires you need for your space. Fill out the criteria under "Area" and select the model you're looking for. Based on the desired light level selected, the Estimator will calculate the number of luminaires required.

Note: This is an estimate only. Actual results may vary depending on field conditions. LumenFocus makes no warranties as to the performance predicted by the calculations. Please contact your LumenFocus representative for a more detailed photometric analysis.

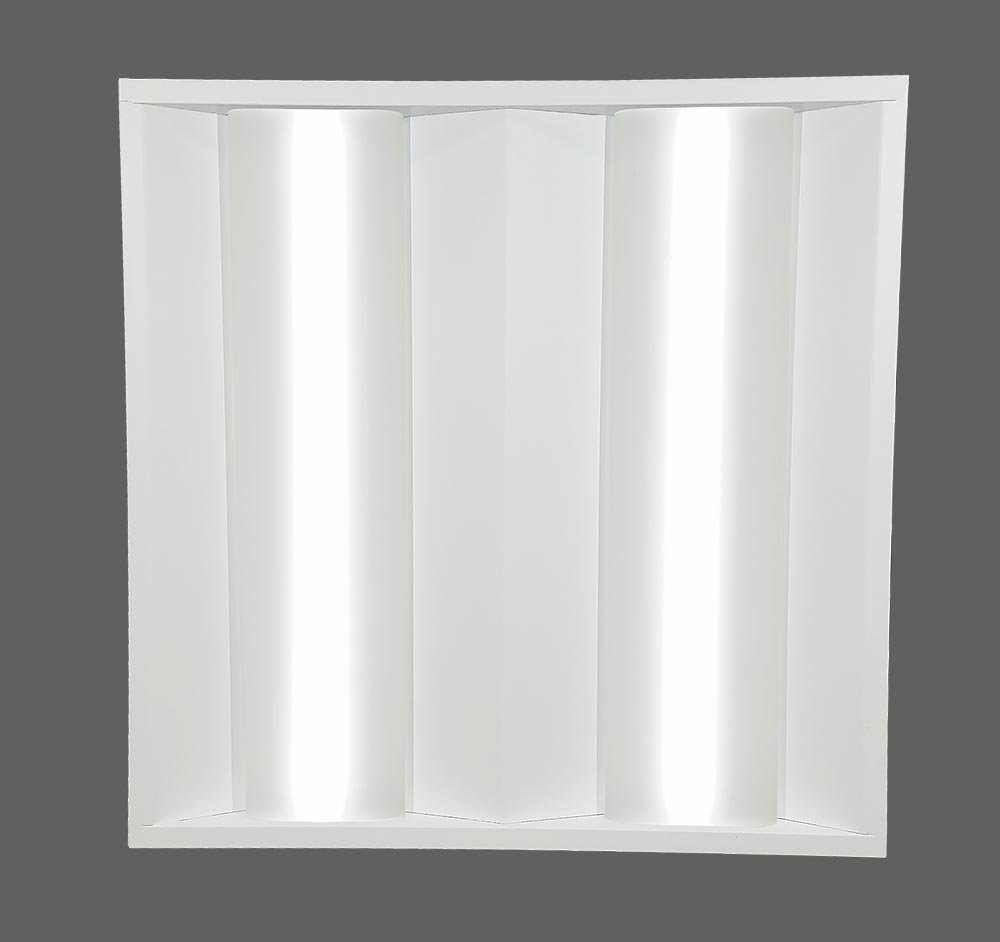

FFL2Rgraybg

Options and controls

    The FFL2R HO can be purchased with an optional Surface Mount Kit. The SMK is an aesthetically pleasing steel frame with a matte white finish. For controls, the Philips EasySense is a simple and cost effective way to maximize energy savings and address code-compliance strategies. This sensor sits discreetly in the FFL2R HO, and provides occupancy sensing, daylight harvesting and task tuning. View spec sheet for more details, and for more available options.
