LED Lensed Industrial

Click here for spec sheet

Photometry: Coming soon

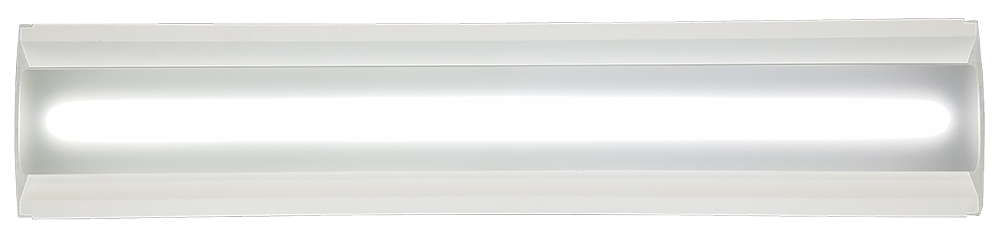

High-res images: FFLP 4-footer

Part of the FormFocus product line, the FFLP provides modern aesthetics and performance in a lensed LED industrial luminaire. The FFLP is available in 4-foot and 8-foot variations, with a wide variety of lumens outputs for maximum flexibility. The frosted acrylic diffuser is optimized to balance efficiency and aesthetics. The housing is constructed of precision brake fromed cold rolled steel, with a matte white finish. All LED board and drivers are field replaceable. Microwave occupancy sensors are optional. A retrofit kit in a similar styling is also available - the FFRP (click here to view the FFRP product page).

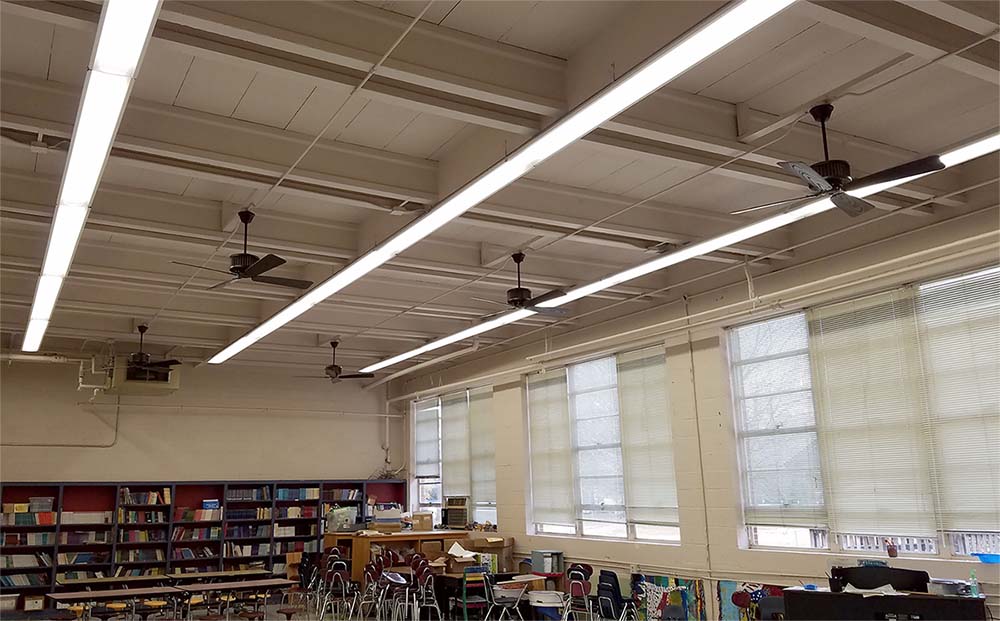

Applications: Suitable for most indoor industrial, commercial and institutional applications: office, retail, warehouse, classrooms
Lumen Output: From about 2,500 lm up to nearly 17,000
Max Lumens Per Watt: 157.4
Size Options: 4-foot, 8-foot
Predicted L70 Lifetime: >100,000 hours (calculated)
Warranty: 5 year limited system warranty
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Made in America: Engineered and made in the USA. Each FFLP is manufactured in our Henderson, NC facility

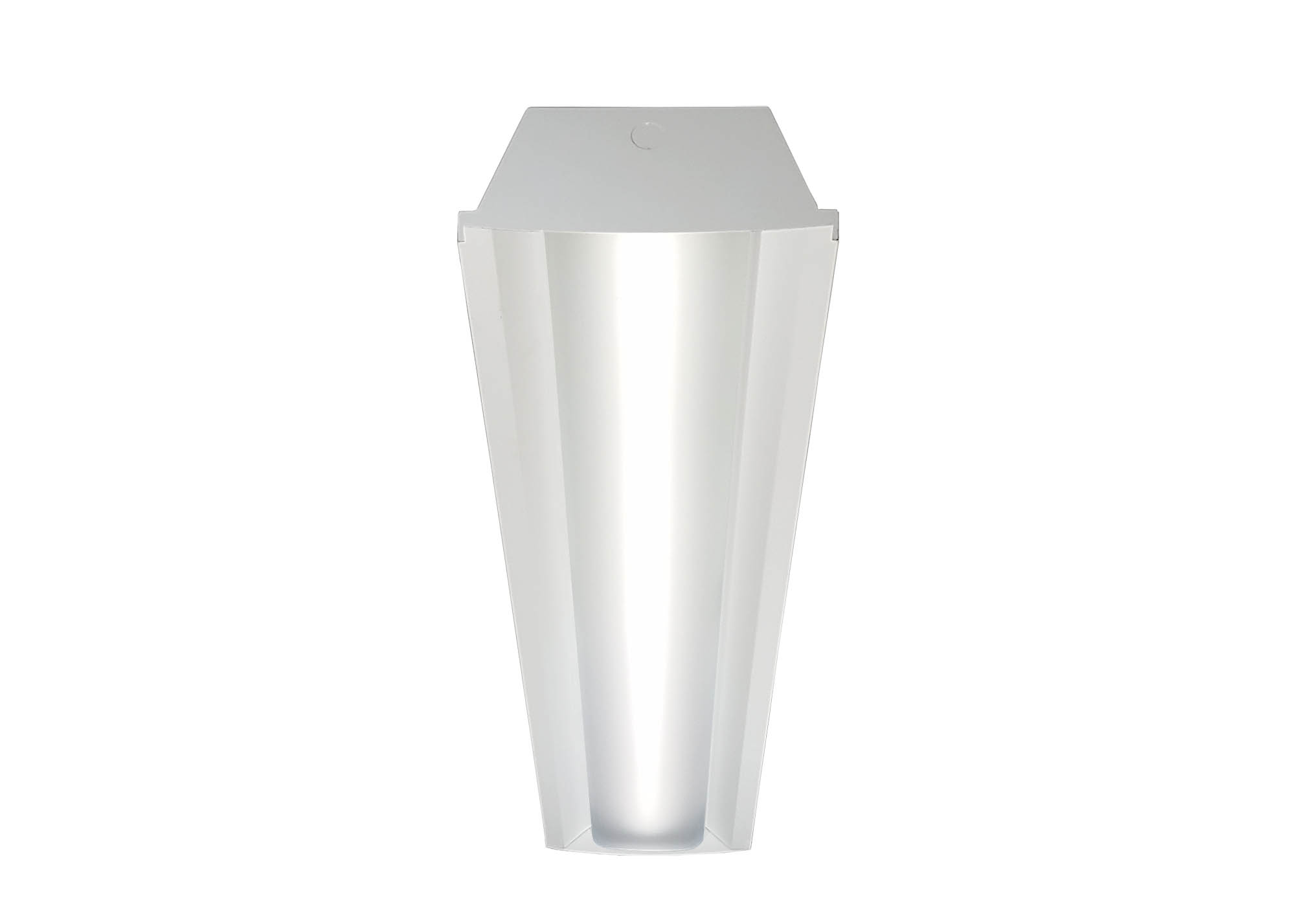

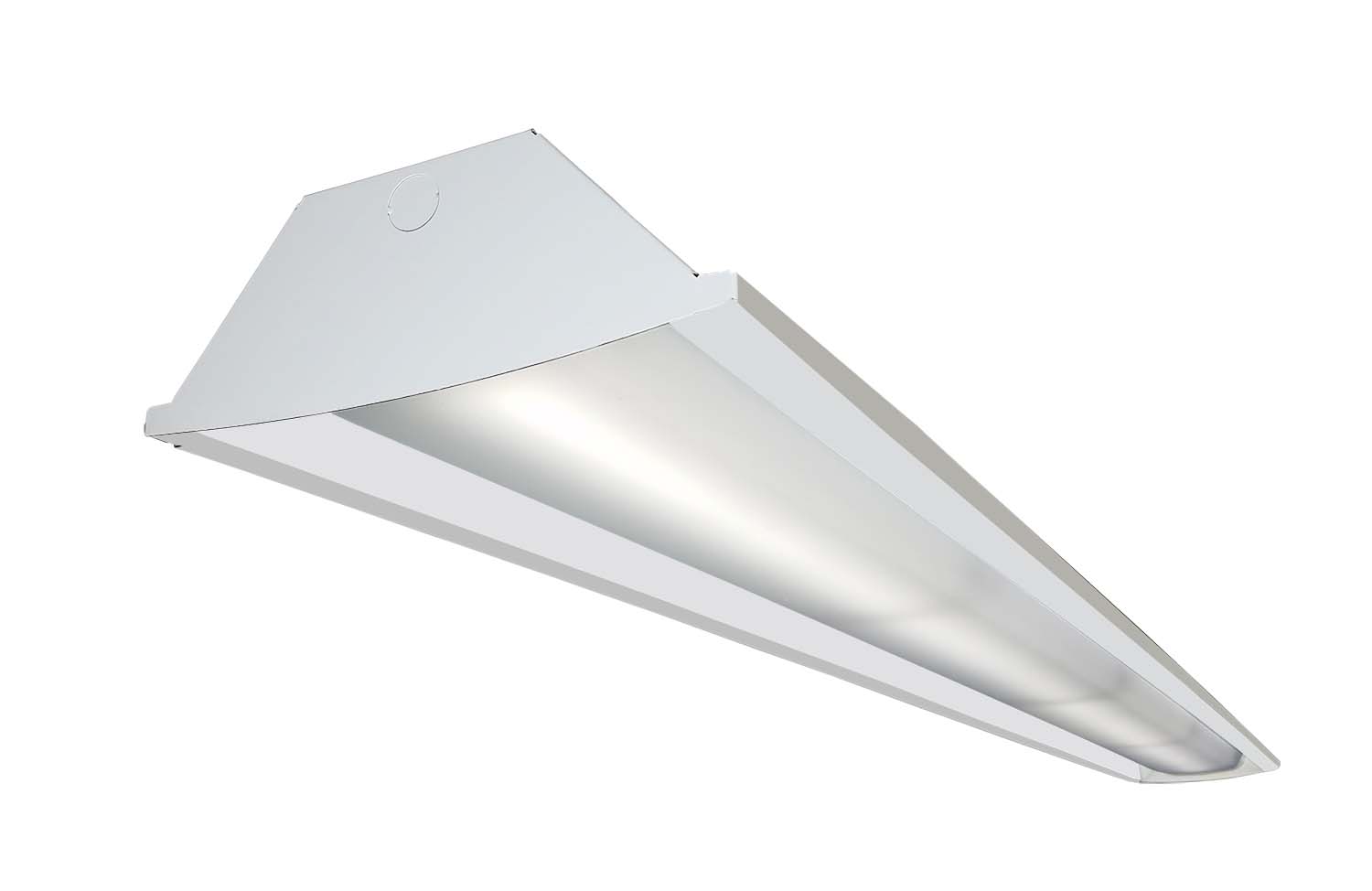

https://www.lumenfocus.com/wp-content/uploads/2019/01/FFLP-3jpg.jpg

FFLP 4-footer

https://www.lumenfocus.com/wp-content/uploads/2019/01/FFLP-2jpg.jpg

FFLP 4-footer

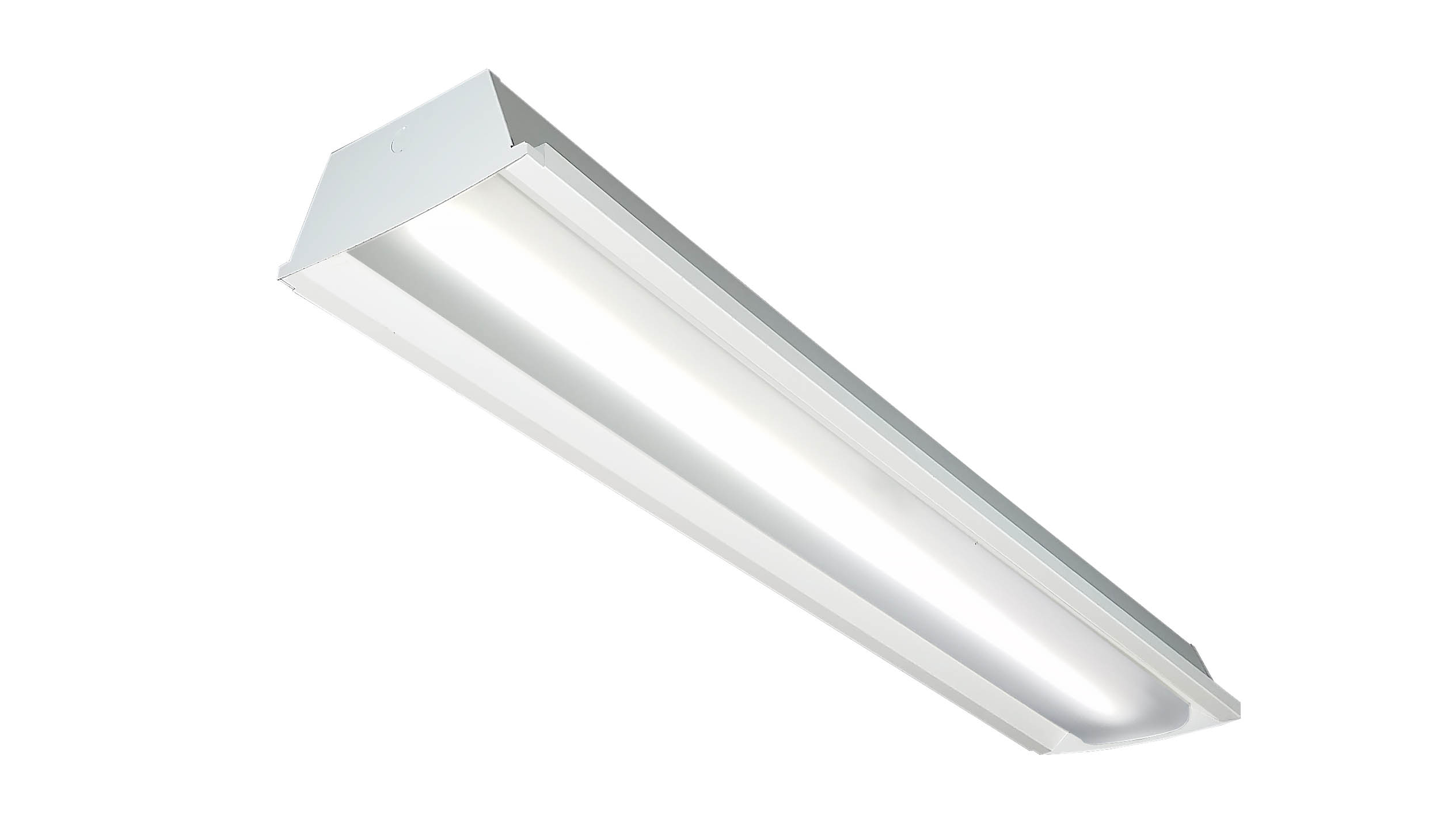

https://www.lumenfocus.com/wp-content/uploads/2019/01/FFLP-1jpg.jpg

FFLP 4-footer

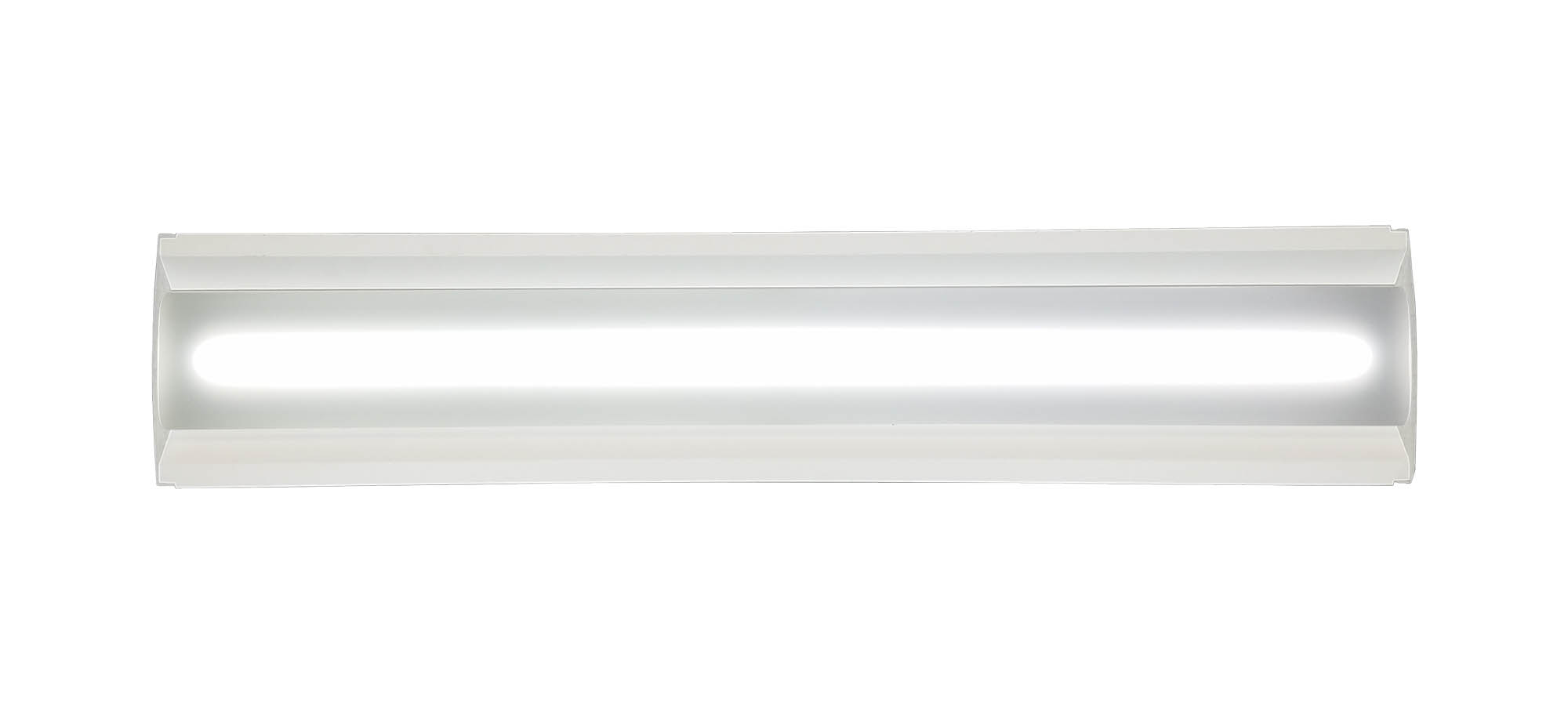

https://www.lumenfocus.com/wp-content/uploads/2019/01/FFLP-4jpg.jpg

FFLP 4-footer

FFLP Performance Chart

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	Warranty	Predicted L70 Lifetime	Equivalency*
FFL P 4 VL UV FA 830 Image	4-foot	2,523	18	140.2	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	1-lamp F32 T8, NBF - Industrial
FFL P 4 VL UV FA 835 Image	4-foot	2,565	18	142.5	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	1-lamp F32 T8, NBF - Industrial
FFL P 4 VL UV FA 840 Image	4-foot	2,650	18	147.2	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	1-lamp F32 T8, NBF - Industrial
FFL P 4 VL UV FA 850 Image	4-foot	2,730	18	151.7	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	1-lamp F32 T8, NBF - Industrial
FFL P 4 LW UV FA 830 Image	4-foot	3,805	29	131.2	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW UV FA 835 Image	4-foot	3,869	29	133.4	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW UV FA 840 Image	4-foot	3,997	29	137.8	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW UV FA 850 Image	4-foot	4,117	29	142	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 MD UV FA 830 Image	4-foot	4,319	34	127	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD UV FA 835 Image	4-foot	4,392	34	129.2	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD UV FA 840 Image	4-foot	4,537	34	133.4	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD UV FA 850 Image	4-foot	4,673	34	137.4	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 HI UV FA 830 Image	4-foot	4,958	39	127.1	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI UV FA 835 Image	4-foot	5,042	39	129.3	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI UV FA 840 Image	4-foot	5,208	39	133.5	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI UV FA 850 Image	4-foot	5,365	39	137.6	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 VH UV FA 830 Image	4-foot	5,846	48	121.8	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH UV FA 835 Image	4-foot	5,945	48	123.9	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH UV FA 840 Image	4-foot	6,141	48	127.9	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH UV FA 850 Image	4-foot	6,325	48	131.8	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 SH UV FA 830 Image	4-foot	7,760	63	123.2	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH UV FA 835 Image	4-foot	7,890	63	125.2	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH UV FA 840 Image	4-foot	8,151	63	129.4	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH UV FA 850 Image	4-foot	8,395	63	133.3	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 8 VL UV FA 830	8-foot	5,091	35	145.5	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 8 VL UV FA 835	8-foot	5,176	35	147.9	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 8 VL UV FA 840	8-foot	5,348	35	152.8	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 8 VL UV FA 850	8-foot	5,508	35	157.4	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 8 LW UV FA 830	8-foot	7,721	57	135.5	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW UV FA 835	8-foot	7,851	57	137.7	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW UV FA 840	8-foot	8,110	57	142.3	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW UV FA 850	8-foot	8,354	57	146.6	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD UV FA 830	8-foot	8,670	65	133.4	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD UV FA 835	8-foot	8,816	65	135.6	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD UV FA 840	8-foot	9,107	65	140.1	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD UV FA 850	8-foot	9,381	65	144.3	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 HI UV FA 830	8-foot	9,618	74	130	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI UV FA 835	8-foot	9,779	74	132.1	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI UV FA 840	8-foot	10,102	74	136.5	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI UV FA 850	8-foot	10,406	74	140.6	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 VH UV FA 830	8-foot	11,474	86	133.4	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH UV FA 835	8-foot	11,667	86	135.7	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH UV FA 840	8-foot	12,053	86	140.2	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH UV FA 850	8-foot	12,414	86	144.3	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 SH UV FA 830	8-foot	15,706	128	122.7	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH UV FA 835	8-foot	15,970	128	124.8	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH UV FA 840	8-foot	16,498	128	128.9	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH UV FA 850	8-foot	16,993	128	132.8	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 4 LW HE UV FA 830 Image	4-foot	3,756	27	139.1	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW HE UV FA 835 Image	4-foot	3,819	27	141.4	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW HE UV FA 840 Image	4-foot	3,945	27	146.1	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 LW HE UV FA 850 Image	4-foot	4,063	27	150.5	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Strip
FFL P 4 MD HE UV FA 830 Image	4-foot	4,367	32	136.5	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD HE UV FA 835 Image	4-foot	4,440	32	138.8	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD HE UV FA 840 Image	4-foot	4,587	32	143.3	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 MD HE UV FA 850 Image	4-foot	4,725	32	147.7	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 HI HE UV FA 830 Image	4-foot	4,840	36	134.4	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI HE UV FA 835 Image	4-foot	4,921	36	136.7	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI HE UV FA 840 Image	4-foot	5,084	36	141.2	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 HI HE UV FA 850 Image	4-foot	5,236	36	145.4	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F32 T8, HBF - Strip
FFL P 4 VH HE UV FA 830 Image	4-foot	5,795	43	134.8	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH HE UV FA 835 Image	4-foot	5,892	43	137	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH HE UV FA 840 Image	4-foot	6,087	43	141.6	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 VH HE UV FA 850 Image	4-foot	6,270	43	145.8	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	3-lamp F32 T8, NBF - Louvered Industrial
FFL P 4 SH HE UV FA 830 Image	4-foot	7,624	60	127.1	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH HE UV FA 835 Image	4-foot	7,752	60	129.2	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH HE UV FA 840 Image	4-foot	8,009	60	133.5	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 4 SH HE UV FA 850 Image	4-foot	8,249	60	137.5	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F54 T5HO - Industrial
FFL P 8 LW HE UV FA 830	8-foot	7,726	54	143.1	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW HE UV FA 835	8-foot	7,856	54	145.5	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW HE UV FA 840	8-foot	8,116	54	150.3	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Louvered Industrial
FFL P 8 LW HE UV FA 850	8-foot	8,359	54	154.8	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD HE UV FA 830	8-foot	8,486	60	141.4	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD HE UV FA 835	8-foot	8,629	60	143.8	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD HE UV FA 840	8-foot	8,914	60	148.6	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 MD HE UV FA 850	8-foot	9,182	60	153	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F32 T8, NBF - Industrial
FFL P 8 HI HE UV FA 830	8-foot	9,829	70	140.4	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI HE UV FA 835	8-foot	9,994	70	142.8	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI HE UV FA 840	8-foot	10,324	70	147.5	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 HI HE UV FA 850	8-foot	10,634	70	151.9	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8, NBF - Industrial
FFL P 8 VH HE UV FA 830	8-foot	11,725	86	136.3	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH HE UV FA 835	8-foot	11,922	86	138.6	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH HE UV FA 840	8-foot	12,316	86	143.2	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 VH HE UV FA 850	8-foot	12,686	86	147.5	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	2-lamp F96 T8HO, NBF - Strip
FFL P 8 SH HE UV FA 830	8-foot	15,426	120	128.6	80 CRI / 3000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH HE UV FA 835	8-foot	15,685	120	130.7	80 CRI / 3500K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH HE UV FA 840	8-foot	16,203	120	135	80 CRI / 4000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial
FFL P 8 SH HE UV FA 850	8-foot	16,689	120	139.1	80 CRI / 5000K	120-277V, 347V	5 years	>100,000 hrs (calculated)	4-lamp F54 T5HO - Industrial

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
