LED Disinfection Retrofit Kit

    The FFRD utilizes high performance disinfecting LEDs from IllumiPure. This retrofit kit can upgrade existing fluorescent troffers quickly and easily - in 3-5 minutes! The LEDs continuously disinfect hard or soft surfaces, killing 99.9 percent of bacteria when the lights are kept on. IllumiPure LEDs are effective against MRSA, C. Difficile, Salmonella and E. Coli. Because IllumiPure LEDs are part of the normal visible LED spectrum (near-UV wavelength), the FFRD is completely harmless to humans and animals. You can remain working while the FFRD cleanses the room! The FFRD utilizes a frosted diffuser that is designed to balance efficiency, aesthetics, and disinfecting performance. A matching luminaire, the FFLD, is also available.The FFRD is part of the UVFocus line of pathogen eradicating luminaires. Every FFRD is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.
    Note: These UVFocus products are designed utilizing proven anti-bacterial technology. UVC 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with the factory any questions or concerns.
    For any questions about this product, or any UVFocus product, you can email us at uvfocus@lumenfocus.com, or call us toll-free at 1-866-UVFOCUS.
  • Applications: Suitable for most commercial and institutional applications - offices, retail, classrooms, healthcare facilities, labs and clinics
  • Lumen Output: About 8,800 lm in the 2x4 and the 1x4; 6,600 lm in the 2x2
  • Max Lumens Per Watt: 110
  • Size Options: 2x2, 2x4, 1x4
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every FFRD is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available
Installation time take just 3-5 minutes.
Click to enlarge

FFR2x2-3 jpg FFR2x2-3 jpg

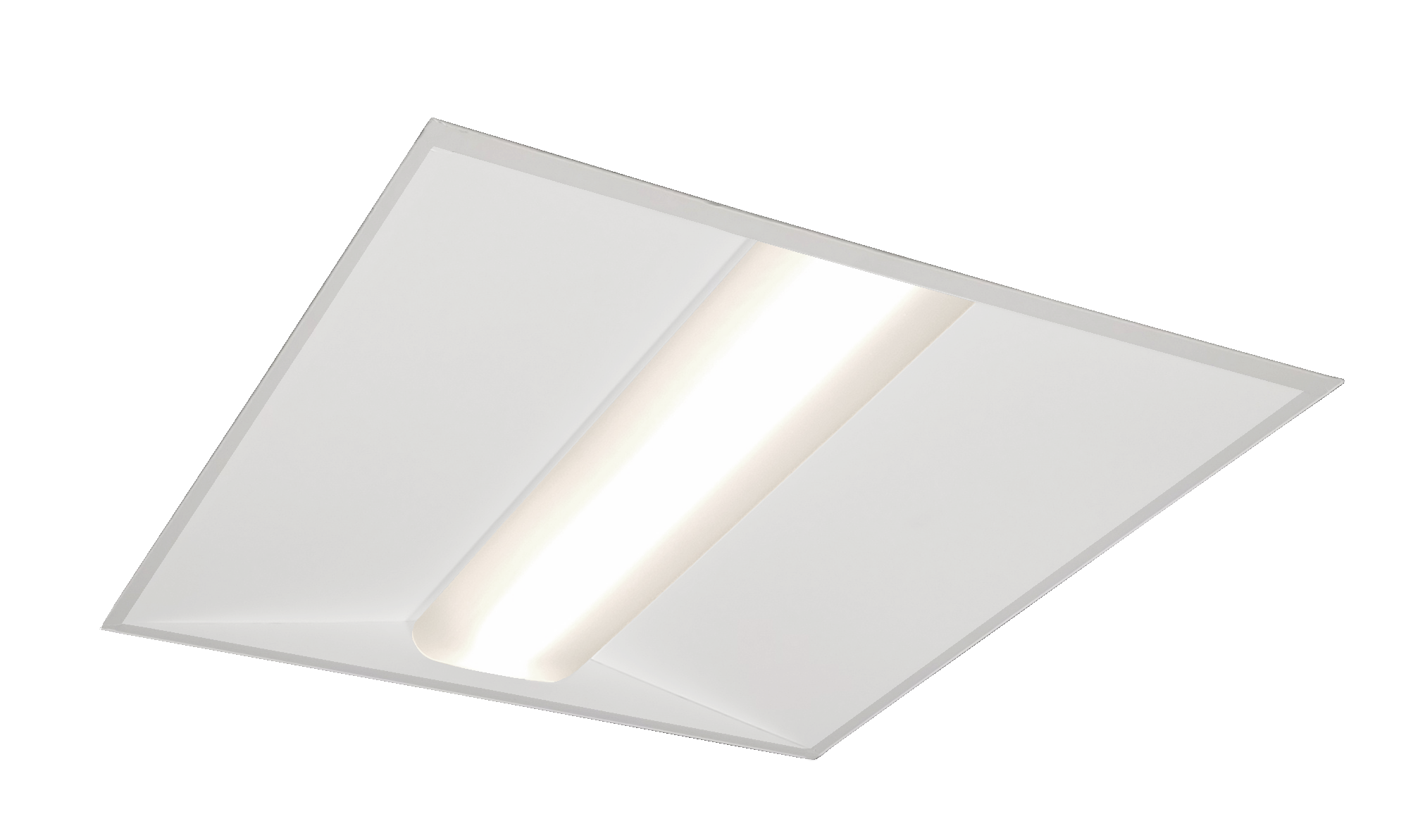

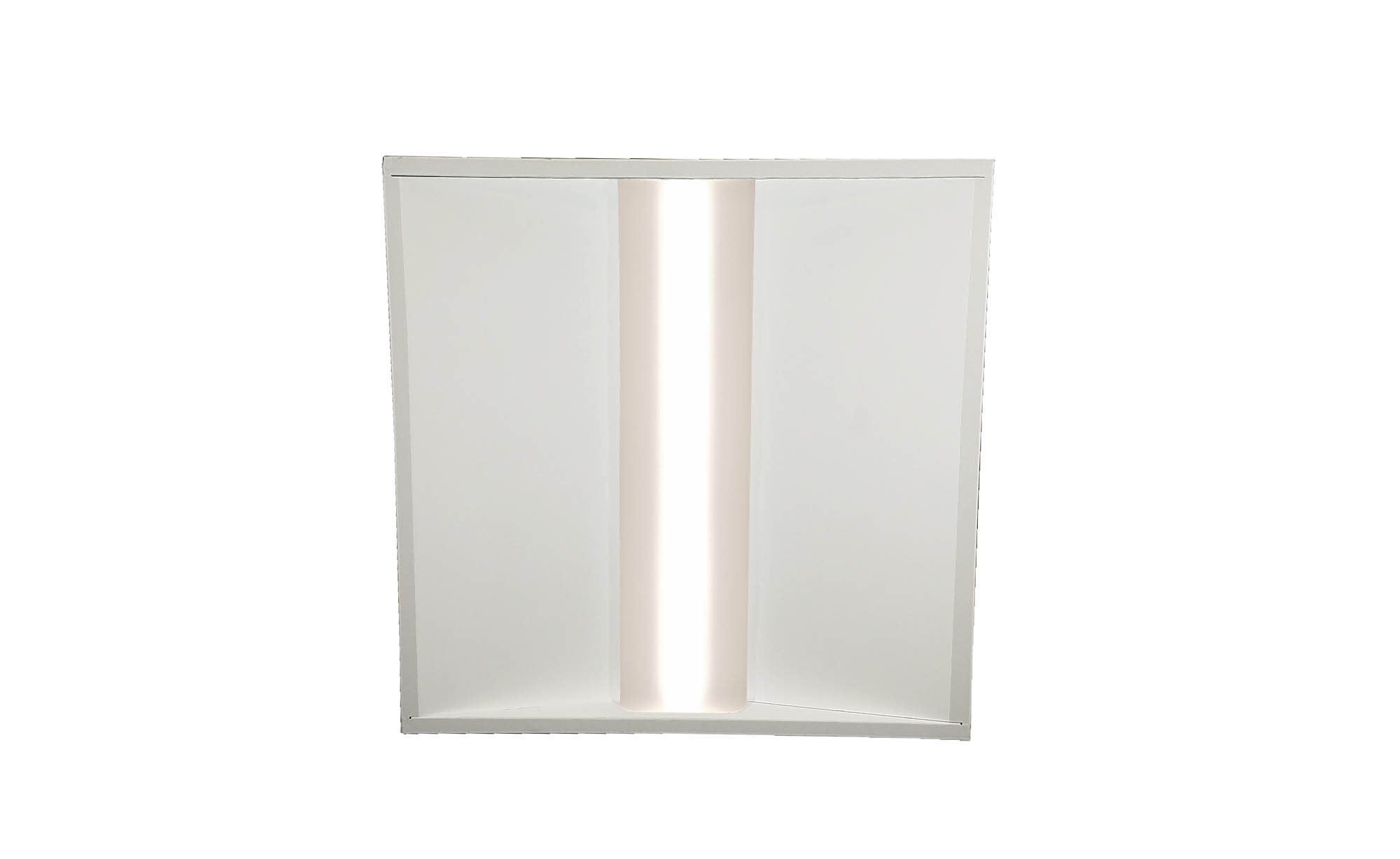

FFRD 2x2
FFR2x2-2jpg FFR2x2-2jpg
FFRD 2x2
FFR2x2-1jpg FFR2x2-1jpg
FFRD 2x2
FFR14-3jpg FFR14-3jpg

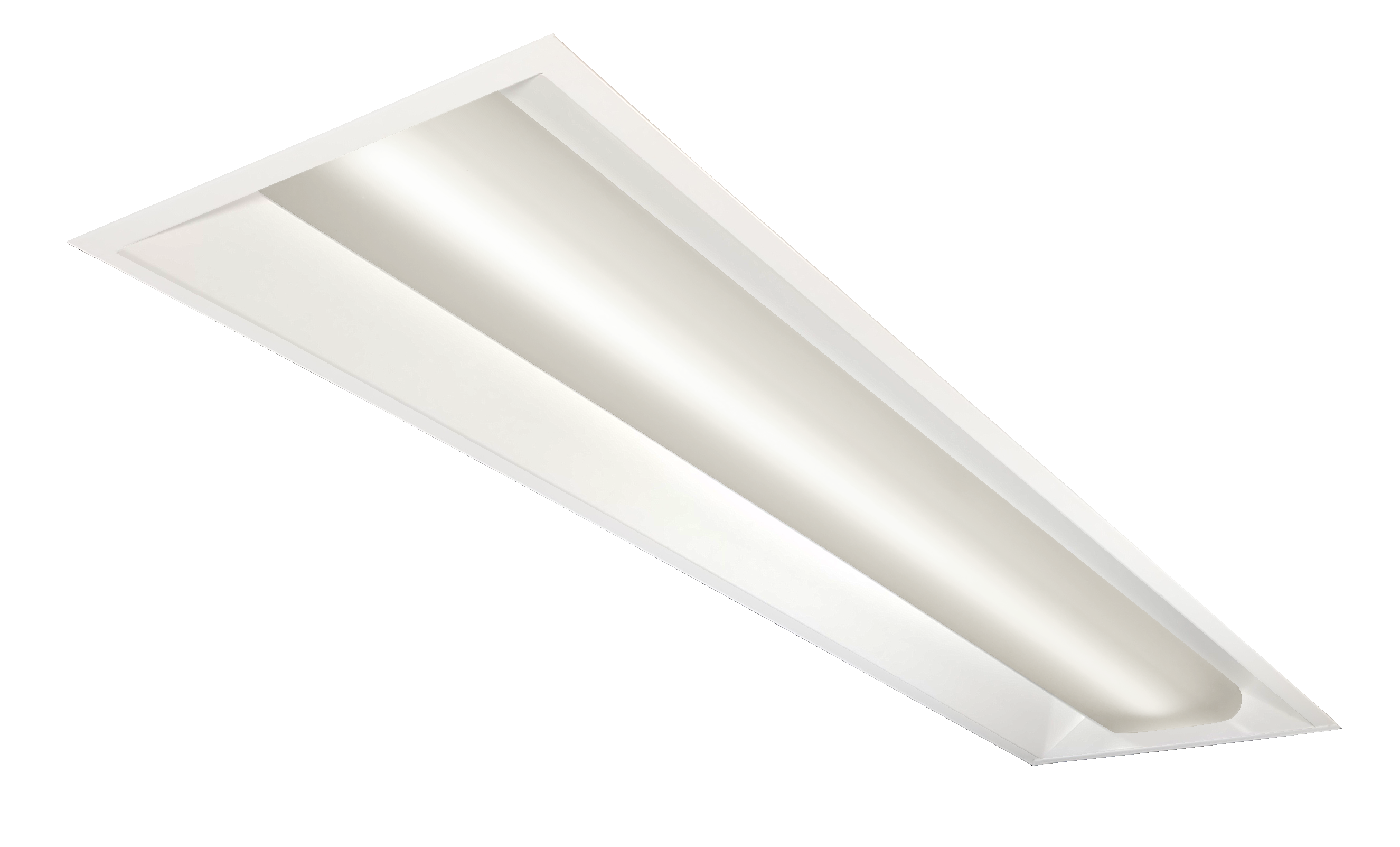

FFRD 1x4
FFR24-3jpg FFR24-3jpg

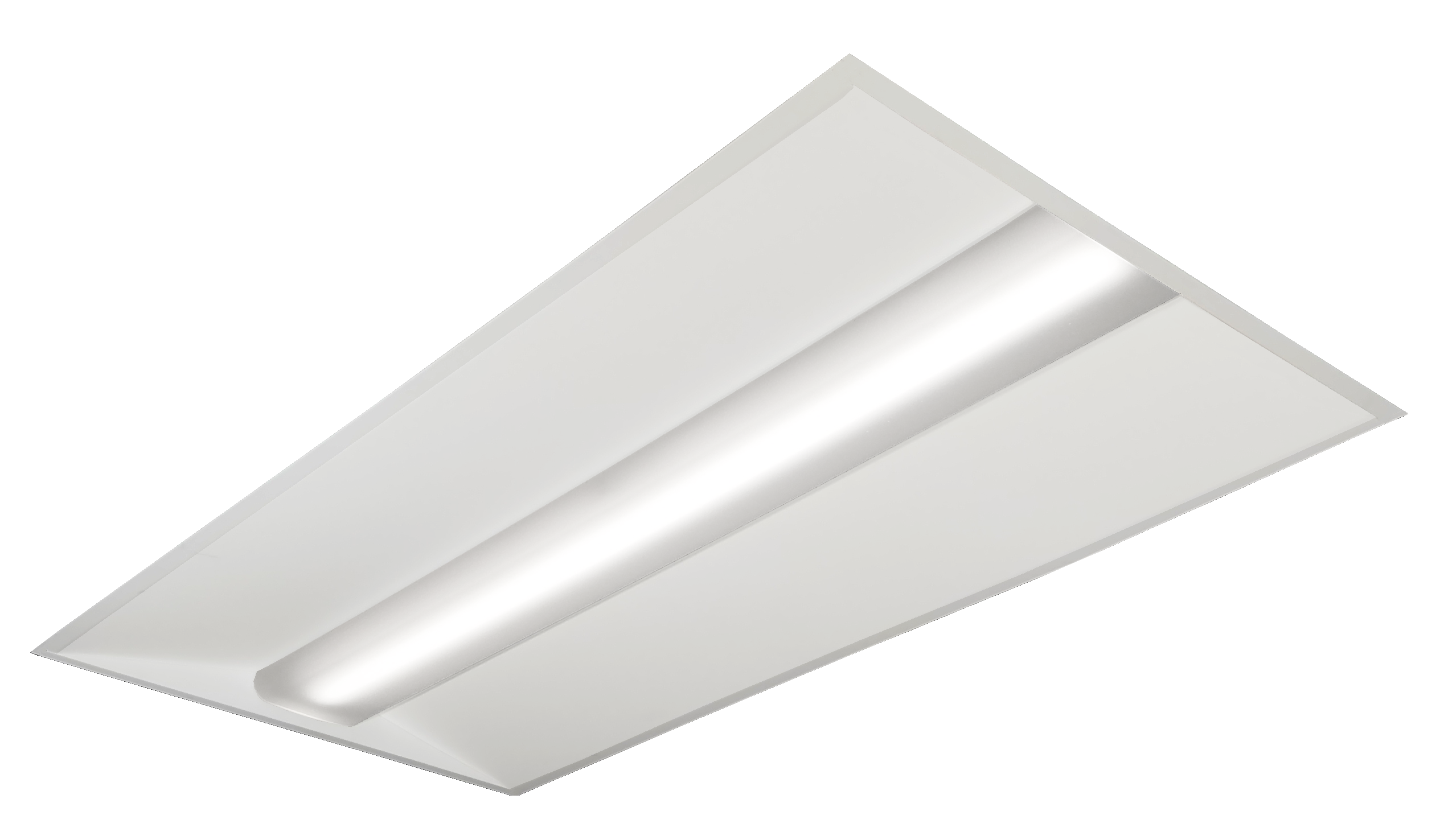

FFRD 2x4
FFR14-4 jpg FFR14-4 jpg
FFRD 1x4
FFR24-2jpg FFR24-2jpg
FFRD 2x4
FFR24-1jpg FFR24-1jpg
FFRD 2x4
Click to download
FFRD 2x2 and 2x4
The FFRD is upgradeable through Re-boardABILITY. The process is simple, and only takes a few minutes.
DLC, MiA 0720
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages Available
FFR D 24 HI UV FA 8452x488008011080 CRI / 4500K120-277V, 347V
FFR D 22 HI UV FA 8452x266006011080 CRI / 4500K120-277V, 347V
FFR D 14 HI UV FA 8451x488008011080 CRI / 4500K120-277V, 347V
Catalog #
ImageSpec SheetSell Sheet
FFR D 24 HI UV FA 845View Download Download
FFR D 22 HI UV FA 845View Download Download
FFR D 14 HI UV FA 845View Download Download
IllumiPure logo jpg

Pure, clean illumination

    Light emitted from IllumiPure's LEDs shines onto surfaces and penetrates harmful micro-organisms. The light targets naturally occurring molecules that exist inside bacteria, and a reaction occurs inside the cell similar to what occurs when you use bleach. The bacteria is rendered inactive, which prevents it from re-populating on the surface or traveling to further hosts.
