FFRP - LED Lensed Industrial Retrofit Kit - Part of the FormFocus line

LED Lensed Industrial Retrofit Kit

Part of the FormFocus product line, the FFRP is a custom fit retrofit kit designed for existing 4-foot or 8-foot industrial-style louvered luminaires. Specifications of the existing fixture is required to ensure proper fit. A new industrial luminaire with a similar appearance, the FFLP, is also available (view FFLP product page here). The FFRP's lift and shift design allows for quick and easy installation in a matter of just a few minutes. The frosted diffuser is optimized to balance efficiency and aesthetics. The tray is precision brake formed from cold rolled steel, with a matte white finish. Every FFRP is assembled in the USA - in our Henderson, NC facility.

Spec Sheet

High Res Images

Applications: Custom fit for 4-foot or 4-foot industrial-style louvered luminaires. Specifications of existing fixture required to ensure proper fit.
Lumen Output: From about 2,500 lm up to nearly 17,000
Max Lumens Per Watt: 157.4
Size Options: 4-foot, 8-foot
Predicted L70 Lifetime: Up to 189,000 hours (calculated)
Warranty: 5 year limited system warranty
Re-BoardABILITY: Every FFRP is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
Certifications: UL 1598 listed for US and Canada, suitable for damp locations
Assembled in the USA: Each FFRP is assembled at our facility in Henderson, NC. BAA compliant options are available

Buy Now

Request a Quote

Luminaire Photos
Installation Instructions

Click to enlarge

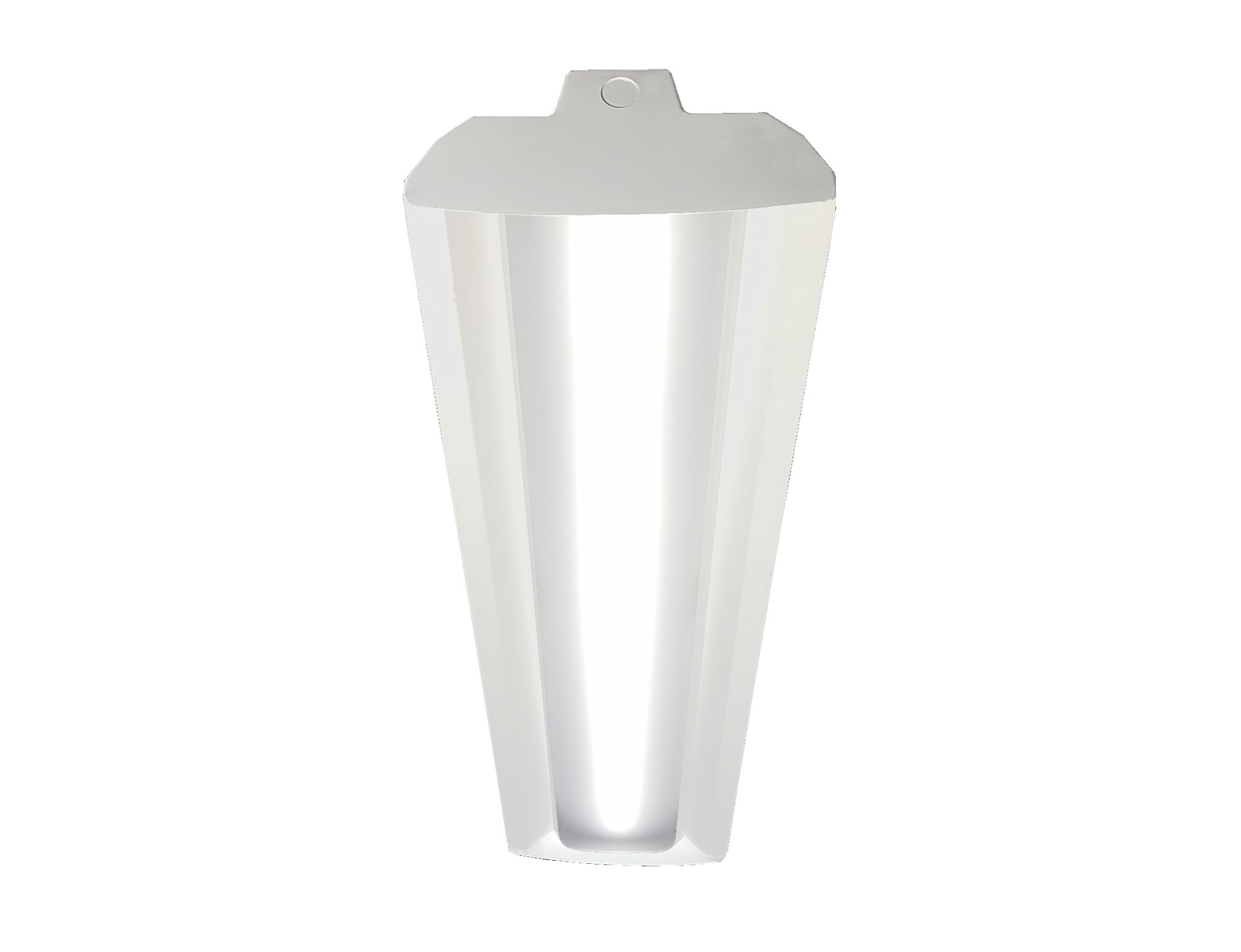

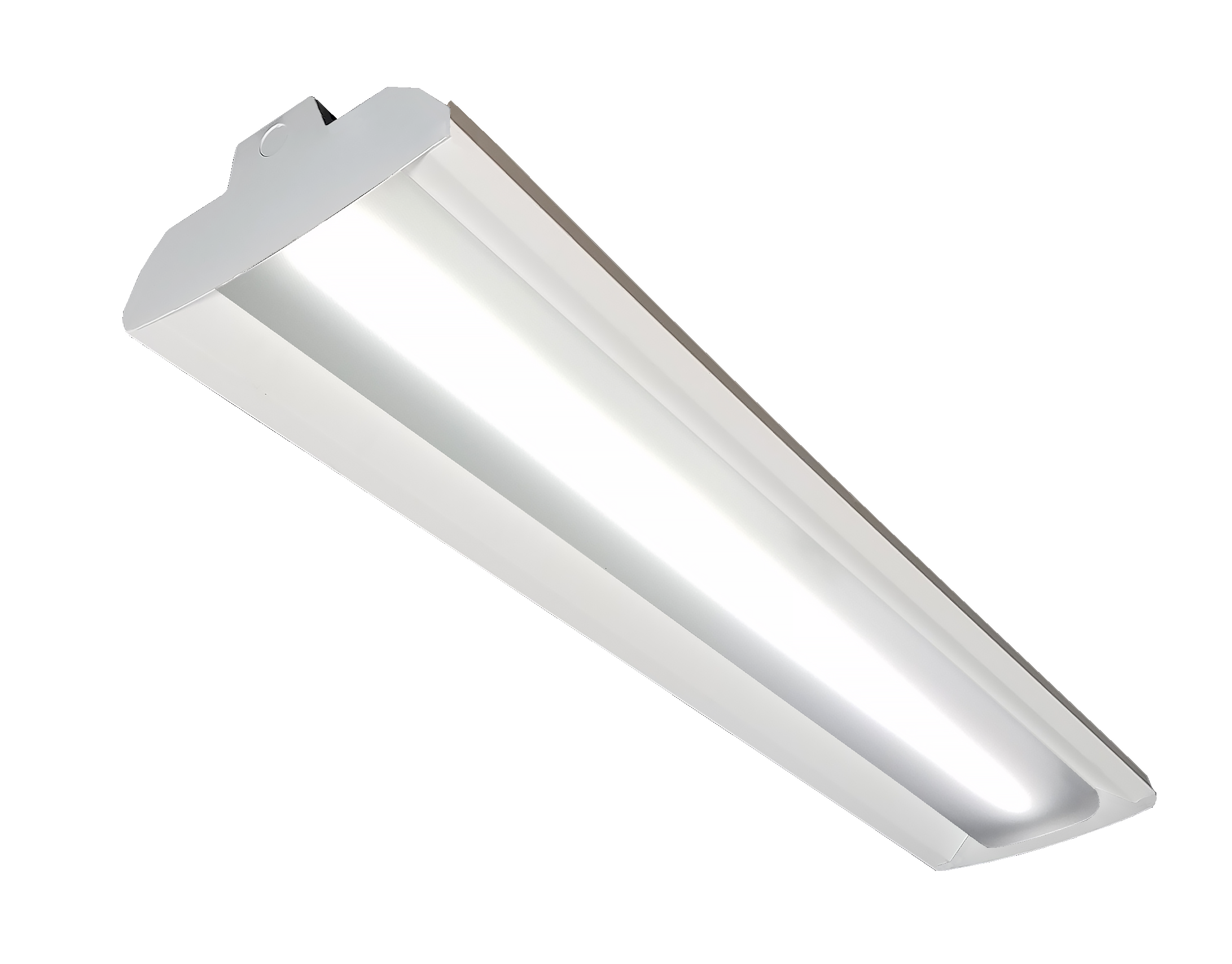

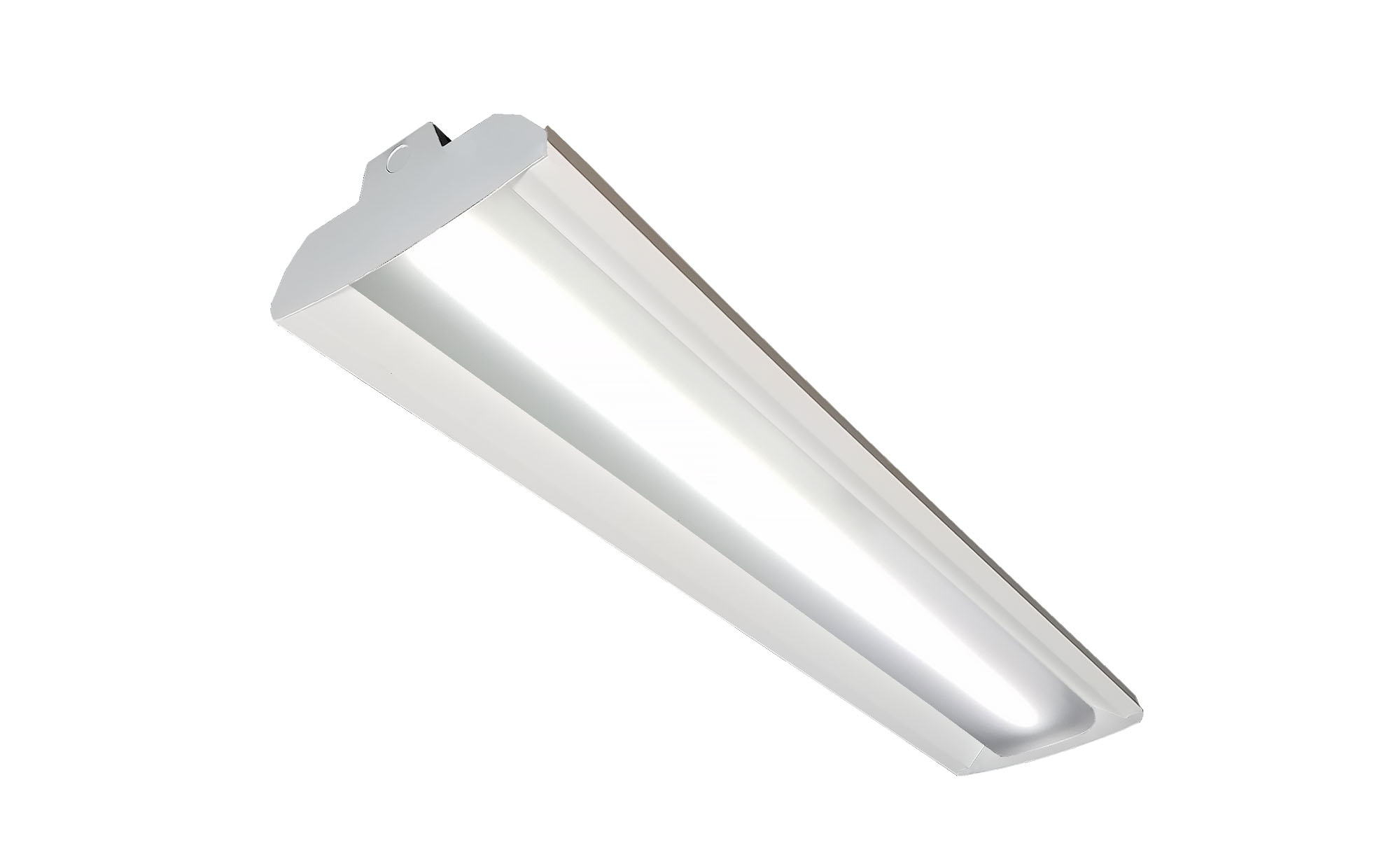

FFRP 4-footer

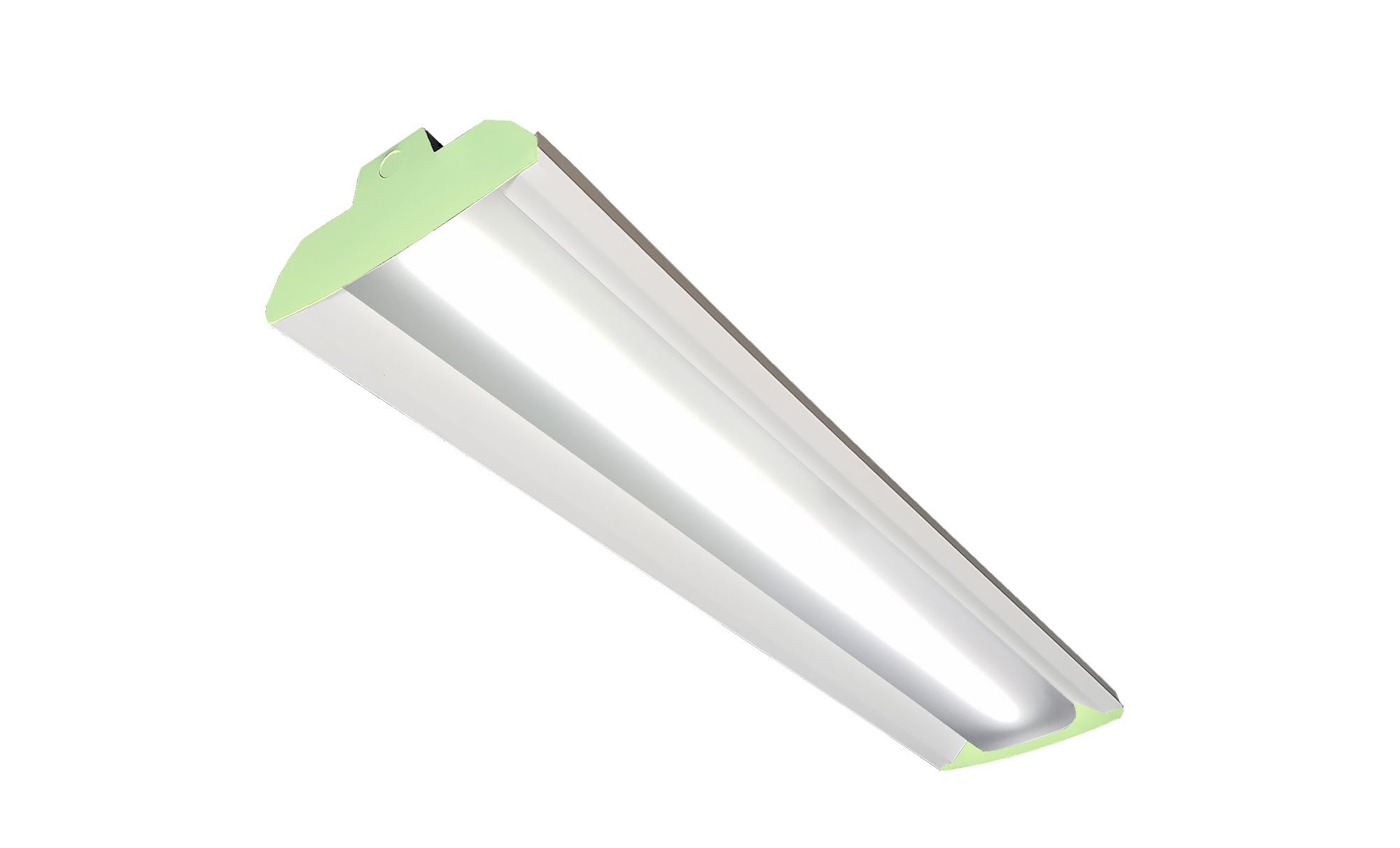

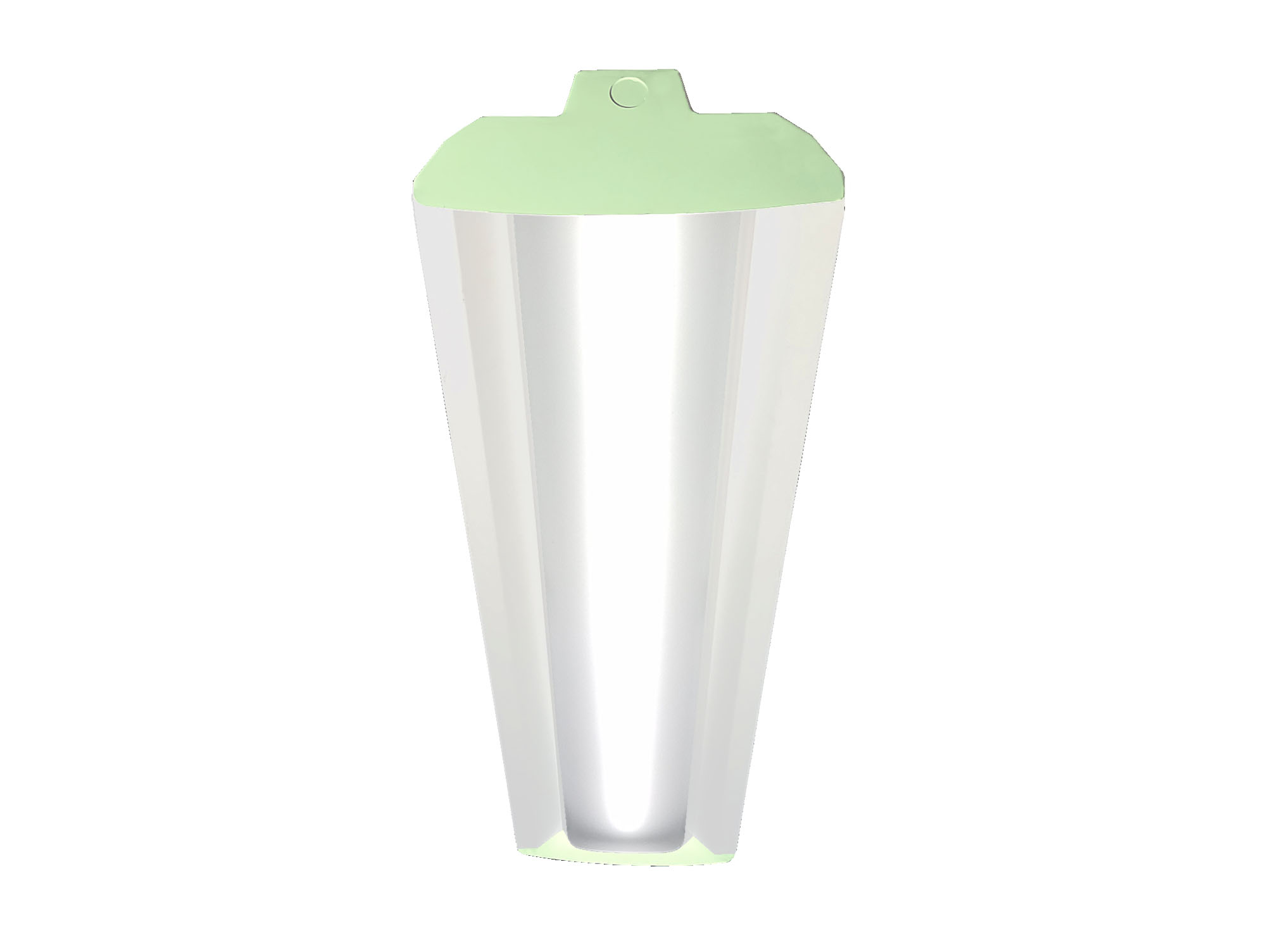

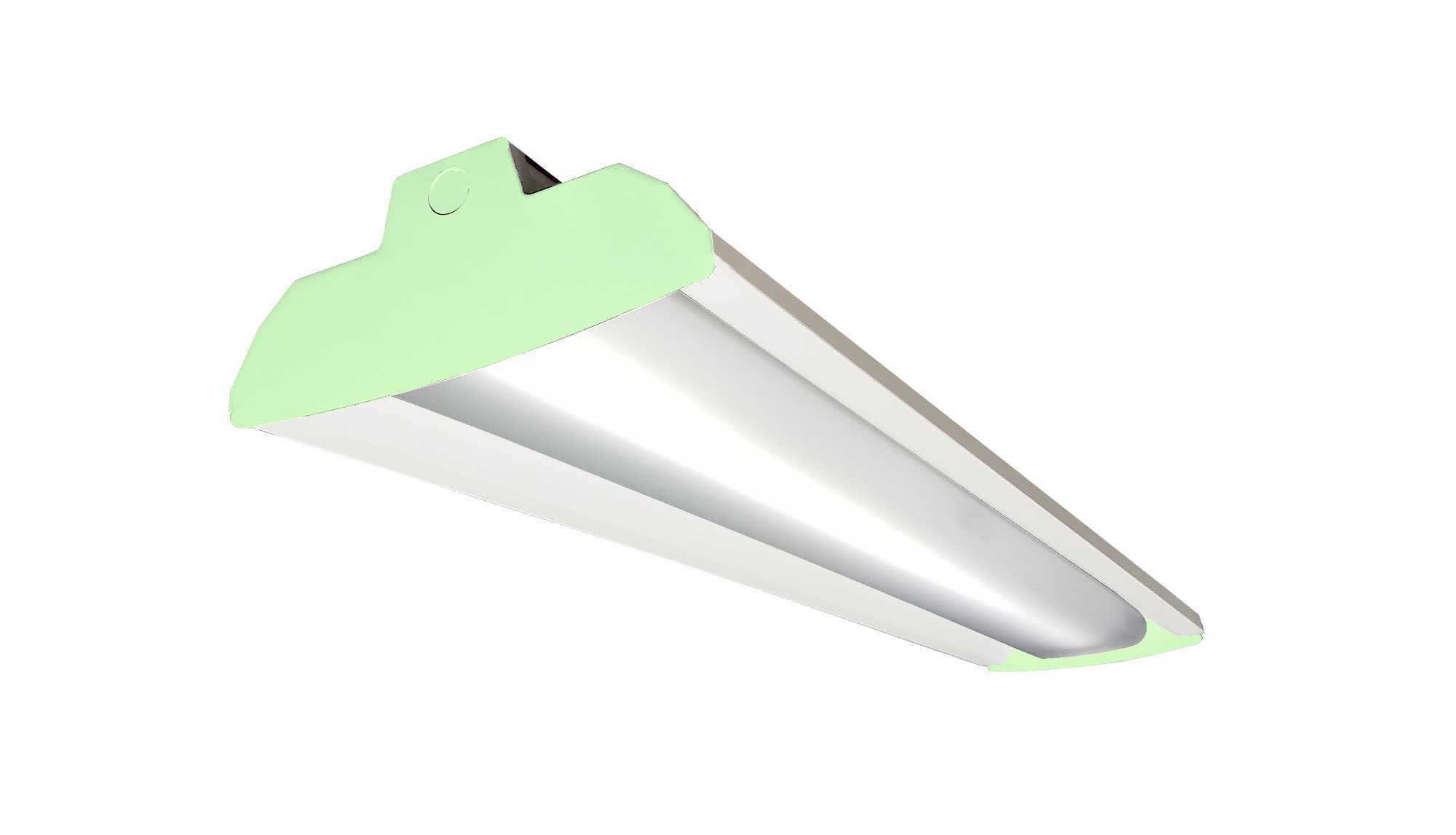

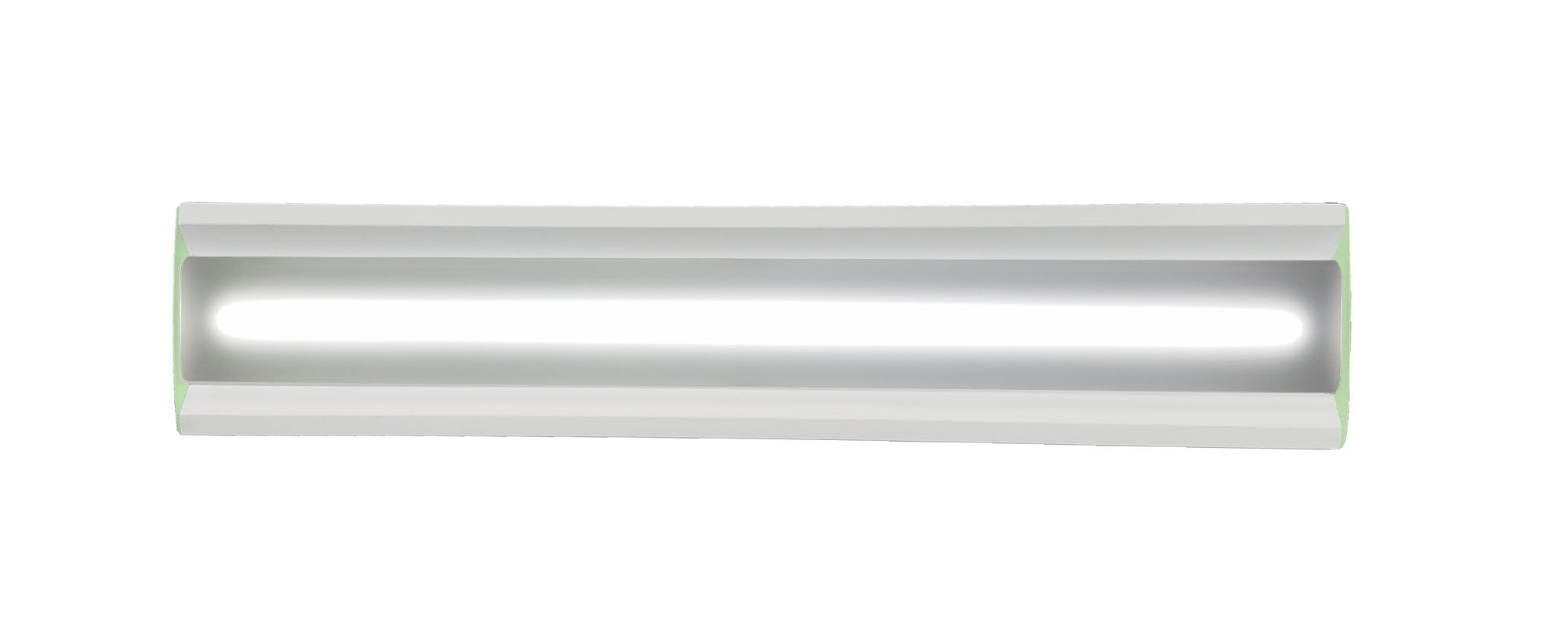

FFRP 4-footer, existing housing in green

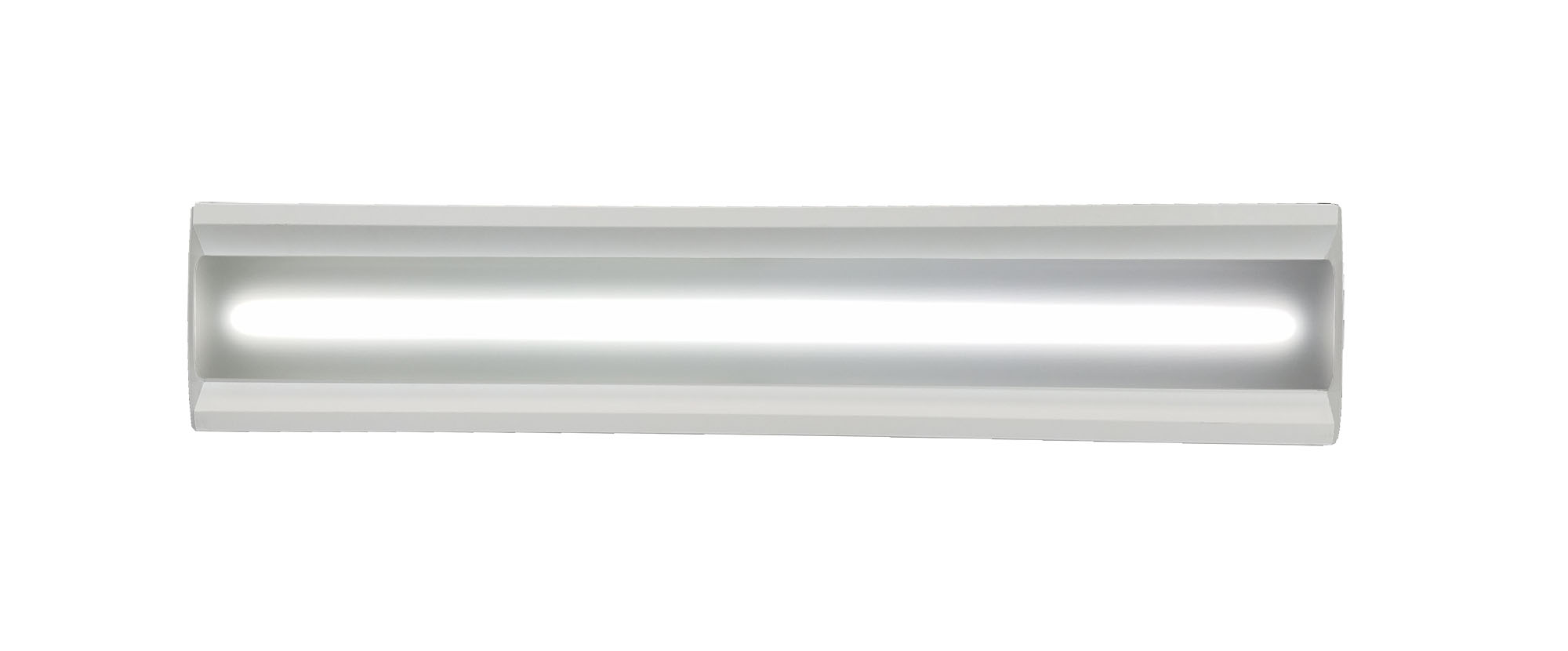

FFRP 4-footer

FFRP 4-footer, existing housing in green

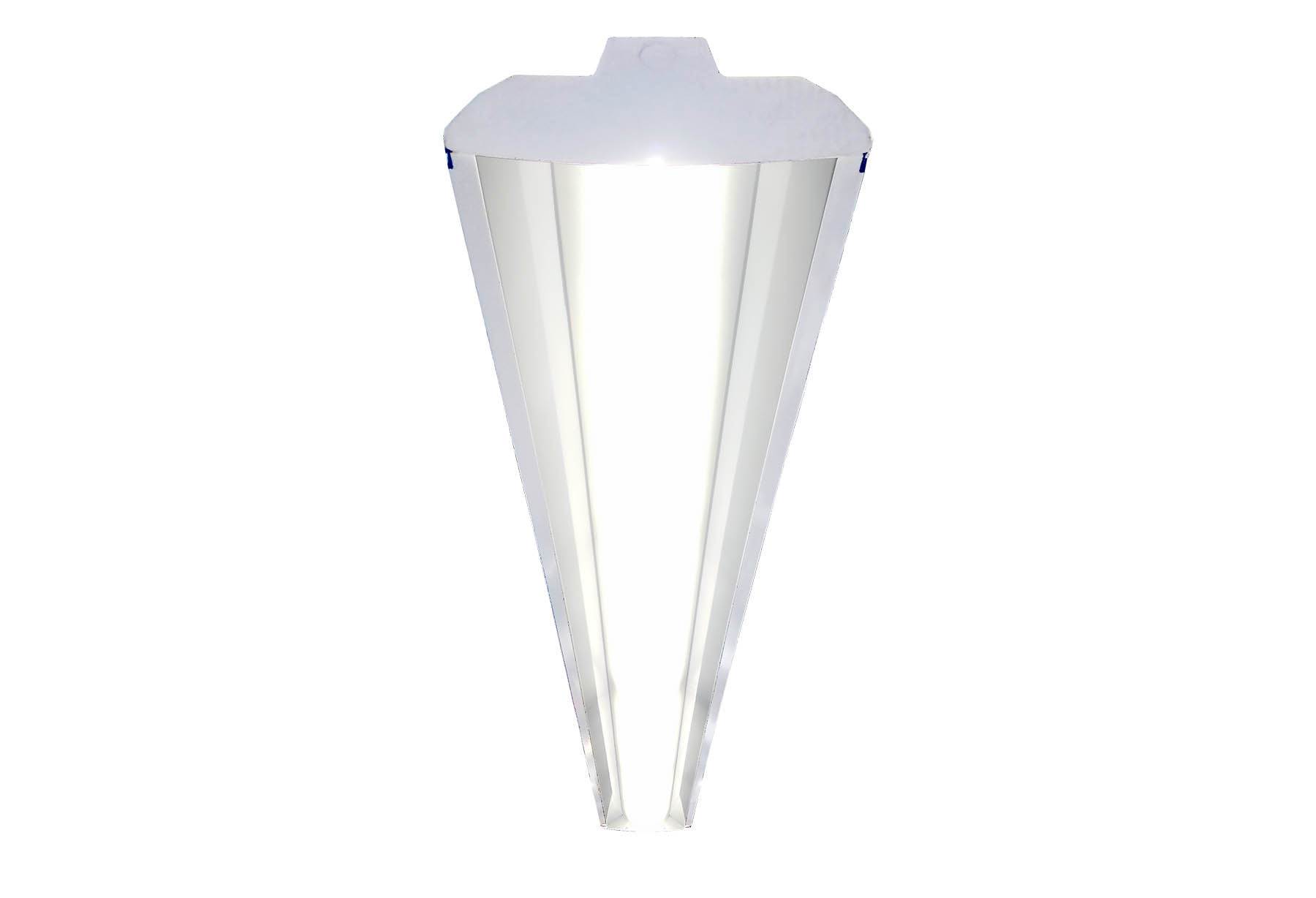

FFRP 4-footer

FFRP 4-footer, existing housing in green

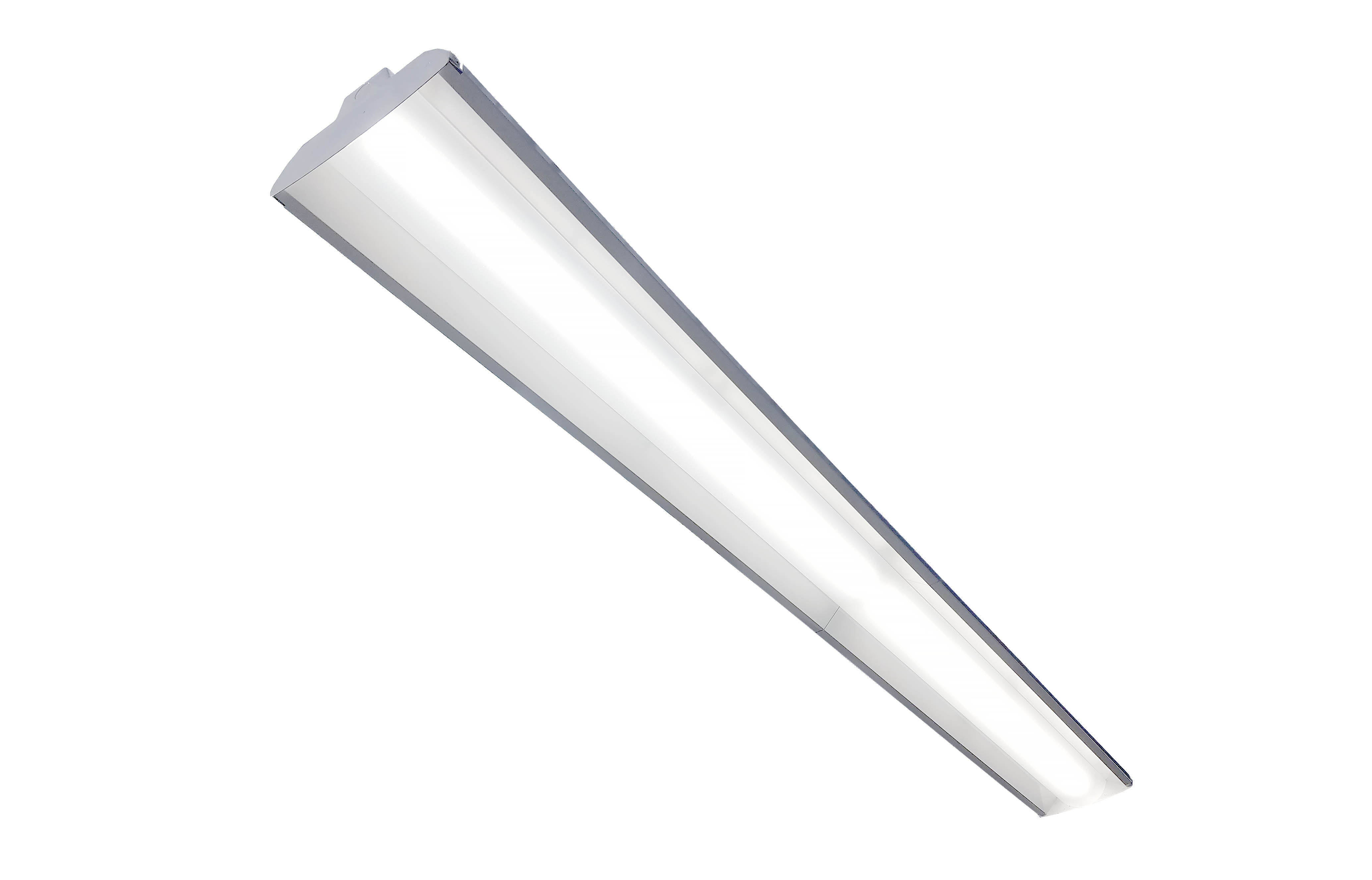

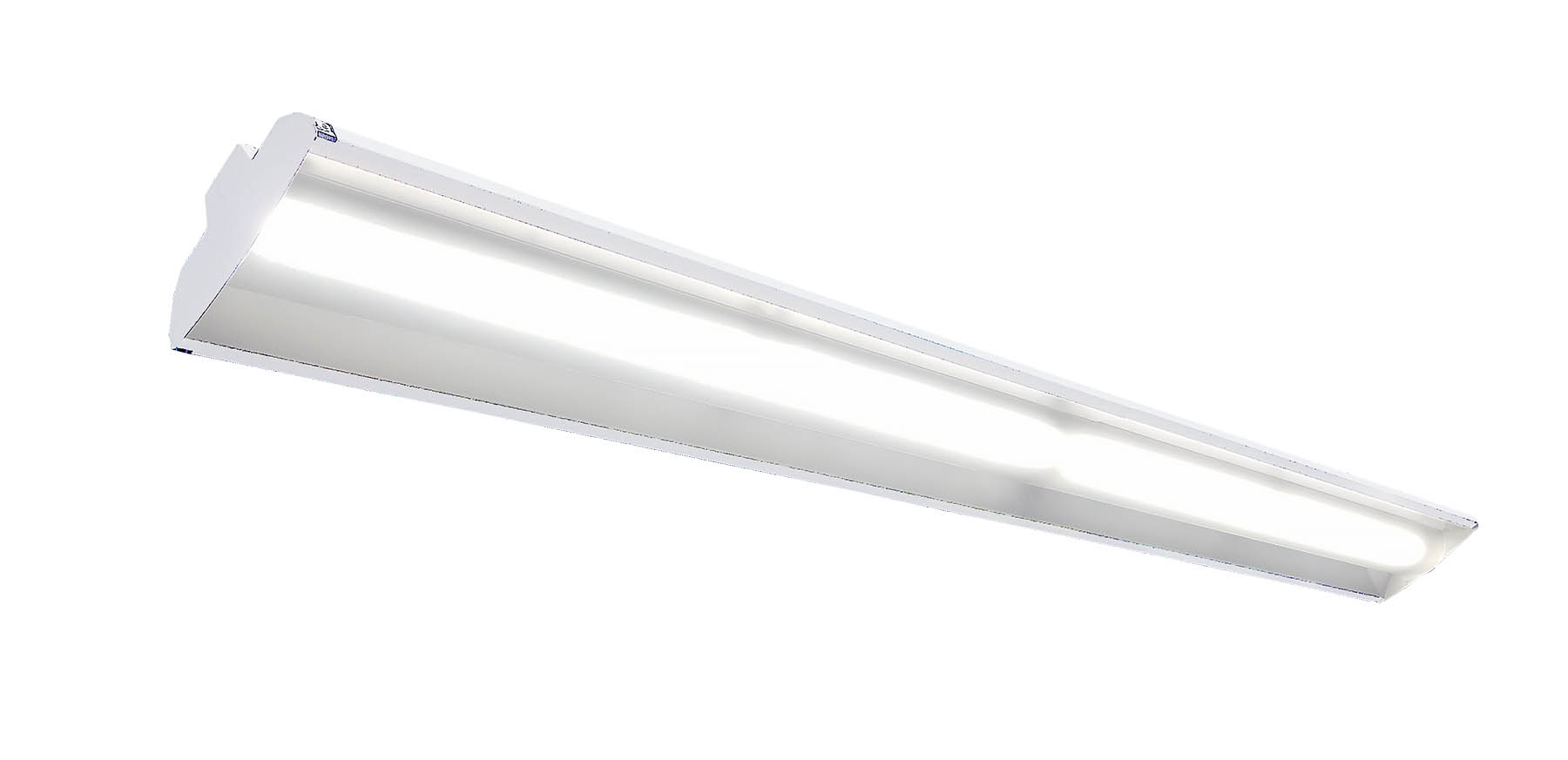

FFRP 8-footer

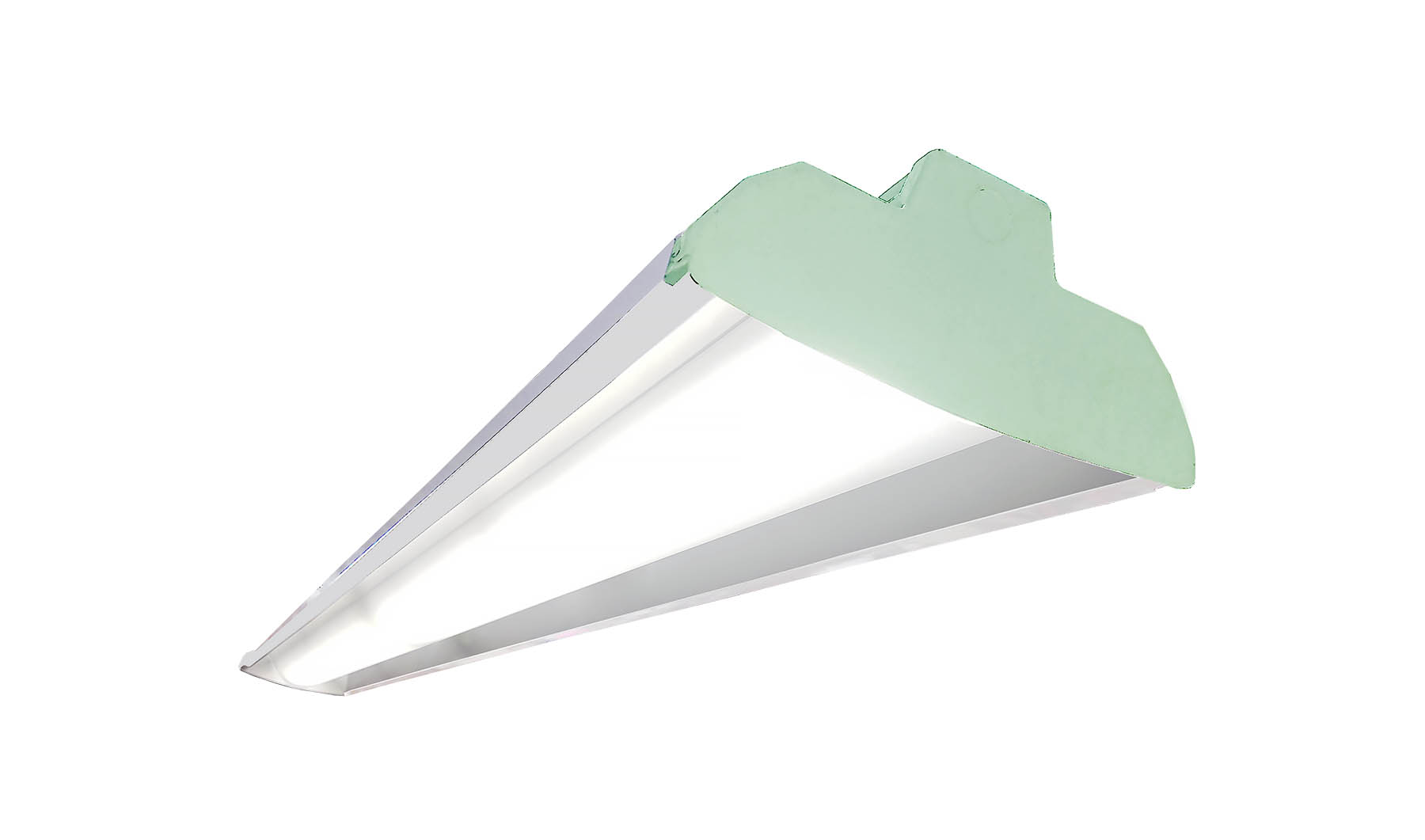

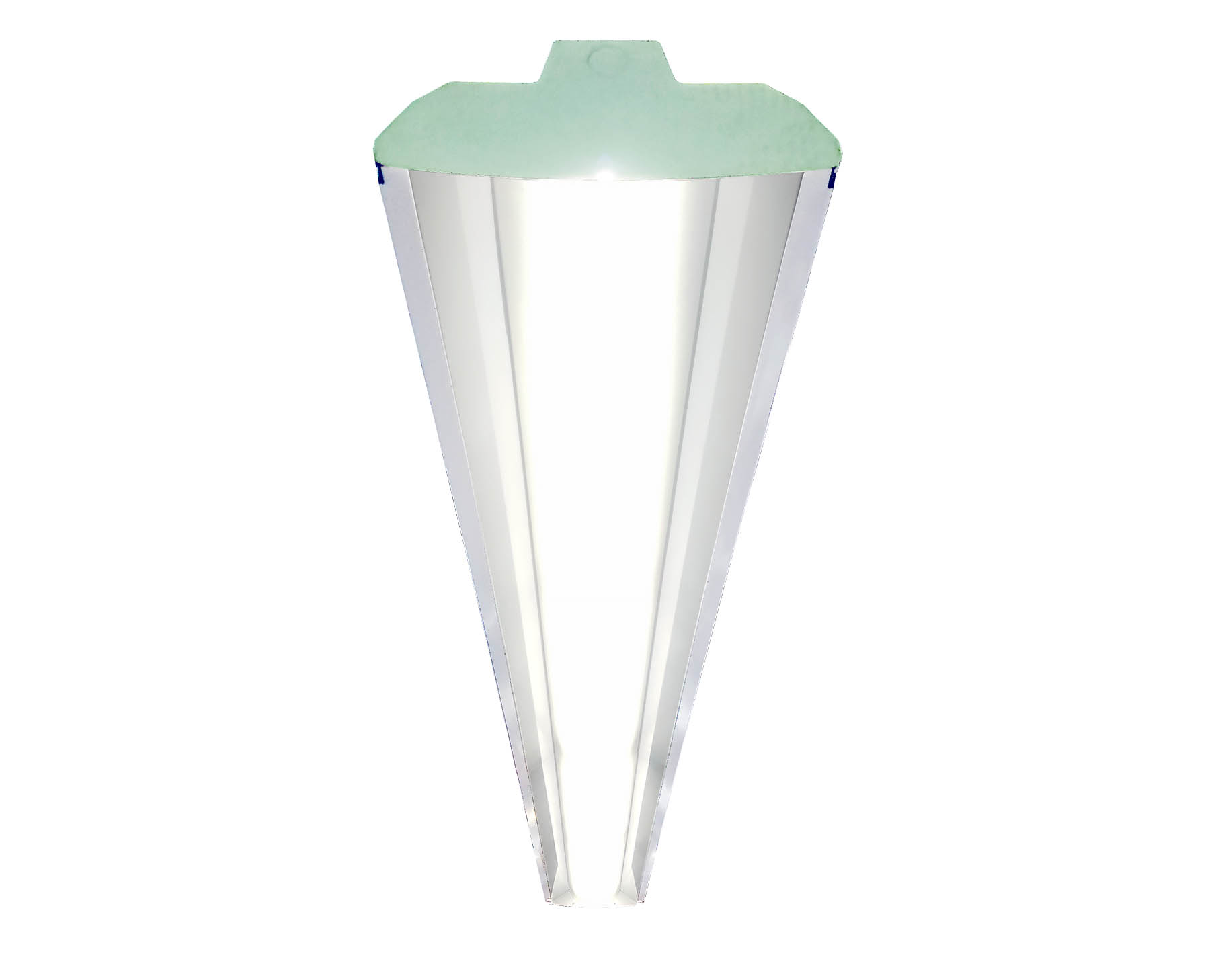

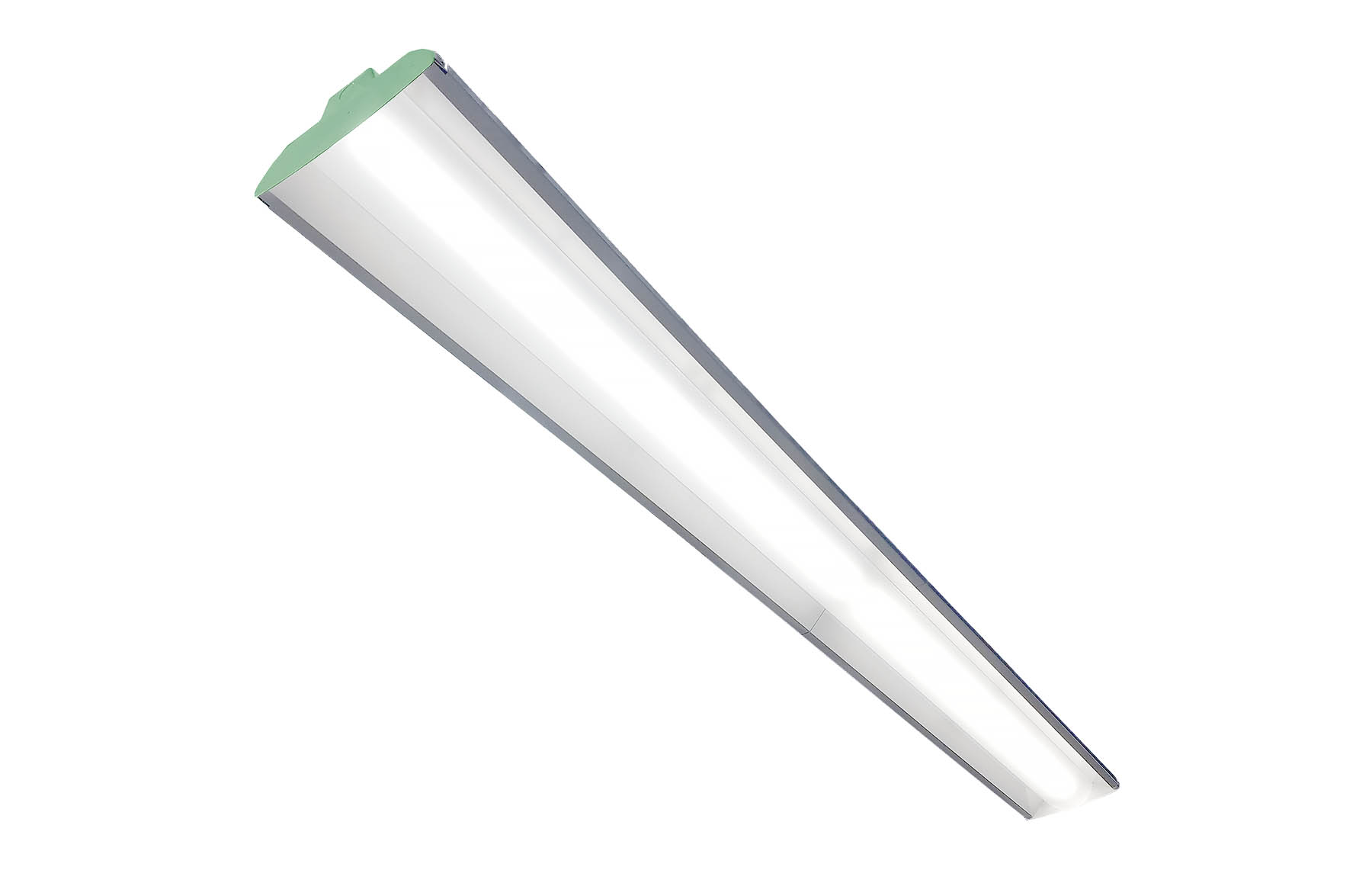

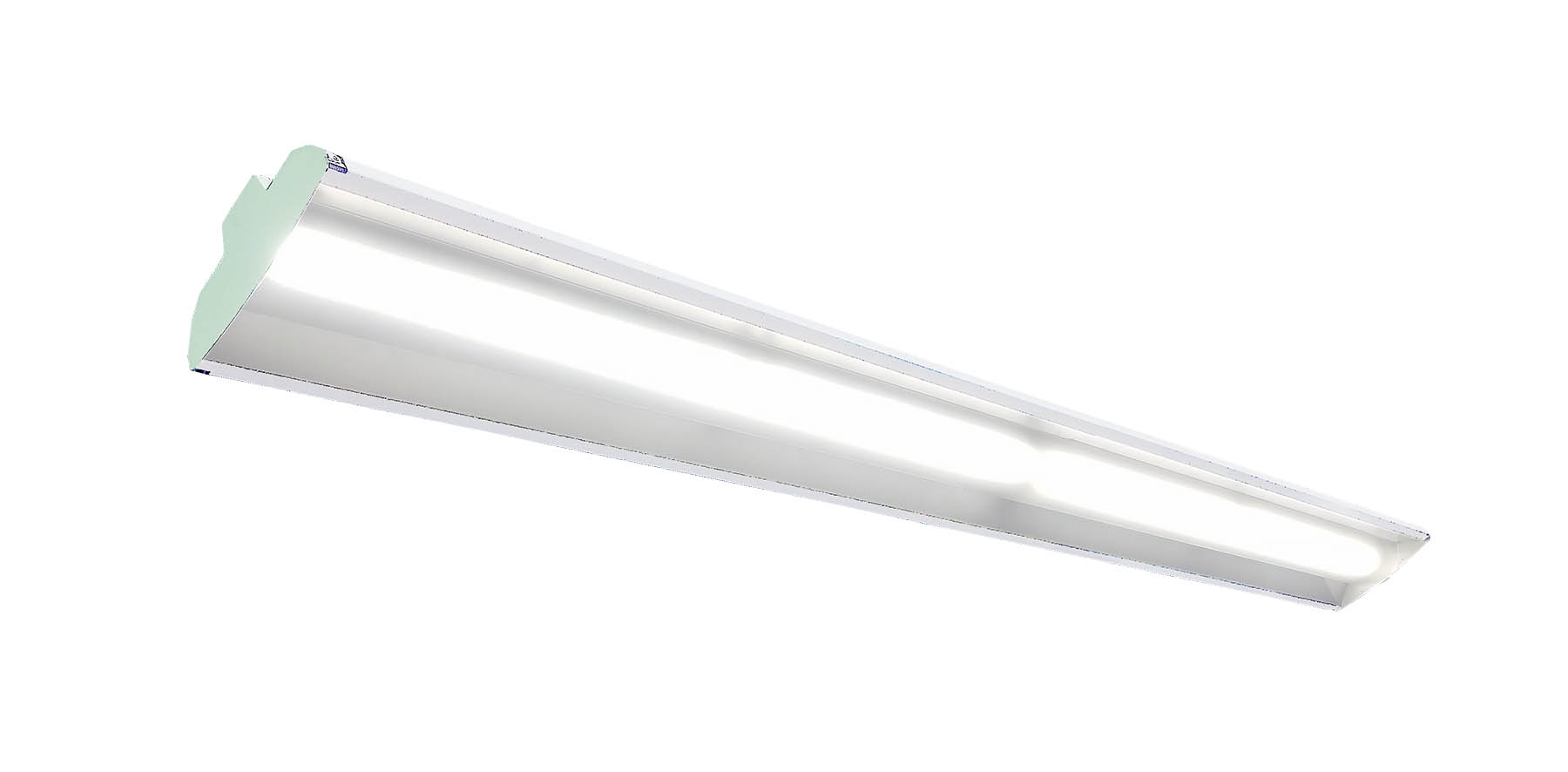

FFRP 8-footer, existing housing in green

FFRP 8-footer

FFRP 8-footer, existing housing in green

FFRP 8-footer

FFRP 8-footer, existing housing in green

FFRP 8-footer

FFRP 8-footer, existing housing in green

Click to download
FFRP 4-footer

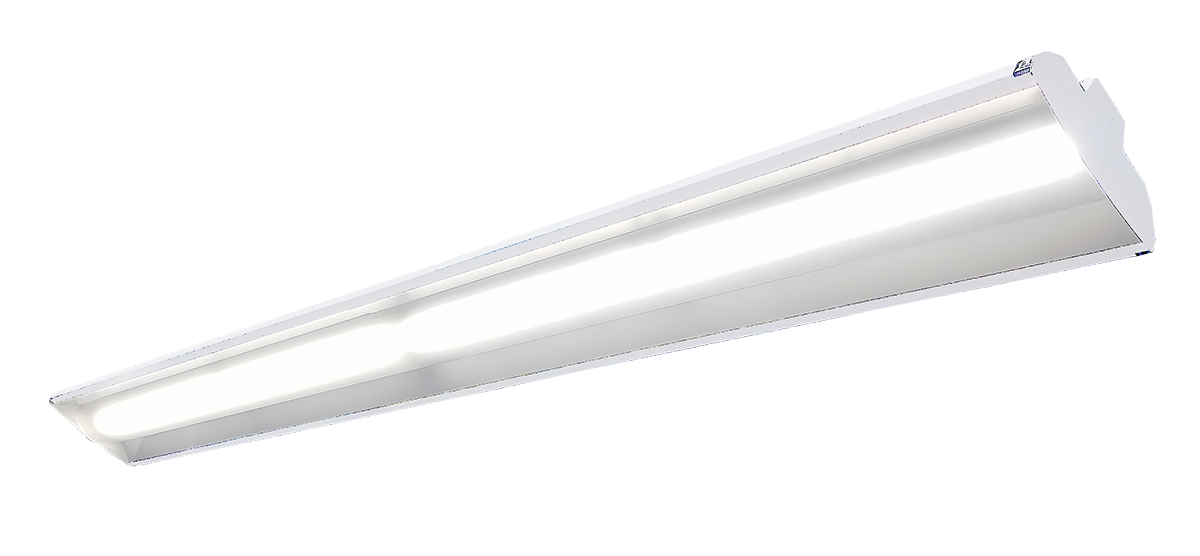

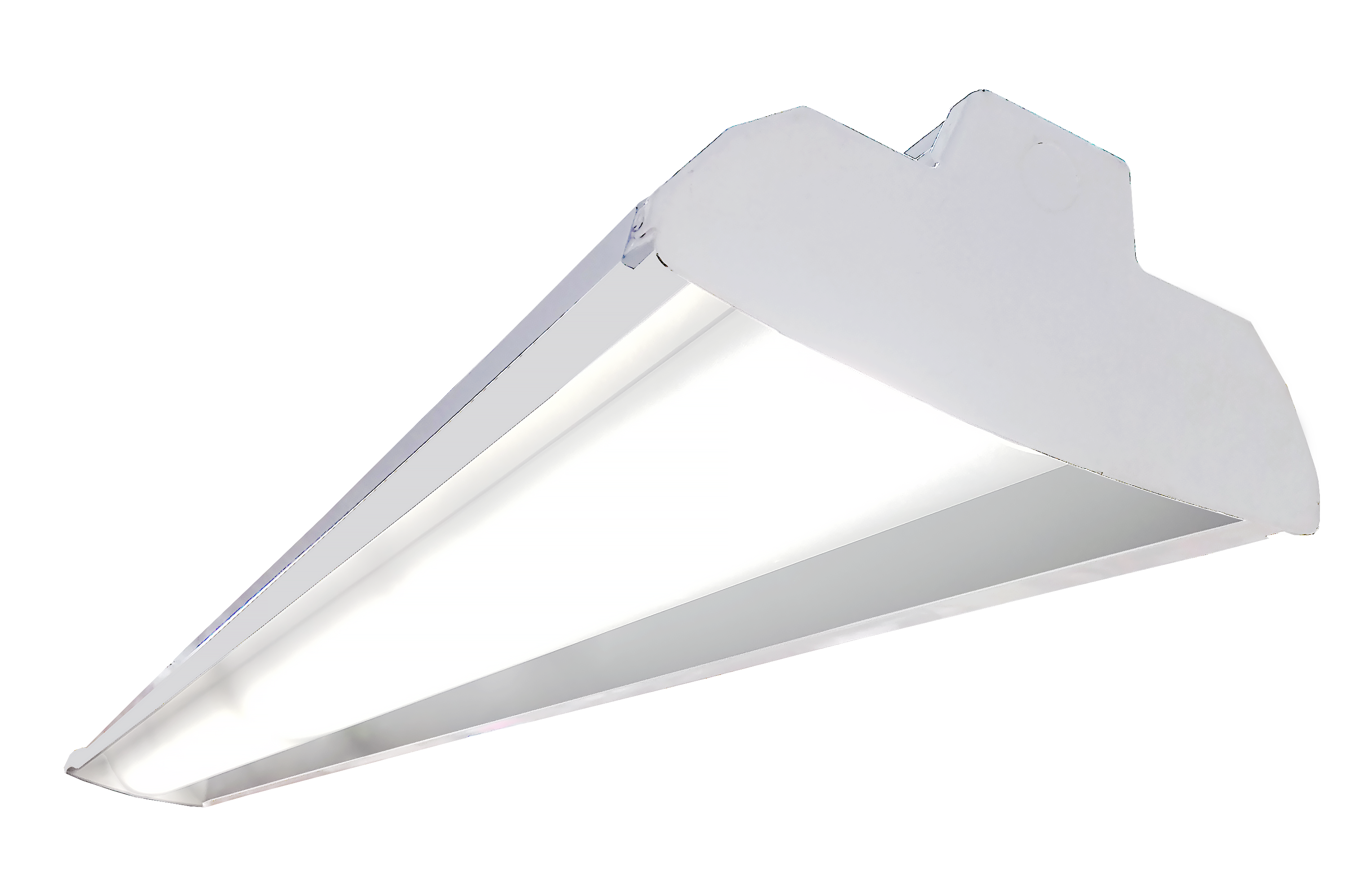

FFRP 8-footer

Buy Now

Request a Quote

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Color Temp	Voltages Available	Warranty	Predicted L70 Lifetime
FFR P 4 VL UV FA 830	4-foot	2,523	18	140.2	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VL UV FA 835	4-foot	2,565	18	142.5	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VL UV FA 840	4-foot	2,650	18	147.2	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VL UV FA 850	4-foot	2,730	18	151.7	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW UV FA 830	4-foot	3,805	29	131.2	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW UV FA 835	4-foot	3,869	29	133.4	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW UV FA 840	4-foot	3,997	29	137.8	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW UV FA 850	4-foot	4,117	29	142	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD UV FA 830	4-foot	4,319	34	127	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD UV FA 835	4-foot	4,392	34	129.2	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD UV FA 840	4-foot	4,537	34	133.4	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD UV FA 850	4-foot	4,673	34	137.4	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI UV FA 830	4-foot	4,958	39	127.1	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI UV FA 835	4-foot	5,042	39	129.3	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI UV FA 840	4-foot	5,208	39	133.5	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI UV FA 850	4-foot	5,365	39	137.6	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH UV FA 830	4-foot	5,846	48	121.8	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH UV FA 835	4-foot	5,945	48	123.9	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH UV FA 840	4-foot	6,141	48	127.9	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH UV FA 850	4-foot	6,325	48	131.8	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH UV FA 830	4-foot	7,760	63	123.2	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH UV FA 835	4-foot	7,890	63	125.2	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH UV FA 840	4-foot	8,151	63	129.4	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH UV FA 850	4-foot	8,395	63	133.3	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VL UV FA 830	8-foot	5,091	35	145.5	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VL UV FA 835	8-foot	5,176	35	147.9	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VL UV FA 840	8-foot	5,348	35	152.8	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VL UV FA 850	8-foot	5,508	35	157.4	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW UV FA 830	8-foot	7,721	57	135.5	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW UV FA 835	8-foot	7,851	57	137.7	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW UV FA 840	8-foot	8,110	57	142.3	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW UV FA 850	8-foot	8,354	57	146.6	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD UV FA 830	8-foot	8,670	65	133.4	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD UV FA 835	8-foot	8,816	65	135.6	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD UV FA 840	8-foot	9,107	65	140.1	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD UV FA 850	8-foot	9,381	65	144.3	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI UV FA 830	8-foot	9,618	74	130	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI UV FA 835	8-foot	9,779	74	132.1	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI UV FA 840	8-foot	10,102	74	136.5	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI UV FA 850	8-foot	10,406	74	140.6	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH UV FA 830	8-foot	11,474	86	133.4	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH UV FA 835	8-foot	11,667	86	135.7	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH UV FA 840	8-foot	12,053	86	140.2	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH UV FA 850	8-foot	12,414	86	144.3	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH UV FA 830	8-foot	15,706	128	122.7	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH UV FA 835	8-foot	15,970	128	124.8	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH UV FA 840	8-foot	16,498	128	128.9	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH UV FA 850	8-foot	16,993	128	132.8	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW HE UV FA 830	4-foot	3,756	27	139.1	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW HE UV FA 835	4-foot	3,819	27	141.4	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW HE UV FA 840	4-foot	3,945	27	146.1	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 LW HE UV FA 850	4-foot	4,063	27	150.5	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD HE UV FA 830	4-foot	4,367	32	136.5	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD HE UV FA 835	4-foot	4,440	32	138.8	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD HE UV FA 840	4-foot	4,587	32	143.3	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 MD HE UV FA 850	4-foot	4,725	32	147.7	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI HE UV FA 830	4-foot	4,840	36	134.4	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI HE UV FA 835	4-foot	4,921	36	136.7	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI HE UV FA 840	4-foot	5,084	36	141.2	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 HI HE UV FA 850	4-foot	5,236	36	145.4	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH HE UV FA 830	4-foot	5,795	43	134.8	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH HE UV FA 835	4-foot	5,892	43	137	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH HE UV FA 840	4-foot	6,087	43	141.6	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 VH HE UV FA 850	4-foot	6,270	43	145.8	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH HE UV FA 830	4-foot	7,624	60	127.1	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH HE UV FA 835	4-foot	7,752	60	129.2	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH HE UV FA 840	4-foot	8,009	60	133.5	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 4 SH HE UV FA 850	4-foot	8,249	60	137.5	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW HE UV FA 830	8-foot	7,726	54	143.1	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW HE UV FA 835	8-foot	7,856	54	145.5	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW HE UV FA 840	8-foot	8,116	54	150.3	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 LW HE UV FA 850	8-foot	8,359	54	154.8	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD HE UV FA 830	8-foot	8,486	60	141.4	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD HE UV FA 835	8-foot	8,629	60	143.8	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD HE UV FA 840	8-foot	8,914	60	148.6	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 MD HE UV FA 850	8-foot	9,182	60	153	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI HE UV FA 830	8-foot	9,829	70	140.4	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI HE UV FA 835	8-foot	9,994	70	142.8	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI HE UV FA 840	8-foot	10,324	70	147.5	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 HI HE UV FA 850	8-foot	10,634	70	151.9	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH HE UV FA 830	8-foot	11,725	86	136.3	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH HE UV FA 835	8-foot	11,922	86	138.6	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH HE UV FA 840	8-foot	12,316	86	143.2	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 VH HE UV FA 850	8-foot	12,686	86	147.5	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH HE UV FA 830	8-foot	15,426	120	128.6	80 CRI / 3000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH HE UV FA 835	8-foot	15,685	120	130.7	80 CRI / 3500K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH HE UV FA 840	8-foot	16,203	120	135	80 CRI / 4000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)
FFR P 8 SH HE UV FA 850	8-foot	16,689	120	139.1	80 CRI / 5000K	120-277V, 347V	5 years	Up to 189,000 hrs (calculated)

Catalog #	Equivalency*
FFR P 4 VL UV FA 830	1L F32 T8, NBF
FFR P 4 VL UV FA 835	1L F32 T8, NBF
FFR P 4 VL UV FA 840	1L F32 T8, NBF
FFR P 4 VL UV FA 850	1L F32 T8, NBF
FFR P 4 LW UV FA 830	2L F32 T8, NBF
FFR P 4 LW UV FA 835	2L F32 T8, NBF
FFR P 4 LW UV FA 840	2L F32 T8, NBF
FFR P 4 LW UV FA 850	2L F32 T8, NBF
FFR P 4 MD UV FA 830	2L F32 T8, NBF
FFR P 4 MD UV FA 835	2L F32 T8, NBF
FFR P 4 MD UV FA 840	2L F32 T8, NBF
FFR P 4 MD UV FA 850	2L F32 T8, NBF
FFR P 4 HI UV FA 830	2L F32 T8, HBF
FFR P 4 HI UV FA 835	2L F32 T8, HBF
FFR P 4 HI UV FA 840	2L F32 T8, HBF
FFR P 4 HI UV FA 850	2L F32 T8, HBF
FFR P 4 VH UV FA 830	3L F32 T8, NBF
FFR P 4 VH UV FA 835	3L F32 T8, NBF
FFR P 4 VH UV FA 840	3L F32 T8, NBF
FFR P 4 VH UV FA 850	3L F32 T8, NBF
FFR P 4 SH UV FA 830	2L F54 T5HO
FFR P 4 SH UV FA 835	2L F54 T5HO
FFR P 4 SH UV FA 840	2L F54 T5HO
FFR P 4 SH UV FA 850	2L F54 T5HO
FFR P 8 VL UV FA 830	2L F32 T8, HBF
FFR P 8 VL UV FA 835	2L F32 T8, HBF
FFR P 8 VL UV FA 840	2L F32 T8, HBF
FFR P 8 VL UV FA 850	2L F32 T8, HBF
FFR P 8 LW UV FA 830	4L F32 T8, NBF
FFR P 8 LW UV FA 835	4L F32 T8, NBF
FFR P 8 LW UV FA 840	4L F32 T8, NBF
FFR P 8 LW UV FA 850	4L F32 T8, NBF
FFR P 8 MD UV FA 830	4L F32 T8, NBF
FFR P 8 MD UV FA 835	4L F32 T8, NBF
FFR P 8 MD UV FA 840	4L F32 T8, NBF
FFR P 8 MD UV FA 850	4L F32 T8, NBF
FFR P 8 HI UV FA 830	2L F96 T8, NBF
FFR P 8 HI UV FA 835	2L F96 T8, NBF
FFR P 8 HI UV FA 840	2L F96 T8, NBF
FFR P 8 HI UV FA 850	2L F96 T8, NBF
FFR P 8 VH UV FA 830	2L F96 T8HO, NBF
FFR P 8 VH UV FA 835	2L F96 T8HO, NBF
FFR P 8 VH UV FA 840	2L F96 T8HO, NBF
FFR P 8 VH UV FA 850	2L F96 T8HO, NBF
FFR P 8 SH UV FA 830	4L F54 T5HO
FFR P 8 SH UV FA 835	4L F54 T5HO
FFR P 8 SH UV FA 840	4L F54 T5HO
FFR P 8 SH UV FA 850	4L F54 T5HO
FFR P 4 LW HE UV FA 830	2L F32 T8, NBF
FFR P 4 LW HE UV FA 835	2L F32 T8, NBF
FFR P 4 LW HE UV FA 840	2L F32 T8, NBF
FFR P 4 LW HE UV FA 850	2L F32 T8, NBF
FFR P 4 MD HE UV FA 830	2L F32 T8, NBF
FFR P 4 MD HE UV FA 835	2L F32 T8, NBF
FFR P 4 MD HE UV FA 840	2L F32 T8, NBF
FFR P 4 MD HE UV FA 850	2L F32 T8, NBF
FFR P 4 HI HE UV FA 830	2L F32 T8, HBF
FFR P 4 HI HE UV FA 835	2L F32 T8, HBF
FFR P 4 HI HE UV FA 840	2L F32 T8, HBF
FFR P 4 HI HE UV FA 850	2L F32 T8, HBF
FFR P 4 VH HE UV FA 830	3L F32 T8, NBF
FFR P 4 VH HE UV FA 835	3L F32 T8, NBF
FFR P 4 VH HE UV FA 840	3L F32 T8, NBF
FFR P 4 VH HE UV FA 850	3L F32 T8, NBF
FFR P 4 SH HE UV FA 830	2L F54 T5HO
FFR P 4 SH HE UV FA 835	2L F54 T5HO
FFR P 4 SH HE UV FA 840	2L F54 T5HO
FFR P 4 SH HE UV FA 850	2L F54 T5HO
FFR P 8 LW HE UV FA 830	4L F32 T8, NBF
FFR P 8 LW HE UV FA 835	4L F32 T8, NBF
FFR P 8 LW HE UV FA 840	4L F32 T8, NBF
FFR P 8 LW HE UV FA 850	4L F32 T8, NBF
FFR P 8 MD HE UV FA 830	4L F32 T8, NBF
FFR P 8 MD HE UV FA 835	4L F32 T8, NBF
FFR P 8 MD HE UV FA 840	4L F32 T8, NBF
FFR P 8 MD HE UV FA 850	4L F32 T8, NBF
FFR P 8 HI HE UV FA 830	2L F96 T8, NBF
FFR P 8 HI HE UV FA 835	2L F96 T8, NBF
FFR P 8 HI HE UV FA 840	2L F96 T8, NBF
FFR P 8 HI HE UV FA 850	2L F96 T8, NBF
FFR P 8 VH HE UV FA 830	2L F96 T8HO, NBF
FFR P 8 VH HE UV FA 835	2L F96 T8HO, NBF
FFR P 8 VH HE UV FA 840	2L F96 T8HO, NBF
FFR P 8 VH HE UV FA 850	2L F96 T8HO, NBF
FFR P 8 SH HE UV FA 830	4L F54 T5HO
FFR P 8 SH HE UV FA 835	4L F54 T5HO
FFR P 8 SH HE UV FA 840	4L F54 T5HO
FFR P 8 SH HE UV FA 850	4L F54 T5HO

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet
FFR P 4 VL UV FA 830	View	Download
FFR P 4 VL UV FA 835	View	Download
FFR P 4 VL UV FA 840	View	Download
FFR P 4 VL UV FA 850	View	Download
FFR P 4 LW UV FA 830	View	Download
FFR P 4 LW UV FA 835	View	Download
FFR P 4 LW UV FA 840	View	Download
FFR P 4 LW UV FA 850	View	Download
FFR P 4 MD UV FA 830	View	Download
FFR P 4 MD UV FA 835	View	Download
FFR P 4 MD UV FA 840	View	Download
FFR P 4 MD UV FA 850	View	Download
FFR P 4 HI UV FA 830	View	Download
FFR P 4 HI UV FA 835	View	Download
FFR P 4 HI UV FA 840	View	Download
FFR P 4 HI UV FA 850	View	Download
FFR P 4 VH UV FA 830	View	Download
FFR P 4 VH UV FA 835	View	Download
FFR P 4 VH UV FA 840	View	Download
FFR P 4 VH UV FA 850	View	Download
FFR P 4 SH UV FA 830	View	Download
FFR P 4 SH UV FA 835	View	Download
FFR P 4 SH UV FA 840	View	Download
FFR P 4 SH UV FA 850	View	Download
FFR P 8 VL UV FA 830	View	Download
FFR P 8 VL UV FA 835	View	Download
FFR P 8 VL UV FA 840	View	Download
FFR P 8 VL UV FA 850	View	Download
FFR P 8 LW UV FA 830	View	Download
FFR P 8 LW UV FA 835	View	Download
FFR P 8 LW UV FA 840	View	Download
FFR P 8 LW UV FA 850	View	Download
FFR P 8 MD UV FA 830	View	Download
FFR P 8 MD UV FA 835	View	Download
FFR P 8 MD UV FA 840	View	Download
FFR P 8 MD UV FA 850	View	Download
FFR P 8 HI UV FA 830	View	Download
FFR P 8 HI UV FA 835	View	Download
FFR P 8 HI UV FA 840	View	Download
FFR P 8 HI UV FA 850	View	Download
FFR P 8 VH UV FA 830	View	Download
FFR P 8 VH UV FA 835	View	Download
FFR P 8 VH UV FA 840	View	Download
FFR P 8 VH UV FA 850	View	Download
FFR P 8 SH UV FA 830	View	Download
FFR P 8 SH UV FA 835	View	Download
FFR P 8 SH UV FA 840	View	Download
FFR P 8 SH UV FA 850	View	Download
FFR P 4 LW HE UV FA 830	View	Download
FFR P 4 LW HE UV FA 835	View	Download
FFR P 4 LW HE UV FA 840	View	Download
FFR P 4 LW HE UV FA 850	View	Download
FFR P 4 MD HE UV FA 830	View	Download
FFR P 4 MD HE UV FA 835	View	Download
FFR P 4 MD HE UV FA 840	View	Download
FFR P 4 MD HE UV FA 850	View	Download
FFR P 4 HI HE UV FA 830	View	Download
FFR P 4 HI HE UV FA 835	View	Download
FFR P 4 HI HE UV FA 840	View	Download
FFR P 4 HI HE UV FA 850	View	Download
FFR P 4 VH HE UV FA 830	View	Download
FFR P 4 VH HE UV FA 835	View	Download
FFR P 4 VH HE UV FA 840	View	Download
FFR P 4 VH HE UV FA 850	View	Download
FFR P 4 SH HE UV FA 830	View	Download
FFR P 4 SH HE UV FA 835	View	Download
FFR P 4 SH HE UV FA 840	View	Download
FFR P 4 SH HE UV FA 850	View	Download
FFR P 8 LW HE UV FA 830	View	Download
FFR P 8 LW HE UV FA 835	View	Download
FFR P 8 LW HE UV FA 840	View	Download
FFR P 8 LW HE UV FA 850	View	Download
FFR P 8 MD HE UV FA 830	View	Download
FFR P 8 MD HE UV FA 835	View	Download
FFR P 8 MD HE UV FA 840	View	Download
FFR P 8 MD HE UV FA 850	View	Download
FFR P 8 HI HE UV FA 830	View	Download
FFR P 8 HI HE UV FA 835	View	Download
FFR P 8 HI HE UV FA 840	View	Download
FFR P 8 HI HE UV FA 850	View	Download
FFR P 8 VH HE UV FA 830	View	Download
FFR P 8 VH HE UV FA 835	View	Download
FFR P 8 VH HE UV FA 840	View	Download
FFR P 8 VH HE UV FA 850	View	Download
FFR P 8 SH HE UV FA 830	View	Download
FFR P 8 SH HE UV FA 835	View	Download
FFR P 8 SH HE UV FA 840	View	Download
FFR P 8 SH HE UV FA 850	View	Download

Lift and shift

The FFRP utilizes a "lift and shift" design concept, which allows it to quickly and easily be installed in the field. The kit ships with the LED drivers and boards installed on the tray. With the original lamps and ballasts removed, the retrofit unit is hung on one side of the existing housing. Safety tethers on both ends of the kit (two for the 4-footer, four for the 8-footer) are screwed into the existing housing for added security. The installer wires the driver to the existing power via a quick-disconnect before swinging the kit around to attach the other side. The whole process takes just a few minutes.

Lift and shift
