LED Wrap Retrofit Kit

    The FFRW is a custom fit retrofit kit designed for existing 4-foot wrap luminaires that are 9 inches wide or wider. It is part of the FormFocus product line. The easy lift and shift design allows for easy and quick installation, saving on labor costs. The FFRW features high performance, field replaceable LED boards and drivers. Like all FormFocus products, features a frosted acrylic diffuser that is optimized to balance efficiency and aesthetics. The FFRW is precision brake formed from cold rolled steel and features a matte white finish. Every FFRW is assembled in the US - in our Henderson, NC facility.
  • Applications: Custom fit for 4-foot wrap luminaires 9 inches or wider. Specifications of existing fixture are required to ensure a proper fit.
    Note: See Page 3 of spec sheet for a required form that must be filled out prior to ordering.
  • Lumen Output: From about 4,100 lumens up to 8,100
  • Max Lumens Per Watt: 144.2
  • Size Options: 4-foot
  • Predicted L70 Lifetime: Up to 189,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every FFRW is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations.
  • Assembled in the USA: Each FFRW is assembled at our facility in Henderson, NC. BAA compliant options are available
Click to enlarge

FFRW-3jpg FFRW-3jpg
FFRW

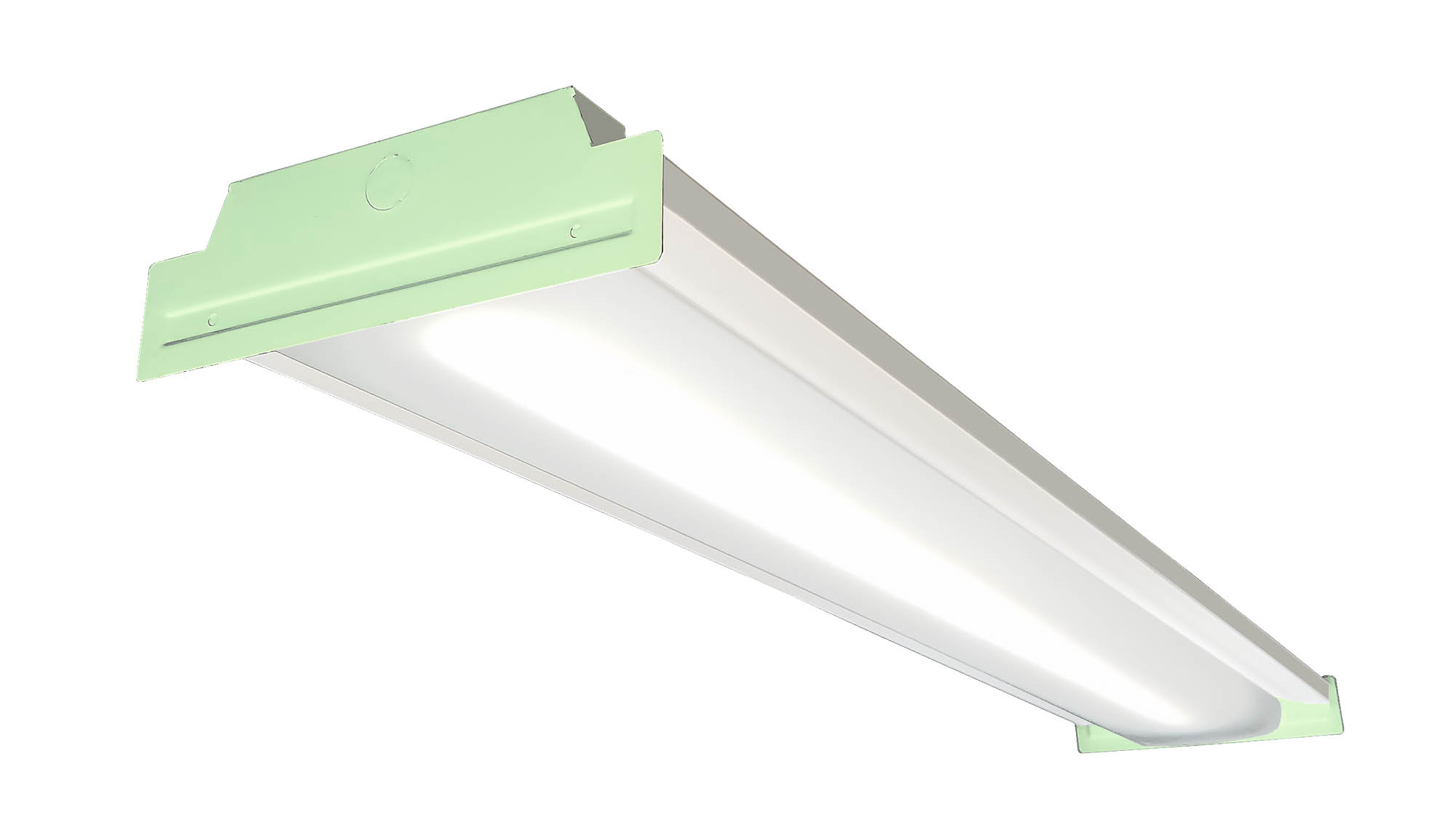

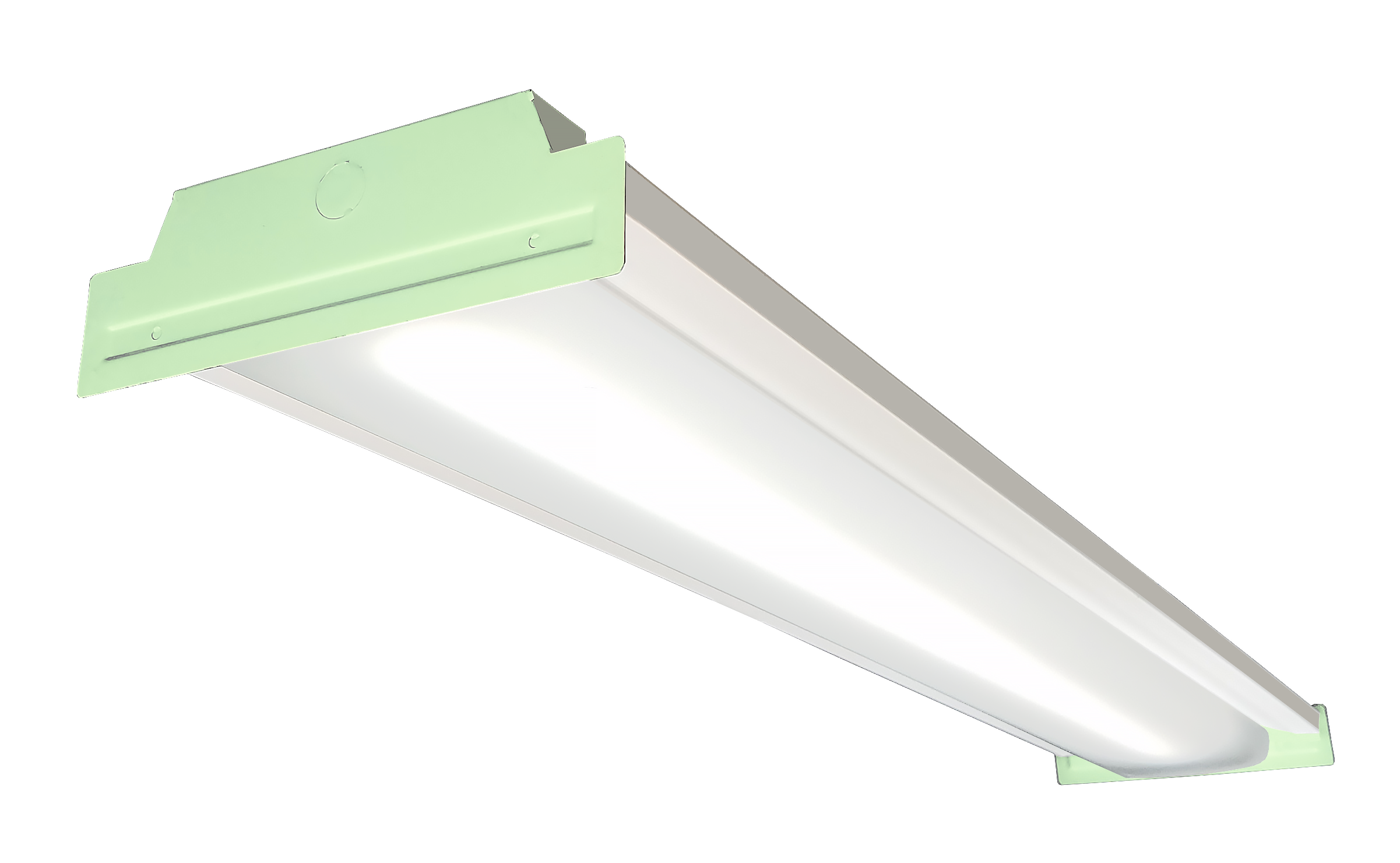

FFRW-3jpg green FFRW-3jpg green
FFRW, existing housing in green

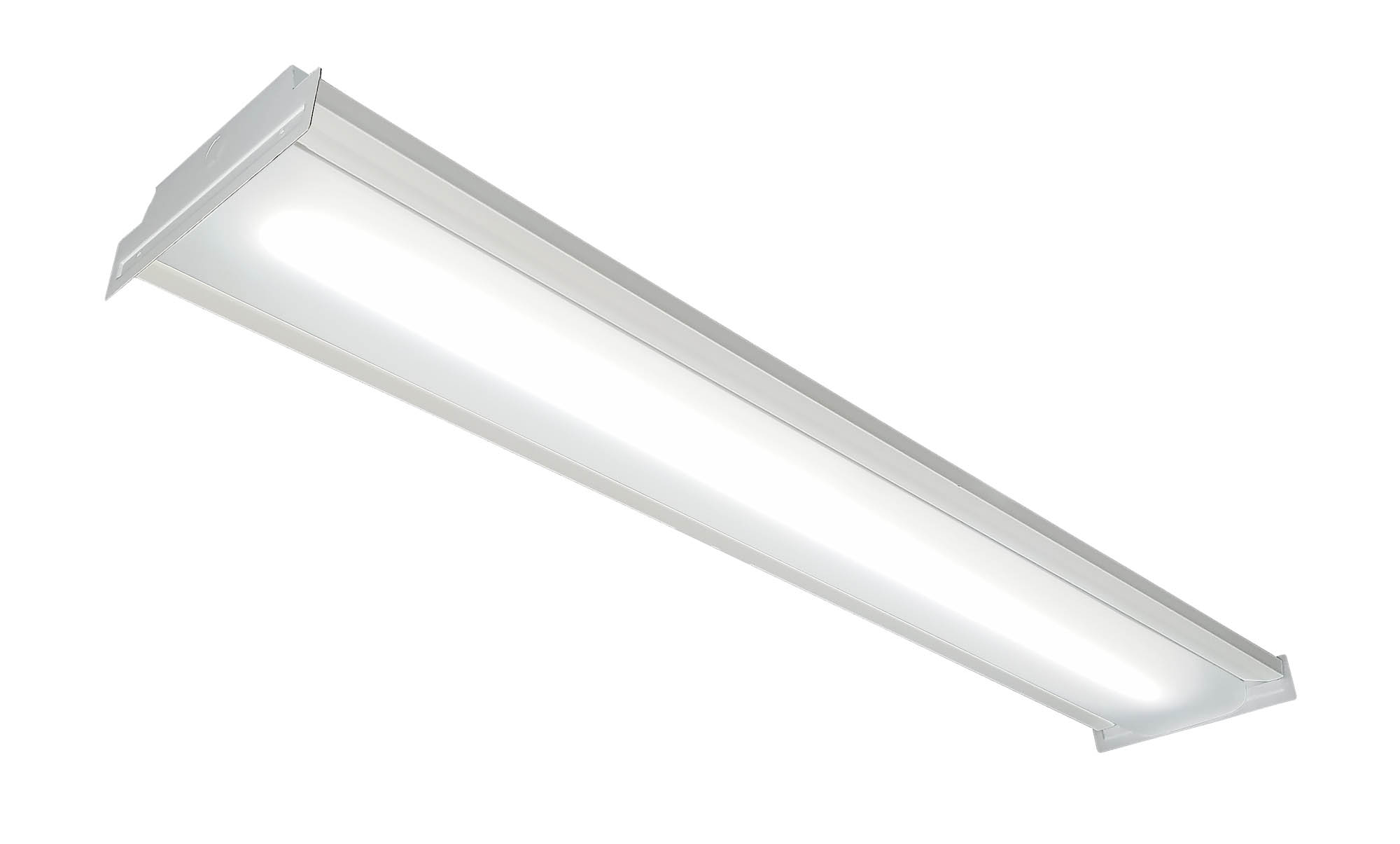

FFRW-2jpg FFRW-2jpg
FFRW
FFRW-2jpg green FFRW-2jpg green
FFRW, existing housing in green

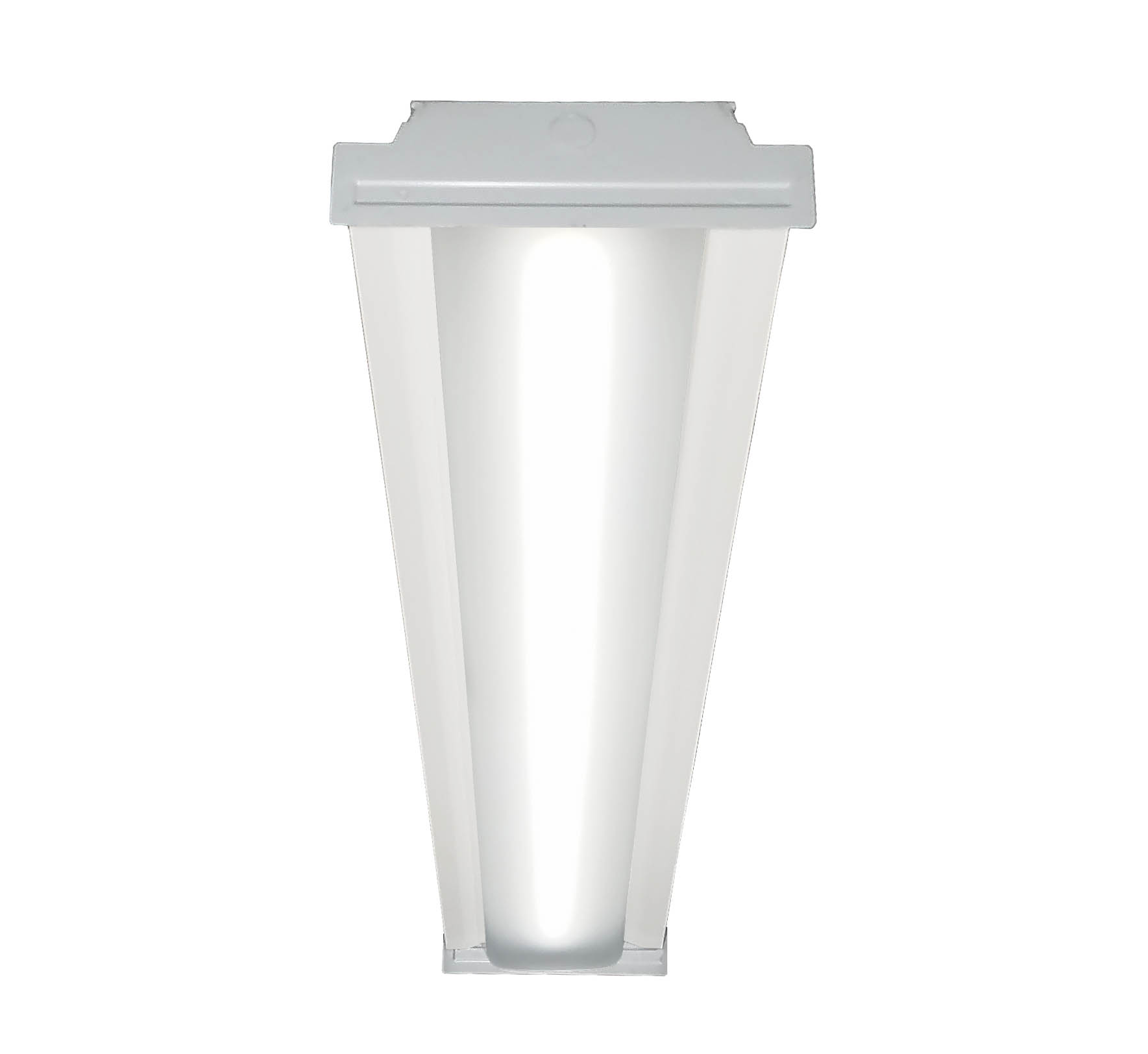

FFRW-1jpg FFRW-1jpg
FFRW

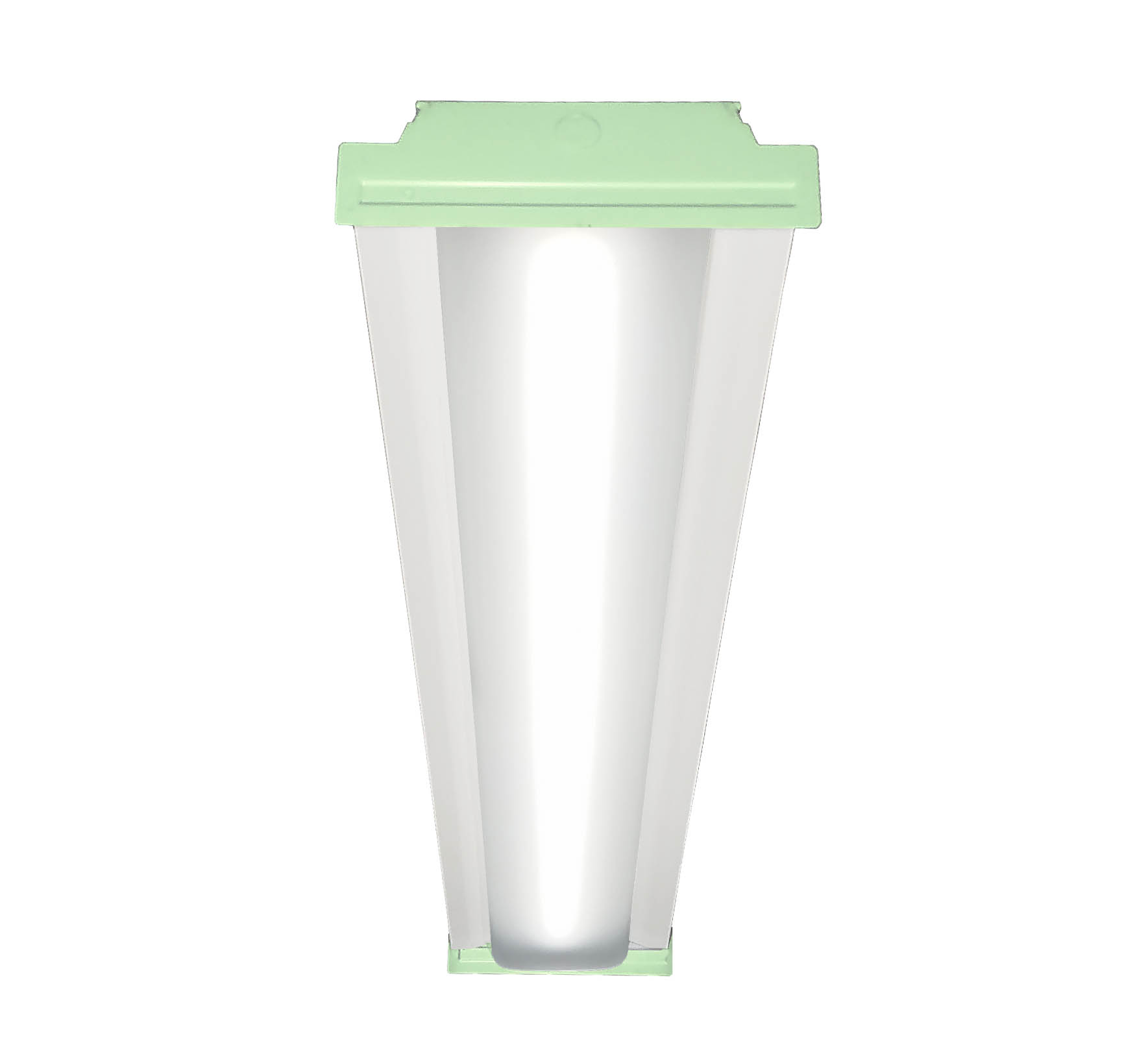

FFRW-1jpg green FFRW-1jpg green
FFRW, existing housing in green

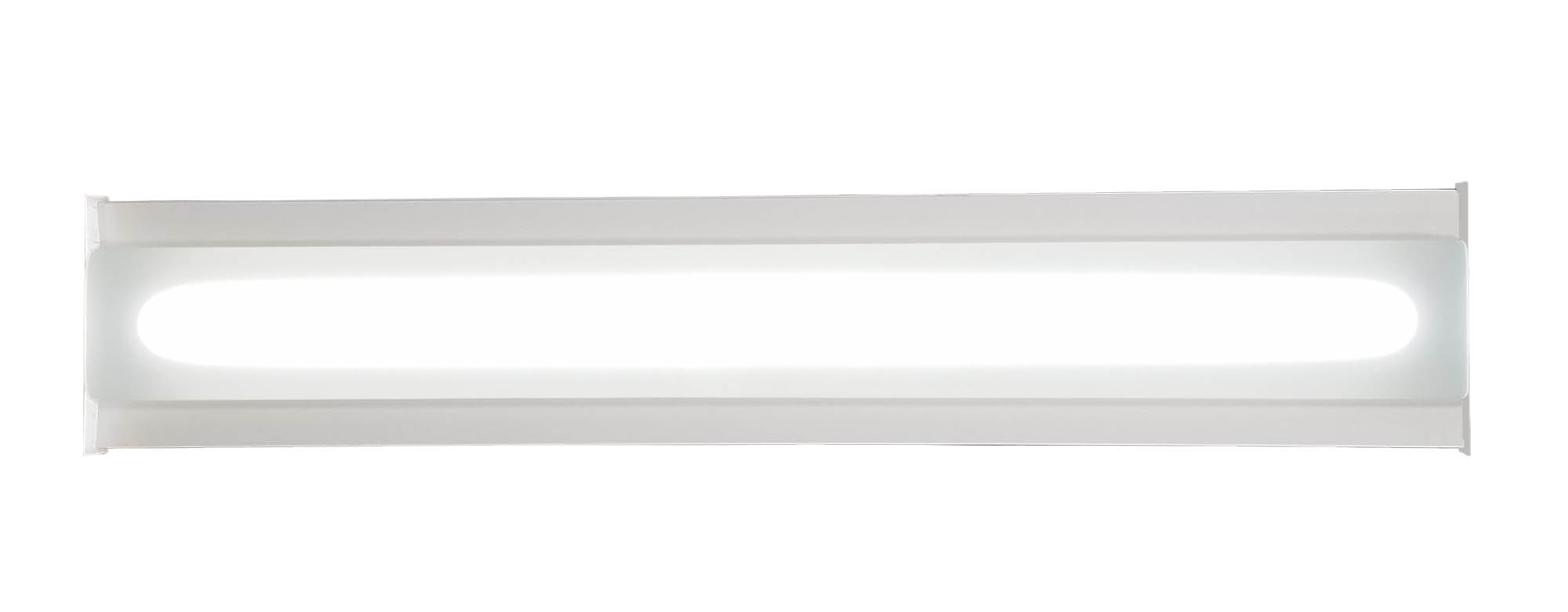

FFRW-4jpg FFRW-4jpg
FFRW
Click to download
FFRW Installation Instructions
DLC, cULus, AiA
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L70 Lifetime
FFR W 4 LW UV FA 8304-foot4,19432133.380 CRI / 3000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 LW UV FA 8354-foot4,26532135.580 CRI / 3500K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 LW UV FA 8404-foot4,4063214080 CRI / 4000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 LW UV FA 8504-foot4,53832144.280 CRI / 5000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 MD UV FA 8304-foot5,8554712680 CRI / 3000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 MD UV FA 8354-foot5,65447128.180 CRI / 3500K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 MD UV FA 8404-foot6,15147132.480 CRI / 4000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 MD UV FA 8504-foot6,33547136.380 CRI / 5000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 HI UV FA 8304-foot7,49762121.680 CRI / 3000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 HI UV FA 8354-foot7,62462123.680 CRI / 3500K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 HI UV FA 8404-foot7,87662127.780 CRI / 4000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
FFR W 4 HI UV FA 8504-foot8,11262131.680 CRI / 5000K120-277V, 347VYes5 yearsUp to 189,000 hours (calculated)
Catalog #
Equivalency*
FFR W 4 LW UV FA 8302L F32 T8 w/ NBF
FFR W 4 LW UV FA 8352L F32 T8 w/ NBF
FFR W 4 LW UV FA 8402L F32 T8 w/ NBF
FFR W 4 LW UV FA 8502L F32 T8 w/ NBF
FFR W 4 MD UV FA 8303L F32 T8 w/ NBF
FFR W 4 MD UV FA 8353L F32 T8 w/ NBF
FFR W 4 MD UV FA 8403L F32 T8 w/ NBF
FFR W 4 MD UV FA 8503L F32 T8 w/ NBF
FFR W 4 HI UV FA 8304L F32 T8 w/ NBF
FFR W 4 HI UV FA 8354L F32 T8 w/ NBF
FFR W 4 HI UV FA 8404L F32 T8 w/ NBF
FFR W 4 HI UV FA 8504L F32 T8 w/ NBF
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
FFR W 4 LW UV FA 830View Download Download
FFR W 4 LW UV FA 835View Download Download
FFR W 4 LW UV FA 840View Download Download
FFR W 4 LW UV FA 850View Download Contact Factory
FFR W 4 MD UV FA 830View Download Download
FFR W 4 MD UV FA 835View Download Download
FFR W 4 MD UV FA 840View Download Download
FFR W 4 MD UV FA 850View Download Contact Factory
FFR W 4 HI UV FA 830View Download Download
FFR W 4 HI UV FA 835View Download Download
FFR W 4 HI UV FA 840View Download Download
FFR W 4 HI UV FA 850View Download Contact Factory

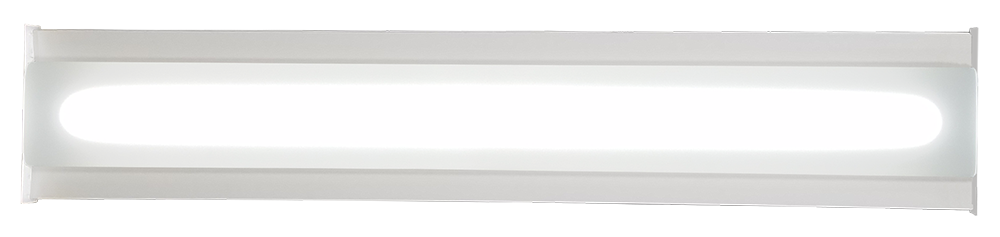

FFRW-4PNG smaller

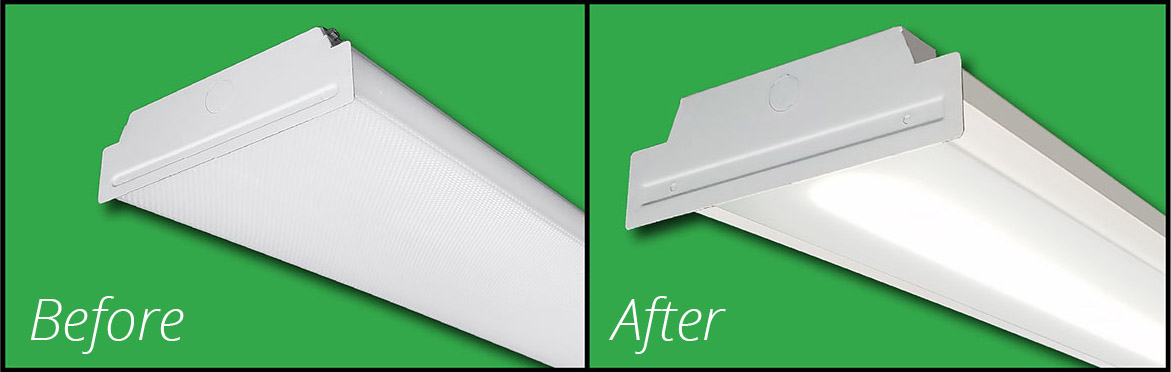

FFRWbeforeaftergreen419

Lift and shift

    The FFRW utilizes a "lift and shift" design concept, which allows it to quickly and easily be installed in the field. The kits ships with the LED drivers and boards installed on the tray. With the original lamps and ballasts removed, the retrofit unit is hung on one side of the existing housing. Safety tethers on both ends of the kit are screwed into the existing housing for added security. The installer wires the driver to the existing power via a quick-disconnect before swinging the kit around to attach the other side. The whole process takes just a few minutes.
FFRW-4PNG smaller

Lift and shift

    The FFRW utilizes a "lift and shift" design concept, which allows it to quickly and easily be installed in the field. The kits ships with the LED drivers and boards installed on the tray. With the original lamps and ballasts removed, the retrofit unit is hung on one side of the existing housing. Safety tethers on both ends of the kit are screwed into the existing housing for added security. The installer wires the driver to the existing power via a quick-disconnect before swinging the kit around to attach the other side. The whole process takes just a few minutes.
FFRWbeforeaftergreen419
