LED Flood / Spot Light

    The FLx is offered in a variety of lumen packages and sizes. There are multiple mounting configurations for maximum versatility. The housing is made of precision die cast aluminum with an integral heat sink, with a chip and fade resistant powder coat finish. The glass lens is constructed out tempered glass.
  • Applications: Suitable for most exterior floodlight applications
  • Sizes: Small (FLS), medium (FLM), large (FLL), extra large (FLX)
  • Lumen Output: From around 2,300 lm up to just over 12,000 lm
  • Max Lumens Per Watt: 120
  • Predicted L70 Lifetime: 88,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: UL 1598 listed for wet locations. IP66 rated.

Click to enlarge

FLL primary FLL primary
FLL
FLS schematic2 FLS schematic2
FLS schematic
FLX3 FLX3
FLX
FLL2 FLL2
FLL
FLM schematic2 FLM schematic2
FLM schematic
FLL schematic2 FLL schematic2
FLL schematic
FLX schematic3 FLX schematic3
FLX schematic
UL mark converted from Matt jpg use with ER
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWSeriesOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
FLS 1 MD F UV 7402,31619.6118.2Small, 1 COBFlood70 CRI / 4000K120-277V5 years88,000 hrs (calculated)
FLM 2 MD F UV 7404,78939.9120Medium, 2 COBsFlood70 CRI / 4000K120-277V5 years88,000 hrs (calculated)
FLL 2 HI F UV 7408,07475.3107.2Large, 2 COBsFlood70 CRI / 4000K120-277V5 years88,000 hrs (calculated)
FLX 3 HI F UV 74012,006113.6105.7Extra Large, 3 COBsFlood70 CRI / 4000K120-277V5 years88,000 hrs (calculated)
Catalog #
Equivalency*
FLS 1 MD F UV 74039W MH
FLM 2 MD F UV 74070W MH
FLL 2 HI F UV 740150W MH
FLX 3 HI F UV 740250W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
FLS 1 MD F UV 740View Download Download
FLM 2 MD F UV 740View Download Download
FLL 2 HI F UV 740View Download Download
FLX 3 HI F UV 740View Download Download

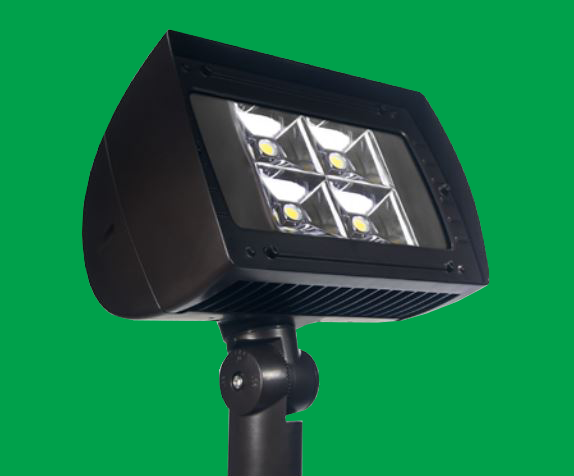

FLX green bg

Wide range of outputs

    The FLx is available in four different sizes, from the 19.6W, 2,316-lumen FLS up to the 113.6W, 12,000-lumen FLX. Each size is available with a slipfitter knuckle or trunnion mount option for mounting, and either flood or spot optics.
