LED Selectable Backlit Flat Panel

The FPB Select is an adjustable LED flat panel, with three wattage outputs and three color temperature options that are field selectable. Wattage and CCT are easily adjusted via switches on the back. The FPB Select features state-of-the-art backlit LED technology. Illumination is uniform, with minimal glare and no visible LED pixelation. PMMA lensing over the LEDs will not discolor over time. The FPB Select's frame is aluminum, with a white finish. The rigid back enclosure is die-formed steel, which prevents warping. The FPB Select can be recessed into grid ceilings. Surface mount and suspension cable mount kits are available.

Applications: Suitable for most commercial, industrial and institutional applications - office, retail, classrooms, healthcare facilities
Lumen Output: 2,500 to 5,625 lm
Max Lumens Per Watt: 127.5
Predicted L70 Lifetime: >60,000 hours (reported)
Warranty: 5 year limited system warranty
Certifications: UL listed for US and Canada, suited for damp locations. IC-rated for insulated ceilings, RoHS, FCC

Buy Now

Request a Quote

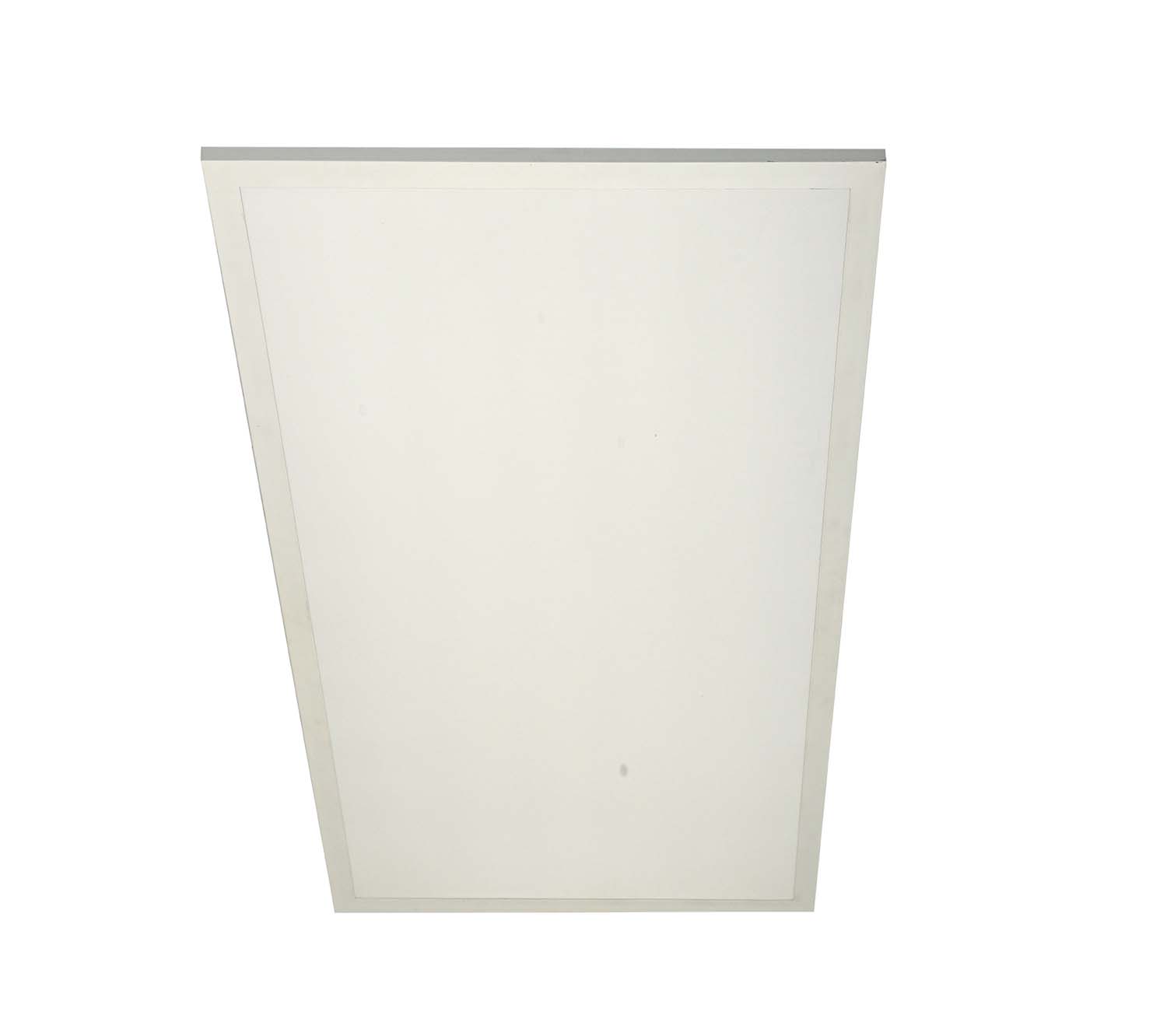

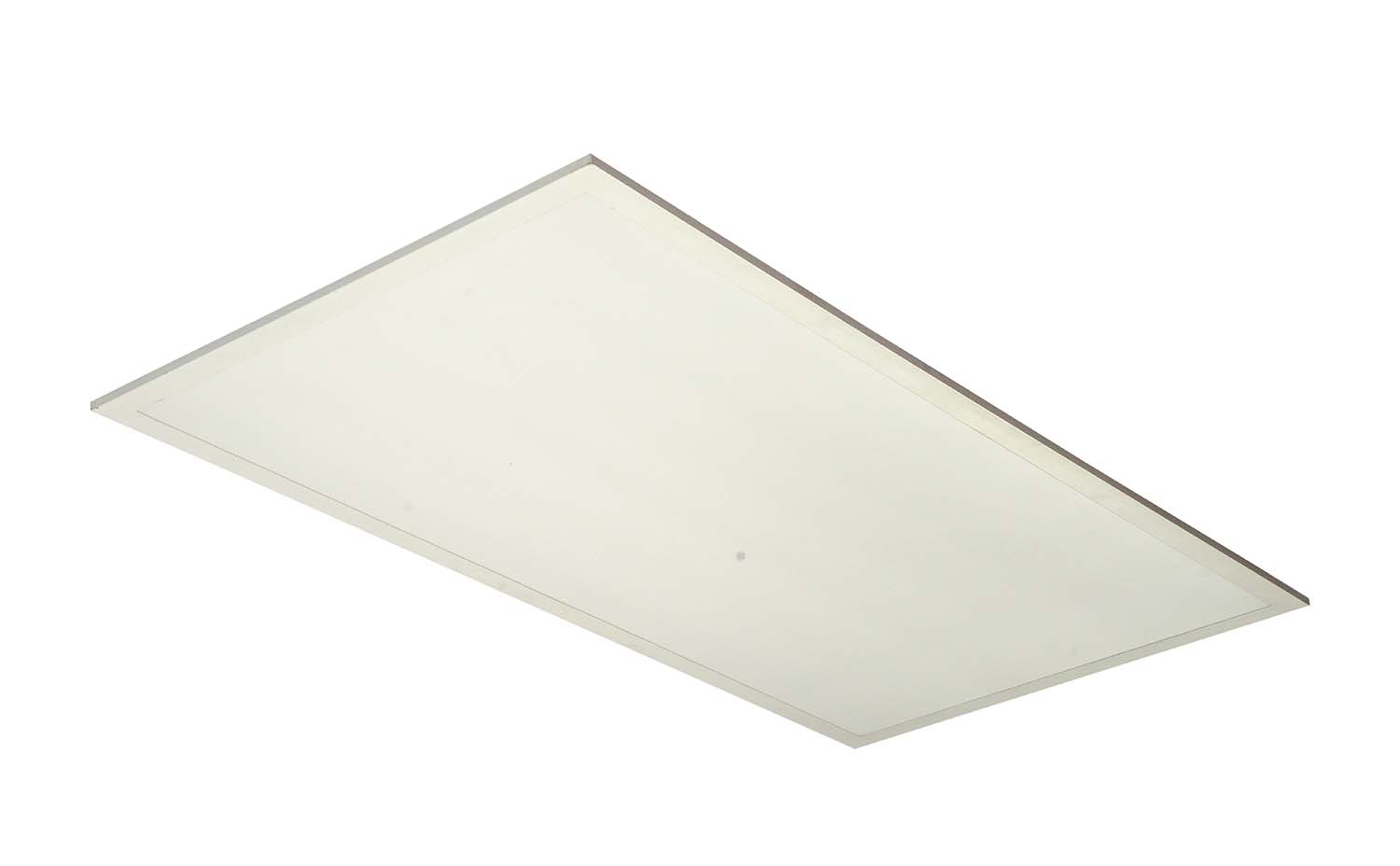

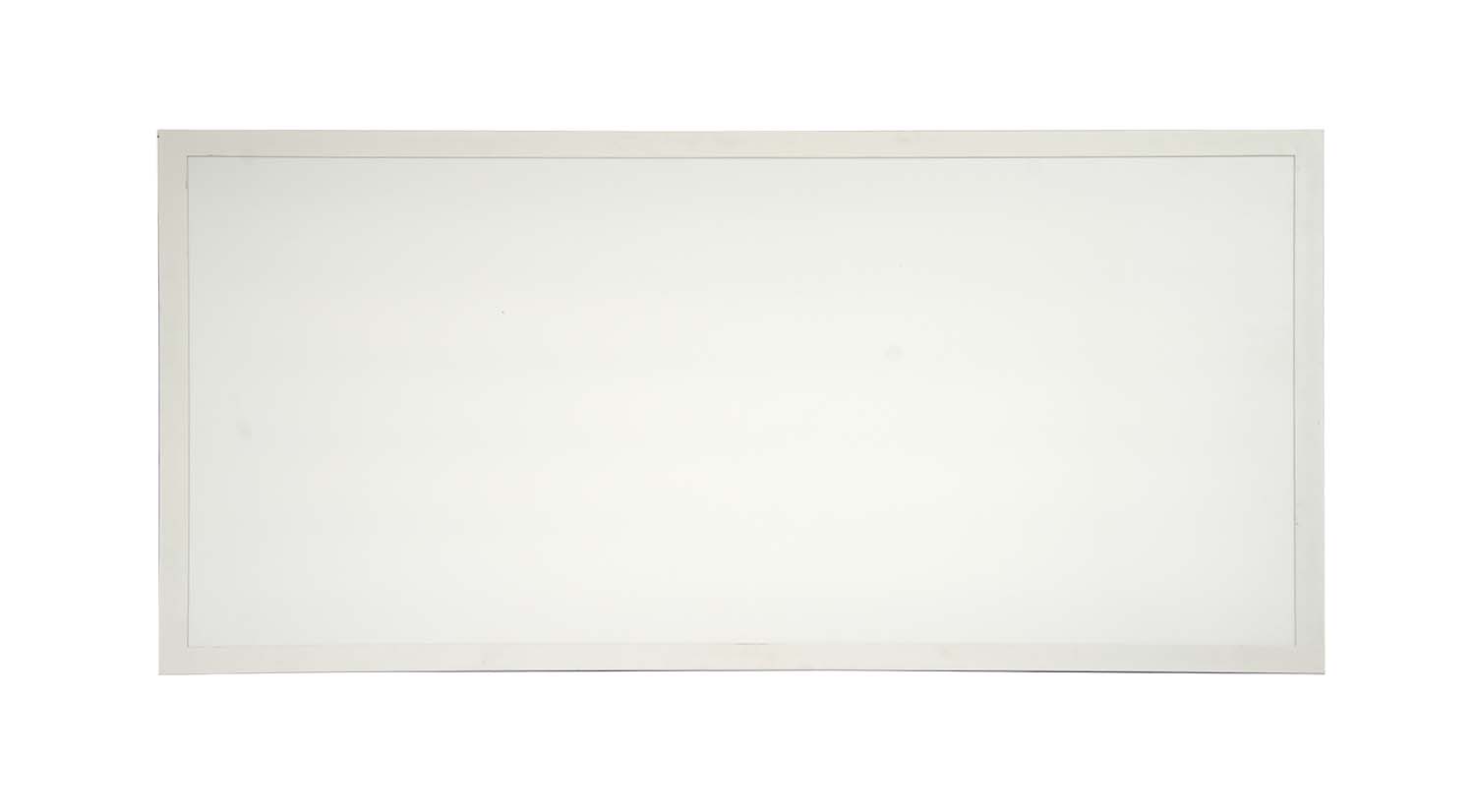

FPB Select 2x4
FPB Select 2x4
FPB Select 2x4
FPB Select 2x4

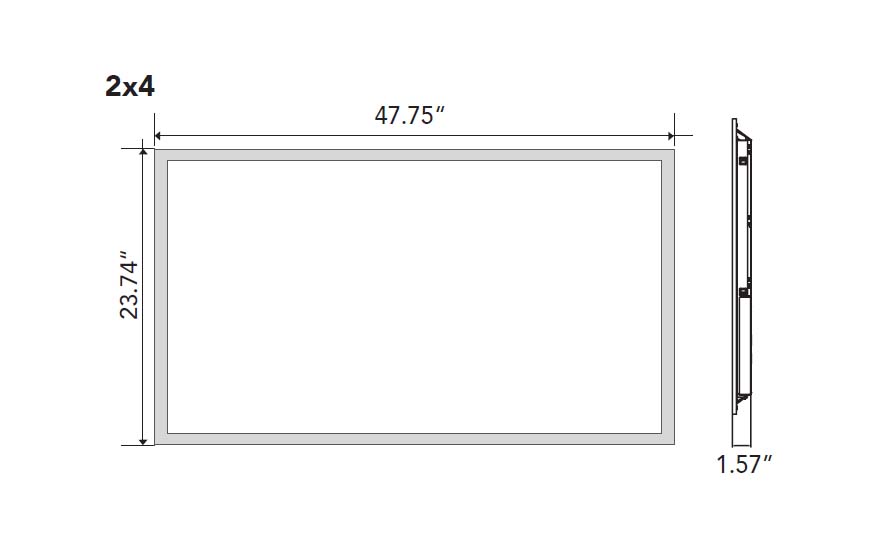

FPB Select 2x4 schematic

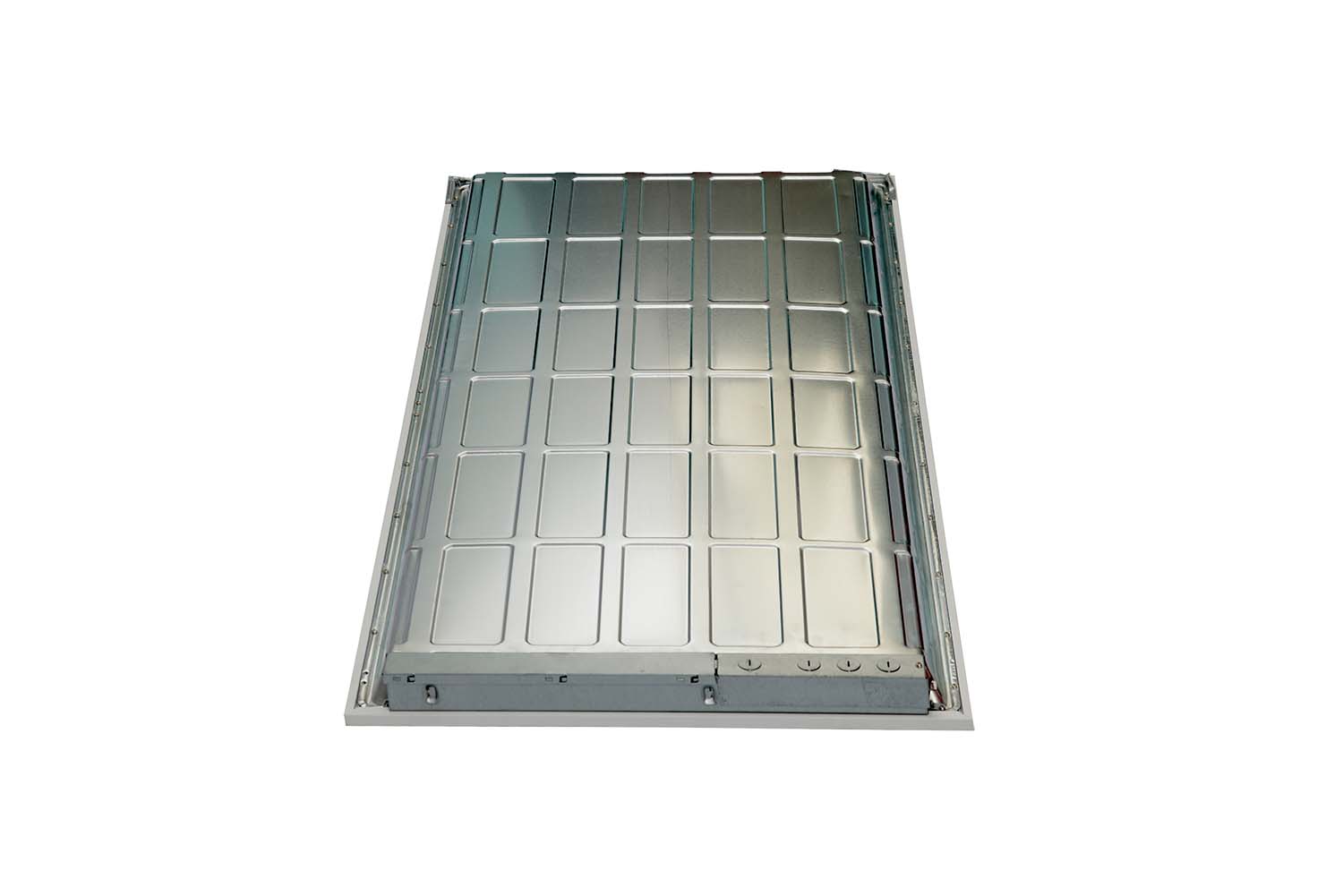

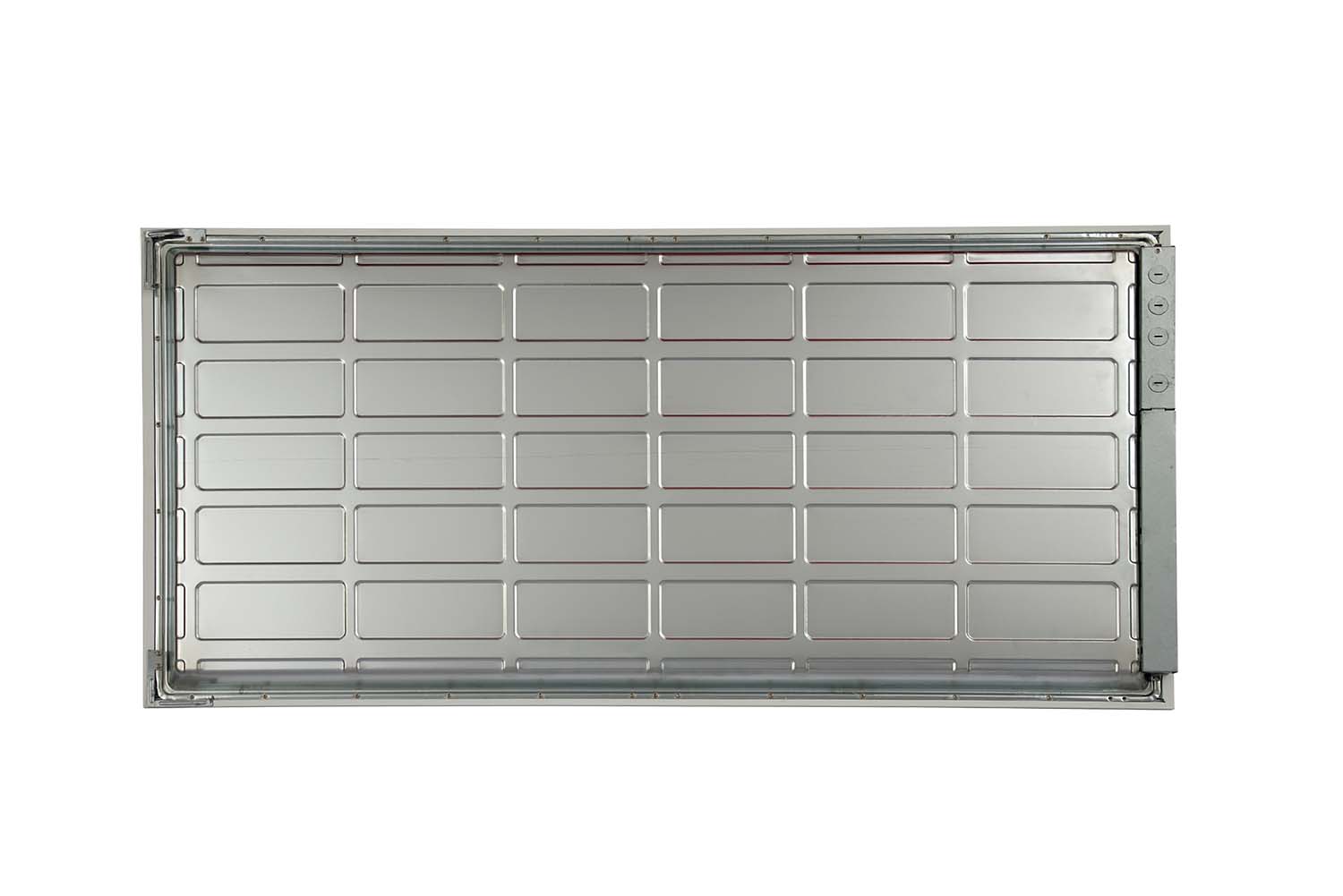

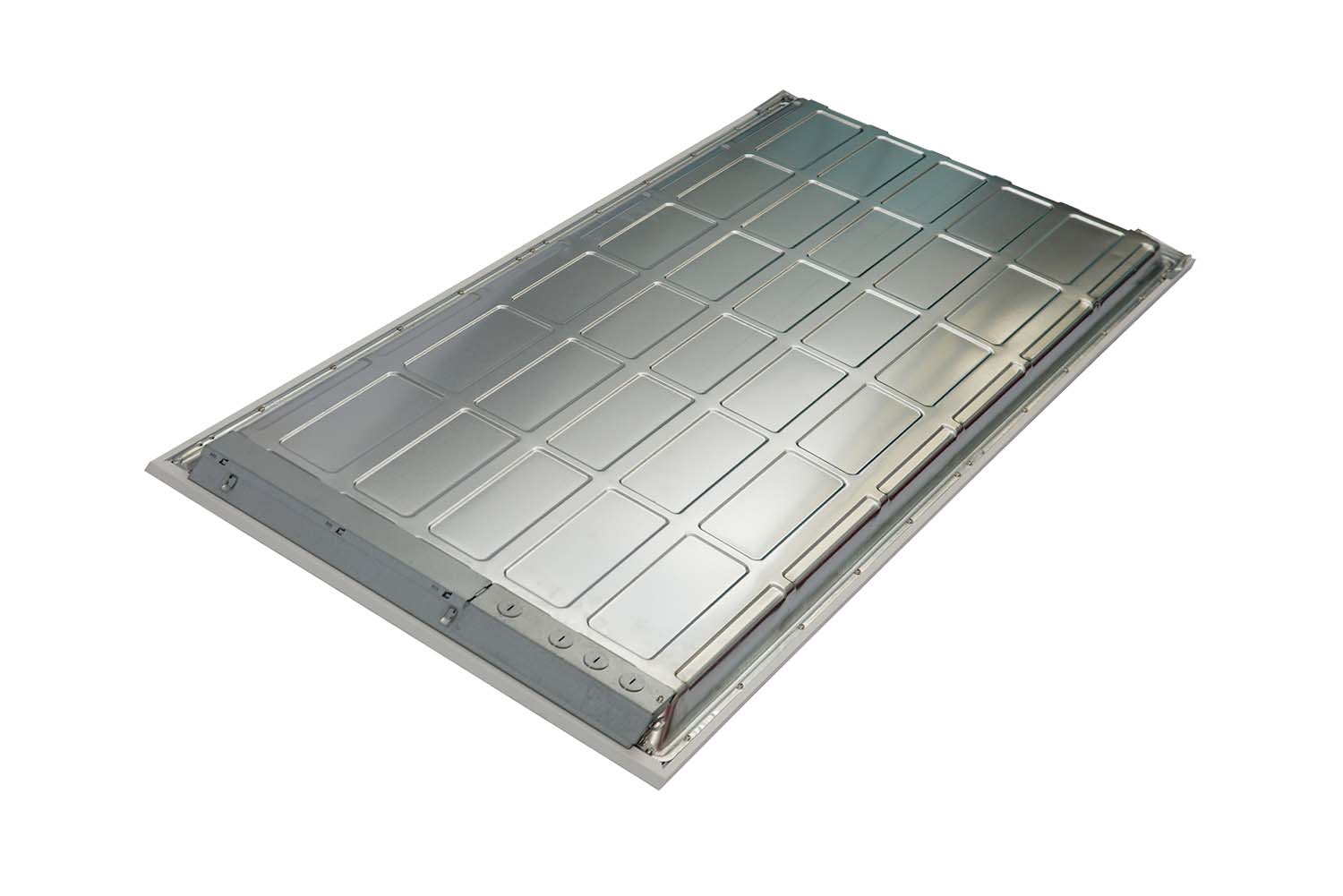

FPB Select 2x4, back view
FPB Select 2x4, back view
FPB Select 2x4, back view

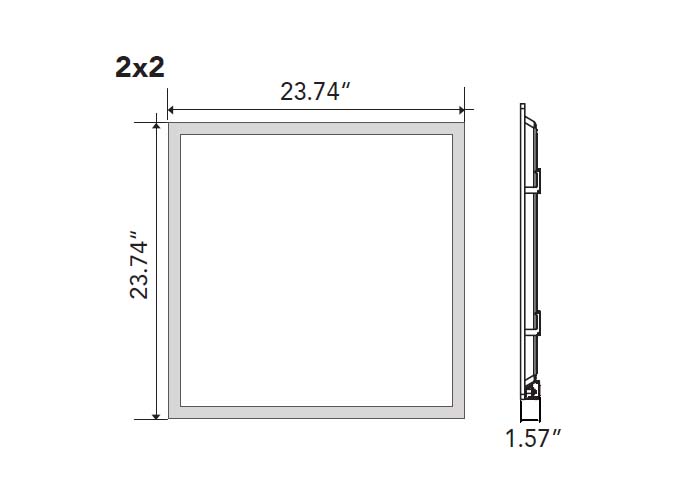

FPB Select 2x2 schematic

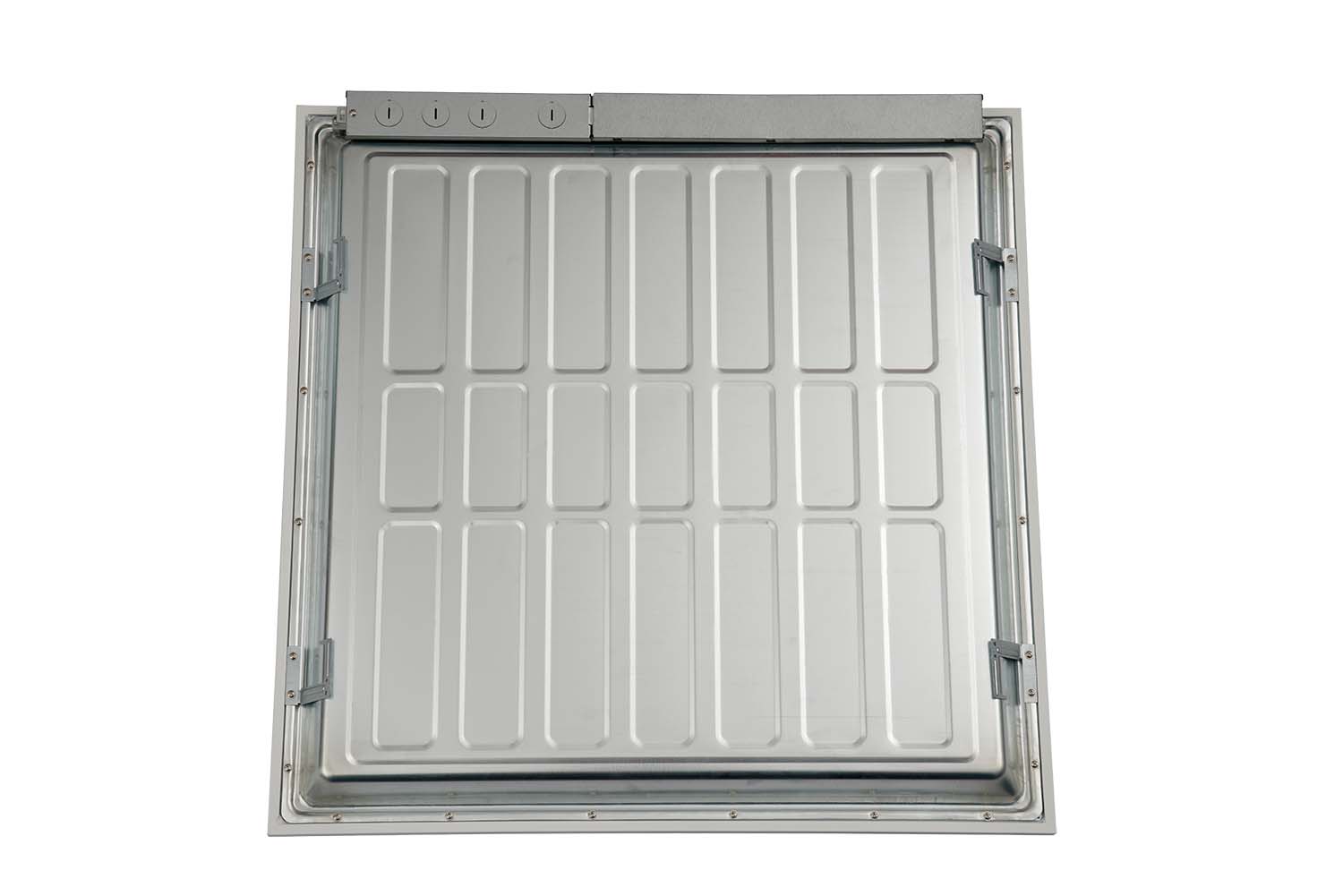

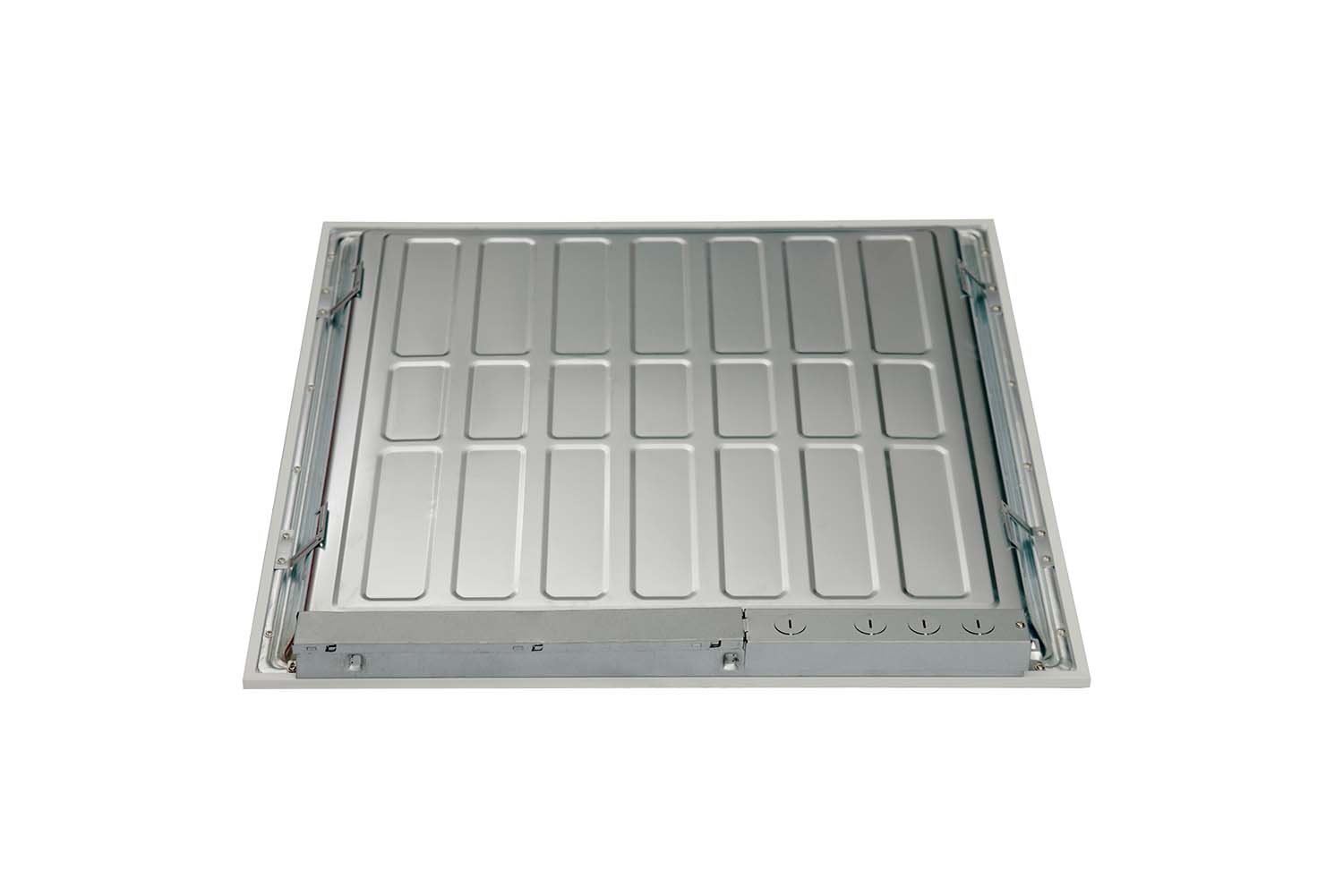

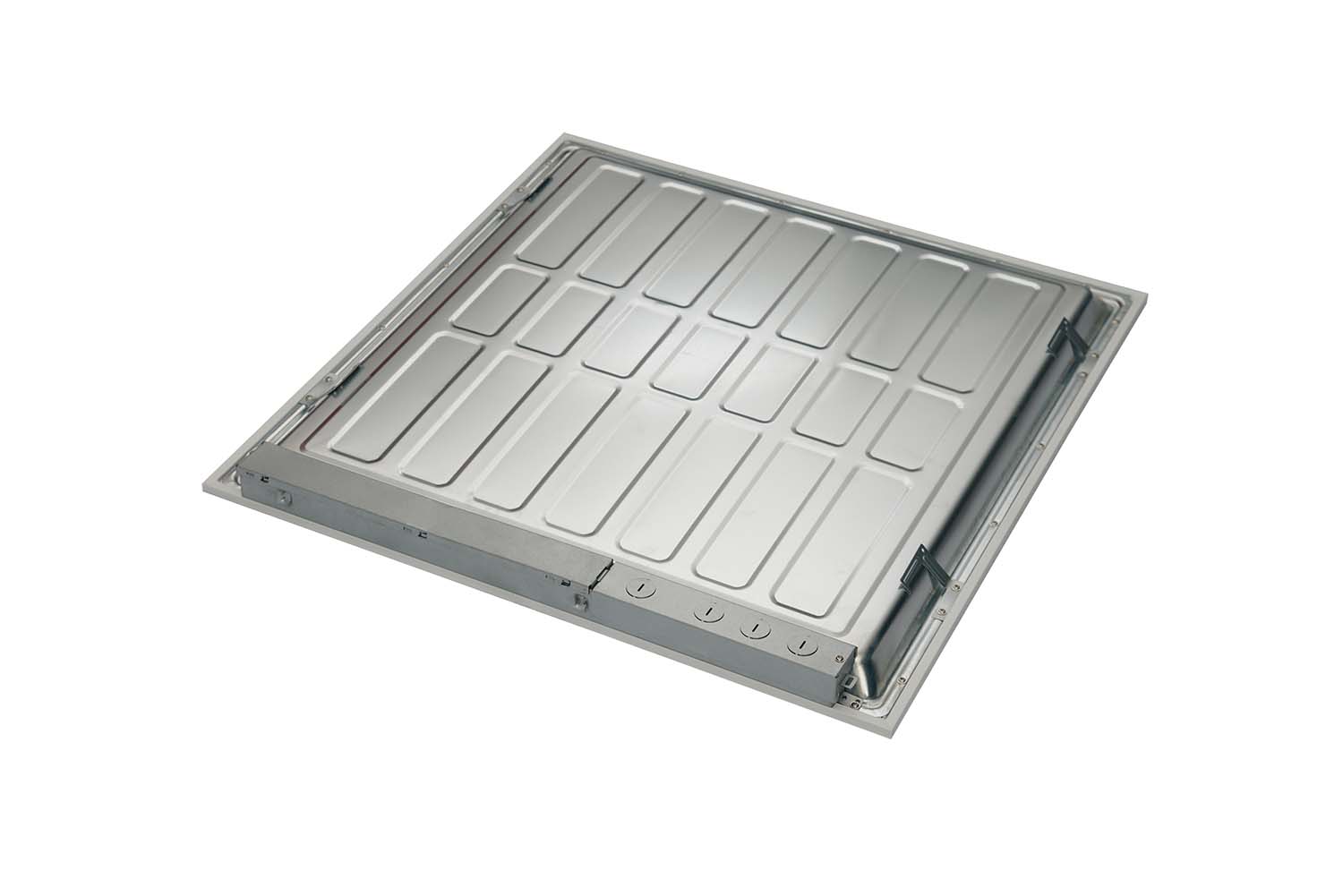

FPB Select 2x2, back view
FPB Select 2x2, back view
FPB Select 2x2, back view

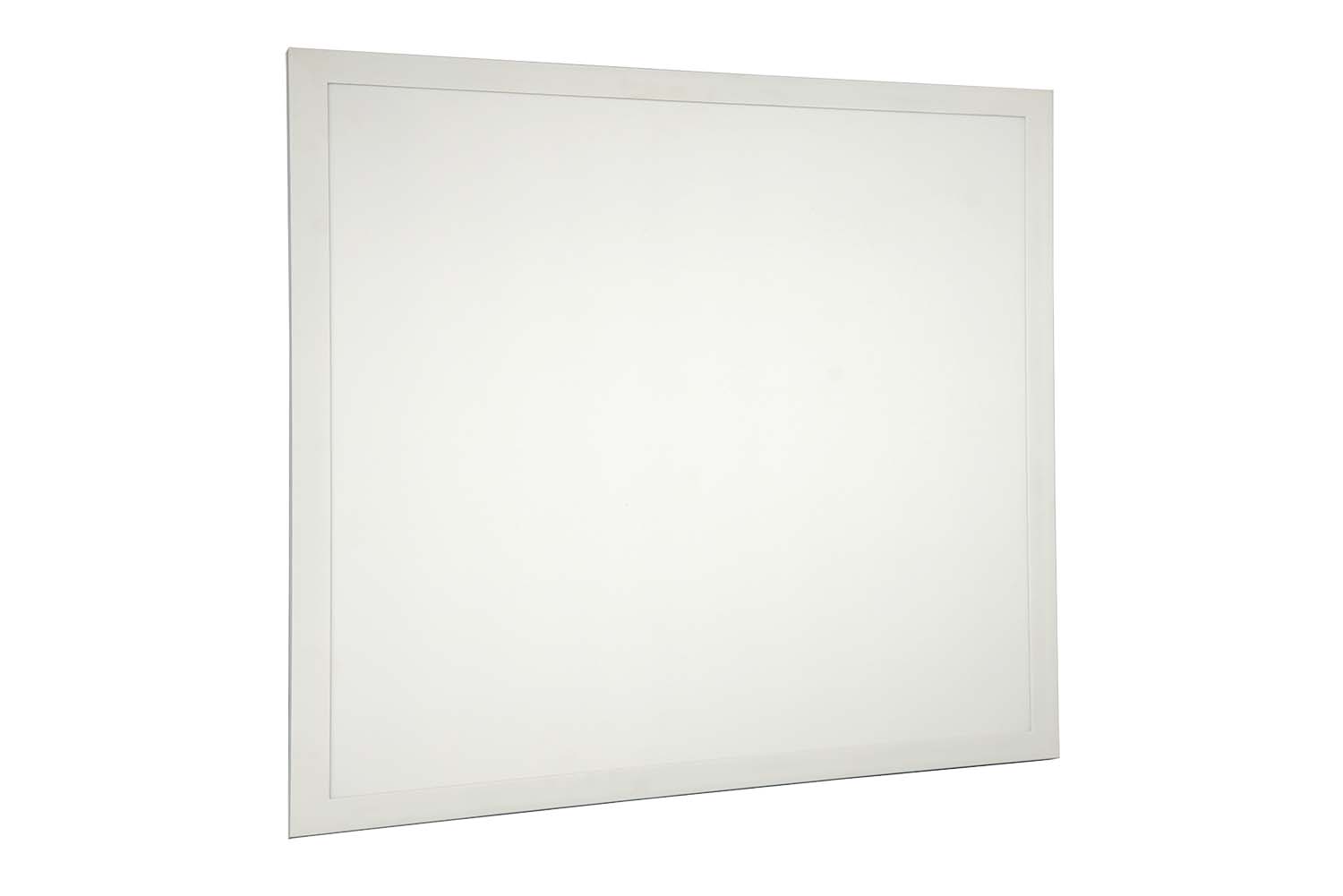

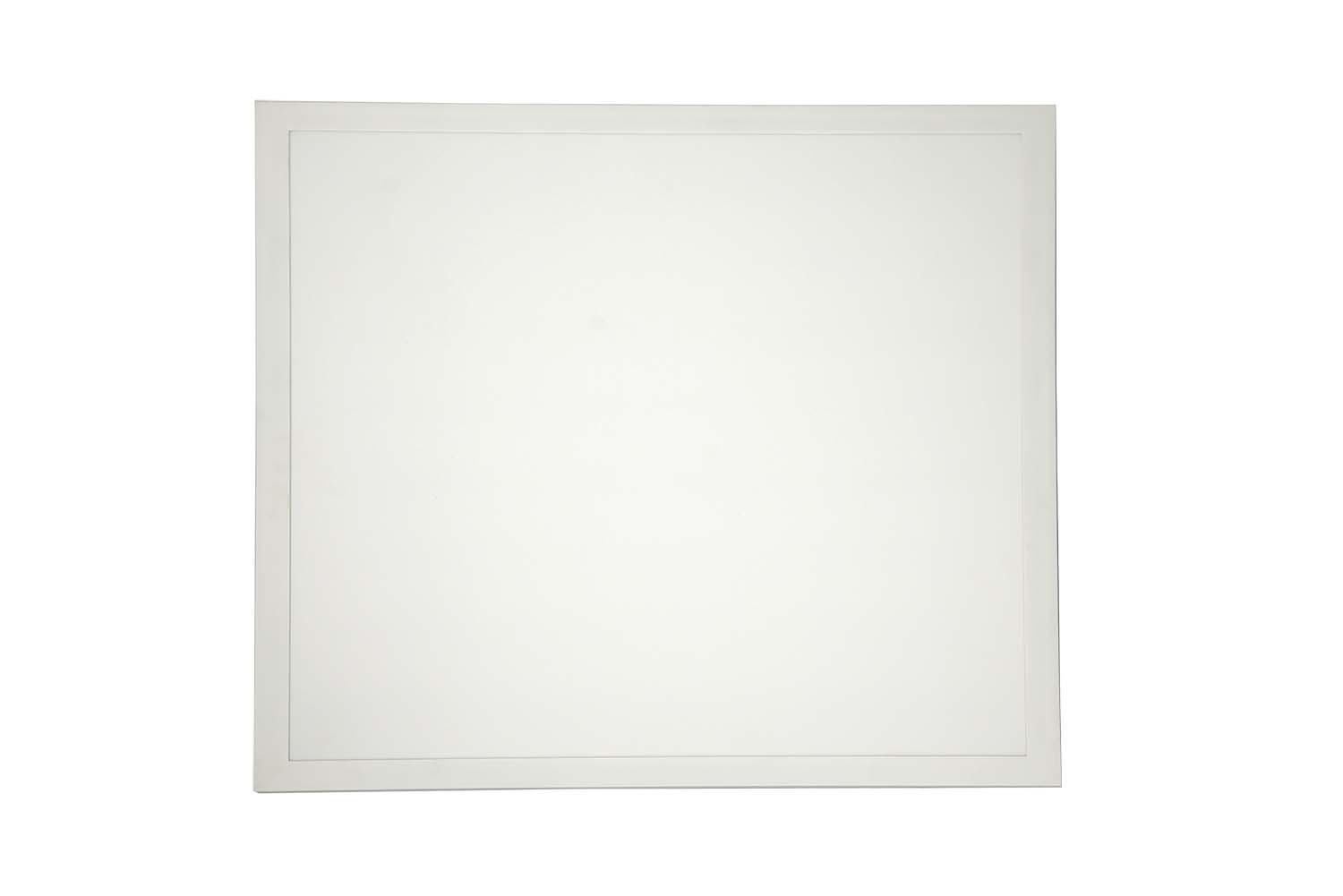

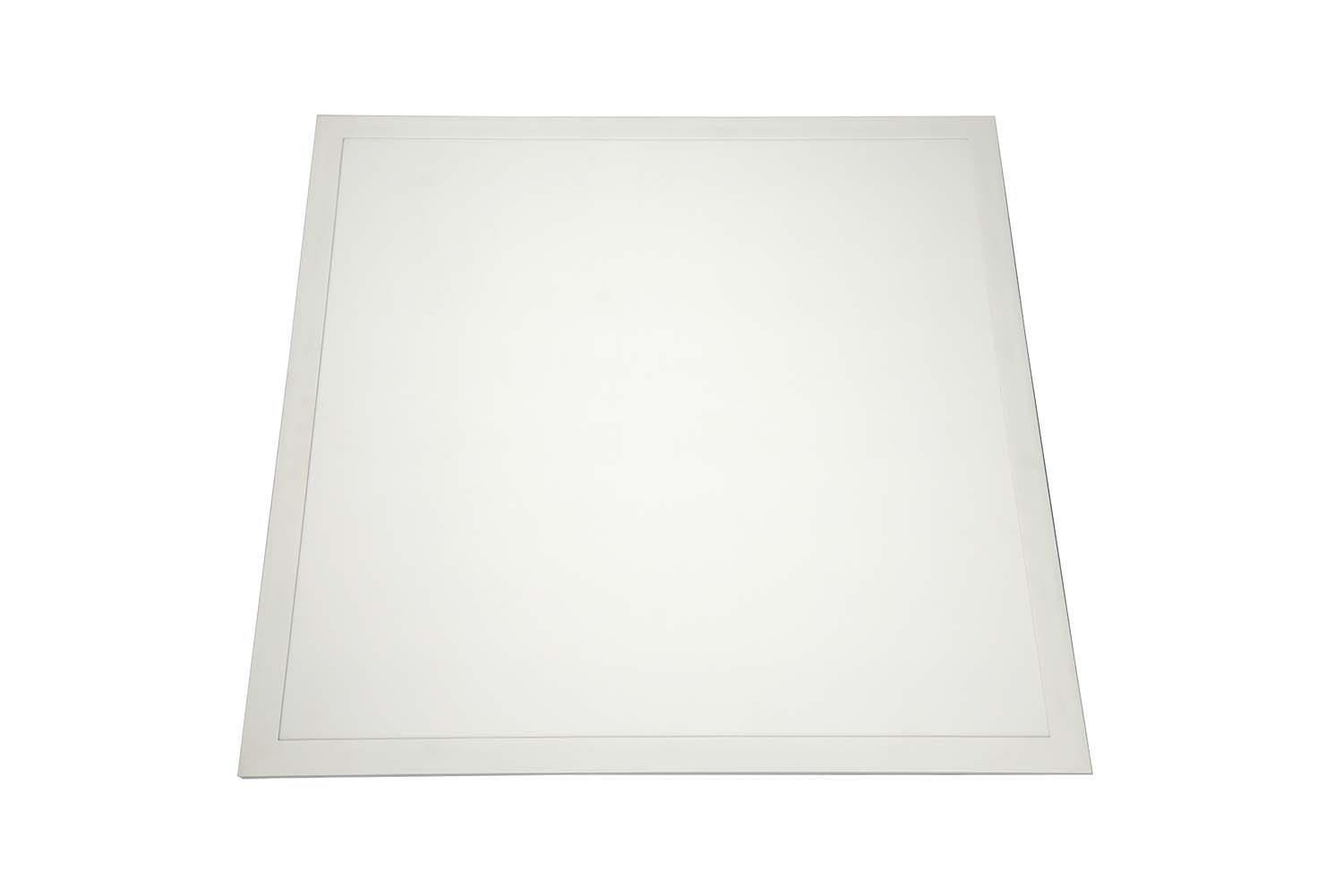

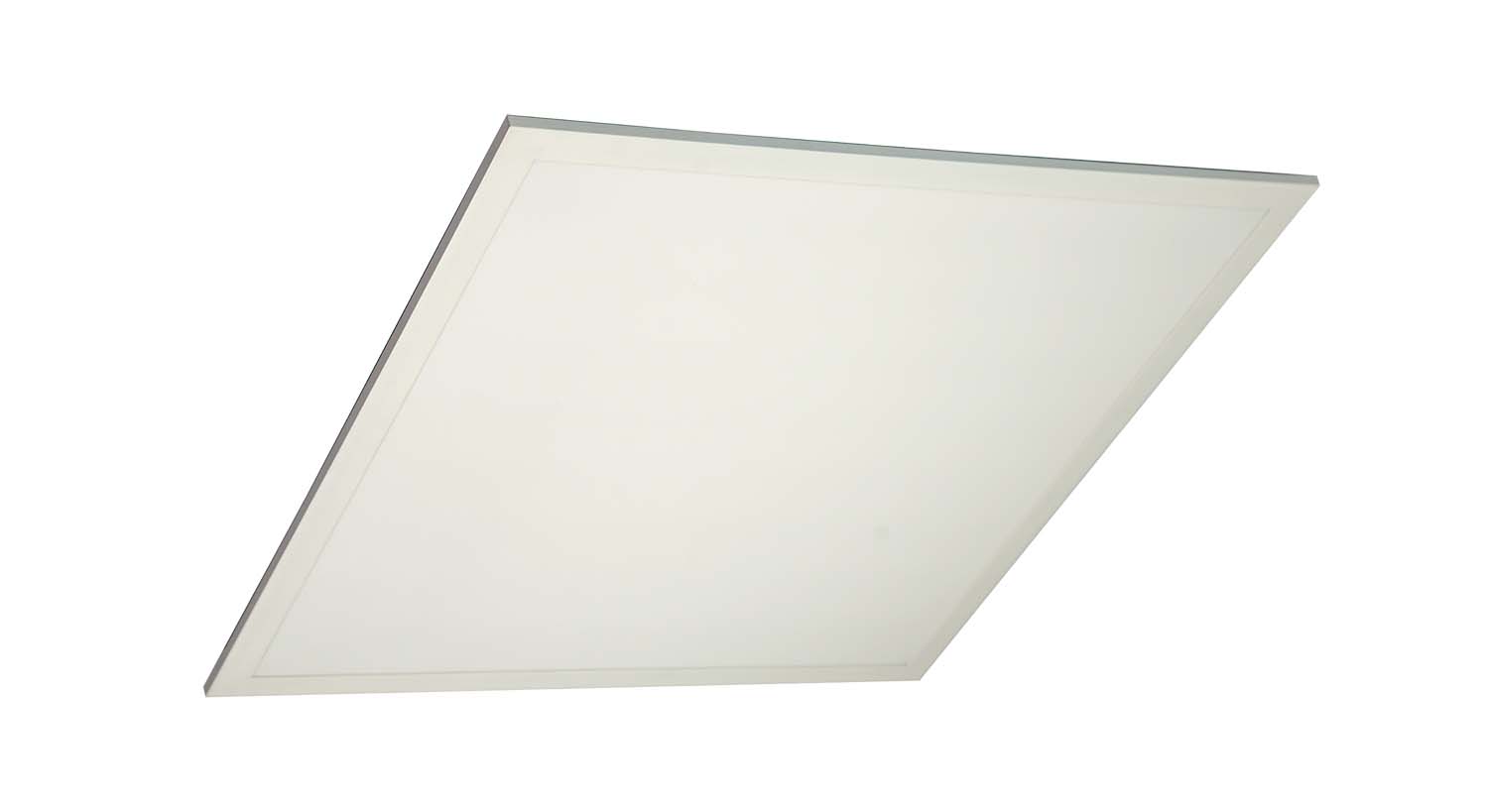

FPB Select 2x2
FPB Select 2x2
FPB Select 2x2
FPB Select 2x2
FPB Select 1x4 schematic

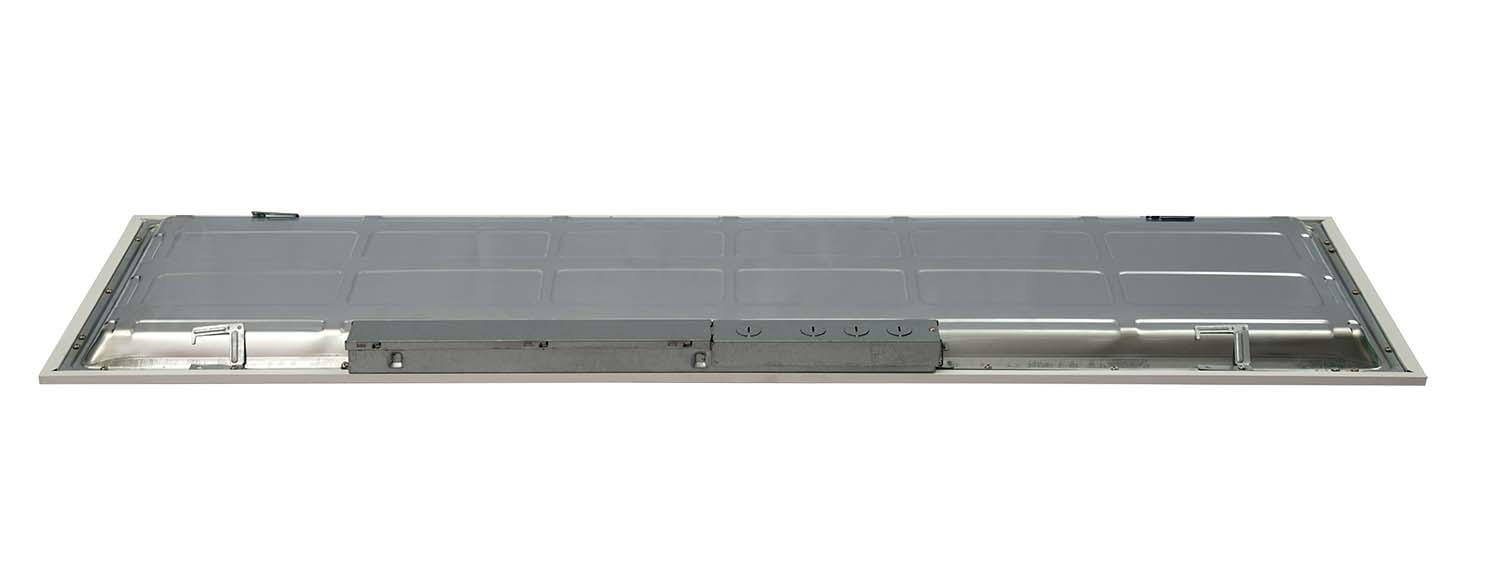

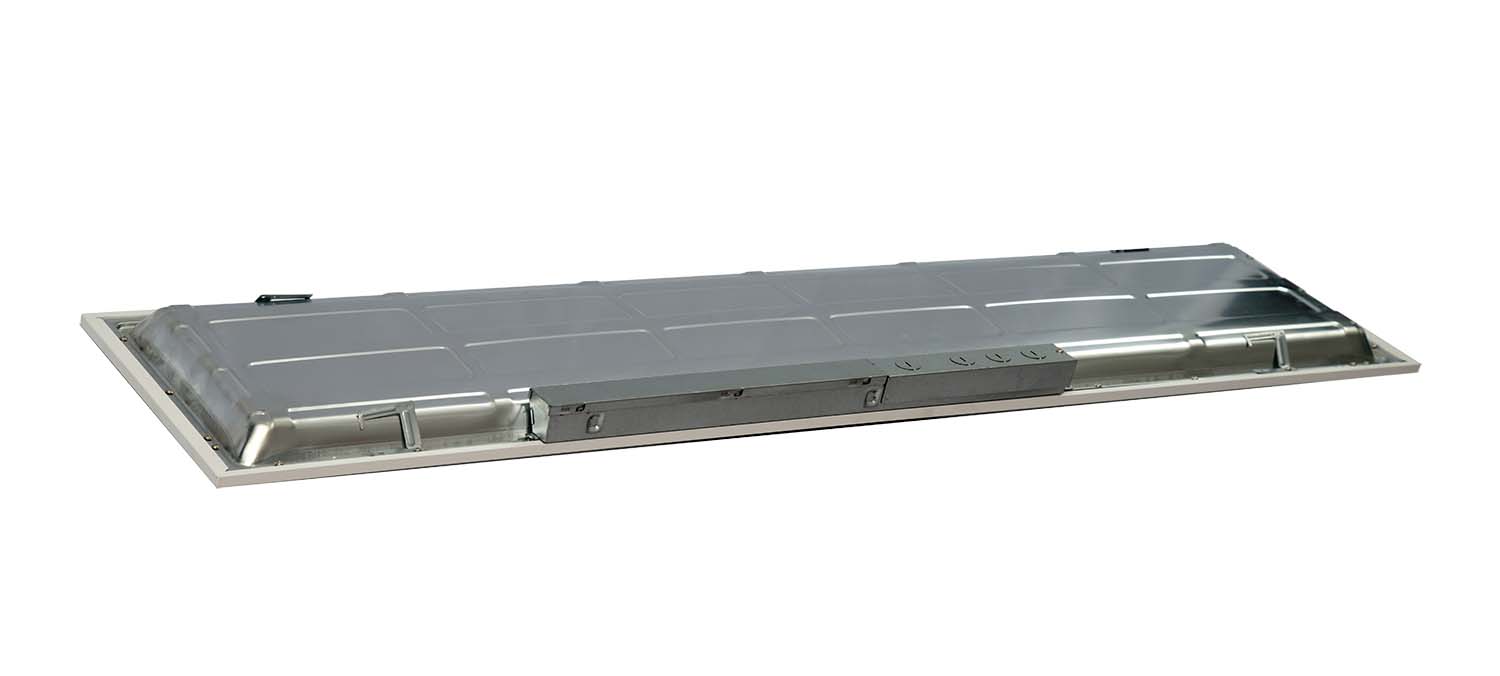

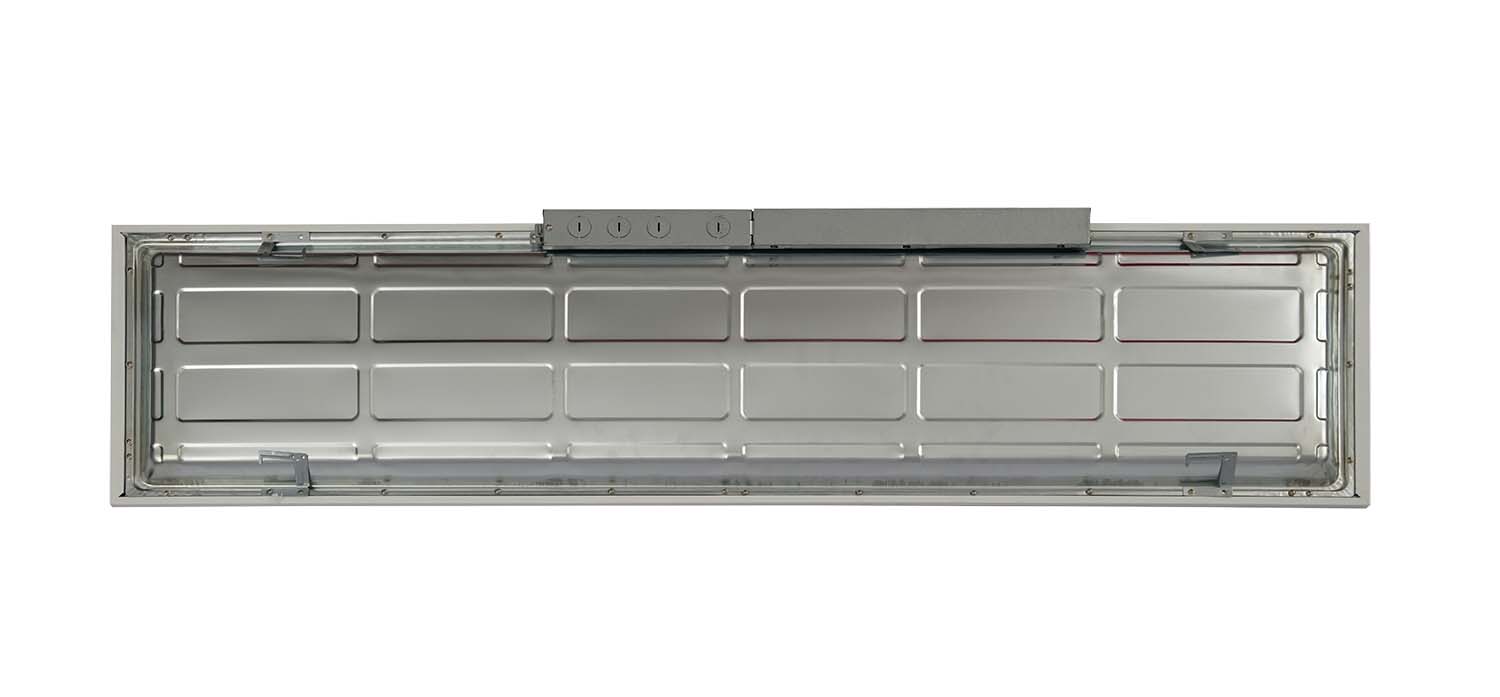

FPB Select 1x4, back view
FPB Select 1x4, back view
FPB Select 1x4, back view

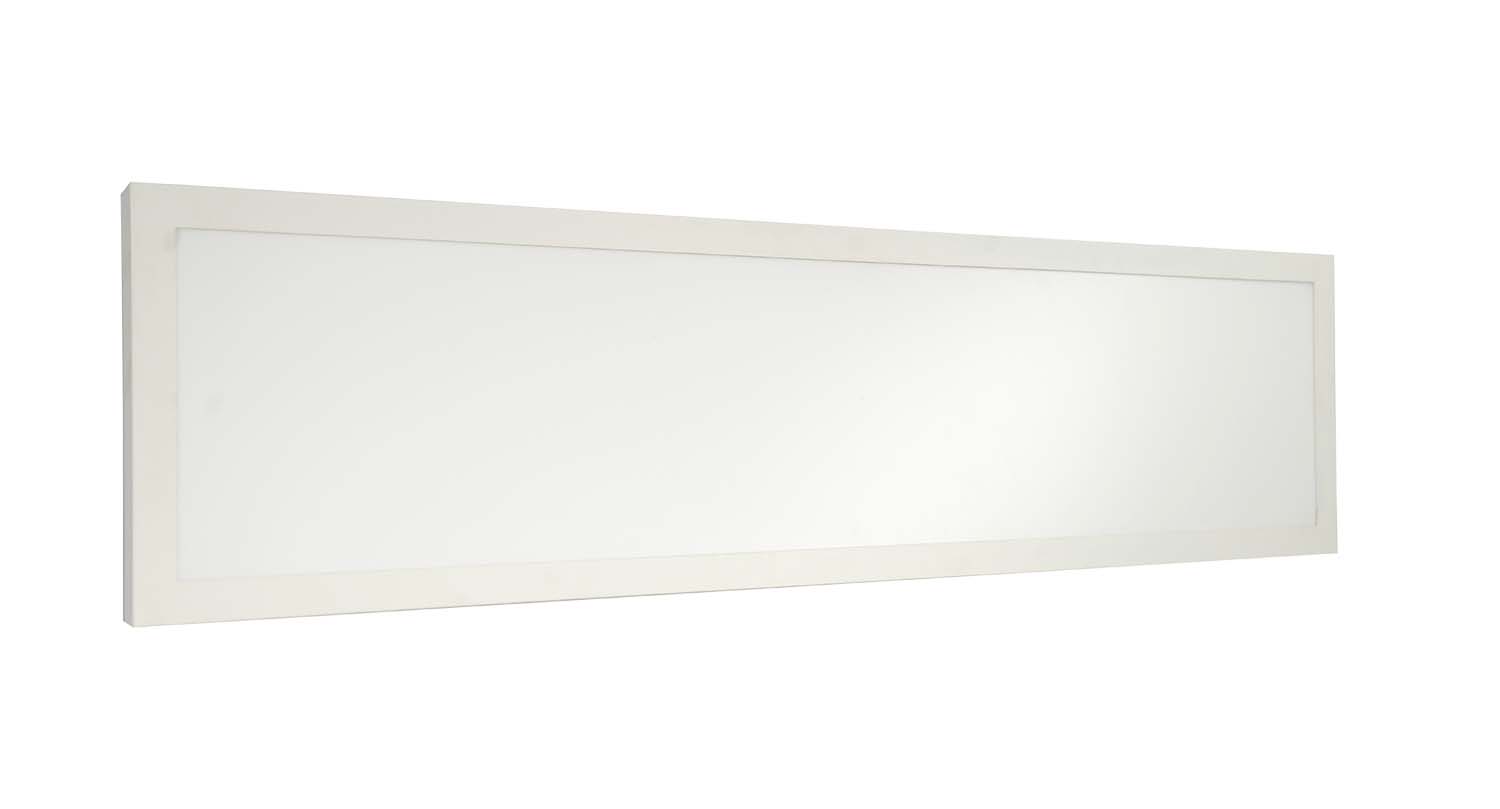

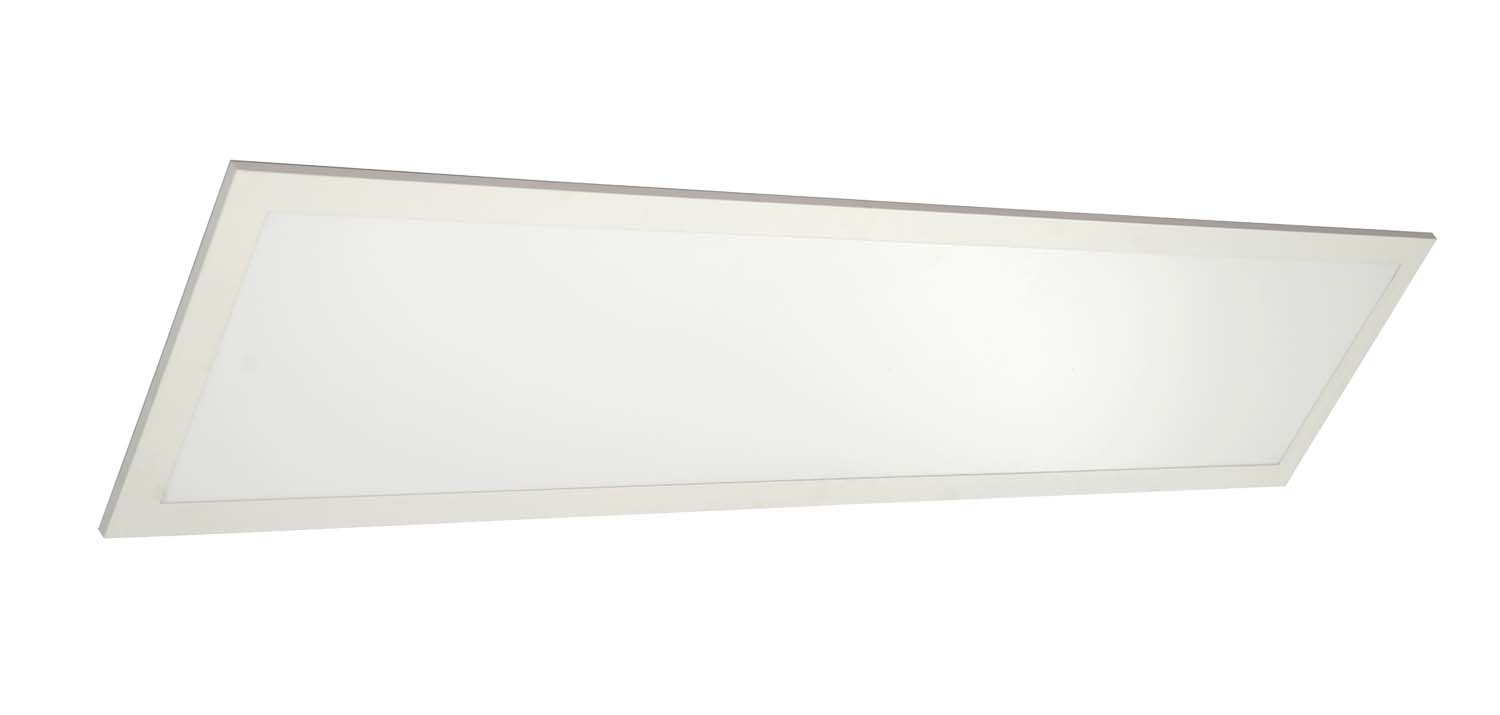

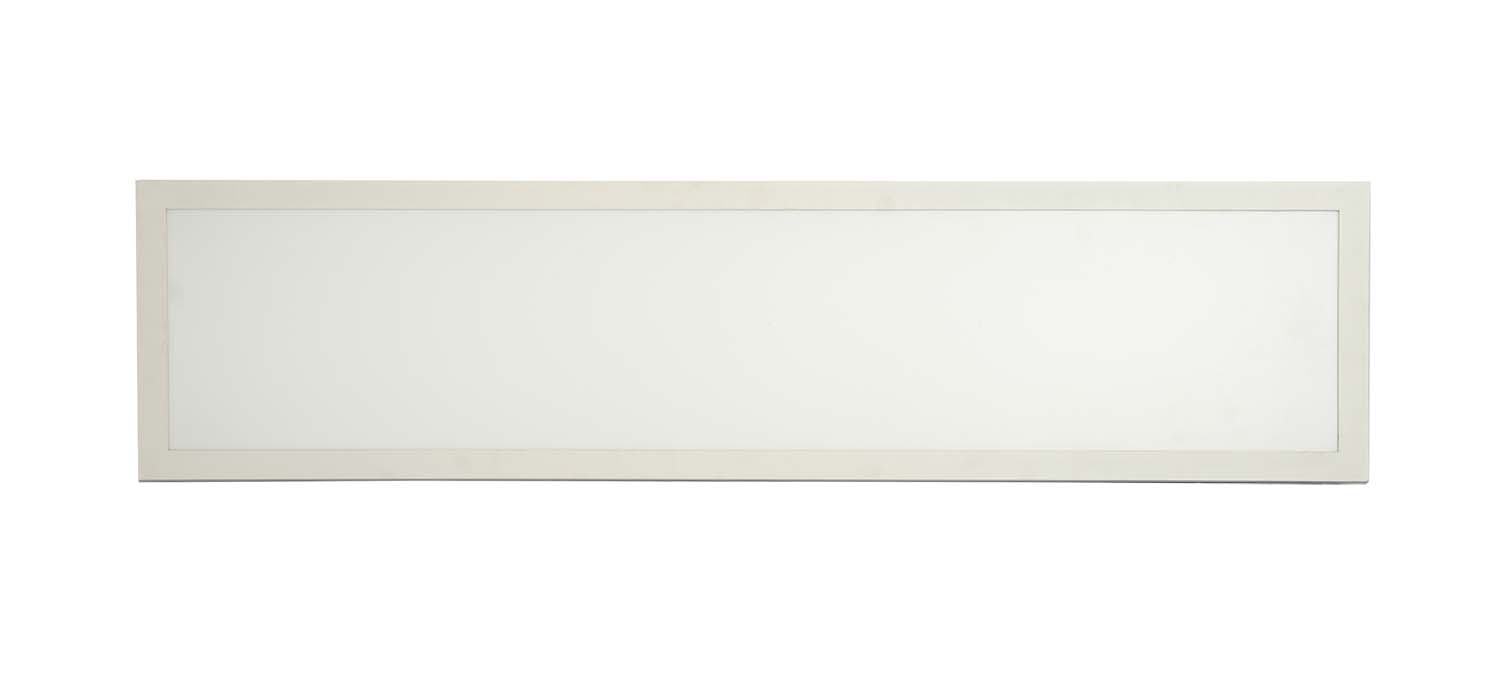

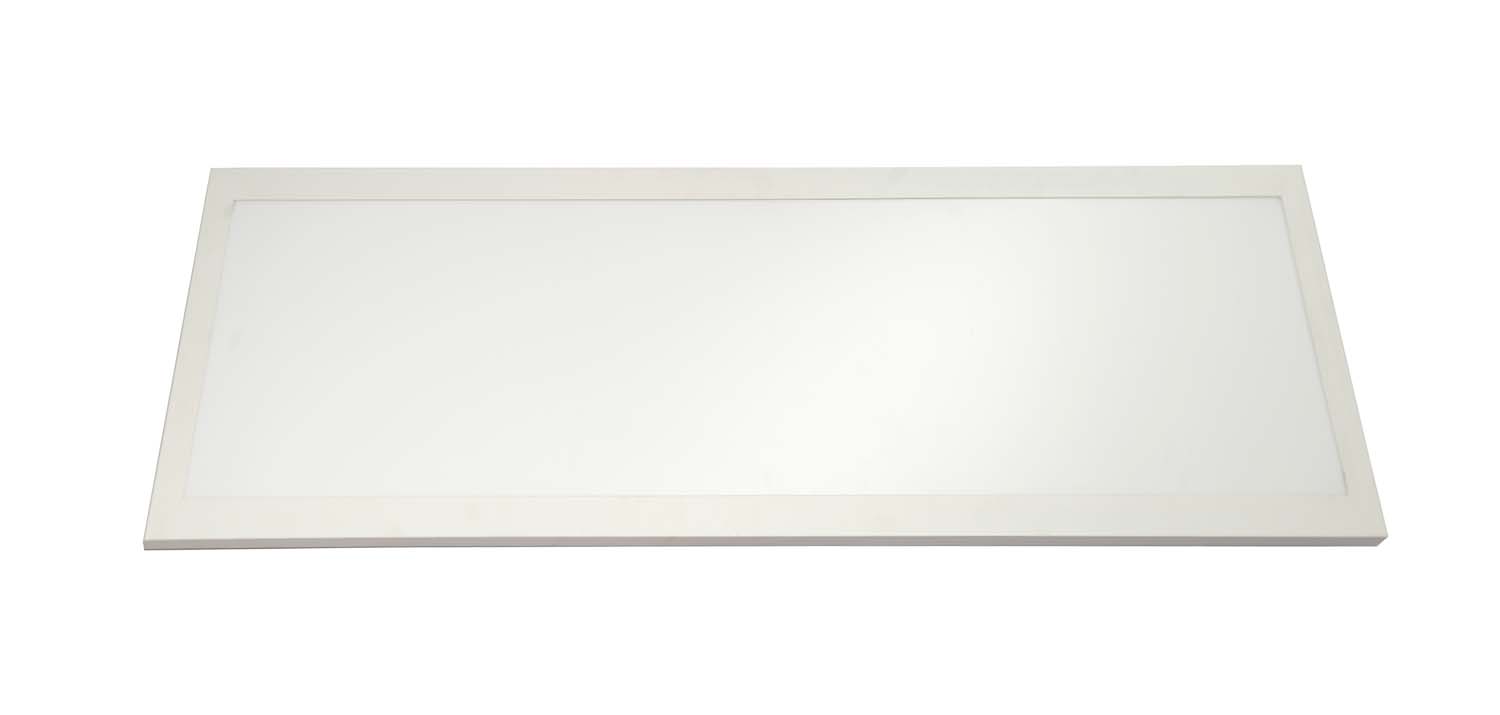

FPB Select 1x4
FPB Select 1x4
FPB Select 1x4
FPB Select 1x4

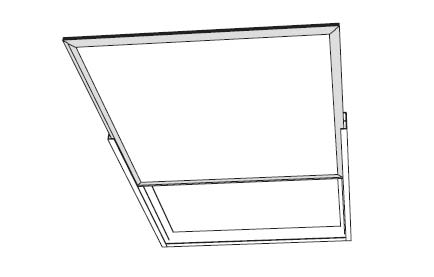

FPB Select surface mount kit

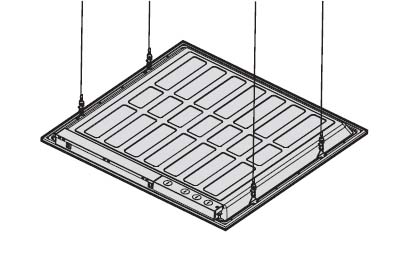

4-cable mounting kit

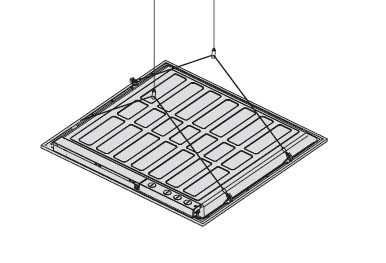

2-cable mounting kit

Buy Now

Request a Quote

Note: Table scrolls horizontally

Catalog #	Size	Lumens	Watts	LPW	CRI / Selected Color Temp	Voltages Available	Predicted L70 Lifetime
FPB 22 SEL UV FR 8SEL	2x2	2500	20	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	3750	30	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	4500	36	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	2550	20	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	3825	30	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	4590	36	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	2550	20	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	3825	30	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 22 SEL UV FR 8SEL	2x2	4590	36	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	3750	30	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	5000	40	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	6250	50	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	3825	30	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	5100	40	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	6350	50	127	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	3825	30	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	5100	40	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 24 SEL UV FR 8SEL	2x4	6350	50	127	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	2500	20	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	3750	30	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	5000	40	125	80 CRI / 3500K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	2550	20	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	3825	30	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	5100	40	127.5	80 CRI / 4000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	2550	20	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	3825	30	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)
FPB 14 SEL UV FR 8SEL	1x4	5100	40	127.5	80 CRI / 5000K	120-277V	>60,000 hrs (reported)

Catalog #	Equivalency*
FPB 22 SEL UV FR 8SEL at 20W	2L F17 T8 w/ NBF or 2L F17 T8 w/ HBF
FPB 22 SEL UV FR 8SEL at 30W	4L F17 T8 w/ NBF or 2L FB32 T8 w/ NBF
FPB 22 SEL UV FR 8SEL at 36W	2L FB32 T8 w/ HBF
FPB 24 SEL UV FR 8SEL at 30W	2L F32 T8 w/ NBF
FPB 24 SEL UV FR 8SEL at 40W	2L F32 T8 w/ HBF
FPB 24 SEL UV FR 8SEL at 50W	3L F32 T8 w/ NBF
FPB 14 SEL UV FR 8SEL at 20W	1L F32 T8 w/ NBF
FPB 14 SEL UV FR 8SEL at 30W	2L F32 T8 w/ NBF
FPB 14 SEL UV FR 8SEL at 40W	2L F32 T8 w/ HBF

*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.

Catalog #	Image	Spec Sheet	.ies & .pdf files
FPB 22 SEL UV FR 8SEL	View	Download	Download
FPB 24 SEL UV FR 8SEL	View	Download	Download
FPB 14 SEL UV FR 8SEL	View	Download	Download

Mounting options

There are three mounting kit options that can be ordered separately. From left: the Surface Mount Kit (for 2x2 and 2x4 sizes), the 2-Cable Kit for suspension mounting, and the 4-Cable Kit for suspension mounting.
