LED Backlit Flat Panel

    The FPB features state-of-the-art backlit LED technology. Illumination is uniform, with minimal glare and no visible LED pixelation. PMMA lensing over the LEDs will not discolor over time. The FPB's frame is aluminum, with a white finish. The rigid back enclosure is die-formed steel, which prevents warping. The FPB can be recessed into grid ceilings. Surface mount and suspension cable mount kits are available.
  • Applications: Suitable for most commercial, industrial and institutional applications - office, retail, classrooms, healthcare facilities
  • Lumen Output: 3,750 to 6,375 lm
  • Max Lumens Per Watt: 127.5
  • Predicted L70 Lifetime: >60,000 hours (reported)
  • Warranty: 5 year limited system warranty
  • Certifications: UL listed for US and Canada, suited for damp locations. IC-rated for insulated ceilings, RoHS, FCC

Click to enlarge

FPB2x4-7jpg FPB2x4-7jpg
FPB 2x4, back view
FPB2x4-6jpg FPB2x4-6jpg
FPB 2x4, back view
FPB2x4-5jpg FPB2x4-5jpg
FPB 2x4, back view
FPB2x4-4jpg FPB2x4-4jpg
FPB 2x4
FPB2x4-3jpg FPB2x4-3jpg
FPB 2x4
FPB2x4-2jpg FPB2x4-2jpg
FPB 2x4
FPB2x4-1jpg FPB2x4-1jpg
FPB 2x4
FPB2x2SchematicJPG FPB2x2SchematicJPG
FPB 2x2 schematic
FPB2x2-7jpg FPB2x2-7jpg
FPB 2x2, back view
FPB2x2-6jpg FPB2x2-6jpg
FPB 2x2, back view
FPB2x2-5jpg FPB2x2-5jpg
FPB 2x2, back view
FPB2x2-4jpg FPB2x2-4jpg
FPB 2x2
FPB2x2-3jpg FPB2x2-3jpg
FPB 2x2
FPB2x2-2jpg FPB2x2-2jpg
FPB 2x2
FPB2x2-1jpg FPB2x2-1jpg
FPB 2x2
FPB1x4SchematicJPG FPB1x4SchematicJPG
FPB 1x4 schematic
FPB1X4-7jpg FPB1X4-7jpg
FPB 1x4, back view
FPB1X4-6Pjpg FPB1X4-6Pjpg
FPB 1x4, back view
FPB1X4-5jpg FPB1X4-5jpg
FPB 1x4, back view
FPB1X4-4jpg FPB1X4-4jpg
FPB 1x4
FPB1X4-3jpg FPB1X4-3jpg
FPB 1x4
FPB1X4-2jpg FPB1X4-2jpg
FPB 1x4
FPB1X4-1jpg FPB1X4-1jpg
FPB 1x4
FPB Surface Mount Kit jpg FPB Surface Mount Kit jpg
Surface mount kit
FPB 4-Cable Mount Kit jpg FPB 4-Cable Mount Kit jpg
4-cable mounting kit
FPB 2-Cable Mount Kit jpg FPB 2-Cable Mount Kit jpg
2-cable mounting kit
FPB2x4chematicJPG FPB2x4chematicJPG
FPB 2x4 schematic
PBLU 3
Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempVoltages AvailablePredicted L70 Lifetime
FPB 22 LW UV FR 8352x237503012580 CRI / 3500K120-277V>60,000 hrs (reported)
FPB 22 LW UV FR 8402x2382530127.580 CRI / 4000K120-277V>60,000 hrs (reported)
FPB 22 MD UV FR 8352x245003612580 CRI / 3500K120-277V>60,000 hrs (reported)
FPB 22 MD UV FR 8402x2459036127.580 CRI / 4000K120-277V>60,000 hrs (reported)
FPB 22 MD UV FR 8502x2459036127.580 CRI / 5000K120-277V>60,000 hrs (reported)
FPB 24 MD UV FR 8352x450004012580 CRI / 3500K120-277V>60,000 hrs (reported)
FPB 24 MD UV FR 8402x4510040127.580 CRI / 4000K120-277V>60,000 hrs (reported)
FPB 24 HI UV FR 8352x462505012580 CRI / 3500K120-277V>60,000 hrs (reported)
FPB 24 HI UV FR 8402x4637550127.580 CRI / 4000K120-277V>60,000 hrs (reported)
FPB 24 HI UV FR 8502x4637550127.580 CRI / 5000K120-277V>60,000 hrs (reported)
FPB 14 MD UV FR 8351x437503012580 CRI / 3500K120-277V>60,000 hrs (reported)
FPB 14 MD UV FR 8401x4382530127.580 CRI / 4000K120-277V>60,000 hrs (reported)
Catalog #
Equivalency*
FPB 22 LW UV FR 8354L F17 T8 w/ NBF
FPB 22 LW UV FR 8404L F17 T8 w/ NBF
FPB 22 MD UV FR 8354L F17 T8 w/ NBF
FPB 22 MD UV FR 8404L F17 T8 w/ NBF
FPB 22 MD UV FR 8504L F17 T8 w/ NBF
FPB 24 MD UV FR 8352L F32 T8 w/ NBF
FPB 24 MD UV FR 8402L F32 T8 w/ NBF
FPB 24 HI UV FR 8353L F32 T8 w/ NBF
FPB 24 HI UV FR 8403L F32 T8 w/ NBF
FPB 24 HI UV FR 8503L F32 T8 w/ NBF
FPB 14 MD UV FR 8352L F32 T8 w/ NBF
FPB 14 MD UV FR 8402L F32 T8 w/ NBF
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
FPB 22 LW UV FR 835View Download Download
FPB 22 LW UV FR 840View Download Download
FPB 22 MD UV FR 835View Download Download
FPB 22 MD UV FR 840View Download Download
FPB 22 MD UV FR 850View Download Contact Factory
FPB 24 MD UV FR 835View Download Download
FPB 24 MD UV FR 840View Download Download
FPB 24 HI UV FR 835View Download Download
FPB 24 HI UV FR 840View Download Download
FPB 24 HI UV FR 850View Download Contact Factory
FPB 14 MD UV FR 835View Download Download
FPB 14 MD UV FR 840View Download Download

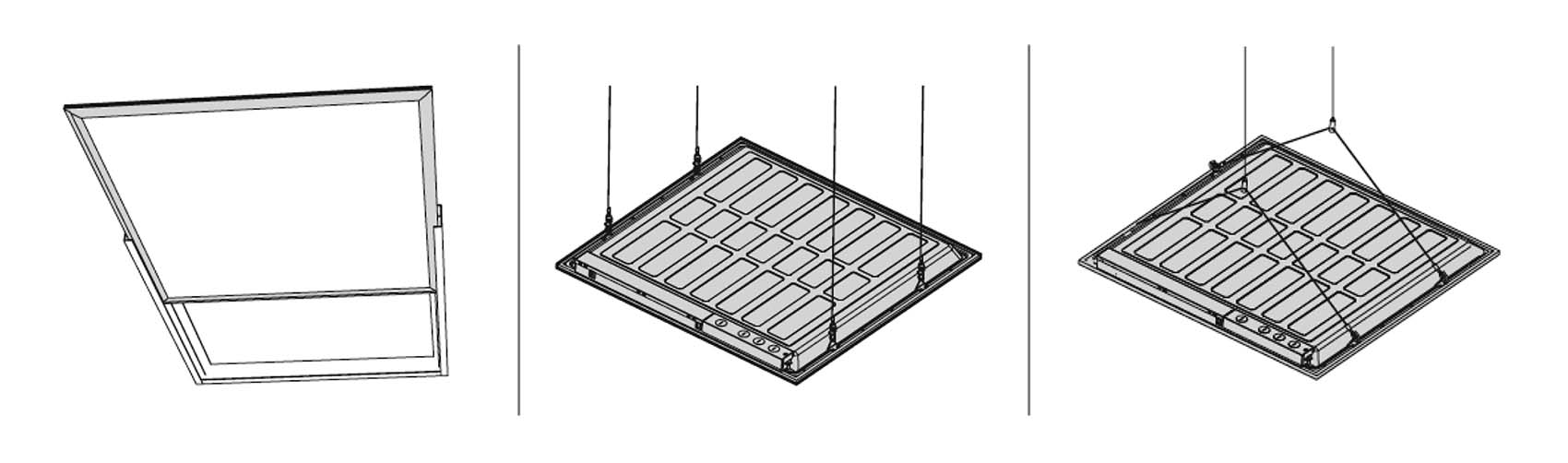

FPB Mounting Options

Mounting options

    There are three mounting kit options that can be ordered separately. From left: the Surface Mount Kit (for 2x2 and 2x4 sizes), the 2-Cable Kit for suspension mounting, and the 4-Cable Kit for suspension mounting.
