LED Flood/Wall Sconce

    The FSS/FSM works as both a flood light and a wall sconce. It features multiple mounting methods and four lumen outputs, adding to its versatility and making it suitable for many applications. The housing is made of die cast aluminum. It has a textured powder coat finish over a chromate conversion coating.
  • Applications: Suitable for most exterior wall mount and flood applications - industrial, retail, commercial
  • Sizes: Small (FSS) and medium (FSM)
  • Lumen Output: From 2,300 lm to 8,200 lm
  • Max Lumens Per Watt: 123
  • Predicted L70 Lifetime: >76,000 hours at 25-degrees Celsius ambient (calculated)
  • Warranty: 5 year limited system warranty
  • Certifications: CSA listed for wet locations. IP65-rated

Click to enlarge

FSM FSM
FSM as a wall sconce
FSS FSS
FSS as a flood light
FSSFSM mounting2 FSSFSM mounting2
Mounting options for the FSS and FSM
FSSFSM schematic3 FSSFSM schematic3
FSS/FSM schematic
cCSAus-Mark
Note: Table scrolls horizontally
Catalog #
LumensWattsLPWShieldingOpticCRI / Color TempVoltages AvailableWarrantyPredicted L70 Lifetime
FSS MD F UV CFG 8402,30021.1114.1Clear Flat GlassFlood80 CRI / 4000K120-277V5 years>76,000 hrs @ 25° C ambient (calculated)
FSS HI F UV CFG 8404,02541.796.6Clear Flat GlassFlood80 CRI / 4000K120-277V5 years>76,000 hrs @ 25° C ambient (calculated)
FSM MD F UV CFG 8406,50852.9123Clear Flat GlassFlood80 CRI / 4000K120-277V5 years>76,000 hrs @ 25° C ambient (calculated)
FSM HI F UV CFG 8408,21280.7101.7Clear Flat GlassFlood80 CRI / 4000K120-277V5 years>76,000 hrs @ 25° C ambient (calculated)
Catalog #
Equivalency*
FSS MD F UV CFG 84039W MH
FSS HI F UV CFG 84070W MH
FSM MD F UV CFG 840100W MH
FSM HI F UV CFG 840150W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
FSS MD F UV CFG 840View Download Download
FSS HI F UV CFG 840View Download Download
FSM MD F UV CFG 840View Download Download
FSM HI F UV CFG 840View Download Download

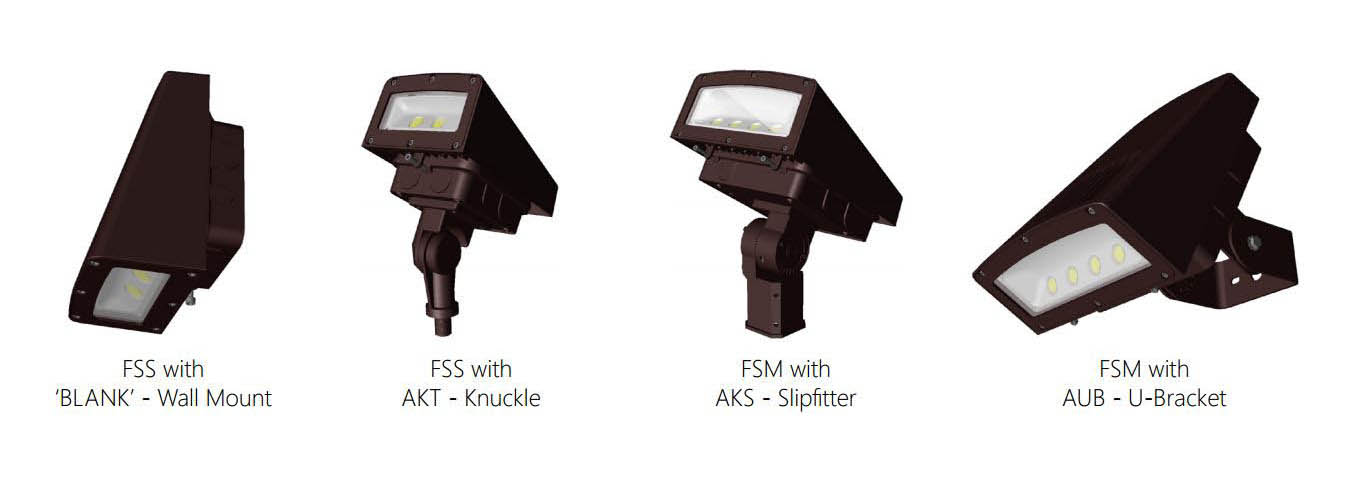

FSSFSM mounting2-crop2

Mounting options

    There are three options for mounting: wall mount, adjustable knuckle with 1/2" NPS threads, adjustable knuckle slipfitter (FSM only) and the adjustable U-bracket (FSM only)
