LED Indirect High Bay

    The LumenFocus GAT raises the bar for indoor sports lighting. Designed to meet the demanding requirements of air dome/air-inflated structures, butler buildings and fabric over frame structures, the GAT weighs just 18 lbs. and can produce over 50,000 lumens of comfortable, indirect light. The GAT features LED optics designed for even illumination of the ceiling, minimizing hot spots while providing glare-free indirect lighting. The GAT is made in the USA - engineered and manufactured at our facility in Henderson, NC.
  • Applications: Suitable for applications where high output indirect light is needed - indoor tennis courts, soccer domes, gymnasiums, recreation facilities, convention centers, retail
  • Lumen Output: Around 46,000 to just under 55,000
  • Max Lumens Per Watt: 115.9
  • Predicted L80 Lifetime: >102,000 hours (reported)
  • Warranty: 5 year limited system warranty. 10-year extended warranty available (certain conditions apply)
  • Certifications: UL 1598 listed for US and Canada, suitable for damp locations. DesignLights Consortium qualified on specific configurations
  • Made in America: Each GAT is made in the USA - engineered and manufactured at our facility in Henderson, NC
DLC, cULus, MiA, 10YR icons update2
Click to enlarge

GAT - all mounting GAT - all mounting

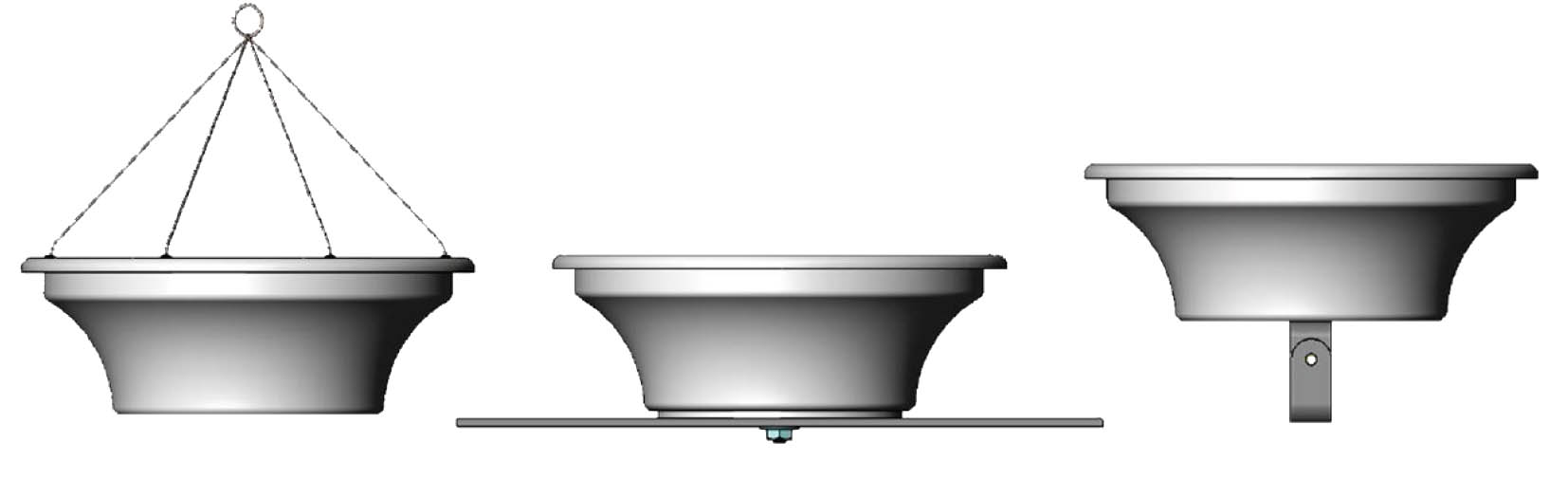

GAT mounting options (from left): Cable Mount, Strut Mount, Trunnion Mount

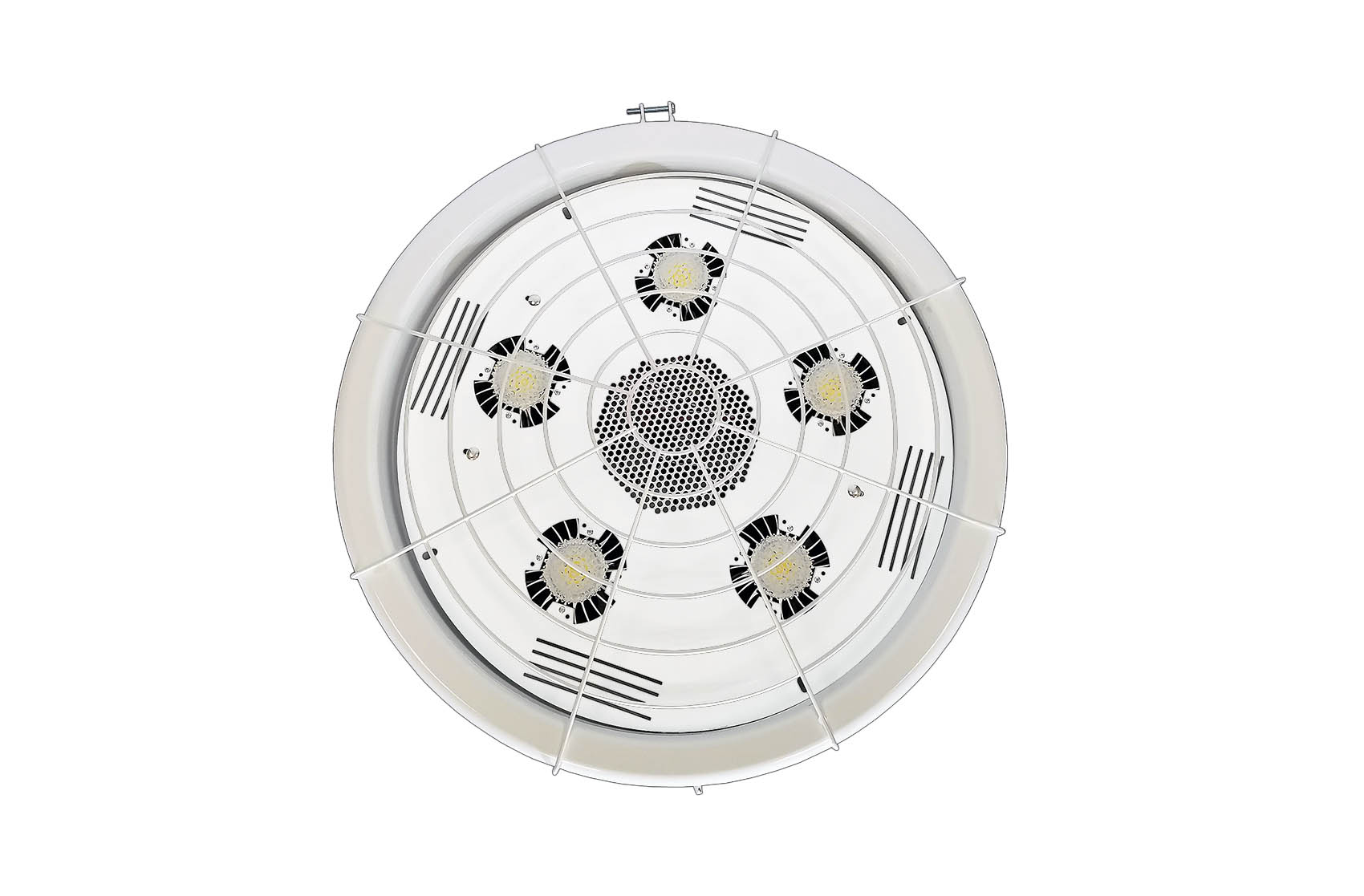

GAT WG for WP2-2 GAT WG for WP2-2

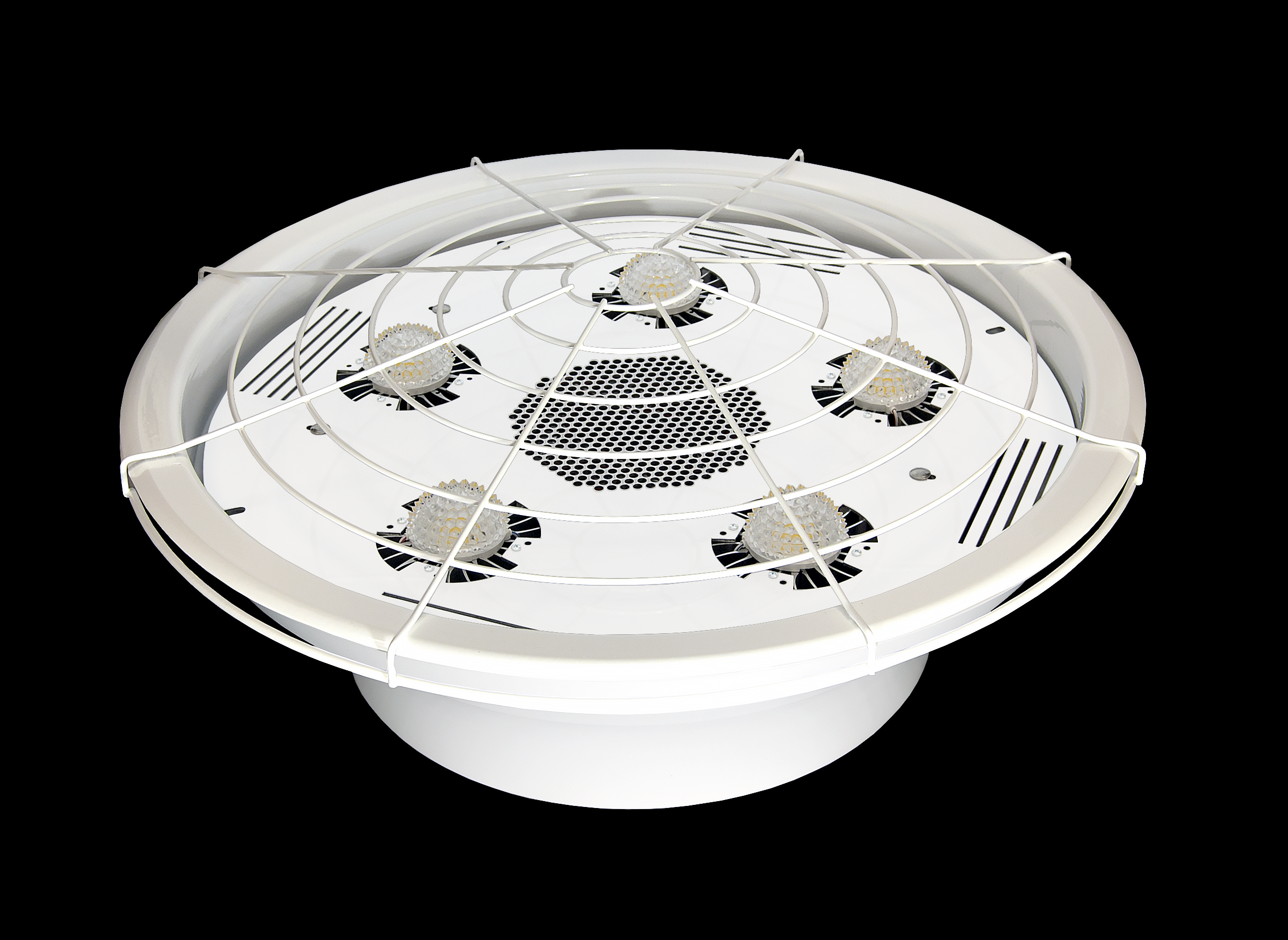

GAT with wireguard

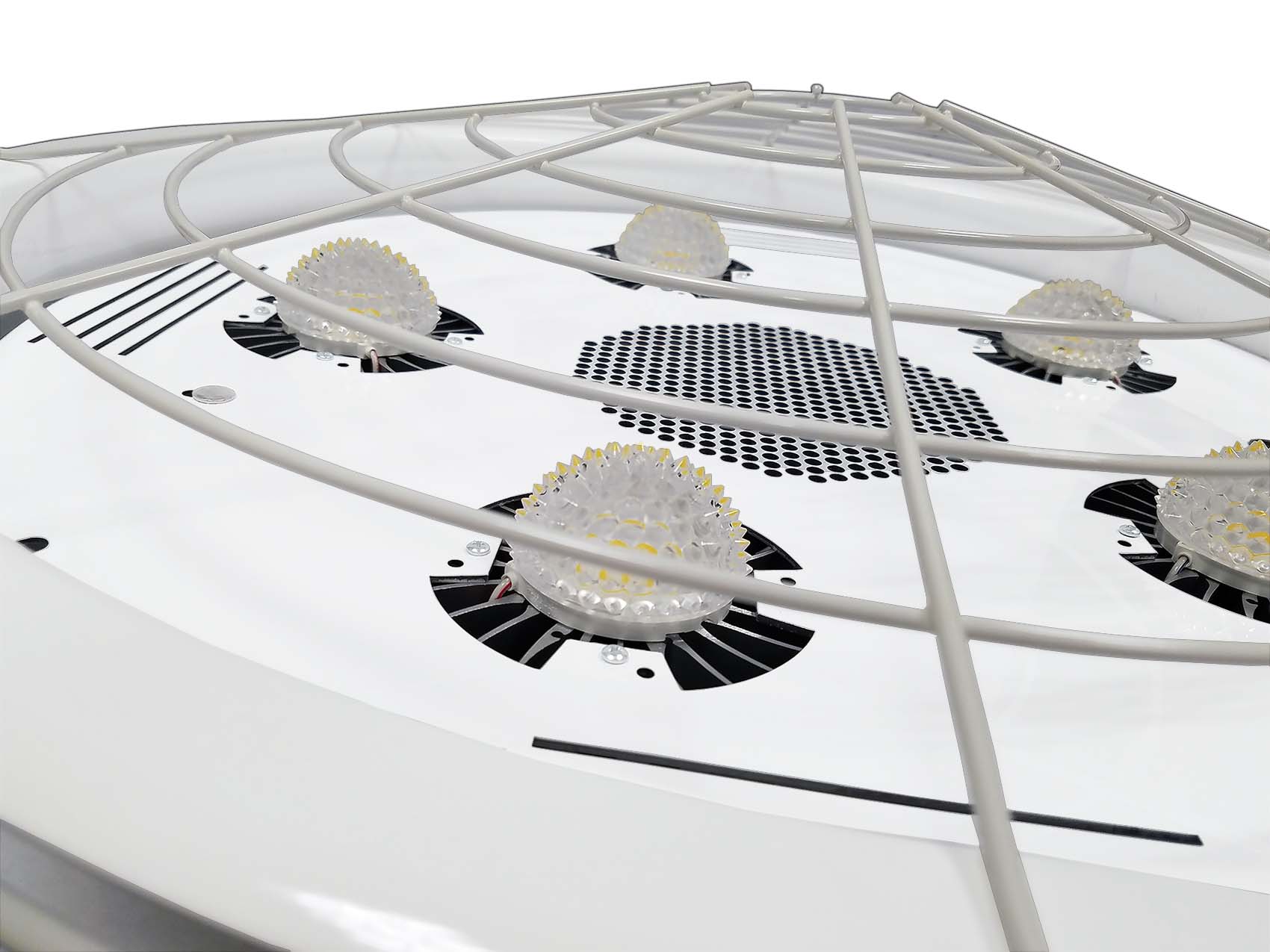

GAT WG for WP2-3 GAT WG for WP2-3
GAT with wireguard

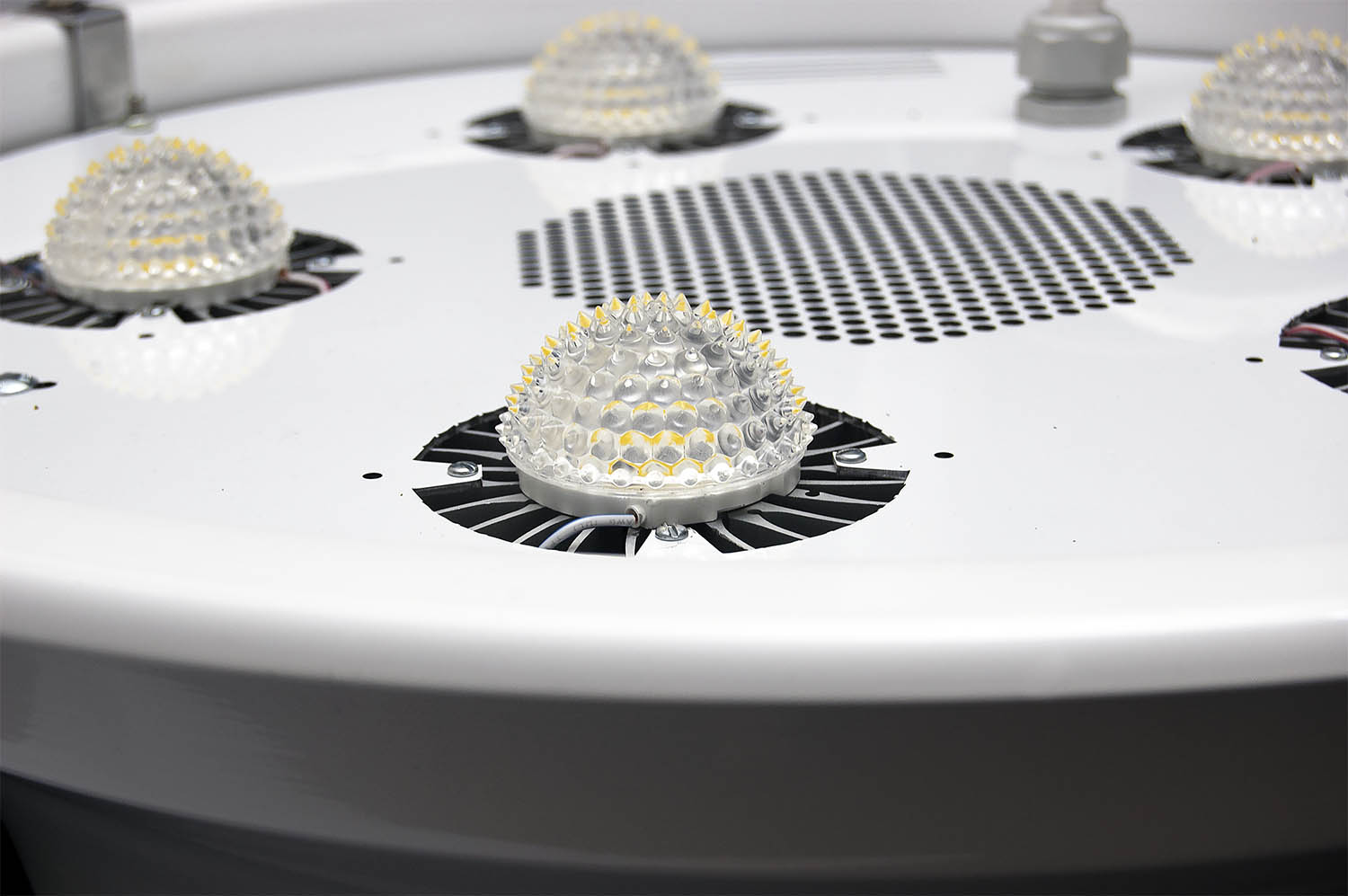

GAT close-up GAT close-up
GAT

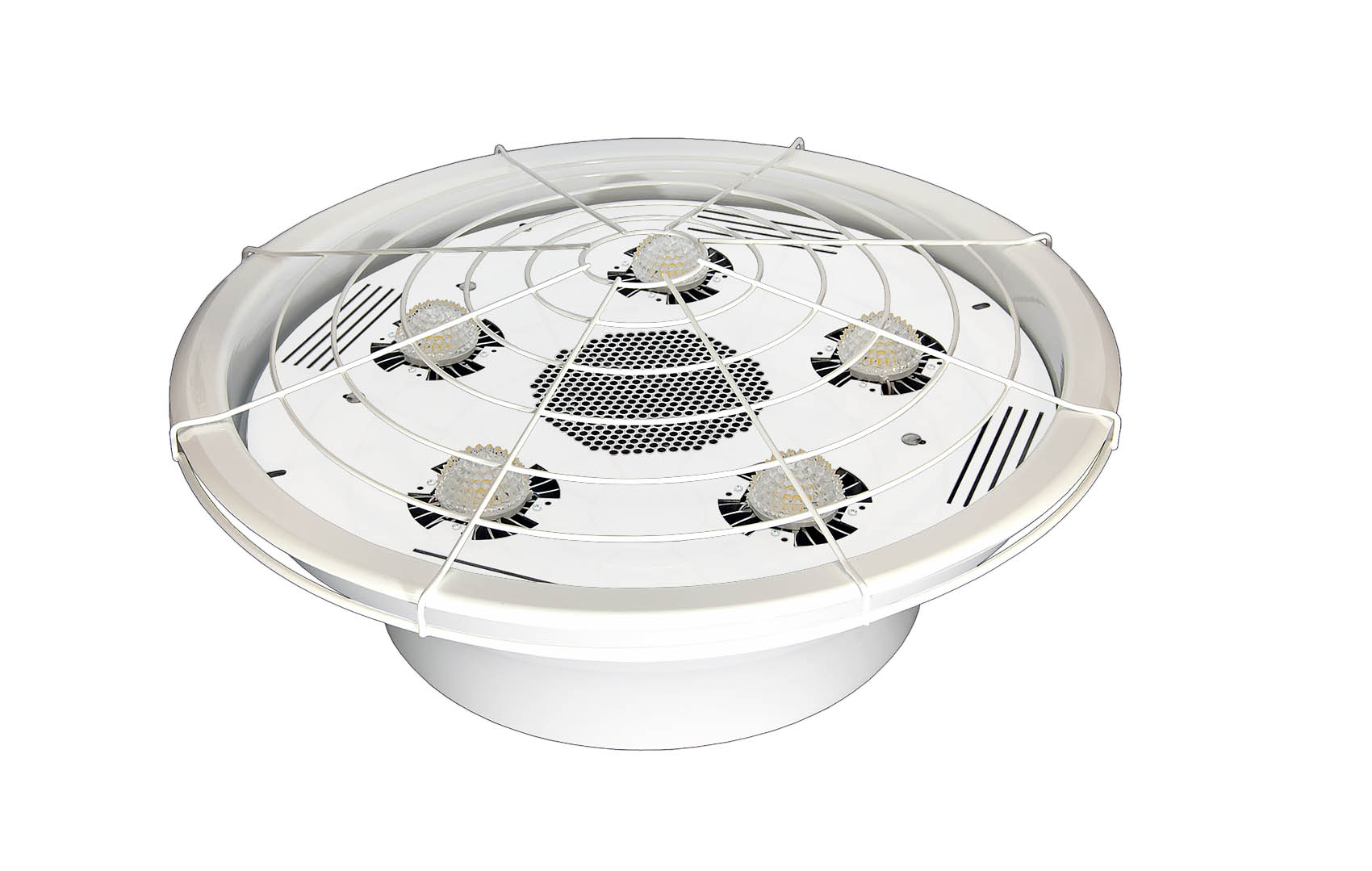

GAT WG for WP1 GAT WG for WP1
GAT with wireguard

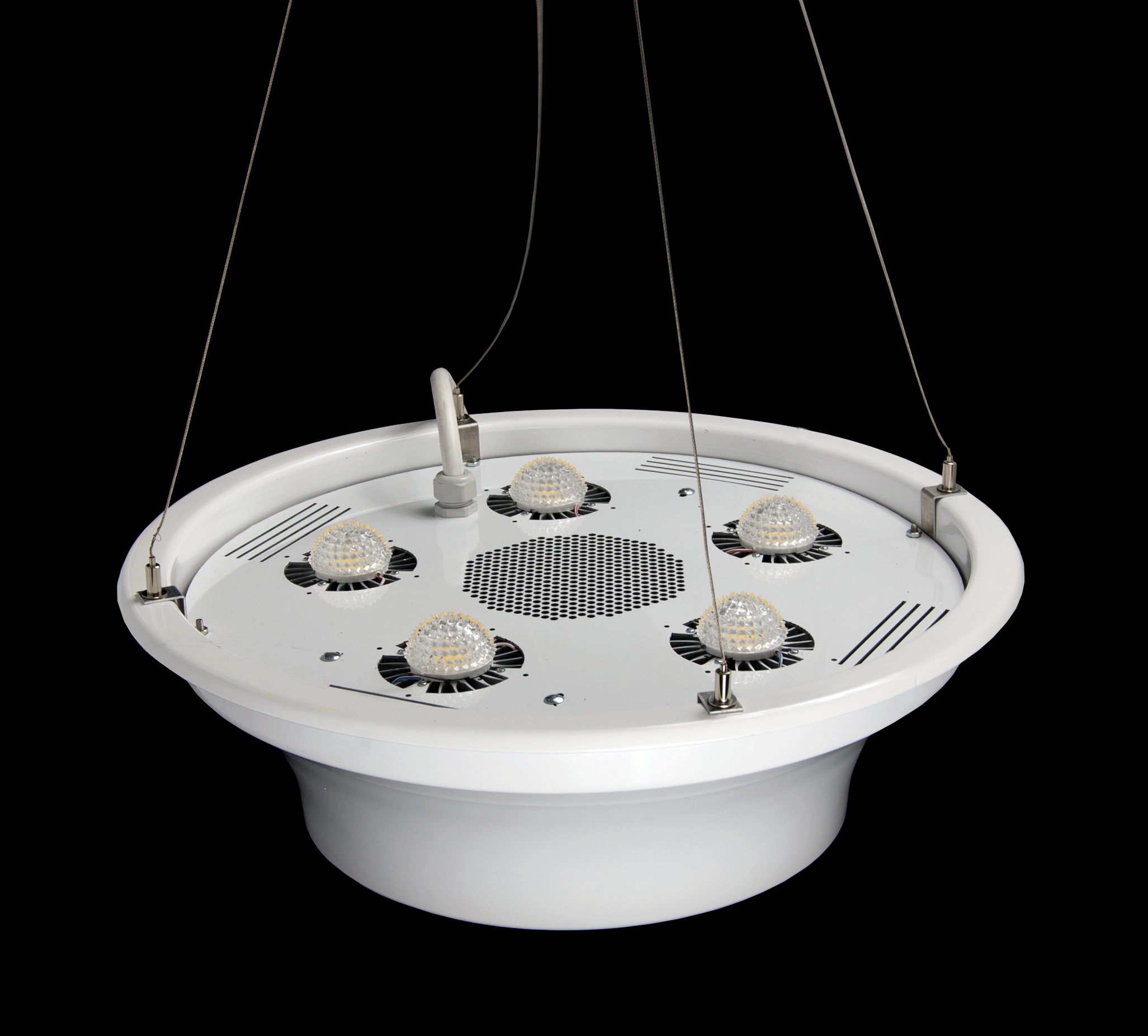

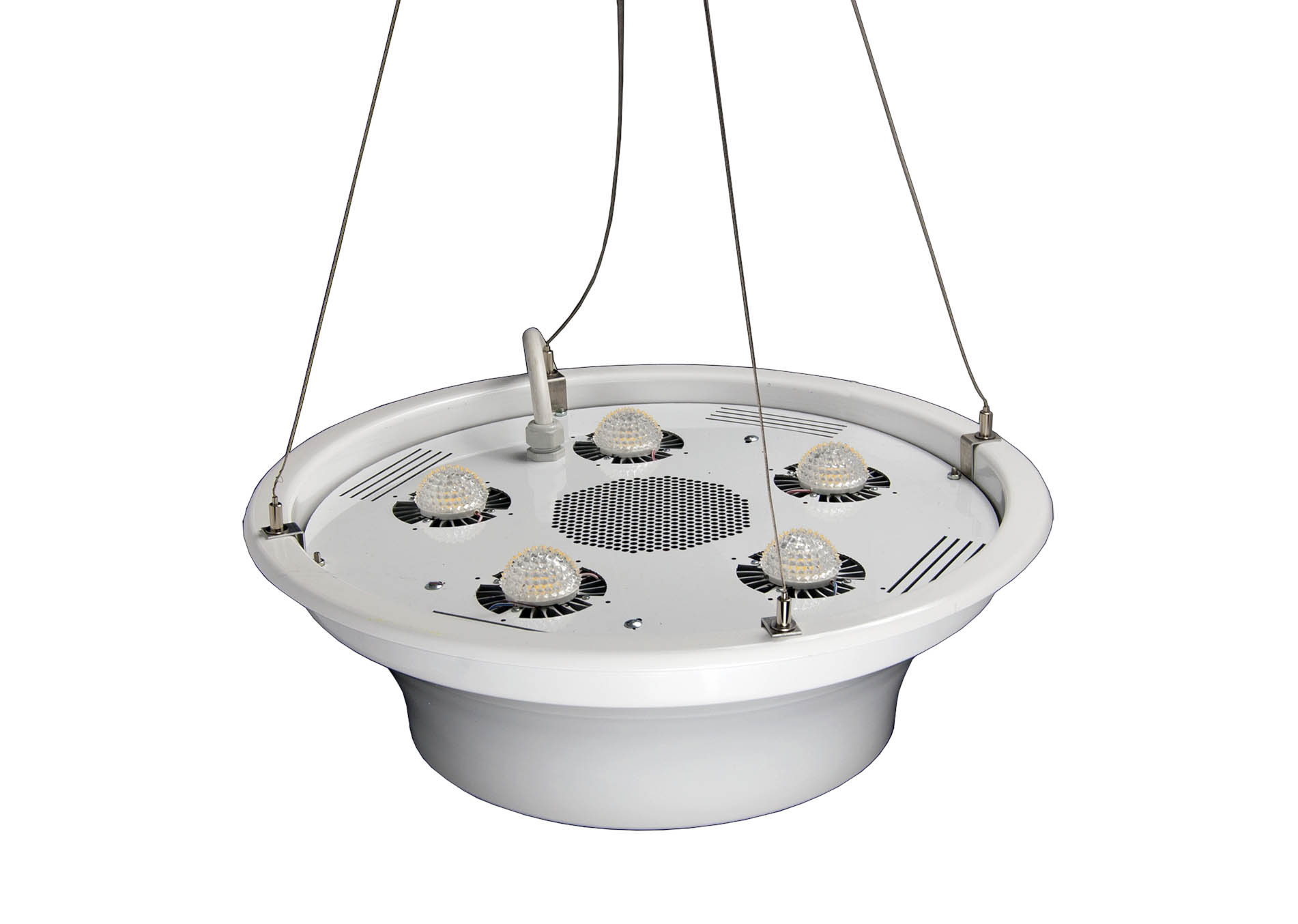

GAT1 GAT1
GAT with cable mount option

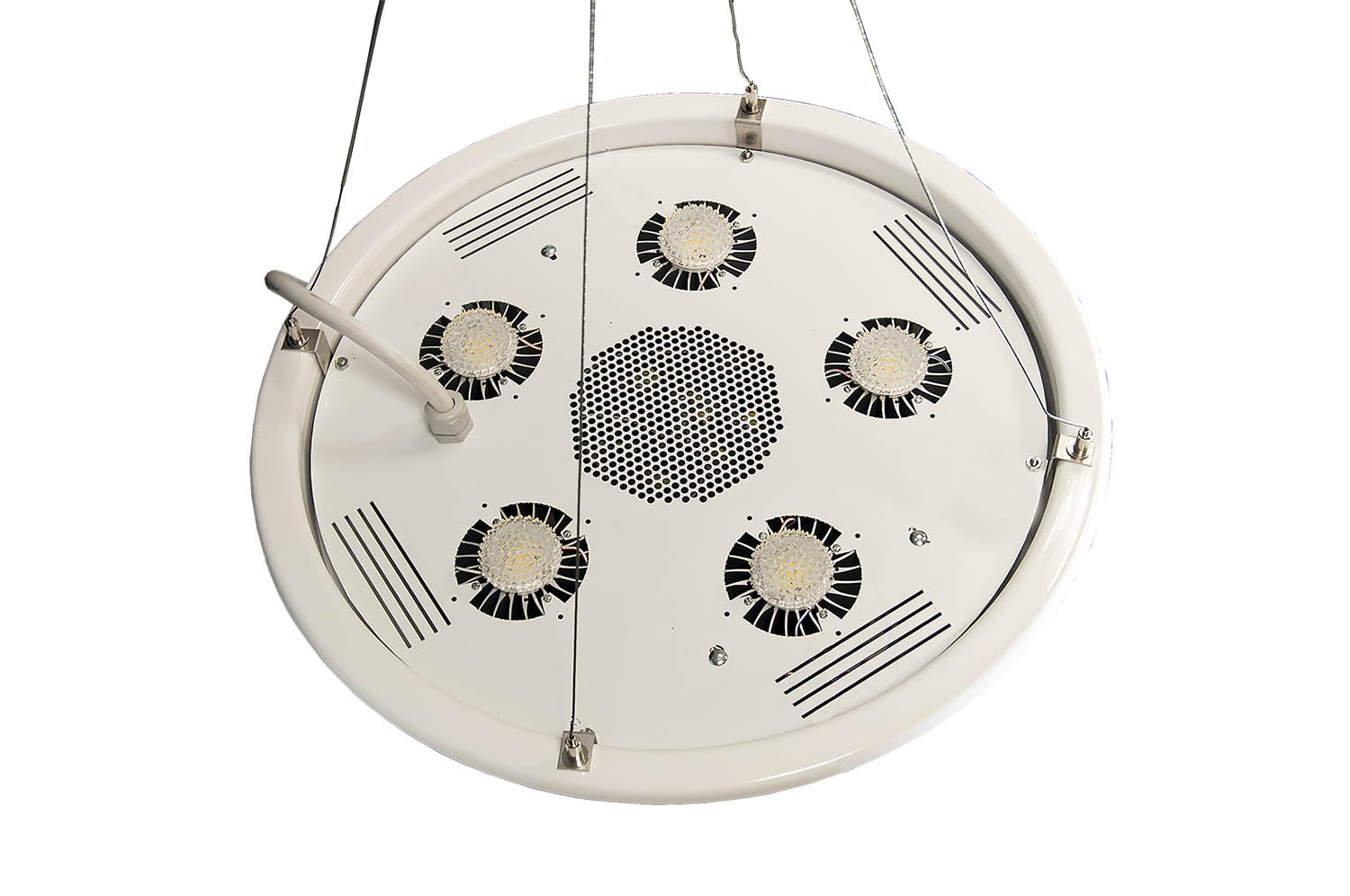

GAT top view GAT top view
GAT with cable mount option

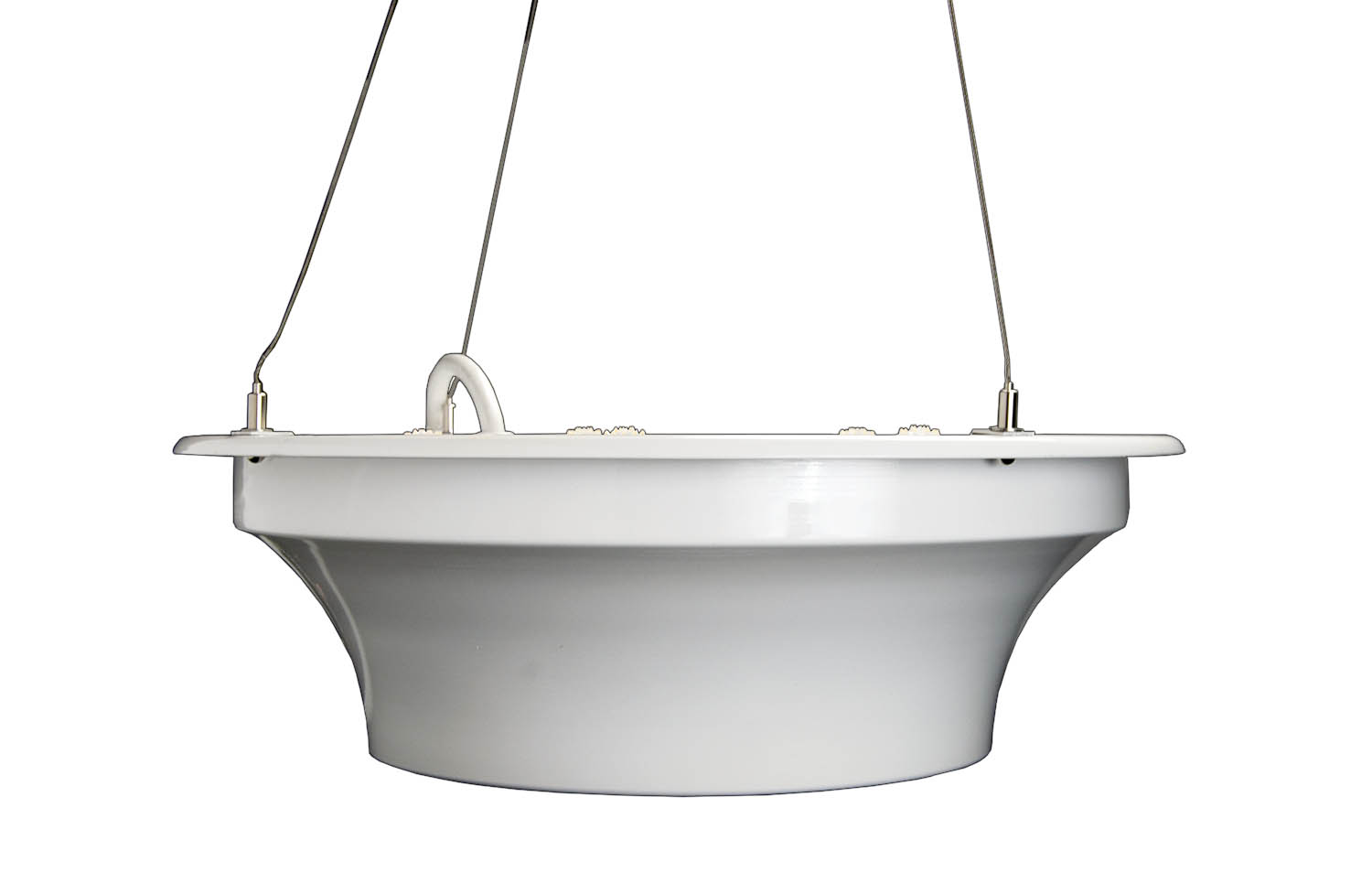

GAT side view GAT side view
GAT with cable mount option
Click to enlarge

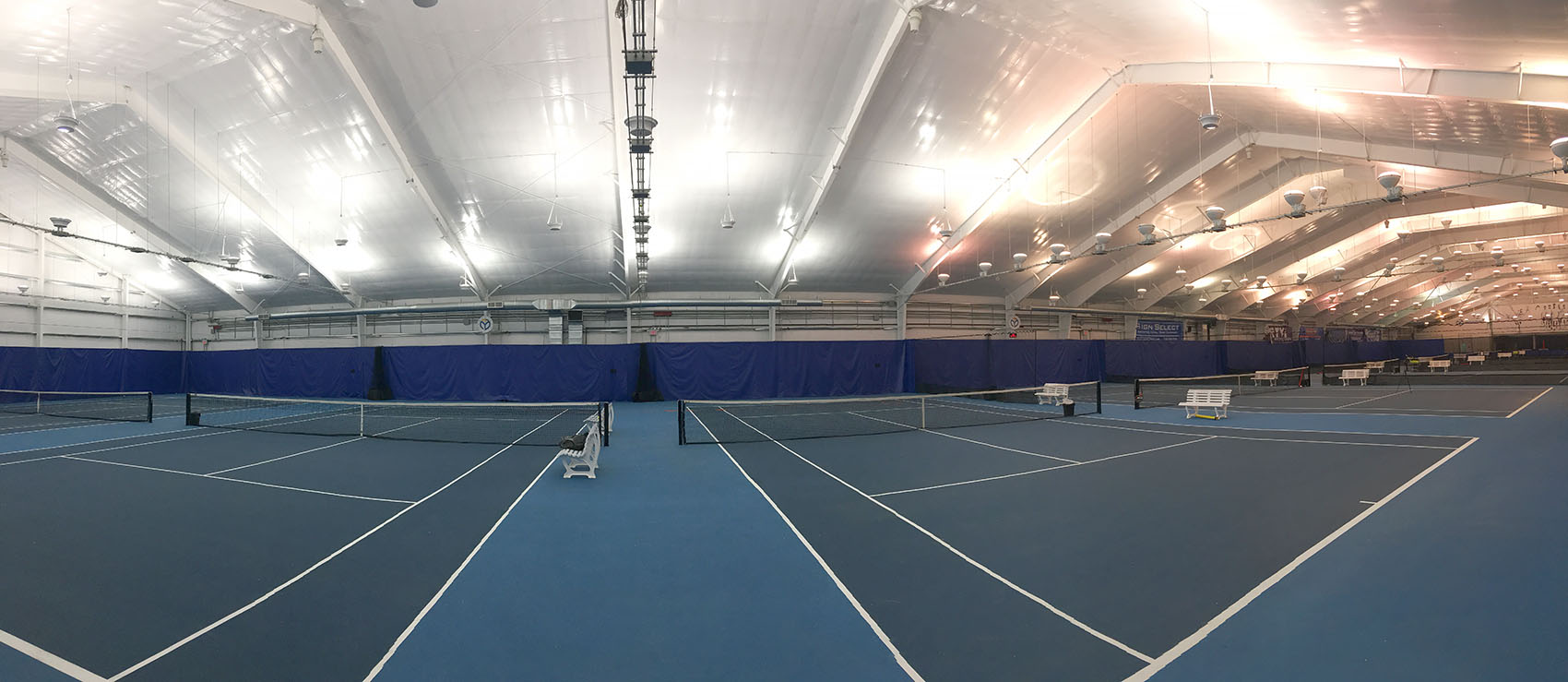

GATsports2 GATsports2
Indoor tennis complex, mid-installation. New LumenFocus GATs on left, old luminaires on right
Note: Table scrolls horizontally
Catalog #
OpticLumensWattsLPWCRI / Color TempVoltages AvailableDLC ListedWarrantyPredicted L80 Lifetime
GAT HI W UV 835Wide45933404113.6>80 CRI / 3500K120-277VNo5 years, 10 years optional>102,000 hours (reported)
GAT HI W UV 840Wide46308404114.5>80 CRI / 4000K120-277VNo5 years, 10 years optional>102,000 hours (reported)
GAT HI W UV 850Wide46870404115.9>80 CRI / 5000K120-277VYes5 years, 10 years optional>102,000 hours (reported)
GAT VH W UV 835Wide49447452109.4>80 CRI / 3500K120-277VNo5 years>102,000 hours (reported)
GAT VH W UV 840Wide49850452110.3>80 CRI / 4000K120-277VNo5 years>102,000 hours (reported)
GAT VH W UV 850Wide50456452111.6>80 CRI / 5000K120-277VYes5 years>102,000 hours (reported)
GAT SH W UV 835Wide53881507106.2>80 CRI / 3500K120-277VNo5 years>102,000 hours (reported)
GAT SH W UV 840Wide54321507107.1>80 CRI / 4000K120-277VNo5 years>102,000 hours (reported)
GAT SH W UV 850Wide54981507108.4>80 CRI / 5000K120-277VYes5 years>102,000 hours (reported)
Catalog #
Equivalency*
GAT HI W UV 8351,000W MH
GAT HI W UV 8401,000W MH
GAT HI W UV 8501,000W MH
GAT VH W UV 8351,000W MH
GAT VH W UV 8401,000W MH
GAT VH W UV 8501,000W MH
GAT SH W UV 8351,000W MH
GAT SH W UV 8401,000W MH
GAT SH W UV 8501,000W MH
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & pdf files
GAT HI W UV 835WG | No WG Download Contact Factory
GAT HI W UV 840WG | No WG Download Contact Factory
GAT HI W UV 850WG | No WG Download Download
GAT VH W UV 835WG | No WG Download Contact Factory
GAT VH W UV 840WG | No WG Download Contact Factory
GAT VH W UV 850WG | No WG Download Download
GAT SH W UV 835WG | No WG Download Contact Factory
GAT SH W UV 840WG | No WG Download Contact Factory
GAT SH W UV 850WG | No WG Download Download

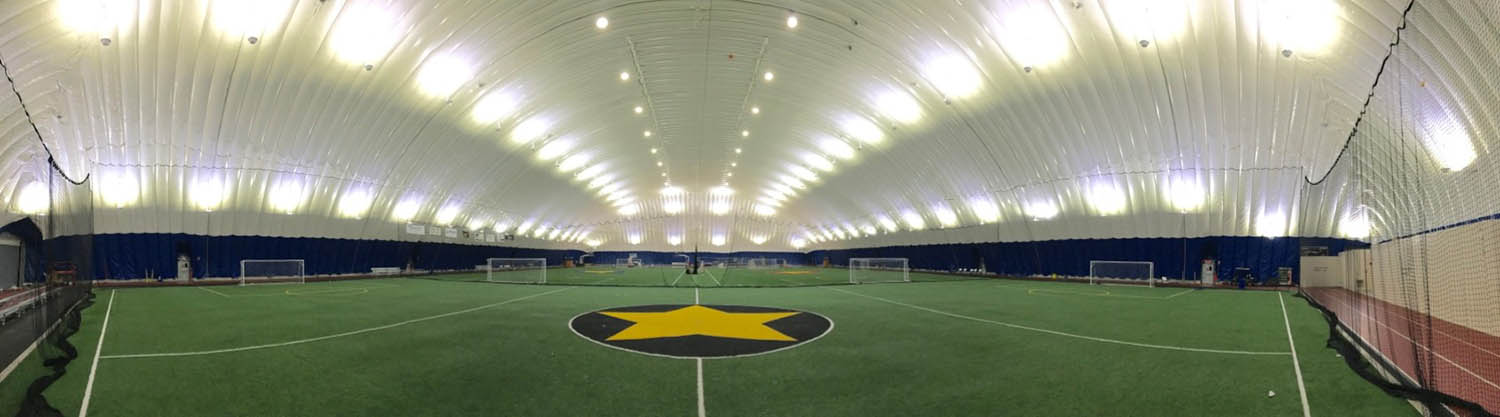

IndoorSoccerGAT

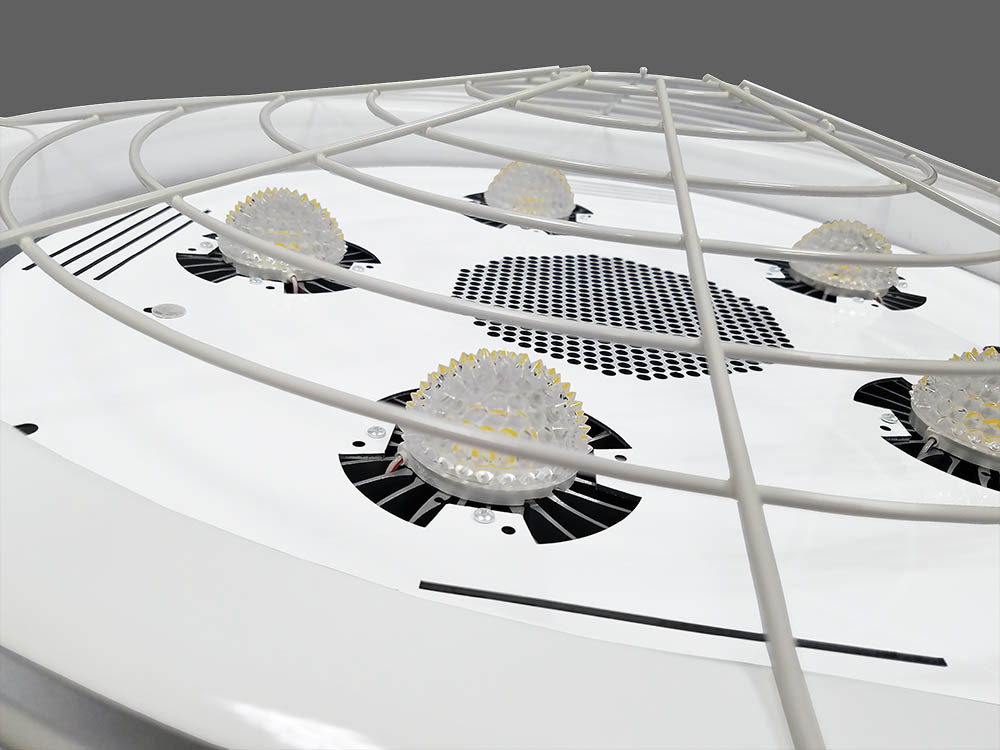

GATWGUPcloseGreyBG

Game, set, match

    At around 115 lumens per watt, you can reduce your energy costs by 58% compared to 1000W metal halides. Active cooling allows for maximum performance and system life. Optically sealed LEDs are resistant to dust and moisture, making the GAT suitable for all court or field surfaces. Precision optics provide a wide distribution and even illumination along the ceiling. Three different mounting options are available (see spec sheet for details).
GATfieldSmaller
