Germicidal Wall-Mounted Direct Luminaire

    The GCD provides germicidal luminaire provides pathogen eradication in unoccupied rooms. The GCD hangs in the corner where the wall meets the ceiling. It utilizes low-wattage, ozone-free GUVT8 lamps to provide 254nm UVC illumination to reduce airborne pathogens. UVC at 254nm is capable of inactivating 99-plus percent of all bacteria and viruses (including COVID-19). Eradication time for specific pathogens varies depending on time and dose. A reverse occupancy sensor powers off the unit when a person is detected in the occupancy zone. The unit powers back on once the area is unoccupied again for a period of time. Wireguards come standard. . The electronic ballast on the GCD is specifically matched to the lamps for optimal performance and lifetime. The GCD is part of the UVFocus product line of pathogen eradicating luminaires.
    Note: UVFocus products are designed utilizing proven germicidal and antibacterial technology. UVC 254nm products work to deactivate most common viruses (as well as bacteria, molds and yeasts), and 405nm near-UV products are shown to substantially reduce bacterial presence. While these products can be considered disinfecting products, they should be used in conjunction with standard, proper disinfecting cleaning procedures to have the greatest impact for maintaining a clean environment. Successful UV disinfection requires a systems approach taking into account dose, optics and safety relevant to the specific application. Please consult with factory any questions or concerns. Please visit our UVFocus Safety page (link below) to learn more information.
    For any inquiries about this product, email us at uvfocus@lumenfocus.com, or use the inquiry form at the bottom of this page. You can also call us toll free at 1-866-UVFOCUS.
  • Applications: Suitable for most commercial and institutional applications: lobbies, hallways, offices, bathrooms, conference rooms, hotels, retail
  • UVC Out of Fixture: 11,757 mW
  • Input Watts: 42W
  • Lamp Useful Life: 18,000 hours
  • Size Options: 4 foot
  • Finish Options: Silver (standard), white, black, stainless steel
  • Warranty: 3 year limited system warranty (excludes lamps). Lamps covered under manufacturer warranty
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components
  • Caution: This product is intended for use in unoccupied rooms only. At 254nm, direct UVC irradiation is not safe for humans. Avoid looking directly at the light and take necessary precautions during installation and maintenance of this product. Lamps used in this product contain mercury. Each product ships with warning labels on the fixture and safety handling guides in the cartons. Please read and heed all safety instructions before using this product.

Click to enlarge

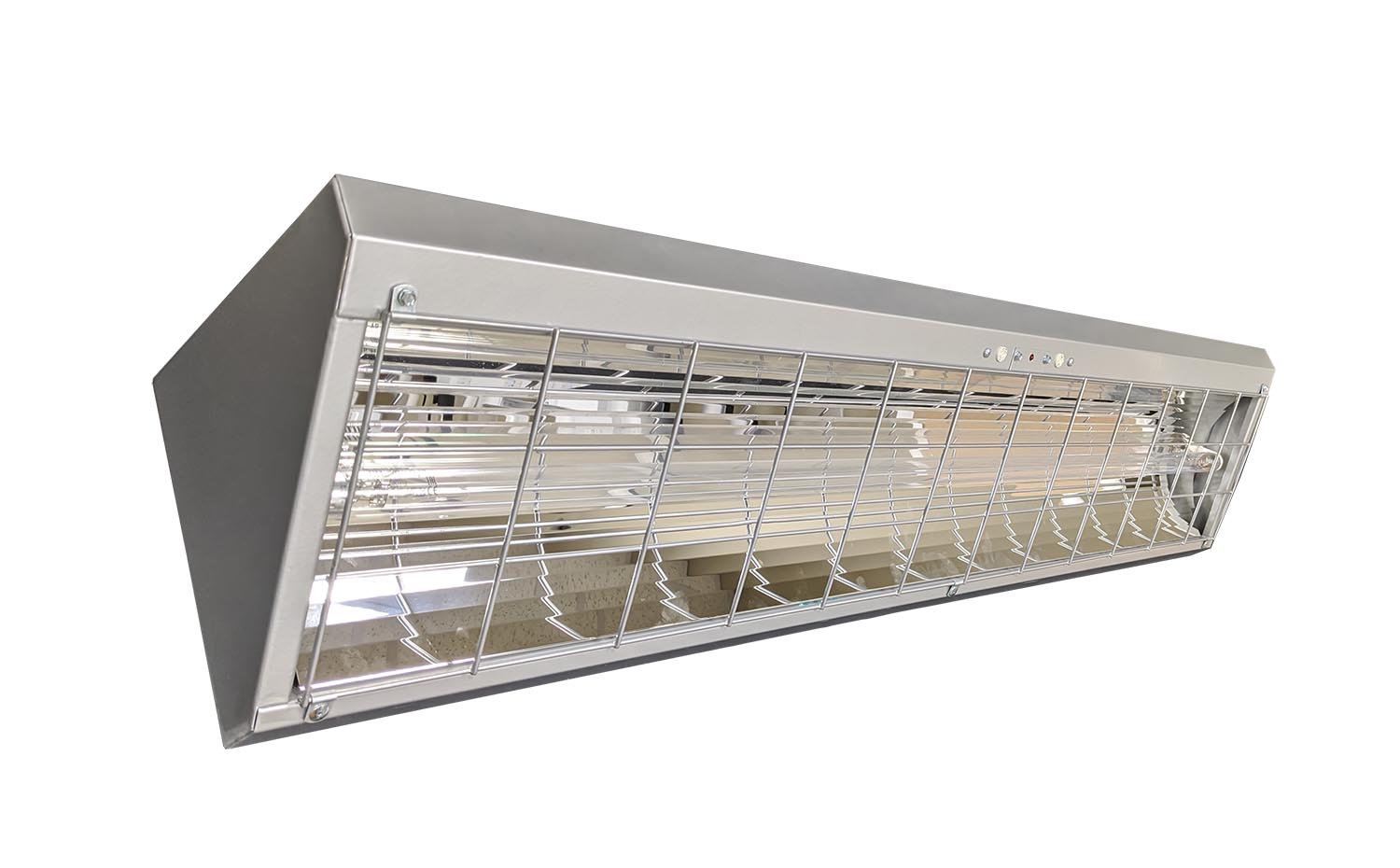

GCDPS0920-JPG2 GCDPS0920-JPG2
GCD in silver

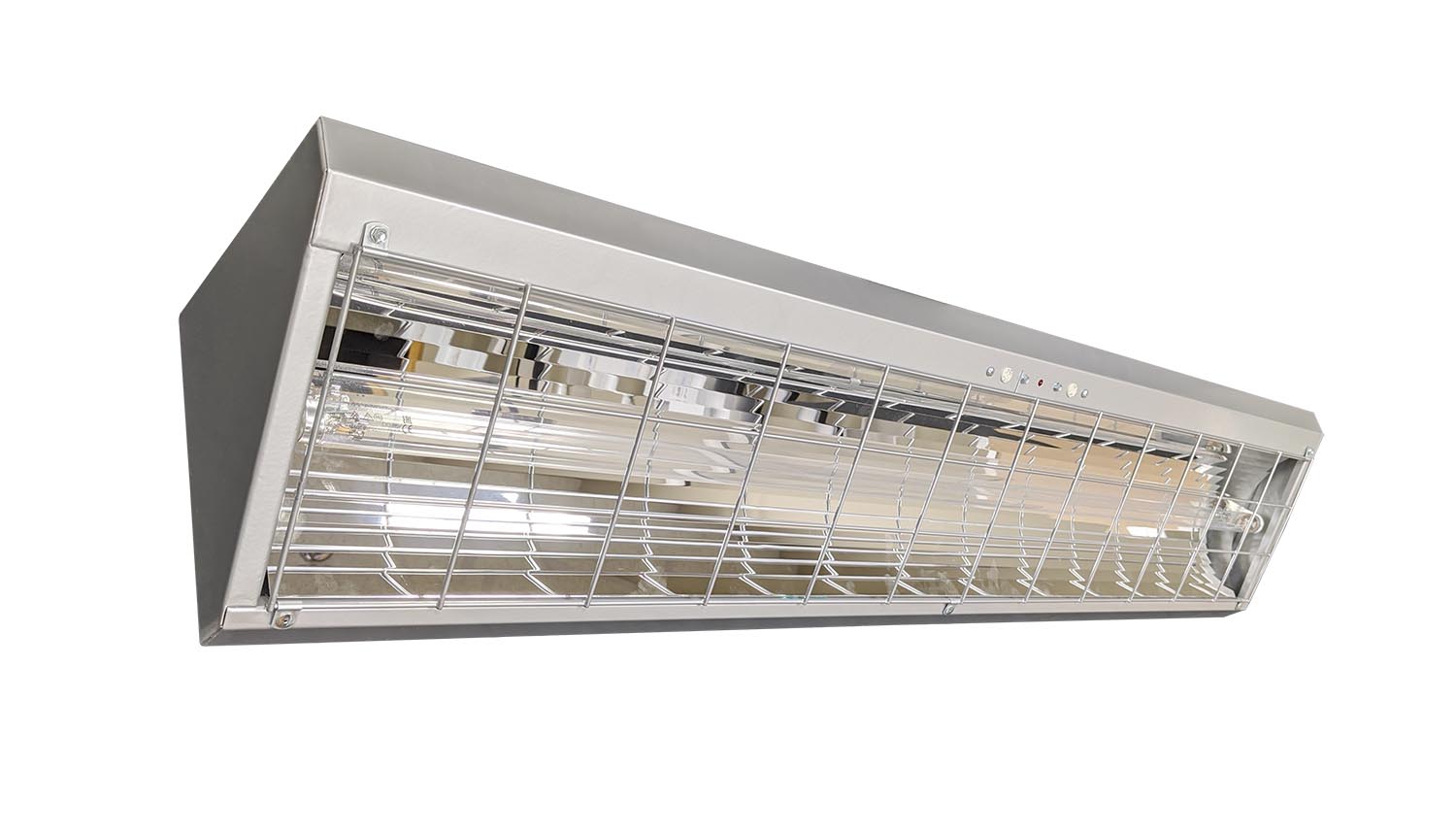

GCDPS0920-JPG1 GCDPS0920-JPG1
GCD in silver
GCDwWG0920-2jpg GCDwWG0920-2jpg
GCD in silver

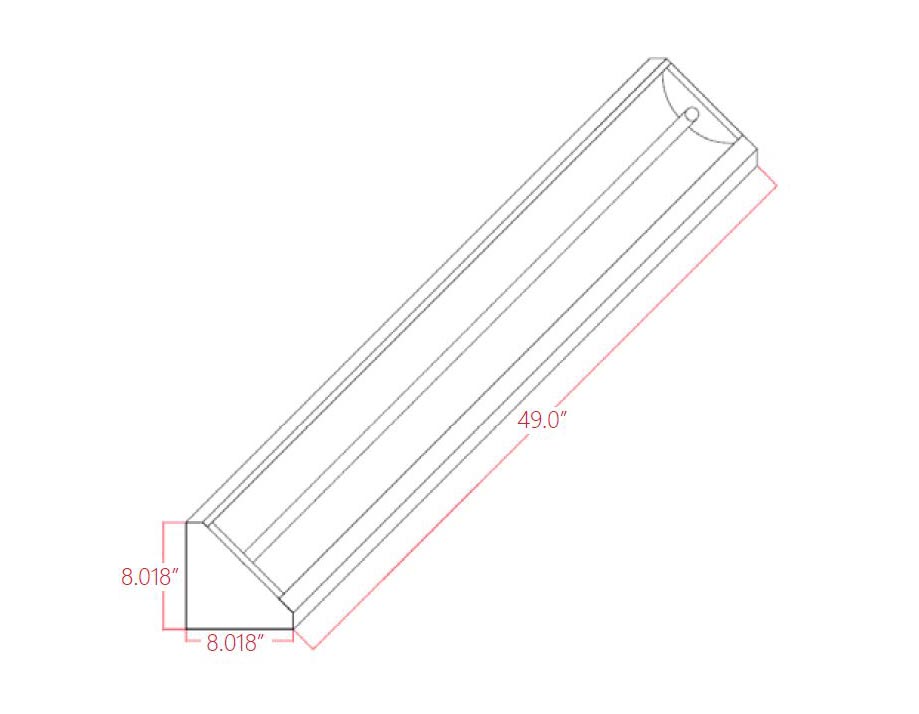

GCDschematic GCDschematic
GCD schematic

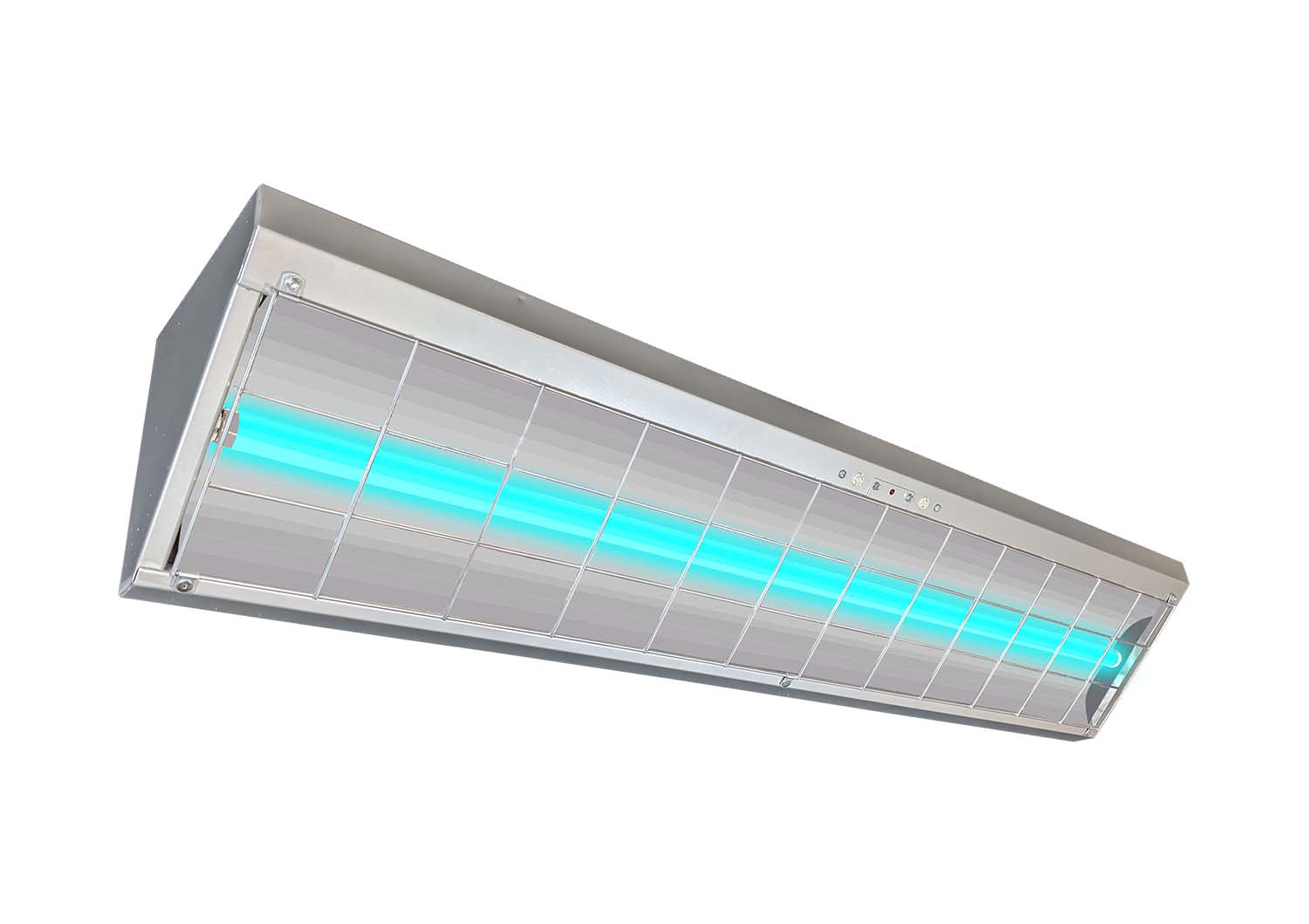

GCDwWG0920jpg GCDwWG0920jpg
GCD in silver

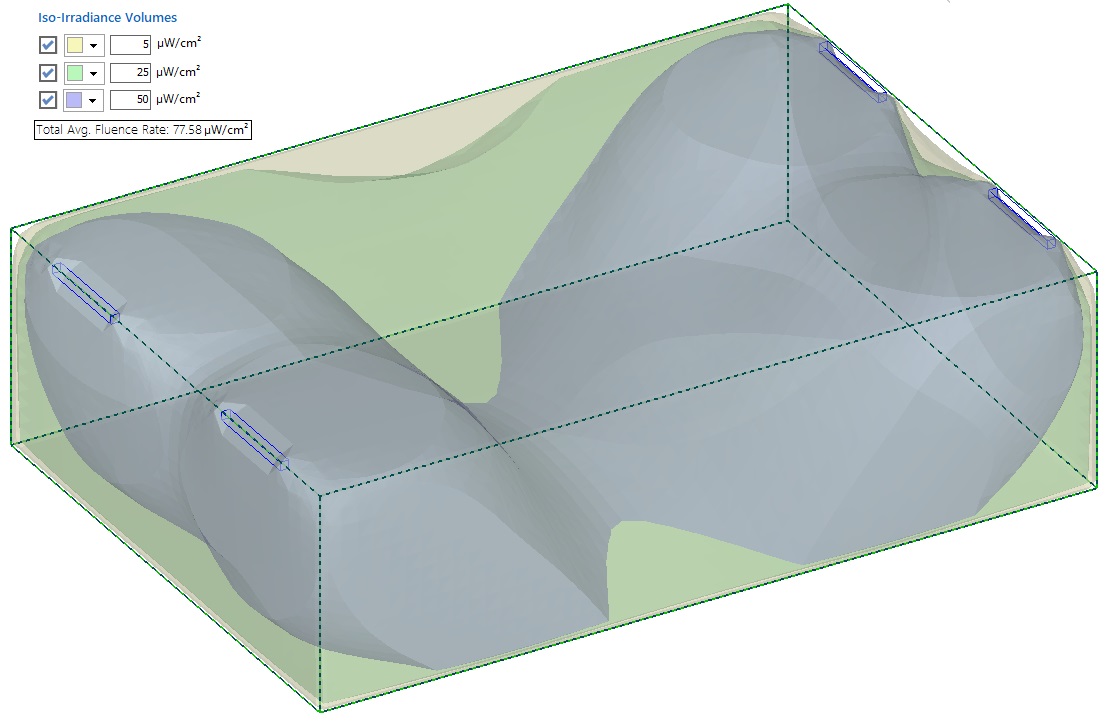

Iso-Irradiance Iso-Irradiance
This graphic shows the irradiance dose of the air in a typical classroom setting utilizing four GCDs (two in the front, two in the back).
GCD022420-jpg2 GCD022420-jpg2

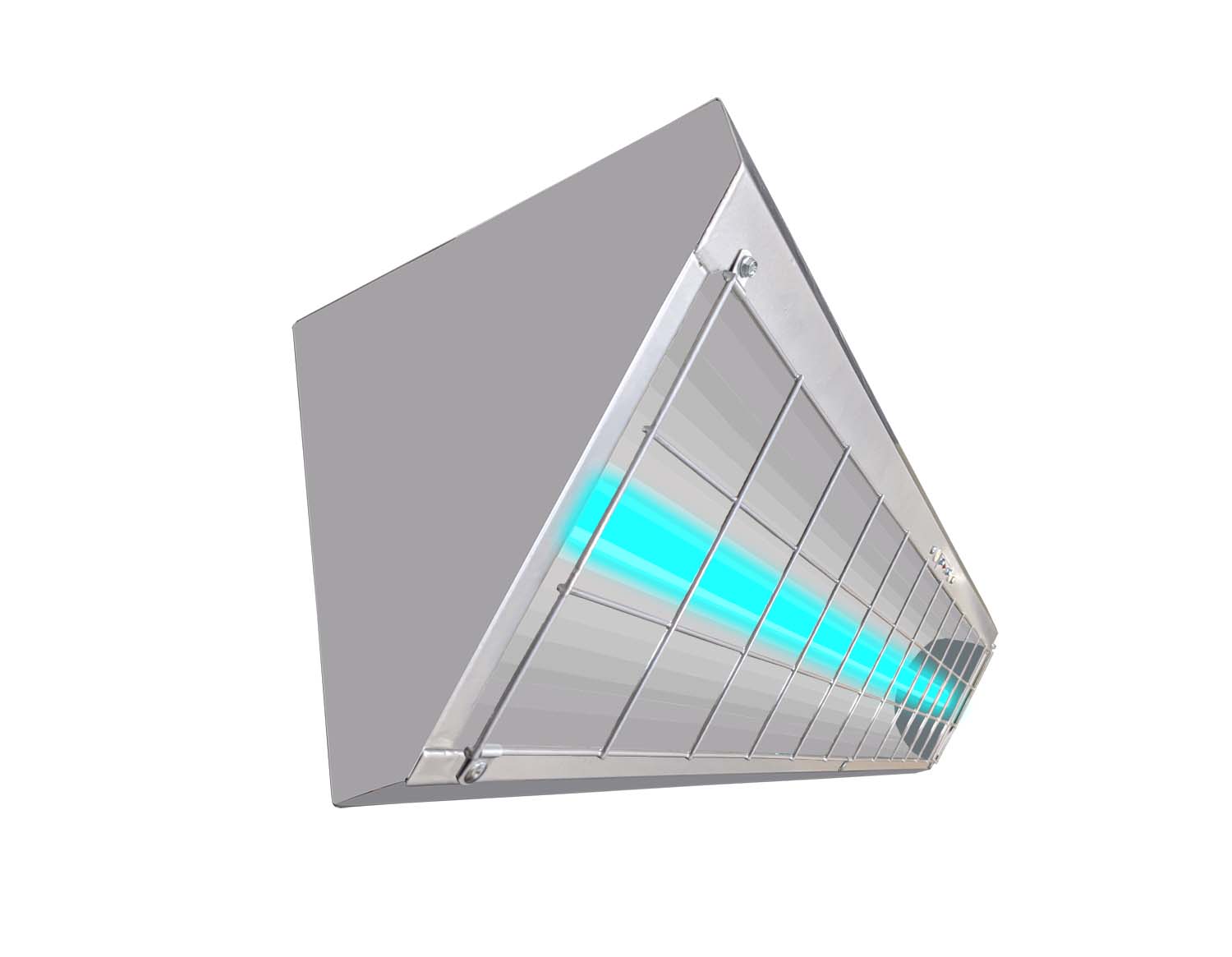

GCD in silver

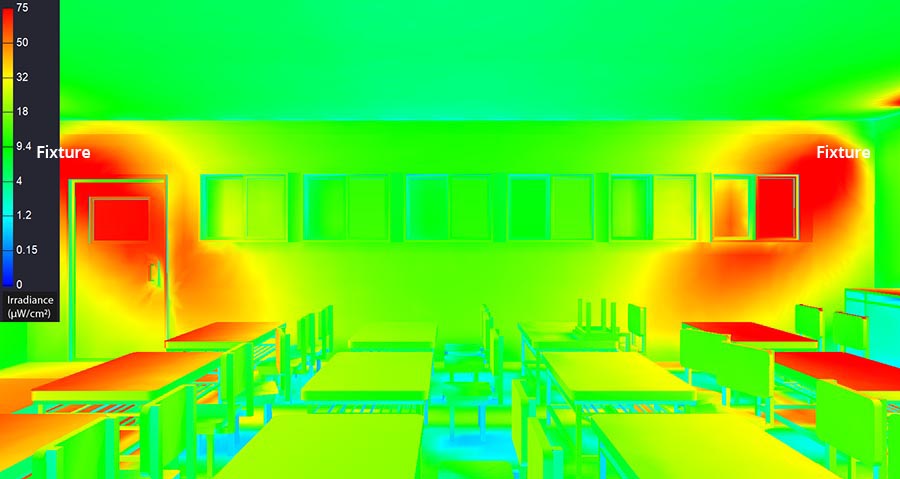

Side View jpg2 Side View jpg2
The side angle view of GCDs mounted in a typical classroom. This layout features four total GCDs - two in the front of the room, two in the back. The irradiance scale is on the left.
GCD022420-jpg1 GCD022420-jpg1

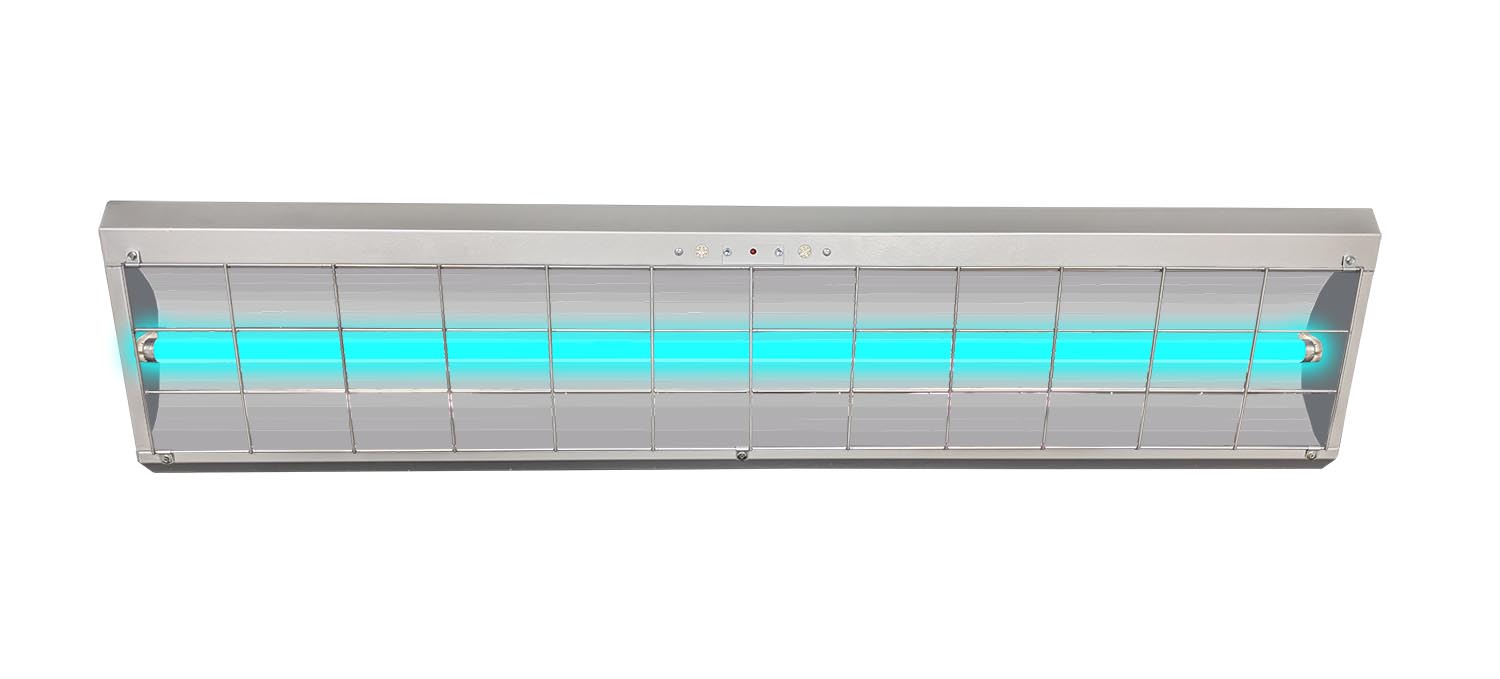

GCD in silver

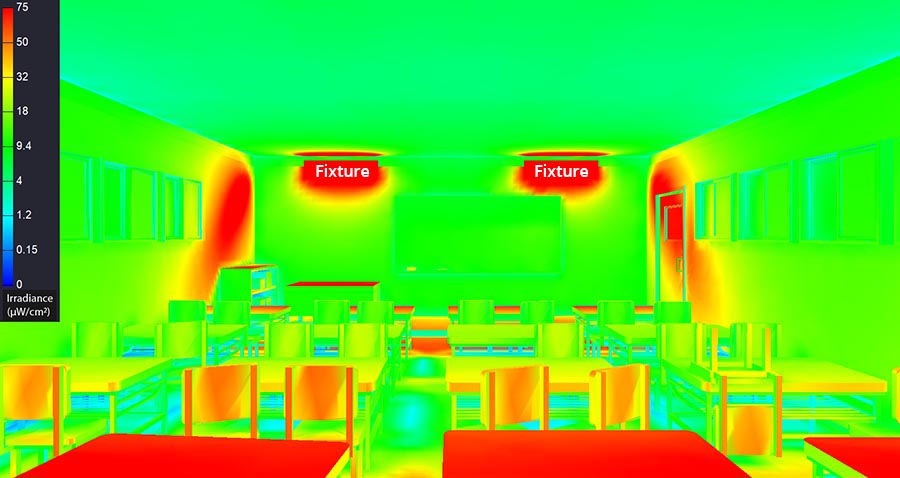

End View jpg2 End View jpg2
Two GCDs mounted in the front of a typical classroom. This image is from the students’ view, looking toward the front of the room. The irradiance scale is on the left.
MiA 0720

Blog post

    UVFocus: GCD versus COVID-19 in a typical classroom
Note: Table scrolls horizontally
Catalog #
SizeLamp WattageUVC Out Of FixtureInput WattsVoltages AvailableLamp Useful Life
GCD 4 1 36 GUVT8 UNV ODS4 foot36W11,757 mW42W120-277V18,000 hours
Catalog #
ImageSpec SheetSell SheetCase Study: Classroom
GCD 4 1 36 GUVT8 UNV ODSView Download Download Download
GCDwWG0920jpg

Durable design, high performance

    The GCD housing is constructed of durable cold rolled steel, with a silver (standard), white or black powder coat finish. A stainless steel option is available. The aluminum reflector is optimized for dispersion of UVC wavelength for the irradiation of pathogens.
