LED Exit Sign

    The LEX provides ultra-bright, long-life red or green LED exit sign illumination. The LEX possesses a 4.8V long-life, maintenance-free rechargeable NiCd battery. A fully automated solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours. Custom signs are available with custom wording.
  • Applications: For use in dry or damp locations where exit signage is needed
  • Warranty: 5 year limited warranty on housing and electronics. Battery pro-rated for 5 years
  • Certifications: UL listed for damp locations. Other certifications - UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Click to enlarge

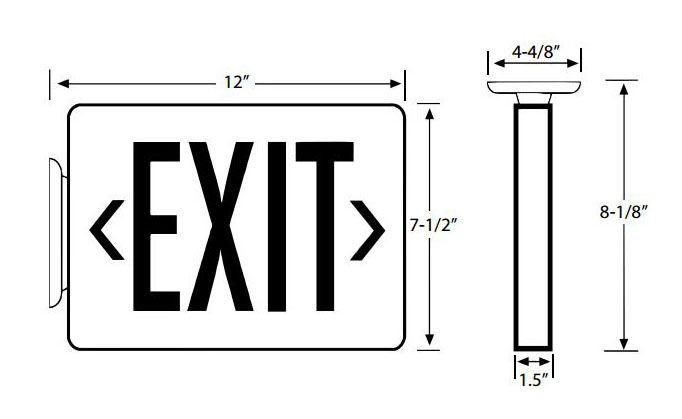

LEX schematic LEX schematic
LEX schematic
UL listed
LEX schematic tight crop

Installation and construction

Installation & construction

    The LEX includes an easy snap mounting canopy for top or end mounting. There is a universal K/O pattern on the back plate for wall mounting. The LEX housing is constructed of injection-molded 5VA flame retardant, high impact resistant thermoplastic. It comes with easy snap-out chevron directional indicators. The housing is available in white or black, with red or green lettering. See spec sheet for more available options.
