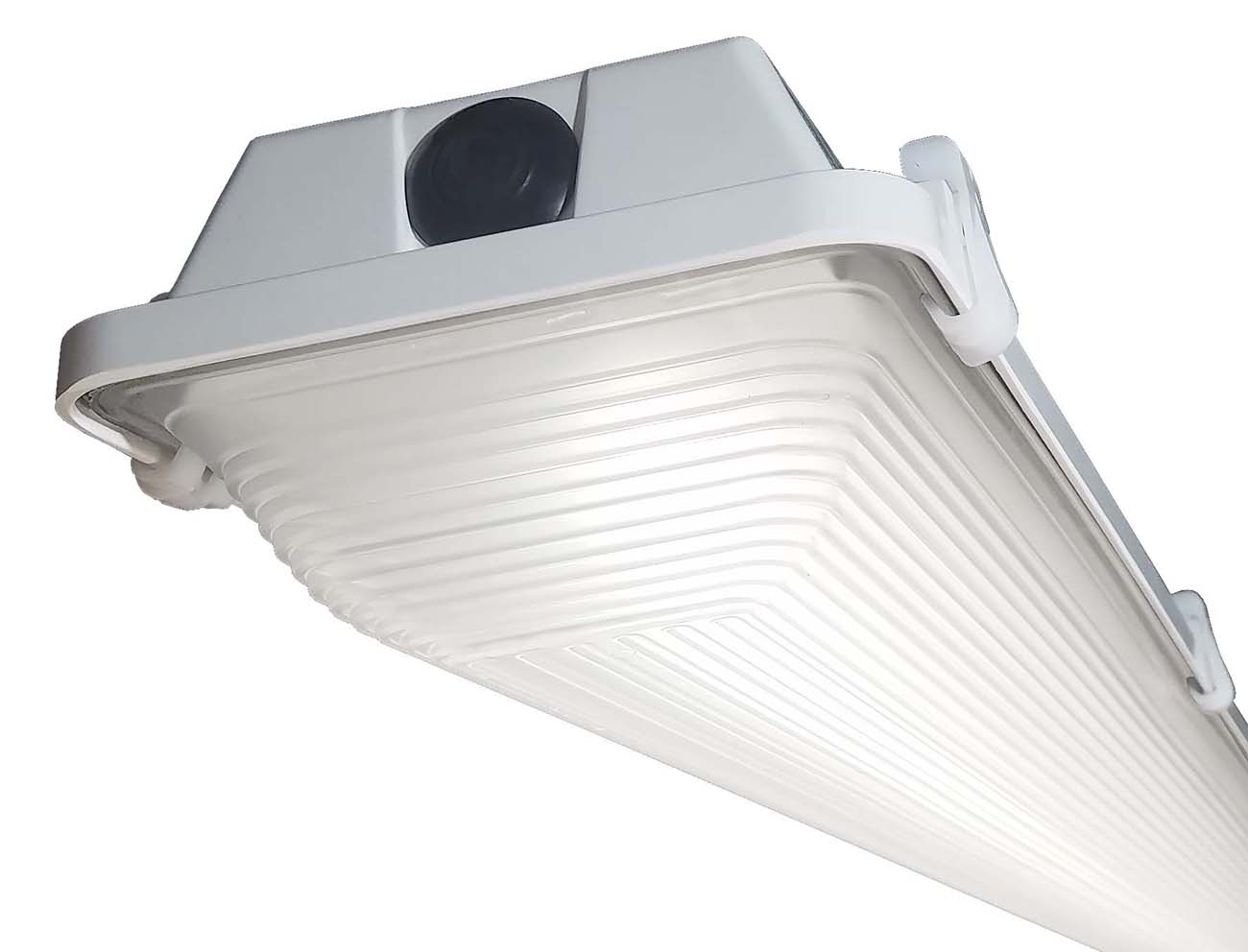

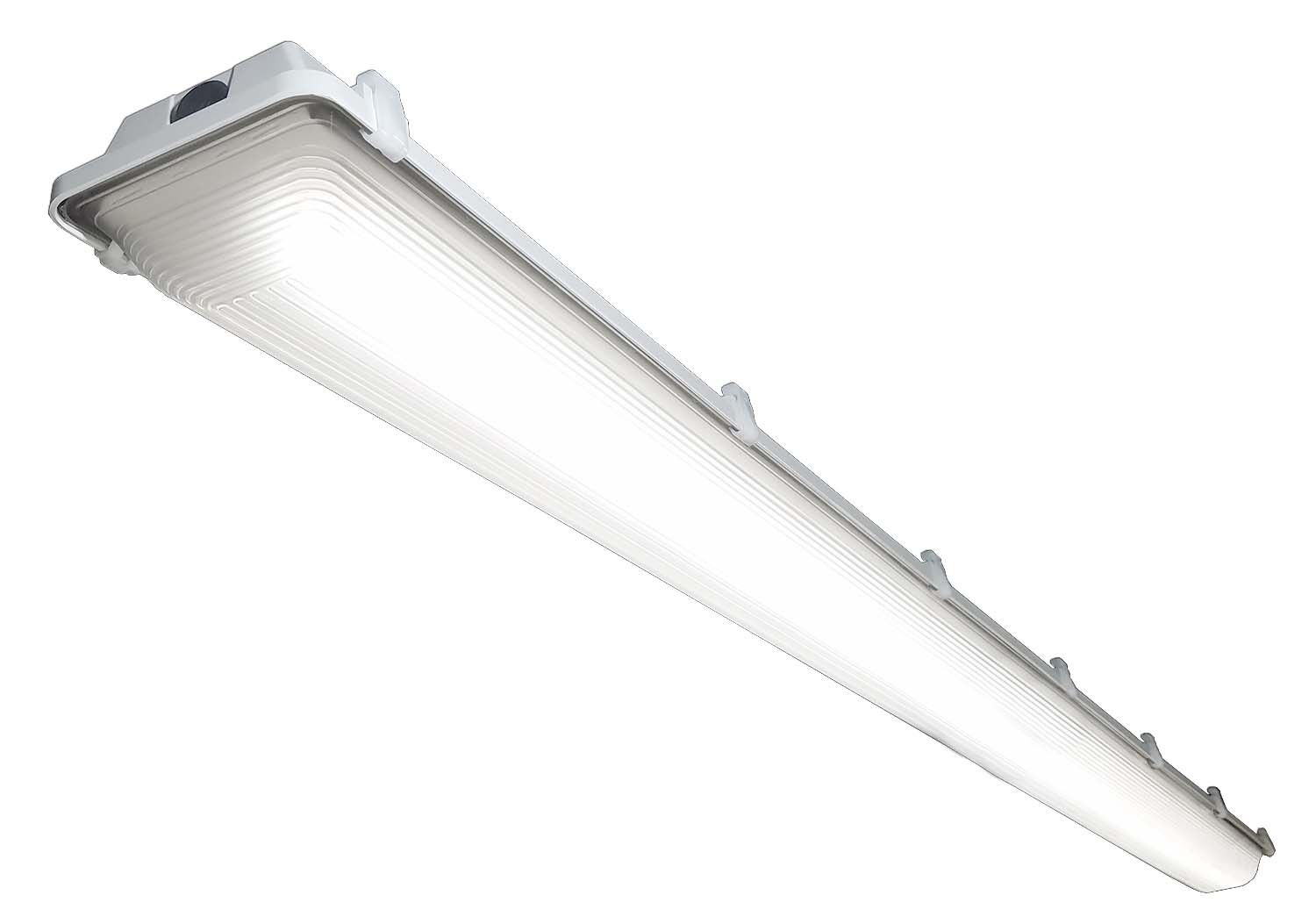

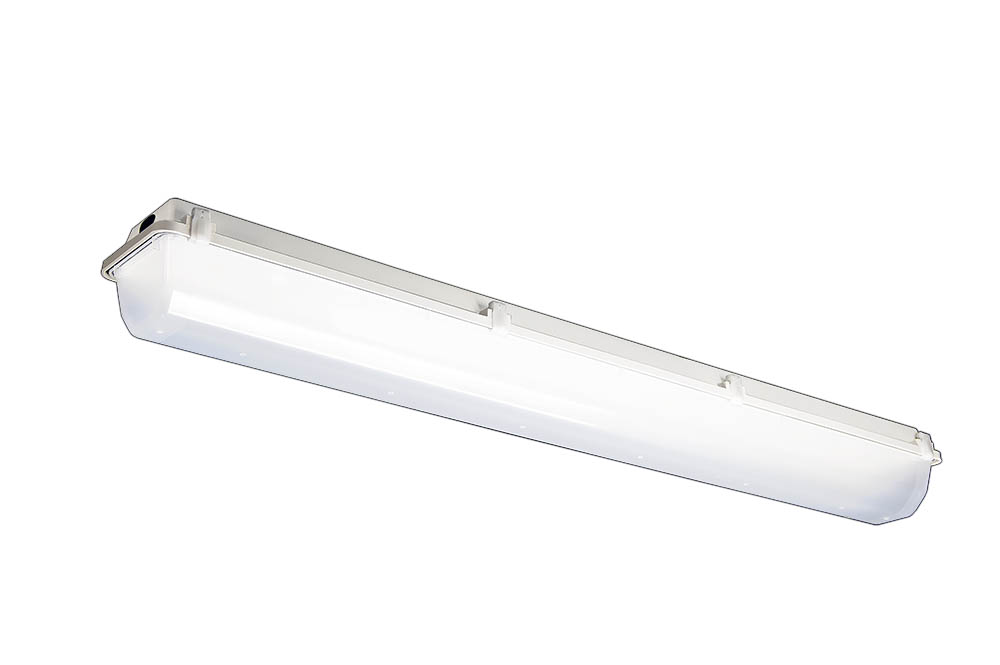

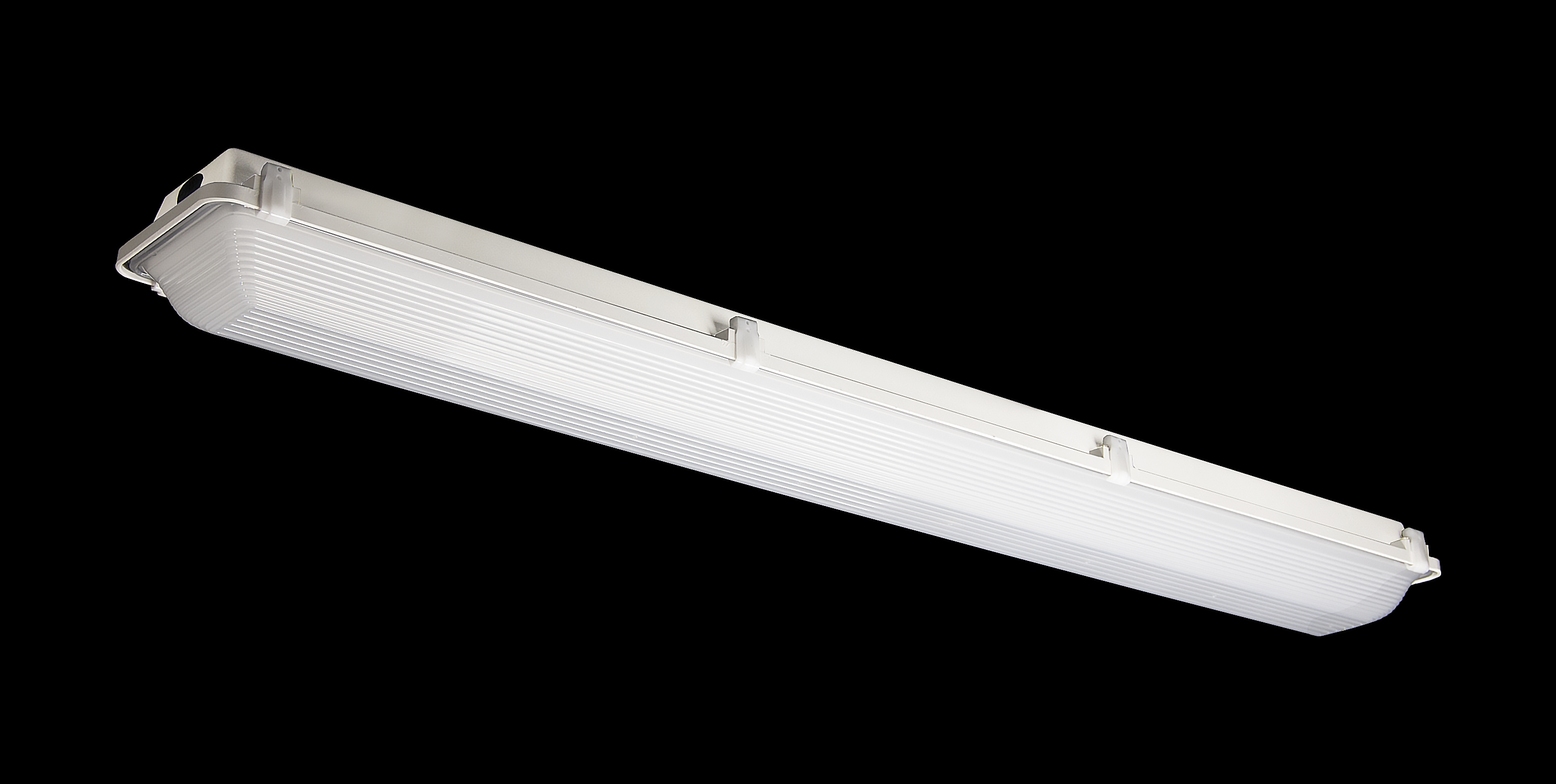

LED Vaportight

Durable materials and craftsmanship allows the NVL G2 to withstand some of the harshest environments. The UL 5VA fiberglass housing will not melt or burn. Multiple hanging options are available, including surface, chain and aircraft cable, for easy installation (more info below). The NVL G2 comes standard with 90+ CRI LED boards. Impact resistant acrylic lenses are available, as well as UV-stabilized polycarbonate lenses. Every NVL is made in the USA - in our Henderson, NC facility, using mostly domestic and some foreign components.

Click to download (.pdf):
NVL G2 2'
NVL G2 4'
NVL G2 8'
Click to download (.pdf):
NVL G2 Sell Sheet
Click to view:
NVL G2 2'
NVL G2 4'
NVL G2 8'
Click to download:
NVL G2 2': .ies files | .pdf files
NVL G2 4': .ies files | .pdf files
NVL G2 8': .ies files | .pdf files

  • Applications: Suitable for most industrial, retail and recreational low bay and high bay applications - warehouse, manufacturing facility, food processing, freezer, gymnasium, car wash
  • Lumen Output: From about 1,100 lm to 23,600 lm
  • Max Lumens Per Watt: 144.5

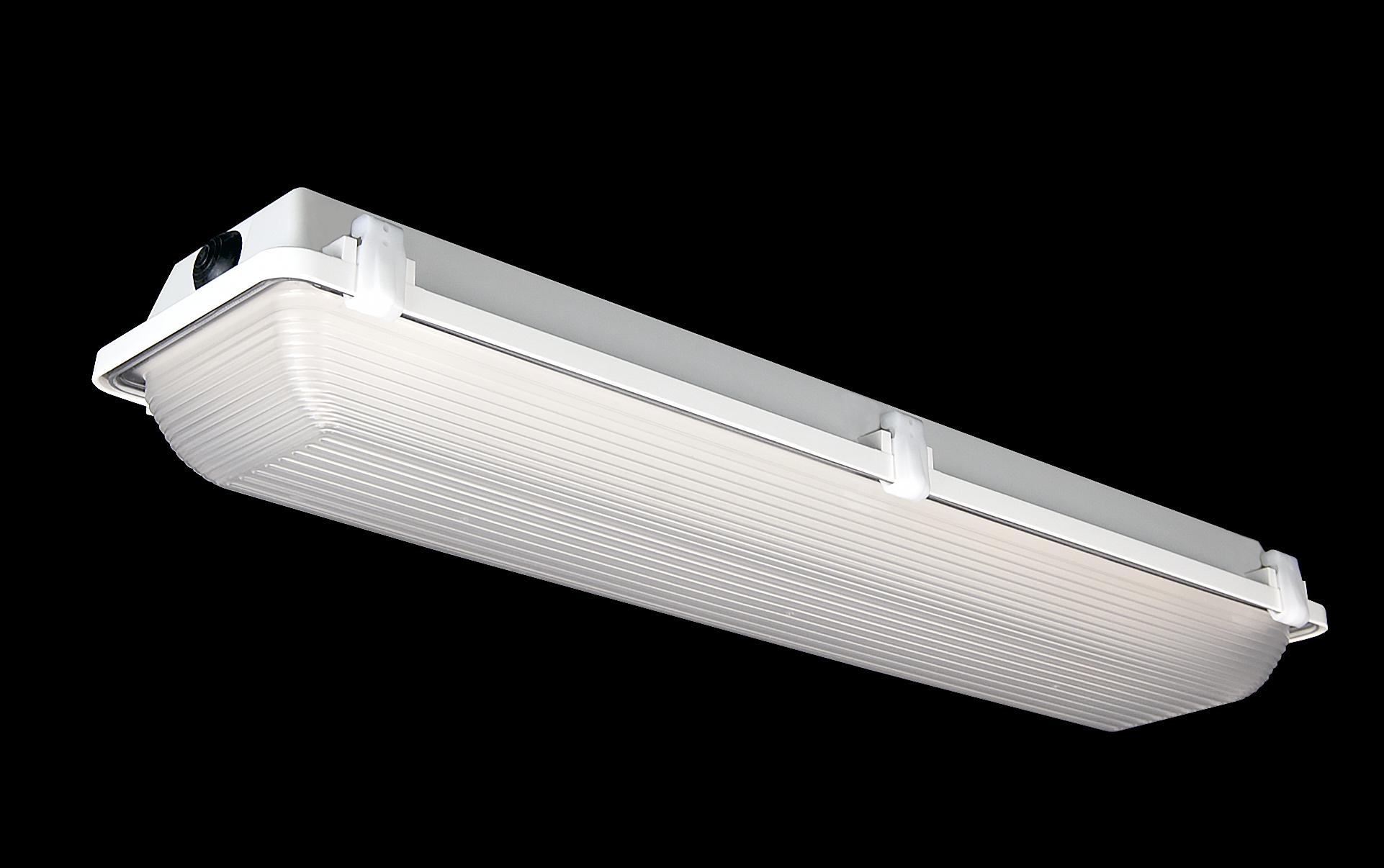

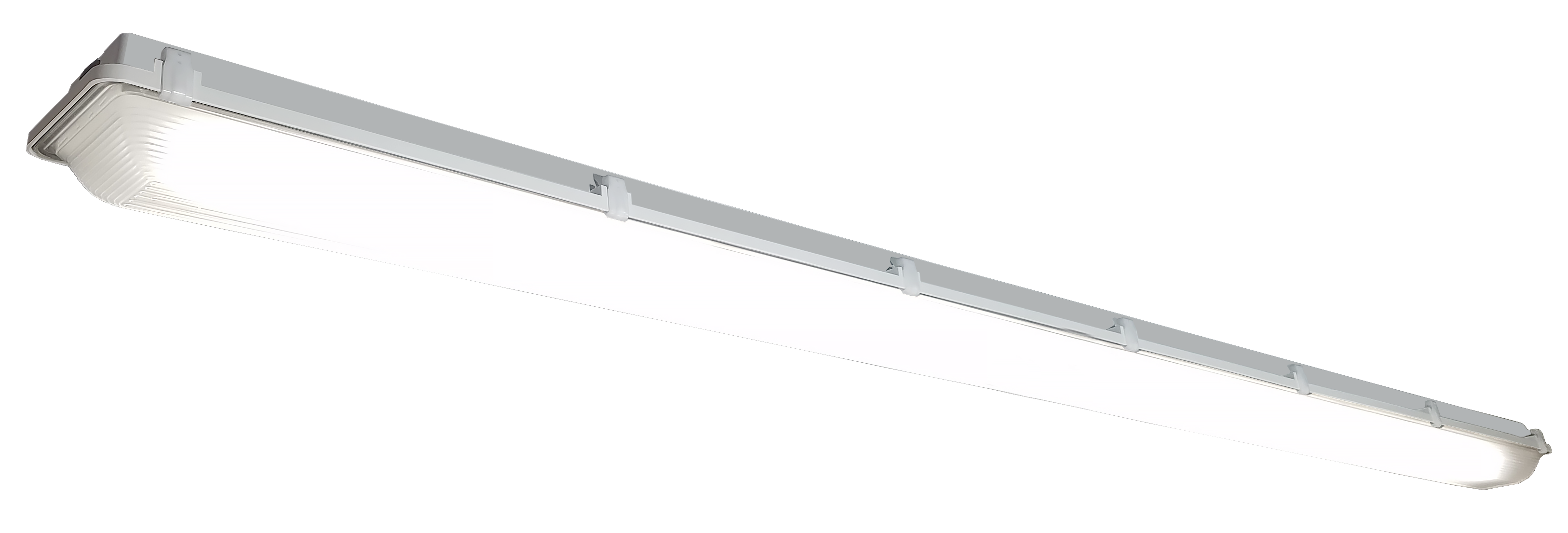

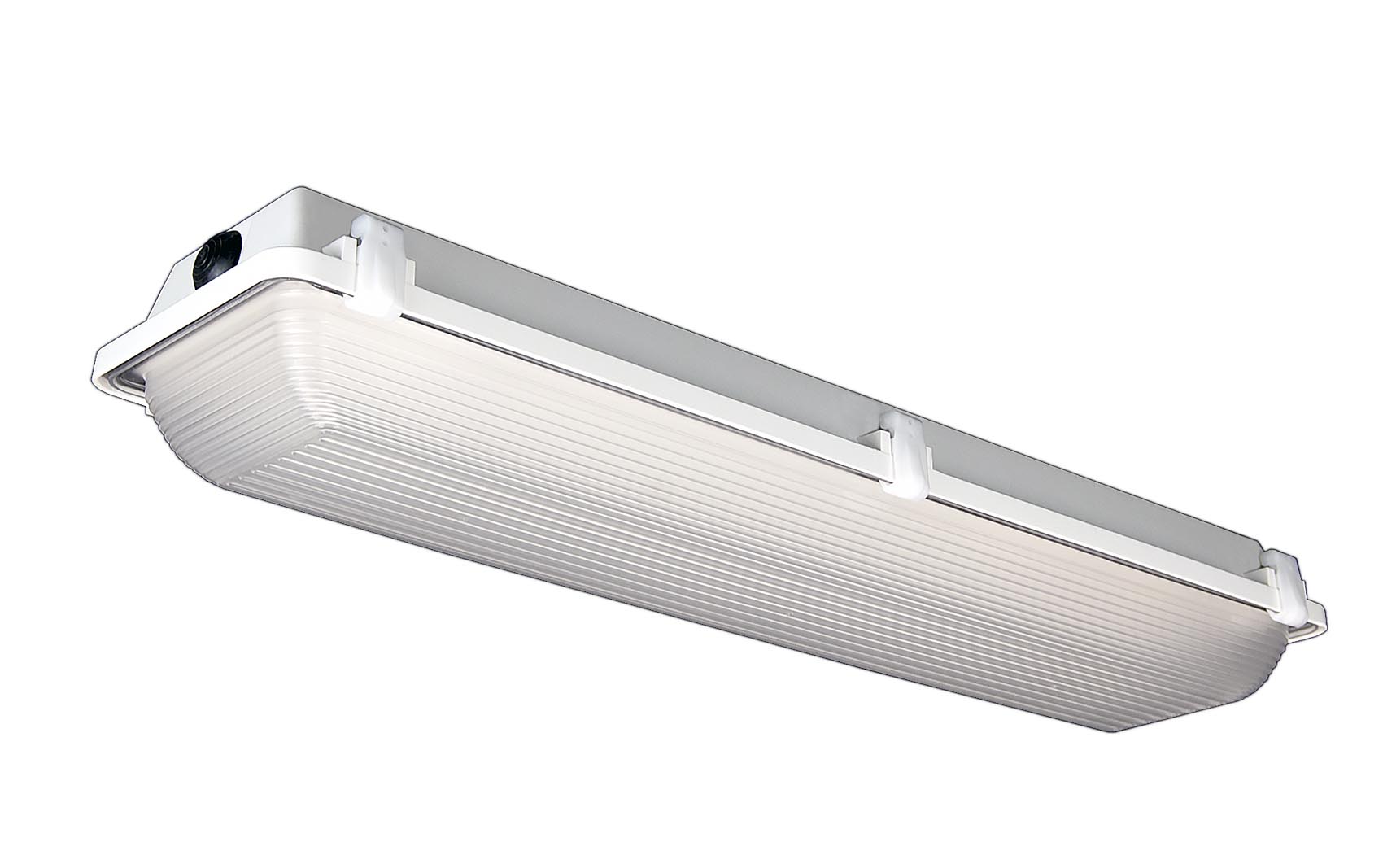

  • Size Options: 8-foot, 4-foot, 2-foot
  • Predicted L70 Lifetime: Greater than or equal to 129,000 hours (calculated)
  • Warranty: 5 year limited system warranty
  • Re-BoardABILITY: Every NVL G2 is upgradeable. Boards and drivers can easily be swapped out for upgrade in a matter of minutes. Learn more about Re-Boardability here.
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations.  DesignLights Consortium qualified on specific configurations. Other certifications: IP65, IP66, IP67, NEMA 4X, NSF, PSI 1500, RoHS
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

DLC-cULus-MiA-BAA-DLC-NSF-90CRI-2023

Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailableDLC ListedPredicted L70 Lifetime

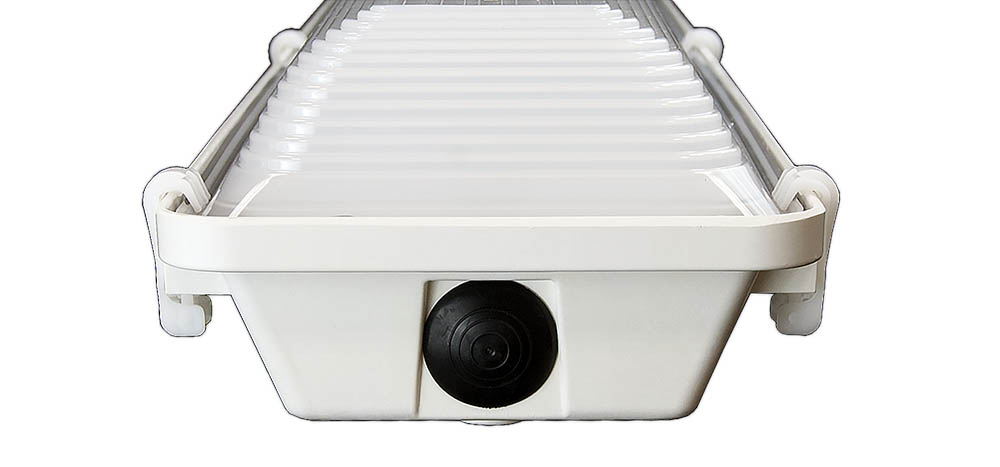

NVL G2 2 VL UV FRA 9302-foot11239.2122.190 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VL UV FRA 9352-foot1117.89.2122.690 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VL UV FRA 9402-foot1154.69.2125.590 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VL UV FRA 9502-foot1154.69.2125.590 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 LW UV FRA 9302-foot2135.115.2140.690 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 LW UV FRA 9352-foot2144.115.2141.290 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 LW UV FRA 9402-foot2195.115.2144.590 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 LW UV FRA 9502-foot2195.115.2144.590 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 MD UV FRA 9302-foot3123.523.9130.690 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 MD UV FRA 9352-foot3136.623.9131.190 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 MD UV FRA 9402-foot3211.123.9134.290 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 MD UV FRA 9502-foot3211.123.9134.290 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 HI UV FRA 9302-foot4111.430.5134.990 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 HI UV FRA 9352-foot4128.730.5135.490 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 HI UV FRA 9402-foot4226.830.5138.790 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 HI UV FRA 9502-foot4226.830.5138.790 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VH UV FRA 9302-foot5089.736.7138.790 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VH UV FRA 9352-foot5111.136.7139.390 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VH UV FRA 9402-foot5232.536.7142.690 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 VH UV FRA 9502-foot5232.536.7142.690 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 SH UV FRA 9302-foot6058.545.3133.990 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 SH UV FRA 9352-foot608445.3134.490 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 SH UV FRA 9402-foot6228.645.3137.690 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 2 SH UV FRA 9502-foot6228.645.3137.690 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VL UV FRA 9304-foot2028.516.112690 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VL UV FRA 9354-foot2037.116.1126.590 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VL UV FRA 9404-foot2085.516.1129.690 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VL UV FRA 9504-foot2085.516.1129.690 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 LW UV FRA 9304-foot3947.929.3134.990 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 LW UV FRA 9354-foot3964.529.3135.590 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 LW UV FRA 9404-foot4058.729.3138.790 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 LW UV FRA 9504-foot4058.729.3138.790 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 MD UV FRA 9304-foot5803.544.2131.490 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 MD UV FRA 9354-foot5827.944.213290 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 MD UV FRA 9404-foot5966.444.2135.190 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 MD UV FRA 9504-foot5966.444.2135.190 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 HI UV FRA 9304-foot7738.358.4132.690 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 HI UV FRA 9354-foot7770.958.4133.190 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 HI UV FRA 9404-foot7955.558.4136.390 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 HI UV FRA 9504-foot7955.558.4136.390 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VH UV FRA 9304-foot9620.771.6134.490 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VH UV FRA 9354-foot9661.271.613590 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VH UV FRA 9404-foot9890.771.6138.290 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 VH UV FRA 9504-foot9890.771.6138.290 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 SH UV FRA 9304-foot11482.688.313090 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 SH UV FRA 9354-foot1153188.3130.690 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 SH UV FRA 9404-foot11804.888.3133.790 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 4 SH UV FRA 9504-foot11804.888.3133.790 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SL UV FRA 9308-foot4057.129.6137.190 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SL UV FRA 9358-foot4074.229.6137.790 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SL UV FRA 9408-foot4170.929.6140.990 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SL UV FRA 9508-foot4170.929.6140.990 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VL UV FRA 9308-foot5845.243.5134.390 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VL UV FRA 9358-foot5869.943.5134.990 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VL UV FRA 9408-foot6009.343.5138.190 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VL UV FRA 9508-foot6009.343.5138.190 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 LW UV FRA 9308-foot7735.860.3128.390 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 LW UV FRA 9358-foot7768.460.3128.890 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 LW UV FRA 9408-foot7952.960.3131.990 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 LW UV FRA 9508-foot7952.960.3131.990 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MD UV FRA 9308-foot9604.669.8137.690 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MD UV FRA 9358-foot9645.169.8138.290 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MD UV FRA 9408-foot9874.269.8141.490 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MD UV FRA 9508-foot9874.269.8141.490 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MH UV FRA 9308-foot11546.586.1134.190 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MH UV FRA 9358-foot11595.186.1134.790 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MH UV FRA 9408-foot11870.586.1137.890 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 MH UV FRA 9508-foot11870.586.1137.890 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 HI UV FRA 9308-foot15355.5115.7132.890 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 HI UV FRA 9358-foot15420.2115.7133.390 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 HI UV FRA 9408-foot15786.5115.7136.590 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 HI UV FRA 9508-foot15786.5115.7136.590 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VH UV FRA 9308-foot19133.1142.2134.590 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VH UV FRA 9358-foot19213.7142.2135.190 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VH UV FRA 9408-foot19670142.2138.390 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 VH UV FRA 9508-foot19670142.2138.390 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SH UV FRA 9308-foot22965.1177.5129.490 CRI / 3000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SH UV FRA 9358-foot23061.9177.5129.990 CRI / 3500KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SH UV FRA 9408-foot23609.7177.513390 CRI / 4000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
NVL G2 8 SH UV FRA 9508-foot23609.7177.513390 CRI / 5000KFrosted ribbed acrylic (other options available)120-277V, 347VYes, with FRA lensGreater than or equal to 129,000 hrs (calculated)
Catalog #
Equivalency*
NVL G2 2 VL UV FRA 9301L F17 T8, NBF
NVL G2 2 VL UV FRA 9351L F17 T8, NBF
NVL G2 2 VL UV FRA 9401L F17 T8, NBF
NVL G2 2 VL UV FRA 9501L F17 T8, NBF
NVL G2 2 LW UV FRA 9302L F17 T8, NBF
NVL G2 2 LW UV FRA 9352L F17 T8, NBF
NVL G2 2 LW UV FRA 9402L F17 T8, NBF
NVL G2 2 LW UV FRA 9502L F17 T8, NBF
NVL G2 2 MD UV FRA 9303L F17 T8, NBF / 2L F24 T5HO
NVL G2 2 MD UV FRA 9353L F17 T8, NBF / 2L F24 T5HO
NVL G2 2 MD UV FRA 9403L F17 T8, NBF / 2L F24 T5HO
NVL G2 2 MD UV FRA 9503L F17 T8, NBF / 2L F24 T5HO
NVL G2 2 HI UV FRA 9303L F24 T5HO
NVL G2 2 HI UV FRA 9353L F24 T5HO
NVL G2 2 HI UV FRA 9403L F24 T5HO
NVL G2 2 HI UV FRA 9503L F24 T5HO
NVL G2 2 VH UV FRA 9303L F24 T5HO
NVL G2 2 VH UV FRA 9353L F24 T5HO
NVL G2 2 VH UV FRA 9403L F24 T5HO
NVL G2 2 VH UV FRA 9503L F24 T5HO
NVL G2 2 SH UV FRA 9304L F24 T5HO
NVL G2 2 SH UV FRA 9354L F24 T5HO
NVL G2 2 SH UV FRA 9404L F24 T5HO
NVL G2 2 SH UV FRA 9504L F24 T5HO
NVL G2 4 VL UV FRA 9301L F32 T8, NBF
NVL G2 4 VL UV FRA 9351L F32 T8, NBF
NVL G2 4 VL UV FRA 9401L F32 T8, NBF
NVL G2 4 VL UV FRA 9501L F32 T8, NBF
NVL G2 4 LW UV FRA 9302L F32 T8, NBF / 1L F54 T5HO
NVL G2 4 LW UV FRA 9352L F32 T8, NBF / 1L F54 T5HO
NVL G2 4 LW UV FRA 9402L F32 T8, NBF / 1L F54 T5HO
NVL G2 4 LW UV FRA 9502L F32 T8, NBF / 1L F54 T5HO
NVL G2 4 MD UV FRA 9303L F32 T8, NBF
NVL G2 4 MD UV FRA 9353L F32 T8, NBF
NVL G2 4 MD UV FRA 9403L F32 T8, NBF
NVL G2 4 MD UV FRA 9503L F32 T8, NBF
NVL G2 4 HI UV FRA 9302L F54 T5HO
NVL G2 4 HI UV FRA 9352L F54 T5HO
NVL G2 4 HI UV FRA 9402L F54 T5HO
NVL G2 4 HI UV FRA 9502L F54 T5HO
NVL G2 4 VH UV FRA 9303L F54 T5HO
NVL G2 4 VH UV FRA 9353L F54 T5HO
NVL G2 4 VH UV FRA 9403L F54 T5HO
NVL G2 4 VH UV FRA 9503L F54 T5HO
NVL G2 4 SH UV FRA 9303L F54 T5HO
NVL G2 4 SH UV FRA 9353L F54 T5HO
NVL G2 4 SH UV FRA 9403L F54 T5HO
NVL G2 4 SH UV FRA 9503L F54 T5HO
NVL G2 8 SL UV FRA 9302L F32 T8, NBF / 1L F96 T8
NVL G2 8 SL UV FRA 9352L F32 T8, NBF / 1L F96 T8
NVL G2 8 SL UV FRA 9402L F32 T8, NBF / 1L F96 T8
NVL G2 8 SL UV FRA 9502L F32 T8, NBF / 1L F96 T8
NVL G2 8 VL UV FRA 9301L F96 T8HO
NVL G2 8 VL UV FRA 9351L F96 T8HO
NVL G2 8 VL UV FRA 9401L F96 T8HO
NVL G2 8 VL UV FRA 9501L F96 T8HO
NVL G2 8 LW UV FRA 9304L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL G2 8 LW UV FRA 9354L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL G2 8 LW UV FRA 9404L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL G2 8 LW UV FRA 9504L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL G2 8 MD UV FRA 9302L F96 T8HO
NVL G2 8 MD UV FRA 9352L F96 T8HO
NVL G2 8 MD UV FRA 9402L F96 T8HO
NVL G2 8 MD UV FRA 9502L F96 T8HO
NVL G2 8 MH UV FRA 9306L F32 T8, NBF / 2L F96 T8HO
NVL G2 8 MH UV FRA 9356L F32 T8, NBF / 2L F96 T8HO
NVL G2 8 MH UV FRA 9406L F32 T8, NBF / 2L F96 T8HO
NVL G2 8 MH UV FRA 9506L F32 T8, NBF / 2L F96 T8HO
NVL G2 8 HI UV FRA 9303L F96 T8HO
NVL G2 8 HI UV FRA 9353L F96 T8HO
NVL G2 8 HI UV FRA 9403L F96 T8HO
NVL G2 8 HI UV FRA 9503L F96 T8HO
NVL G2 8 VH UV FRA 9303L F96 T8HO
NVL G2 8 VH UV FRA 9353L F96 T8HO
NVL G2 8 VH UV FRA 9403L F96 T8HO
NVL G2 8 VH UV FRA 9503L F96 T8HO
NVL G2 8 SH UV FRA 9306L F54 T5HO
NVL G2 8 SH UV FRA 9356L F54 T5HO
NVL G2 8 SH UV FRA 9406L F54 T5HO
NVL G2 8 SH UV FRA 9506L F54 T5HO

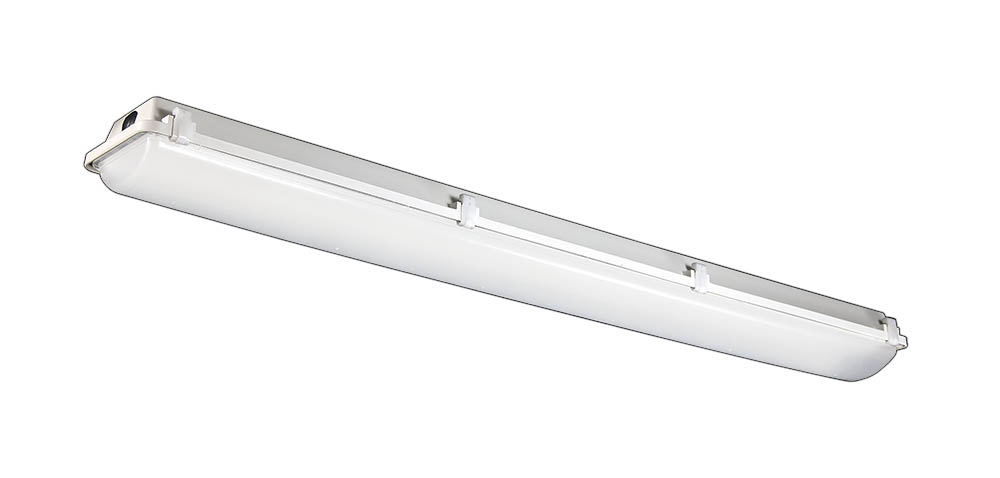

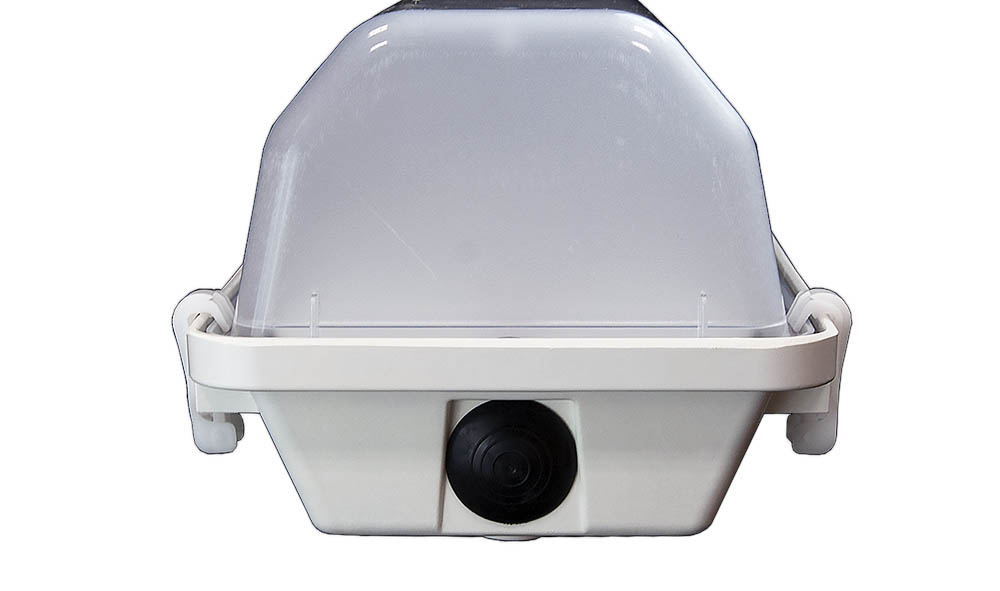

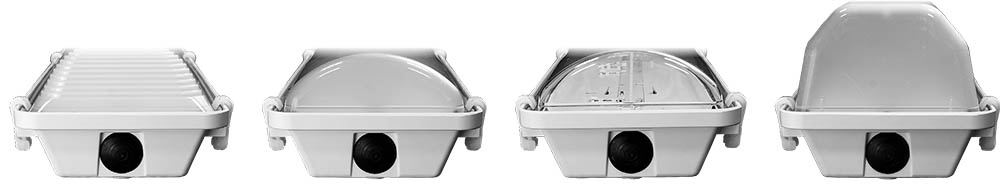

*Lumen Adjustment Factors: FDA lens: 1.045; FSA lens: 1.039; CRA lens: 1.051; CDA lens: 1.053; CSA lens: 1.058
**NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
NVL G2 2 VL UV FRA 930View Download Download
NVL G2 2 VL UV FRA 935View Download Download
NVL G2 2 VL UV FRA 940View Download Download
NVL G2 2 VL UV FRA 950View Download Download
NVL G2 2 LW UV FRA 930View Download Download
NVL G2 2 LW UV FRA 935View Download Download
NVL G2 2 LW UV FRA 940View Download Download
NVL G2 2 LW UV FRA 950View Download Download
NVL G2 2 MD UV FRA 930View Download Download
NVL G2 2 MD UV FRA 935View Download Download
NVL G2 2 MD UV FRA 940View Download Download
NVL G2 2 MD UV FRA 950View Download Download
NVL G2 2 HI UV FRA 930View Download Download
NVL G2 2 HI UV FRA 935View Download Download
NVL G2 2 HI UV FRA 940View Download Download
NVL G2 2 HI UV FRA 950View Download Download
NVL G2 2 VH UV FRA 930View Download Download
NVL G2 2 VH UV FRA 935View Download Download
NVL G2 2 VH UV FRA 940View Download Download
NVL G2 2 VH UV FRA 950View Download Download
NVL G2 2 SH UV FRA 930View Download Download
NVL G2 2 SH UV FRA 935View Download Download
NVL G2 2 SH UV FRA 940View Download Download
NVL G2 2 SH UV FRA 950View Download Download
NVL G2 4 VL UV FRA 930View Download Download
NVL G2 4 VL UV FRA 935View Download Download
NVL G2 4 VL UV FRA 940View Download Download
NVL G2 4 VL UV FRA 950View Download Download
NVL G2 4 LW UV FRA 930View Download Download
NVL G2 4 LW UV FRA 935View Download Download
NVL G2 4 LW UV FRA 940View Download Download
NVL G2 4 LW UV FRA 950View Download Download
NVL G2 4 MD UV FRA 930View Download Download
NVL G2 4 MD UV FRA 935View Download Download
NVL G2 4 MD UV FRA 940View Download Download
NVL G2 4 MD UV FRA 950View Download Download
NVL G2 4 HI UV FRA 930View Download Download
NVL G2 4 HI UV FRA 935View Download Download
NVL G2 4 HI UV FRA 940View Download Download
NVL G2 4 HI UV FRA 950View Download Download
NVL G2 4 VH UV FRA 930View Download Download
NVL G2 4 VH UV FRA 935View Download Download
NVL G2 4 VH UV FRA 940View Download Download
NVL G2 4 VH UV FRA 950View Download Download
NVL G2 4 SH UV FRA 930View Download Download
NVL G2 4 SH UV FRA 935View Download Download
NVL G2 4 SH UV FRA 940View Download Download
NVL G2 4 SH UV FRA 950View Download Download
NVL G2 8 SL UV FRA 930View Download Download
NVL G2 8 SL UV FRA 935View Download Download
NVL G2 8 SL UV FRA 940View Download Download
NVL G2 8 SL UV FRA 950View Download Download
NVL G2 8 VL UV FRA 930View Download Download
NVL G2 8 VL UV FRA 935View Download Download
NVL G2 8 VL UV FRA 940View Download Download
NVL G2 8 VL UV FRA 950View Download Download
NVL G2 8 LW UV FRA 930View Download Download
NVL G2 8 LW UV FRA 935View Download Download
NVL G2 8 LW UV FRA 940View Download Download
NVL G2 8 LW UV FRA 950View Download Download
NVL G2 8 MD UV FRA 930View Download Download
NVL G2 8 MD UV FRA 935View Download Download
NVL G2 8 MD UV FRA 940View Download Download
NVL G2 8 MD UV FRA 950View Download Download
NVL G2 8 MH UV FRA 930View Download Download
NVL G2 8 MH UV FRA 935View Download Download
NVL G2 8 MH UV FRA 940View Download Download
NVL G2 8 MH UV FRA 950View Download Download
NVL G2 8 HI UV FRA 930View Download Download
NVL G2 8 HI UV FRA 935View Download Download
NVL G2 8 HI UV FRA 940View Download Download
NVL G2 8 HI UV FRA 950View Download Download
NVL G2 8 VH UV FRA 930View Download Download
NVL G2 8 VH UV FRA 935View Download Download
NVL G2 8 VH UV FRA 940View Download Download
NVL G2 8 VH UV FRA 950View Download Download
NVL G2 8 SH UV FRA 930View Download Download
NVL G2 8 SH UV FRA 935View Download Download
NVL G2 8 SH UV FRA 940View Download Download
NVL G2 8 SH UV FRA 950View Download Download

NVLMountingOptionsUpdated

Mounting options

The NVL G2 can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10' quick hang cable kit (the SMBBQC option) or a 20' quick hang cable kit (SMBBQC20). A 45-degree wall mount bracket (SM45) is available as well.

NVLMountingOptionsUpdated

Mounting options

The NVL G2 can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10' quick hang cable kit (the SMBBQC option) or a 20' quick hang cable kit (SMBBQC20). A 45-degree wall mount bracket (SM45) is available as well.

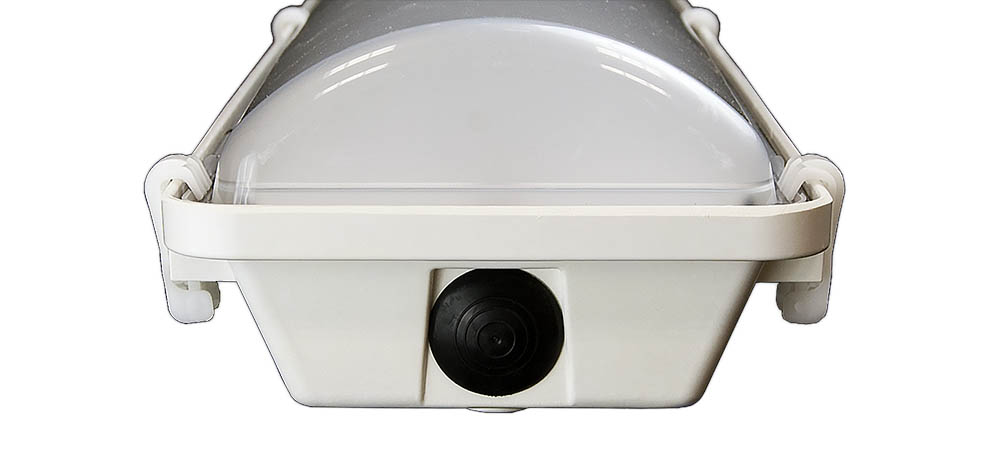

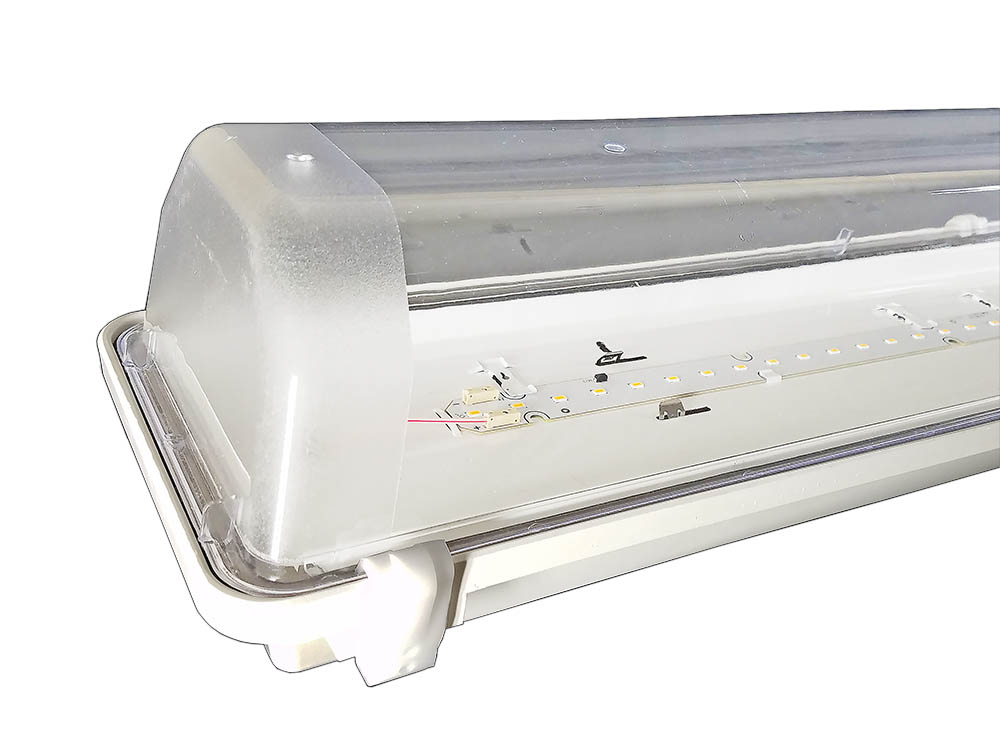

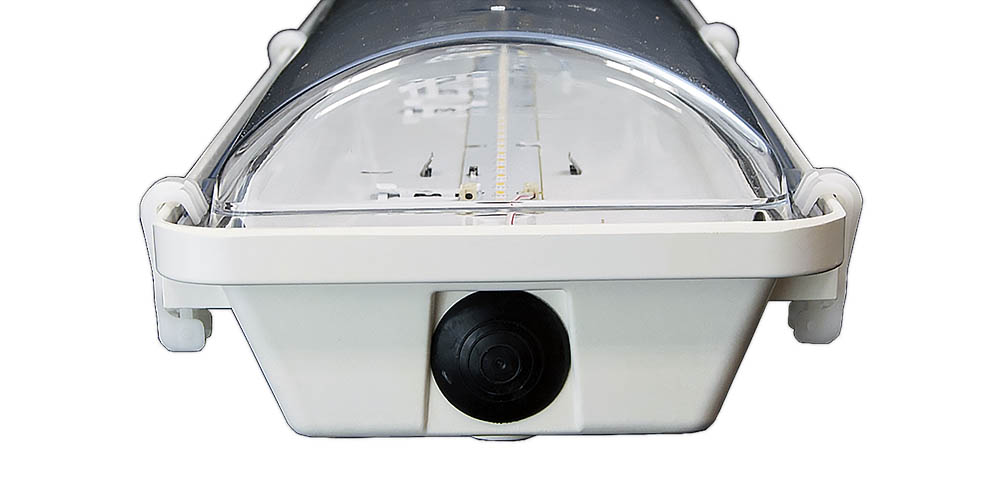

Lens variety

The NVL G2 has several different lens/shielding options. Check out the spec sheet to see what's available.

NVLlensoptions
