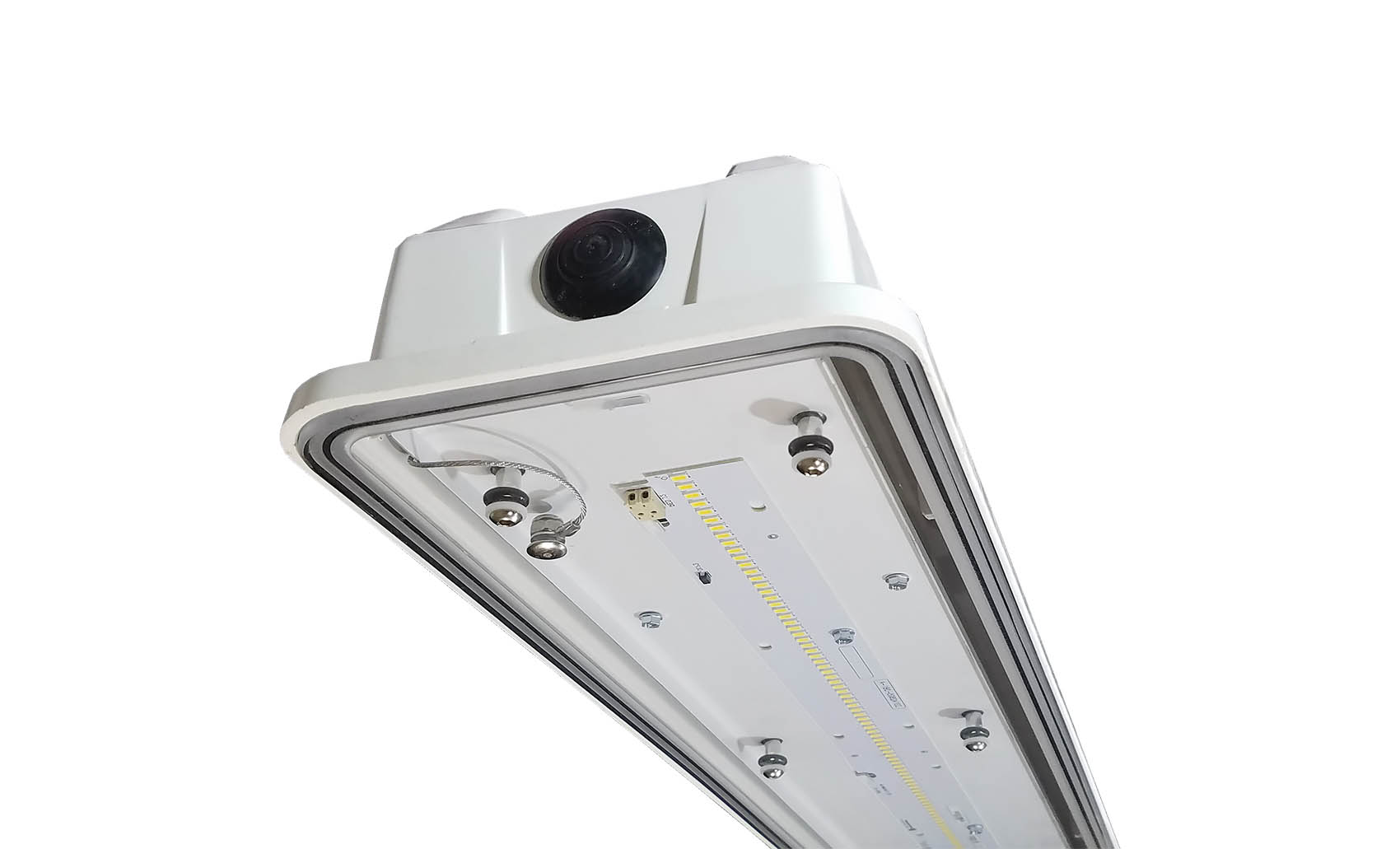

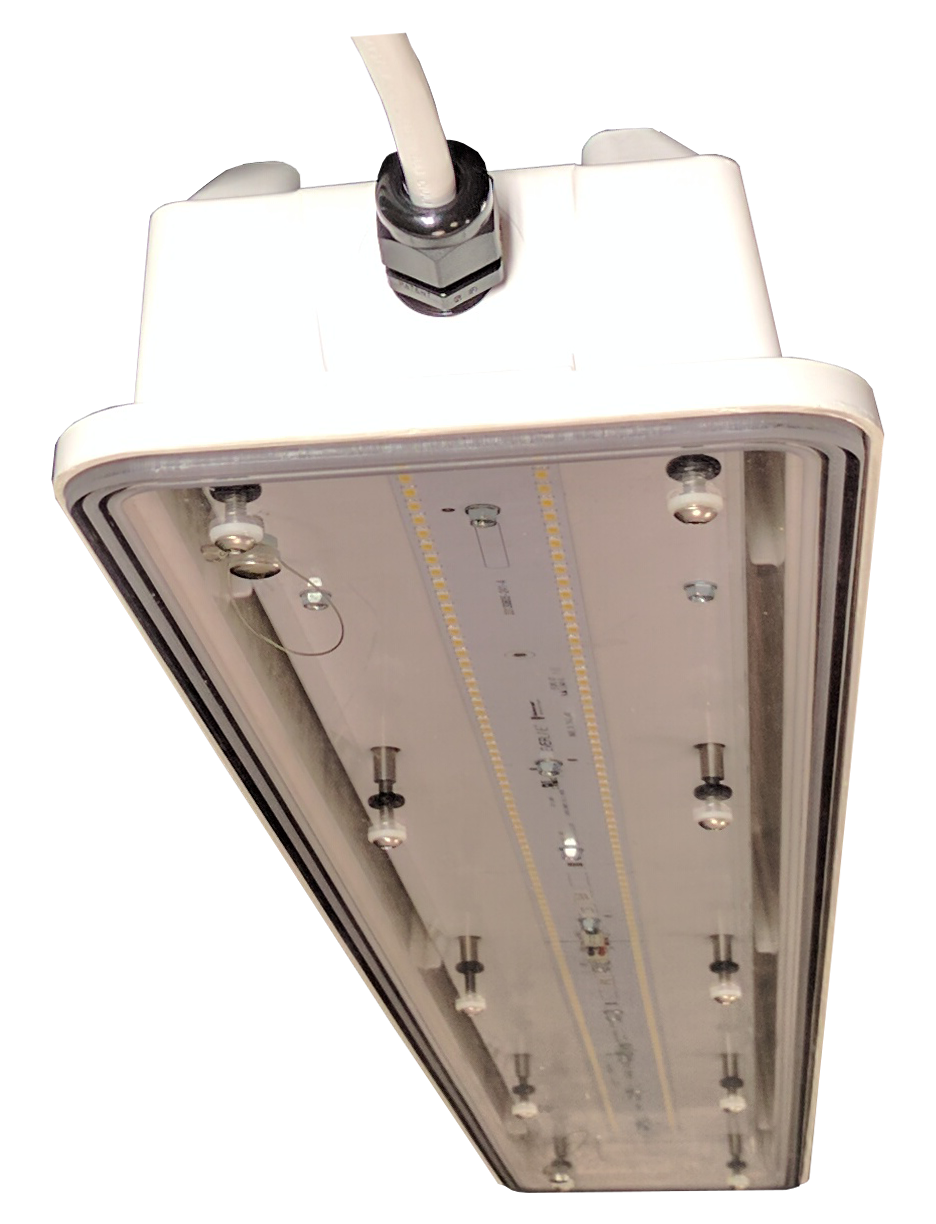

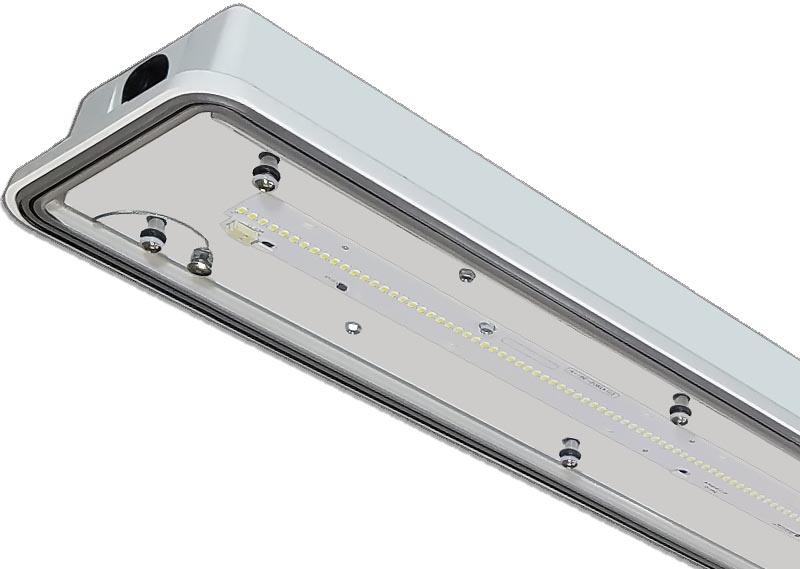

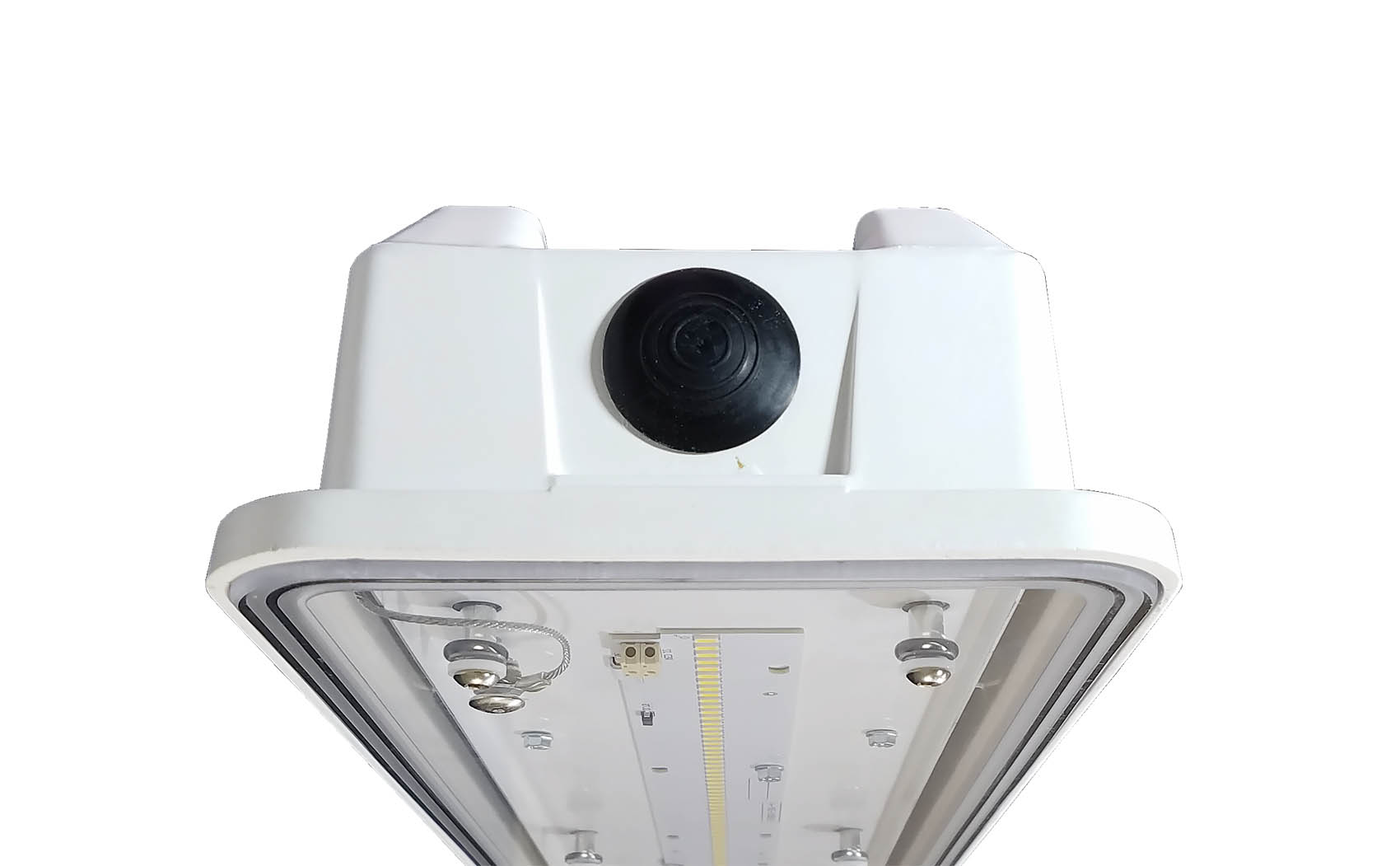

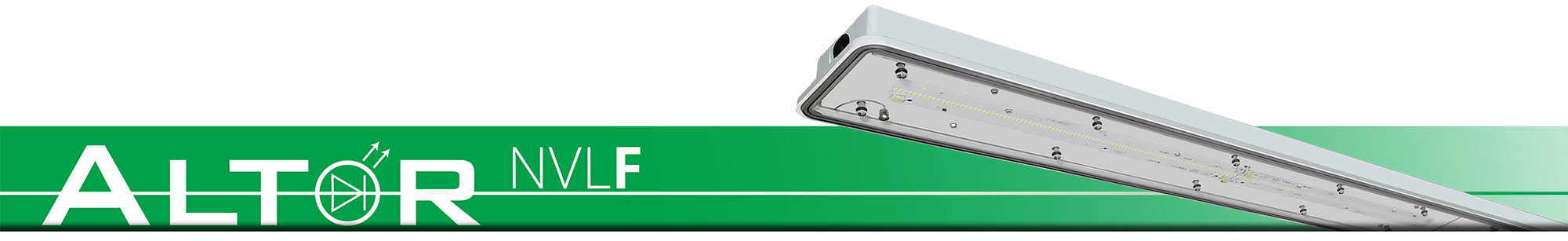

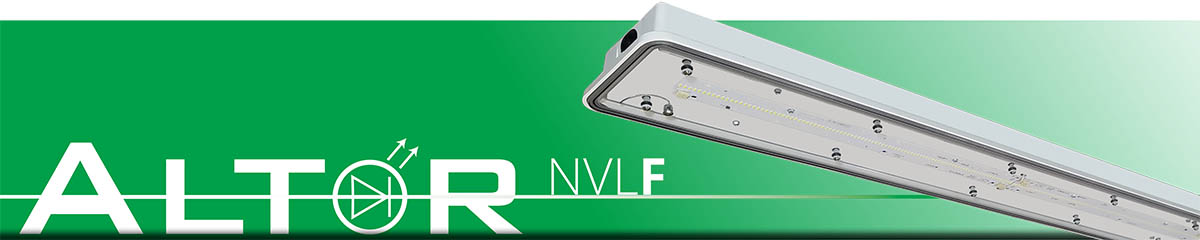

LED Vaportight High / Low Bay

The Altor series is designed for the high demands of food and meat industry facilities. The NVLF G2's unique narrow profile design is bacteria and debris resistant, easy to clean, and features a true water seal. The housing is made of UL 5VA fiberglass and will not melt or burn. The Altor NVLF G2 is available in 4-foot and 8-foot versions, with multiple lumen output packages, color temperatures at 90+ CRI, and hanging options. Lenses are available in clear polycarbonate. Control options are available to maximize energy savings, and all sensors are IP-rated. The Altor series also includes the wider profile WVLF G2 (learn more about the WVLF G2 here). Every NVLF G2 is made in the USA - in our Henderson, NC facility, utilizing mostly domestic and some foreign components.

Click to download (.pdf):
NVLF G2 4
NVLF G2 8
Click to view:
NVLF G2 4
NVLF G2 8

  • Applications: Designed for food and meat processing facilities, or other applications that have similar requirements of a vaportight luminaire. Also suitable for most industrial, retail and recreational low bay and high bay applications - warehouse, manufacturing facility, freezer
  • Lumen Output: From 2,020 in the 4-foot version up to 19,000+ in the 8-foot
  • Max Lumens Per Watt: 144.3
  • Size Options: 4-foot and 8-foot
  • Predicted L70 Lifetime: Greater or equal to 131,000 hours (calculated) for NVLF G2 4; greater or equal to 129,000 hours (calculated) for NVLF G2 8
  • Warranty: 5 year limited system warranty
  • Certifications: UL 1598 listed for US and Canada, suitable for wet locations. Other certifications: NSF, IP66, RoHS, NEMA 4X, PSI 1500
  • Made in the USA, in our Henderson, NC facility, utilizing mostly domestic and some foreign components. BAA compliant options are available

UL-MiA-BAA-90CRI-NSF-2023

Note: Table scrolls horizontally
Catalog #
SizeLumensWattsLPWCRI / Color TempShieldingVoltages AvailablePredicted L70 Lifetime
NVL F G2 4 VL UV CFP 9304 foot2,020.815.4131.490 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VL UV CFP 9354 foot2,029.315.4132.090 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VL UV CFP 9404 foot2,077.515.4135.190 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VL UV CFP 9504 foot2,077.515.4135.190 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 LW UV CFP 9304 foot3,964.328.4139.790 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 LW UV CFP 9354 foot3,981.028.4140.390 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 LW UV CFP 9404 foot4,075.628.4143.690 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 LW UV CFP 9504 foot4,075.628.4143.690 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 MD UV CFP 9304 foot5,882.243.0136.990 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 MD UV CFP 9354 foot5,907.043.0137.590 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 MD UV CFP 9404 foot6,047.343.0140.890 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 MD UV CFP 9504 foot6,047.343.0140.890 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 HI UV CFP 9304 foot7,799.956.3138.690 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 HI UV CFP 9354 foot7,832.856.3139.290 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 HI UV CFP 9404 foot8,018.856.3142.590 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 HI UV CFP 9504 foot8,018.856.3142.590 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VH UV CFP 9304 foot9,717.569.2140.490 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VH UV CFP 9354 foot9,758.569.2141.090 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VH UV CFP 9404 foot9,990.269.2144.390 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 4 VH UV CFP 9504 foot9,990.269.2144.390 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 131,000 hours (calculated)
NVL F G2 8 SL UV CFP 9308 foot3,972.930.2131.690 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 SL UV CFP 9358 foot3,989.730.2132.190 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 SL UV CFP 9408 foot4,084.430.2135.290 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 SL UV CFP 9508 foot4,084.430.2135.290 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VL UV CFP 9308 foot5,724.044.4128.990 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VL UV CFP 9358 foot5,748.244.4129.490 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VL UV CFP 9408 foot5,884.744.4132.590 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VL UV CFP 9508 foot5,884.744.4132.590 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 LW UV CFP 9308 foot7,575.461.5123.190 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 LW UV CFP 9358 foot7,607.461.5123.690 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 LW UV CFP 9408 foot7,788.061.5126.690 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 LW UV CFP 9508 foot7,788.061.5126.690 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MD UV CFP 9308 foot9,405.571.2132.090 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MD UV CFP 9358 foot9,445.171.2132.690 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MD UV CFP 9408 foot9,669.571.2135.790 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MD UV CFP 9508 foot9,669.571.2135.790 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MH UV CFP 9308 foot11,307.187.9128.790 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MH UV CFP 9358 foot11,354.787.9129.290 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MH UV CFP 9408 foot11,624.487.9132.390 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 MH UV CFP 9508 foot11,624.487.9132.390 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 HI UV CFP 9308 foot15,037.1118.0127.490 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 HI UV CFP 9358 foot15,100.5118.0127.990 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 HI UV CFP 9408 foot15,459.1118.0131.090 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 HI UV CFP 9508 foot15,491.1118.0131.090 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VH UV CFP 9308 foot18,736.4145.1129.190 CRI / 3000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VH UV CFP 9358 foot18,815.3145.1129.690 CRI / 3500KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VH UV CFP 9408 foot19,262.2145.1132.790 CRI / 4000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
NVL F G2 8 VH UV CFP 9508 foot19,262.2145.1132.790 CRI / 5000KClear flat polycarbonate120-277V, 347VGreater or equal to 129,000 hours (calculated)
Catalog #
Equivalency*
NVL F G2 4 VL UV CFP 9301L F32 T8, NBF
NVL F G2 4 VL UV CFP 9351L F32 T8, NBF
NVL F G2 4 VL UV CFP 9401L F32 T8, NBF
NVL F G2 4 VL UV CFP 9501L F32 T8, NBF
NVL F G2 4 LW UV CFP 9302L F32 T8, NBF / 1L F54 T5HO
NVL F G2 4 LW UV CFP 9352L F32 T8, NBF / 1L F54 T5HO
NVL F G2 4 LW UV CFP 9402L F32 T8, NBF / 1L F54 T5HO
NVL F G2 4 LW UV CFP 9502L F32 T8, NBF / 1L F54 T5HO
NVL F G2 4 MD UV CFP 9303L F32 T8, NBF
NVL F G2 4 MD UV CFP 9353L F32 T8, NBF
NVL F G2 4 MD UV CFP 9403L F32 T8, NBF
NVL F G2 4 MD UV CFP 9503L F32 T8, NBF
NVL F G2 4 HI UV CFP 9302L F54 T5HO
NVL F G2 4 HI UV CFP 9352L F54 T5HO
NVL F G2 4 HI UV CFP 9402L F54 T5HO
NVL F G2 4 HI UV CFP 9502L F54 T5HO
NVL F G2 4 VH UV CFP 9303L F54 T5HO
NVL F G2 4 VH UV CFP 9353L F54 T5HO
NVL F G2 4 VH UV CFP 9403L F54 T5HO
NVL F G2 4 VH UV CFP 9503L F54 T5HO
NVL F G2 8 SL UV CFP 9302L F32 T8, NBF / 1L F96 T8
NVL F G2 8 SL UV CFP 9352L F32 T8, NBF / 1L F96 T8
NVL F G2 8 SL UV CFP 9402L F32 T8, NBF / 1L F96 T8
NVL F G2 8 SL UV CFP 9502L F32 T8, NBF / 1L F96 T8
NVL F G2 8 VL UV CFP 9301L F96 T8HO
NVL F G2 8 VL UV CFP 9351L F96 T8HO
NVL F G2 8 VL UV CFP 9401L F96 T8HO
NVL F G2 8 VL UV CFP 9501L F96 T8HO
NVL F G2 8 LW UV CFP 9304L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL F G2 8 LW UV CFP 9354L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL F G2 8 LW UV CFP 9404L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL F G2 8 LW UV CFP 9504L F32 T8, NBF / 2L F54 T5HO / 2L F96 T8
NVL F G2 8 MD UV CFP 9302L F96 T8HO
NVL F G2 8 MD UV CFP 9352L F96 T8HO
NVL F G2 8 MD UV CFP 9402L F96 T8HO
NVL F G2 8 MD UV CFP 9502L F96 T8HO
NVL F G2 8 MH UV CFP 9306L F32 T8, NBF / 2L F96 T8HO
NVL F G2 8 MH UV CFP 9356L F32 T8, NBF / 2L F96 T8HO
NVL F G2 8 MH UV CFP 9406L F32 T8, NBF / 2L F96 T8HO
NVL F G2 8 MH UV CFP 9506L F32 T8, NBF / 2L F96 T8HO
NVL F G2 8 HI UV CFP 9303L F96 T8HO
NVL F G2 8 HI UV CFP 9353L F96 T8HO
NVL F G2 8 HI UV CFP 9403L F96 T8HO
NVL F G2 8 HI UV CFP 9503L F96 T8HO
NVL F G2 8 VH UV CFP 9303L F96 T8HO
NVL F G2 8 VH UV CFP 9353L F96 T8HO
NVL F G2 8 VH UV CFP 9403L F96 T8HO
NVL F G2 8 VH UV CFP 9503L F96 T8HO
*NOTE: Fixture equivalencies are estimates only and should be confirmed by photometric analysis or sample install to ensure adequate light levels are achieved.
Catalog #
ImageSpec Sheet.ies & .pdf files
NVL F G2 4 VL UV CFP 930View Download Contact Factory
NVL F G2 4 VL UV CFP 935View Download Contact Factory
NVL F G2 4 VL UV CFP 940View Download Contact Factory
NVL F G2 4 VL UV CFP 950View Download Contact Factory
NVL F G2 4 LW UV CFP 930View Download Contact Factory
NVL F G2 4 LW UV CFP 935View Download Contact Factory
NVL F G2 4 LW UV CFP 940View Download Contact Factory
NVL F G2 4 LW UV CFP 950View Download Contact Factory
NVL F G2 4 MD UV CFP 930View Download Contact Factory
NVL F G2 4 MD UV CFP 935View Download Contact Factory
NVL F G2 4 MD UV CFP 940View Download Contact Factory
NVL F G2 4 MD UV CFP 950View Download Contact Factory
NVL F G2 4 HI UV CFP 930View Download Contact Factory
NVL F G2 4 HI UV CFP 935View Download Contact Factory
NVL F G2 4 HI UV CFP 940View Download Contact Factory
NVL F G2 4 HI UV CFP 950View Download Contact Factory
NVL F G2 4 VH UV CFP 930View Download Contact Factory
NVL F G2 4 VH UV CFP 935View Download Contact Factory
NVL F G2 4 VH UV CFP 940View Download Contact Factory
NVL F G2 4 VH UV CFP 950View Download Contact Factory
NVL F G2 8 SL UV CFP 930View Download Contact Factory
NVL F G2 8 SL UV CFP 935View Download Contact Factory
NVL F G2 8 SL UV CFP 940View Download Contact Factory
NVL F G2 8 SL UV CFP 950View Download Contact Factory
NVL F G2 8 VL UV CFP 930View Download Contact Factory
NVL F G2 8 VL UV CFP 935View Download Contact Factory
NVL F G2 8 VL UV CFP 940View Download Contact Factory
NVL F G2 8 VL UV CFP 950View Download Contact Factory
NVL F G2 8 LW UV CFP 930View Download Contact Factory
NVL F G2 8 LW UV CFP 935View Download Contact Factory
NVL F G2 8 LW UV CFP 940View Download Contact Factory
NVL F G2 8 LW UV CFP 950View Download Contact Factory
NVL F G2 8 MD UV CFP 930View Download Contact Factory
NVL F G2 8 MD UV CFP 935View Download Contact Factory
NVL F G2 8 MD UV CFP 940View Download Contact Factory
NVL F G2 8 MD UV CFP 950View Download Contact Factory
NVL F G2 8 MH UV CFP 930View Download Contact Factory
NVL F G2 8 MH UV CFP 935View Download Contact Factory
NVL F G2 8 MH UV CFP 940View Download Contact Factory
NVL F G2 8 MH UV CFP 950View Download Contact Factory
NVL F G2 8 HI UV CFP 930View Download Contact Factory
NVL F G2 8 HI UV CFP 935View Download Contact Factory
NVL F G2 8 HI UV CFP 940View Download Contact Factory
NVL F G2 8 HI UV CFP 950View Download Contact Factory
NVL F G2 8 VH UV CFP 930View Download Contact Factory
NVL F G2 8 VH UV CFP 935View Download Contact Factory
NVL F G2 8 VH UV CFP 940View Download Contact Factory
NVL F G2 8 VH UV CFP 950View Download Contact Factory

foodjpg

Ideal for food and meat processing

The Altor NVLF G2 is bacteria and debris resistant, with minimal external features that limit particulate accumulation. A true water seal means no condensation will get inside the fixture. It's easy to clean: the dust-tight, IP66-rated enclosure can withstand high pressure water jets.

Ideal for food and meat processing

The Altor NVLF G2 is bacteria and debris resistant, with minimal external features that limit particulate accumulation. A true water seal means no condensation will get inside the fixture. It's easy to clean: the dust-tight, IP66-rated enclosure can withstand high pressure water jets.

foodjpg
NVLMountingOptionsUpdated

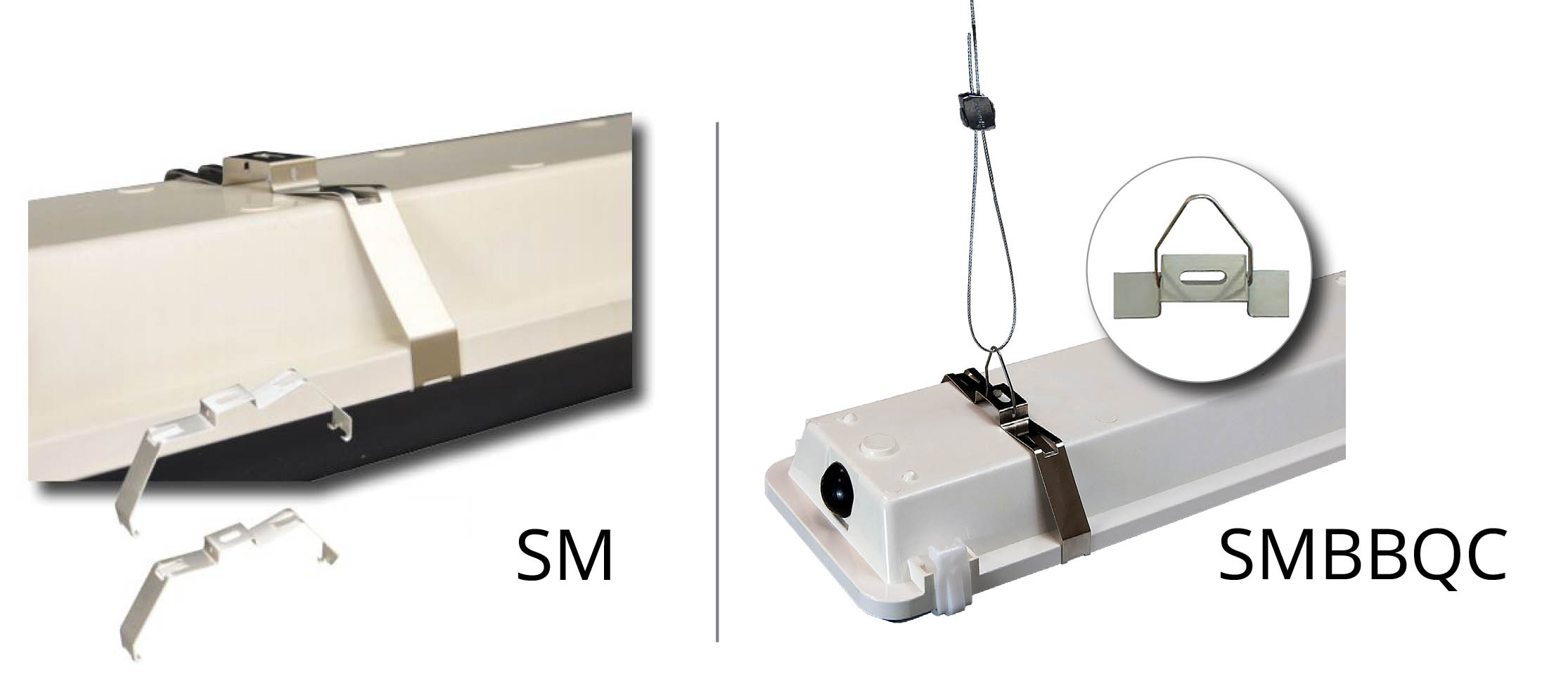

Mounting options

The NVLF G2 can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10' quick hang cable kit (the SMBBQC option) or a 20' quick hang cable kit (SMBBQC20).

NVLMountingOptionsUpdated

Mounting options

The NVLF G2 can be hung with a surface mounting bracket (SM) or a mounting bracket bail (SMBB). The SMBB can be included with a 10' quick hang cable kit (the SMBBQC option) or a 20' quick hang cable kit (SMBBQC20).
